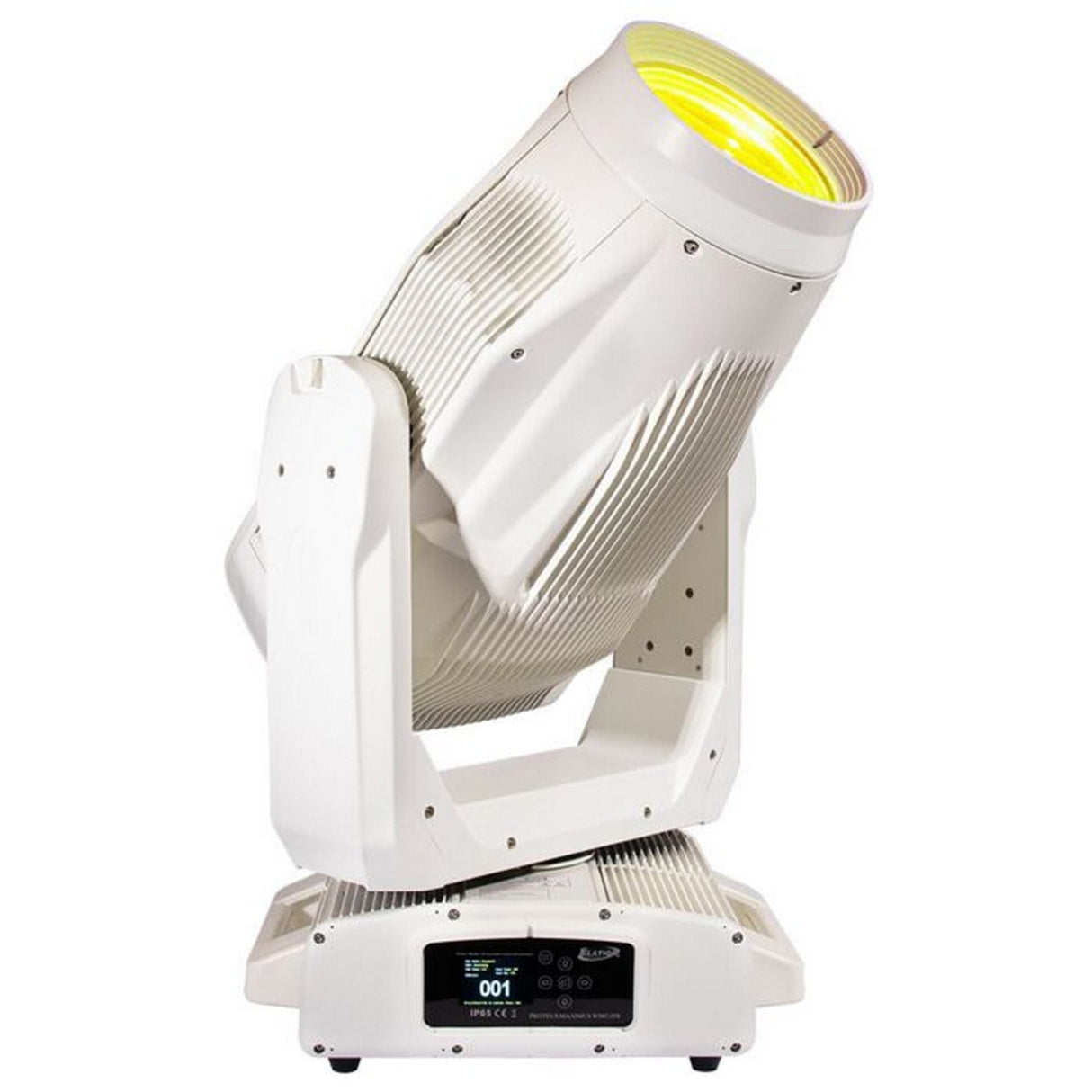

Elation Proteus Maximus WMG High Efficiency 950W 6,500K White LED Fixture
The PROTEUS MAXIMUS WMG is an extremely bright IP65 ratedLED Profile fixture offering outstanding projection, beam and wash qualities inany environment. Provided in White Marine Grade (WMG) coating it is designed towithstand the harsh exterior conditions of marine environments found in shipand shore based installations. An optional Hardwire option is available onrequest. Providing up to 50.000 lumens from its custom designed 950W 6,500K LEDengine the Proteus Maximus is the ideal fixture for any outdoor application requiringsuperior output, bright and powerful beams, quiet operation as well asstunningly precise gobos and colors. Proteus Maximus provides the designer acomprehensive FX package with 6 rotating and 7 fixed glass gobos, fullanimation wheel, dual prisms, dual frost and a high-speed Iris. Its indexableframing system provides full blackout shutter cuts for precise beam shapecontrol.
Key Features
- High Efficiency 950W 6,500K White LED Engine
- Up to 50.000 Total Lumen Fixture Output
- CMY Color Mixing and Variable CTO
- 6 Position Color Wheel, High CRI, UV filter
- Complete FX System featuring Rotating and Fixed Gobos,Animation, Iris, Dual Prism, Dual Frost
- Indexable Full Blackout Framing System
- Wide Zoom Range from 5.5 to 55 / Large 180mm FrontAperture
- White Marine Grade Housing
- Customizable Hardwire Option
- FIL (Foam In Lay) Polyurethane Foam Packaging Included
Technical Specifications
SOURCE
950W 6,500K Bright White LED Engine
30,000 Hour Average LED Life*
PHOTOMETRIC DATA
50,000 Total Lumen Output
CRI 70+ (82+ with HCRI Filter)
2:1 Hotspot Ratio
Zoom Range 5.5 - 55
Beam Angle 4.8 - 41.2
Field Angle 6.1 - 51
EFFECTS
Motorized Zoom (Large 180mm Front Aperture)
4 Rotating Full Blackout Framing Blades
+/-45 Framing Indexing
Full 360 Bi-Directional Animation Wheel
4-Facet and Linear Rotating Prisms
2 Variable Frost Filters (Light and Wash)
Internal Color, Framing, Prism, and Frost Macros
Motorized Iris with Variable Pulse Effects
Variable 16-bit Dimming Curve Modes
High Speed Electronic Shutter and Strobe
DMX Controllable LED Refresh Rate
