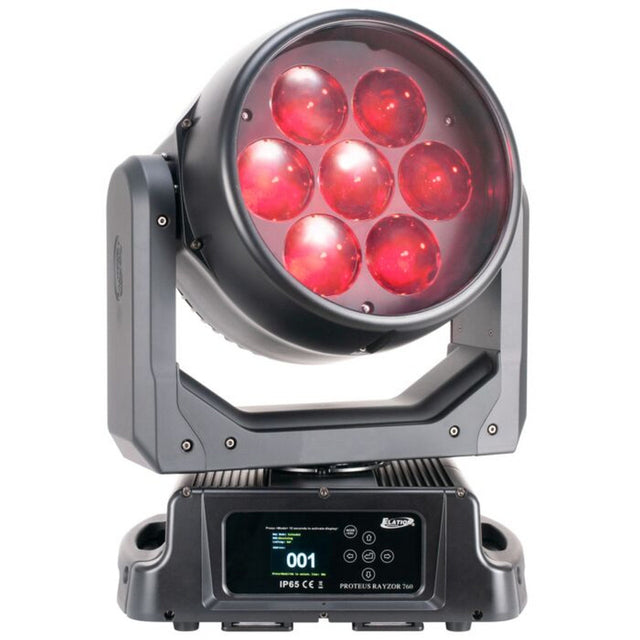

Elation Proteus Rayzor 760 7x 60W OSRAM RGBW LED Wash Fixture

Elation Proteus Rayzor 760 7x 60W OSRAM RGBW LED Wash Fixture

The Proteus Rayzor 760 is a compact yet extremely powerful IP65 rated Wash Effects fixture featuring Elation’s unique SparkLED system and fast continuous Pan and Tilt motion. With its wide zoom range from 5 to 77 degrees it provides intense and well-defined mid-air beams at over 7,200 lumens as well as an exceptionally wide and even wash coverage, making it a perfect tool for any application, even in adverse outdoor conditions. SparkLEDs offer a prominent and innovative LED pixel effect with dedicated high brightness pixels inside the large front lenses for additional layers of creativity.

Key Features

• IP65 Rated LED Wash Effects Fixture
• 7x 60W OSRAM RGBW LED with Pixel Control
• 28x 2W SparkLED Effect with Pixel Control (patent pending)
• Extreme Zoom - 5° for mid-air beam to 77° for even washes
• Fast and precise 360° continuous Pan and Tilt rotation
• Beam FX and Smooth Wash fixture in a compact IP65 certified housing

Technical Specifications

SOURCE
(7) 60W Osram RGBW LEDs
(28) 2W White SparkLED
50,000 Hour Average LED Life*
PHOTOMETRIC DATA
7,200 Total Lumen Output
CRI 80
Zoom Range 5° - 77°
Beam Angle 5.4° - 56.4°
Field Angle 8.1° - 74°
EFFECTS
Motorized Zoom
Linear Color Temperature Presets (2700-8000K)
RGBW Color Mixing and Pixel Control
White SparkLED Lens Effect
Color Presets and Macros
Electronic Strobe and Variable Dimming Curves
16-bit Dimming
CONTROL / CONNECTIONS
3 DMX Channel Modes (25 / 52 / 80 channels)
360° Continuous Pan and Tilt Movement
DMX Adjustable Refresh Rate (900 -25000 Hz)
(6) Button Touch Panel
Full Color 180° Reversible LCD Menu Display
RDM Support
IP65 5pin XLR DMX In/Out
IP65 RJ45 Ethernet In/Out (Art-Net, sACN)
IP65 Locking Power Cable In
With Wired Digital Communication Network
SIZE / WEIGHT
Length
14.31 in (363.4mm)
Width
10.24 in (259.97mm)
Height
19.43 in (493.44mm)
Weight
41.0 lbs. (18.6kg)
