Elation Proteus Rayzor 760 WMG 7x 60W OSRAM RGBW LED Fixture
Description
Description

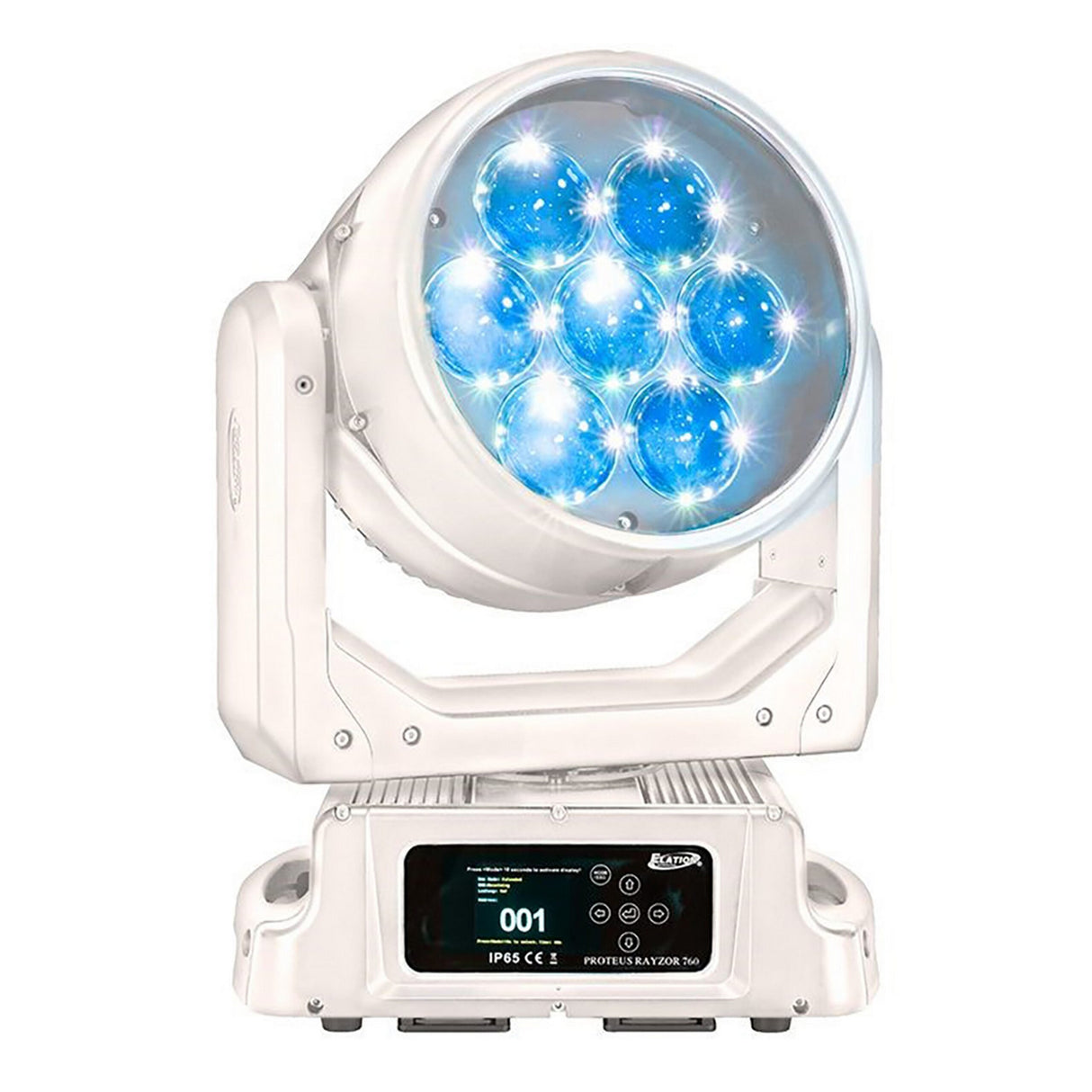

Elation Proteus Rayzor 760 WMG 7x 60W OSRAM RGBW LED Fixture
The Proteus Rayzor 760 WMG is a compact yet extremelypowerful IP65 rated Wash Effects fixture featuring Elation’s unique SparkLEDsystem and fast continuous Pan and Tilt motion. Provided in White Marine Grade(WMG) coating it is designed to withstand the harsh exterior conditions ofmarine environments found in ship and shore based installations. An optionalHardwire option is available on request. With its wide zoom range from 5 to 77degrees it provides intense and well-defined mid-air beams at over 7,200 lumensas well as an exceptionally wide and even wash coverage, making it a perfecttool for any application, even in adverse outdoor conditions. SparkLEDs offer aprominent and innovative LED pixel effect with dedicated high brightness pixelsinside the large front lenses for additional layers of creativity.
Key Features
- IP65 Rated LED Wash Effects Fixture
- 7x 60W OSRAM RGBW LED with Pixel Control
- 28x 2W SparkLED Effect with Pixel Control (patent pending)
- Extreme Zoom - 5 for mid-air beam to 77 for even washes
- Fast and precise 360 continuous Pan and Tilt rotation
- Beam FX and Smooth Wash fixture in a compact IP65 certifiedhousing
- White Marine Grade Housing
- Customizable Hardwire Option
Technical Specifications
SOURCE
(7) 60W Osram RGBW LEDs
(28) 2W White SparkLED
50,000 Hour Average LED Life*
PHOTOMETRIC DATA
7,200 Total Lumen Output
CRI 80
Zoom Range
5 - 77
Beam Angle
5.4 - 56.4
Field Angle
8.1 - 74
EFFECTS
Motorized Zoom
Linear Color Temperature Presets (2700-8000K)
RGBW Color Mixing and Pixel Control
White SparkLED Lens Effect
Color Presets and Macros
Electronic Strobe and Variable Dimming Curves
16-bit Dimming
CONTROL / CONNECTIONS
3 DMX Channel Modes (25 / 52 / 80 channels)
360 Continuous Pan and Tilt Movement
DMX Adjustable Refresh Rate (900 -25000 Hz)
(6) Button Touch Panel
Full Color 180 Reversible LCD Menu Display
RDM Support
IP65 5pin XLR DMX In/Out*
IP65 RJ45 Ethernet In/Out (Art-Net, sACN)*
IP65 Locking Power Cable In*
SIZE / WEIGHT
Length
14.31 in (363.4mm)
Width
10.24 in (259.97mm)
Height
19.43 in (493.44mm)
Weight
41.0 lbs. (18.6kg)
