Description

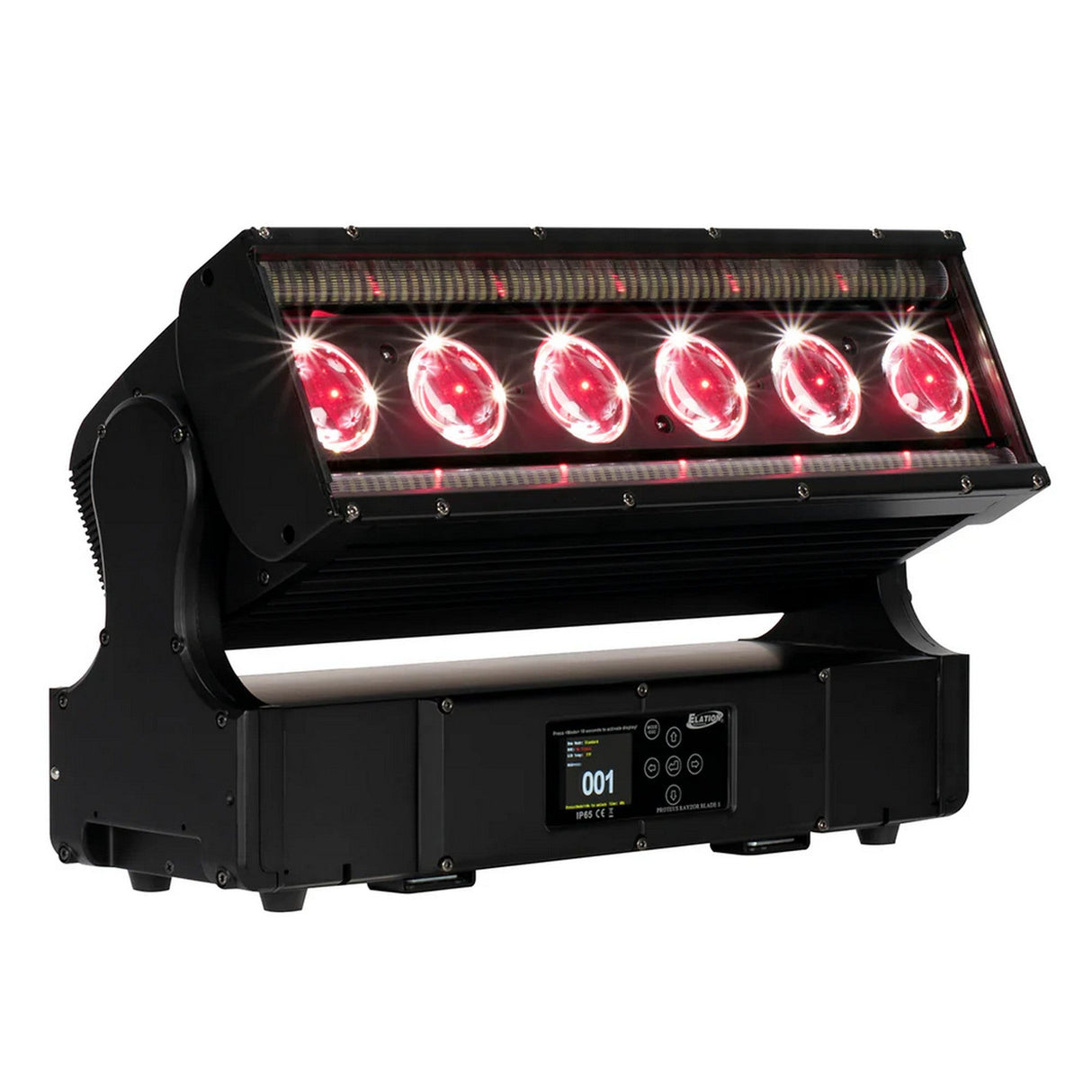

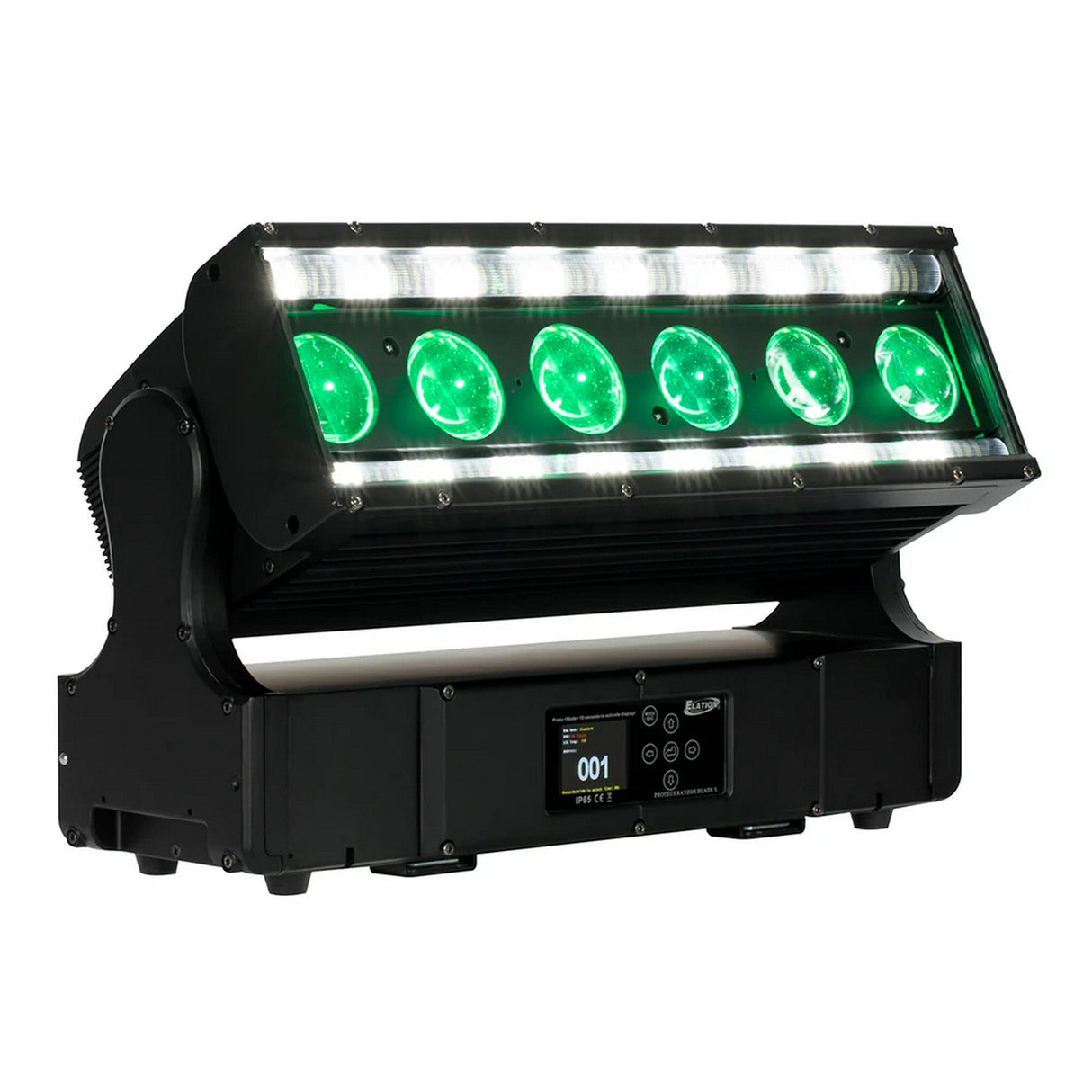

Elation PROTEUS RAYZOR BLADE S 6x 60W RGBW LED IP65 Linear Wash Effect Fixture
The ELATION PROTEUS RAYZOR BLADE S is a professional-grade LED wash and effects fixture designed for both indoor and outdoor use - thanks to its rugged IP65-rated, weather-resistant housing. It combines powerful RGBW wash LEDs, high-intensity strobe lines, and the brand’s patented SparkLED technology into a compact, tilt-capable form factor - giving lighting designers a versatile tool to create everything from tight mid-air beams to wide washes and dramatic strobe effects.
With six 60 W Osram RGBW LEDs at its core, the Rayzor Blade S pushes out a substantial 6,000 lumens of RGBW output - enough to cut through haze and fill spaces with vivid, saturated color. The built-in SparkLED system adds an extra layer of creative control: individual white LED “spark” pixels embedded in the front lens deliver distinctive visual depth, perfect for layered effects and dynamic looks.
Beyond wash and SparkLED effects, this fixture packs dual white strobe lines (128 total 1 W LEDs), full pixel-level control, motorized zoom (6°-45°), and 192° tilt - enabling sweeping washes, fast strobe bursts, and precisely controlled beam shaping.All of this comes in a compact package that’s built to endure the rigors of touring, outdoor events, or fixed installations where durability and flexibility matter most.
Key Features
- Compact IP65-rated linear wash & effects fixture - ideal for indoor or outdoor events.
- 6 x 60 W Osram RGBW LEDs - rich, saturated colors with full RGBW mixing.
- Patented SparkLED effect - 24 x 2 W white SparkLED for unique pixel-level lens illumination and creative layering.
- Dual high-intensity white strobe lines - 128 x 1 W LEDs for powerful strobe and strobing effects.
- Motorized zoom from narrow 6° mid-air beams to wide 45° washes - ideal for beam effects, washes, and audience blinders.
- Wide tilt coverage (192°) for flexible aiming and dynamic movement.
- Full pixel control for Wash, SparkLED, and Strobe LEDs - enabling complex effects and pixel-mapped animations.

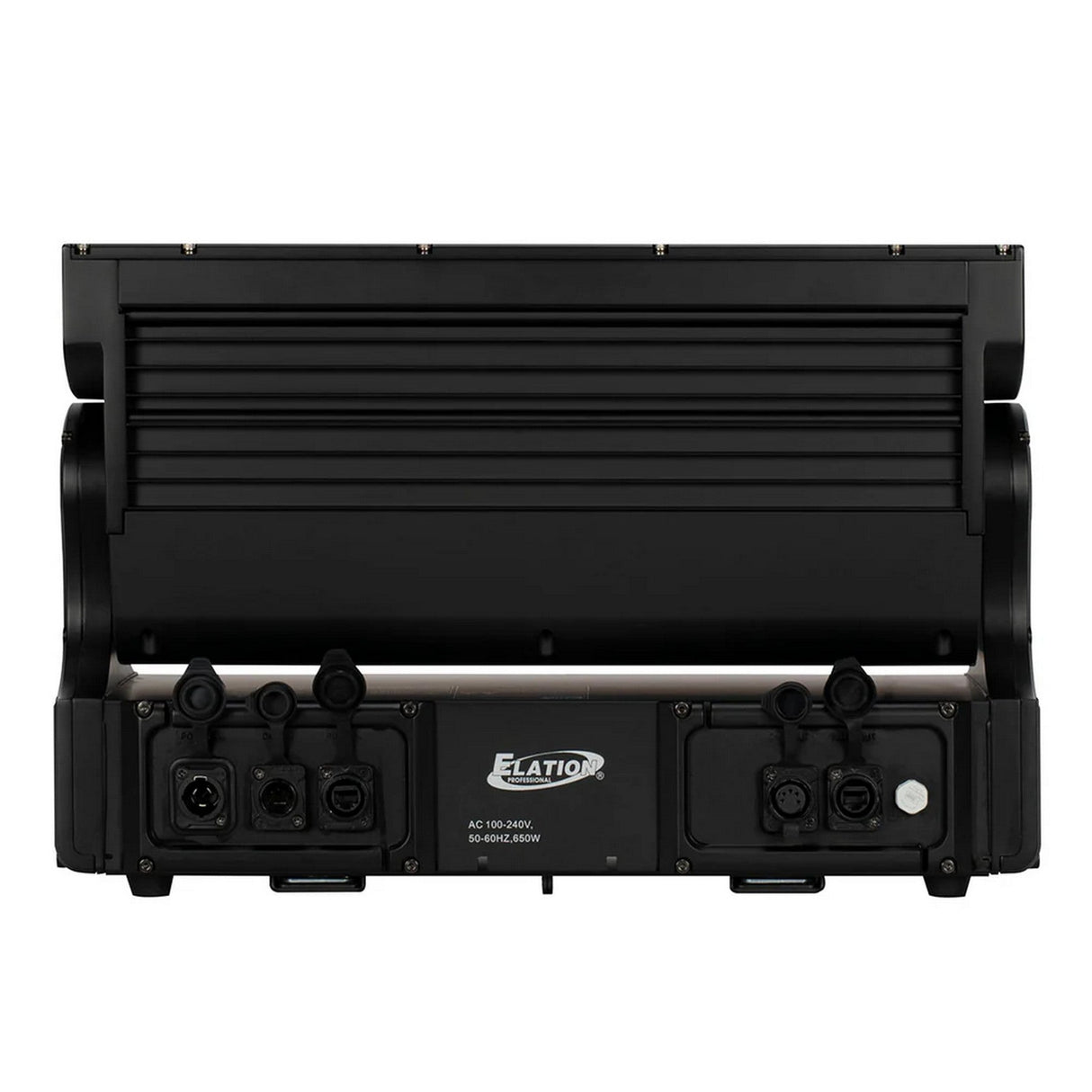

- Extensive control & connectivity: DMX, RDM, Art-Net, sACN support; 6-button touch panel + full-color 180° reversible LCD; IP65 5-pin XLR DMX I/O, IP65 RJ45 Ethernet, and IP65 locking power input.
Technical Specifications
Source: 6 x 60 W Osram RGBW LEDs; 24 x 2 W White SparkLED; 128 x 1 W Strobe LED - 50,000-hour average LED life (test lab conditions).
Photometric Data: 6,000 total lumens (RGBW); CRI 80; Zoom range 6°-45°; SparkLED color temperature 4000 K; Strobe line color temperature 6500 K.
Effects: Motorized Zoom; Linear color-temperature presets (2700-8000 K); RGBW color mixing & full pixel control; White SparkLED lens effect; Dual white strobe lines (64 pixels per side); Color presets and macros; Electronic strobe with variable dimming curves; 16-bit dimming; Tilt angle 192°.
Control / Connections: 6 DMX channel modes (28/50/82/66/72/106 ch); pixel-controlled wash, SparkLED, and strobe; DMX adjustable refresh rate (900-25,000 Hz); 6-button touch panel; full-color 180° reversible LCD menu; RDM support; IP65 5-pin XLR DMX In/Out; IP65 RJ45 Ethernet In/Out (Art-Net, sACN); IP65 locking power cable input.
Size / Weight (approx.): Length 19.8″; Base width 7.6″; Head width 6.1″; Height (head up) 13.2″; Height (head 90°) 11.3″; Weight 39.4 lb.
Electrical / Thermal: AC 100-240 V, 50/60 Hz; Maximum power consumption 700 W; Operating ambient temperature -4 °F to 113 °F.
