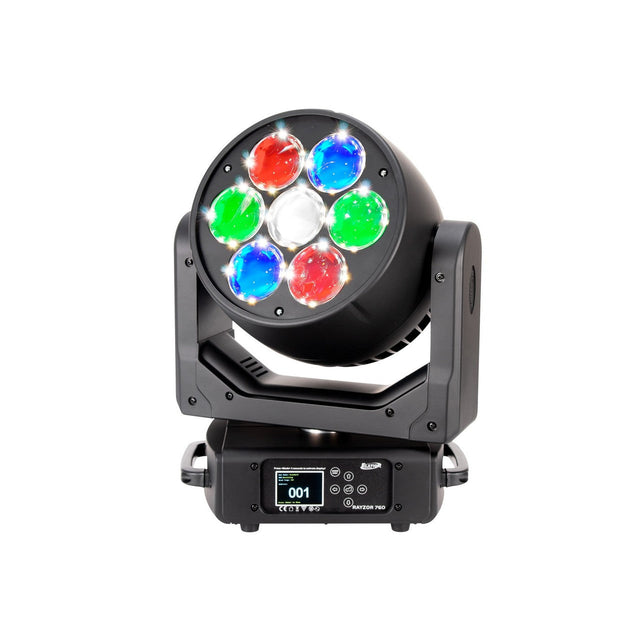

Elation Rayzor 760 7 x 60W Osram RGBW 8000K Lumen LED Light with Pixel Control
The Rayzor 760 is a compact yet extremely powerful Wash Effects fixture featuring Elation’s unique SparkLED system and fast continuous Pan and Tilt motion. With its wide zoom range from 5 to 77 degrees it provides intense and well-defined mid-air beams at over 8,000 lumens as well as an exceptionally wide and even wash coverage, making it a perfect tool for any application, even in adverse outdoor conditions. SparkLEDs offer a prominent and innovative LED pixel effect with dedicated high brightness pixels inside the large front lenses for additional layers of creativity.
Key Features
- 7x 60W OSRAM RGBW LED with Pixel Control
- 28x 2W SparkLED Effect with Pixel Control (patent pending)
- Extreme Zoom - 5 for mid-air beam to 77 for even washes
- Fast and precise 360 continuous Pan and Tilt rotation
- Beam FX and Smooth Wash fixture in a compact housing
Technical Specifications
SOURCE
(7) 60W Osram RGBW LEDs
(28) 2W White SparkLED
50,000 Hour Average LED Life*
PHOTOMETRIC DATA
8,000K Total Output Lumen (preliminary)
EFFECTS
5 - 77 Beam Zoom Angle
Linear Color Temperature Presets (2700-8000K)
RGBW Color Mixing and Pixel Control
White SparkLED Lens Effect
Color Presets and Macros
Electronic Strobe and Variable Dimming Curves
16-bit Dimming
CONTROL / CONNECTIONS
3 DMX Channel Modes
360 Continuous Pan and Tilt Movement
DMX Adjustable Refresh Rate (900 -25000 Hz)
(6) Button Touch Panel
Full Color 180 Reversible LCD Menu Display
RDM Support
5pin XLR DMX In/Out
RJ45 EtherCon In/Out (Art-Net, sACN)
PowerCON TRUE1 Power In/Out
USB Connection (Firmware Updates)
With Wired Digital Communication Network
SIZE / WEIGHT
Length
343mm (13.5 in)
Width
264mm (10.3 in)
Height
415mm (16.33 in)
Weight
11kg (24.3 lbs.)
ELECTRICAL
AC 100-240V 50/60Hz
600W Max Power Consumption (estimated)
