Elation Seven Batten 14 Wash Luminaire with 7-in-1 RGBAW/Lime/UV LEDs

Elation Seven Batten 14 Wash Luminaire with 7-in-1 RGBAW/Lime/UV LEDs

The SEVEN Batten 14 is a seven color 1.2 foot (0.4m) long batten wash luminaire with (12) 25W 7-in-1 RGBAW + Lime + UV (395nm) LEDs. Features include individual hue, saturation, and intensity control, special RGB SEVEN 3 channel mode (RGB + dynamic white, amber, lime, and UV), 2 pixel mapping zones with pixel flip mode, smooth color mixing, 12 internal programs with speed and fade control, 64 unique 7-color macros, selectable dimming curve modes, adjustable LED refresh rate and gamma brightness for flicker free operation for TV and FILM, DMX Art-Net, Kling-Net, and RDM (Remote Device Management) protocol support, 3/5pin DMX, RJ45 ethernet, and Locking Power in/out connections, a 220° manual tilt adjustable mounting bracket, OLED menu display with a 4-button control panel, a multi-voltage universal auto switching power supply (100-240v), a rugged powder coated die-cast aluminum exterior, and an integrated gel / frost filter slot.

Key Features

• 1.2 Foot (0.4m) Seven Color Batten Wash Luminaire
• (12) 25W 7-in-1 RGBAW + Lime + UV (395nm) LEDs
• Individual Hue, Saturation, and Intensity Control
• Special RGB SEVEN 3 Channel Mode (RGB + Dynamic White, Amber, Lime, UV)
• 2 Pixel Mapping Zones with Pixel Flip Mode
• Smooth Color Mixing, Internal Programs with Speed and Fade Control
• 64 Unique 7-Color Macros
• Selectable 16-bit Dimming Curve Modes
• DMX Adjustable LED Refresh Rate
• Adjustable LED Gamma Brightness
• Flicker Free Operation for TV and FILM
• Art-Net, Kling-Net, and RDM Protocol Support

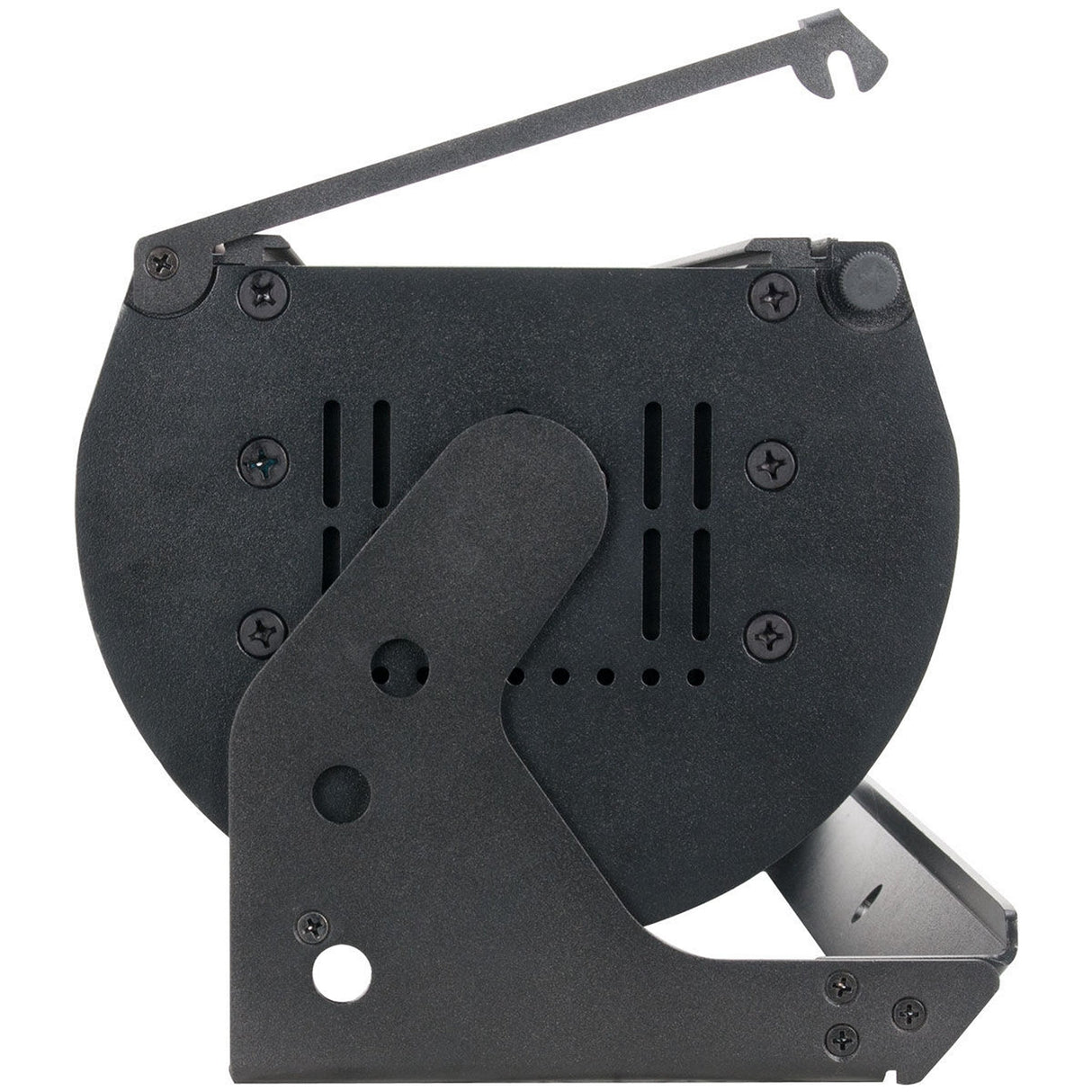

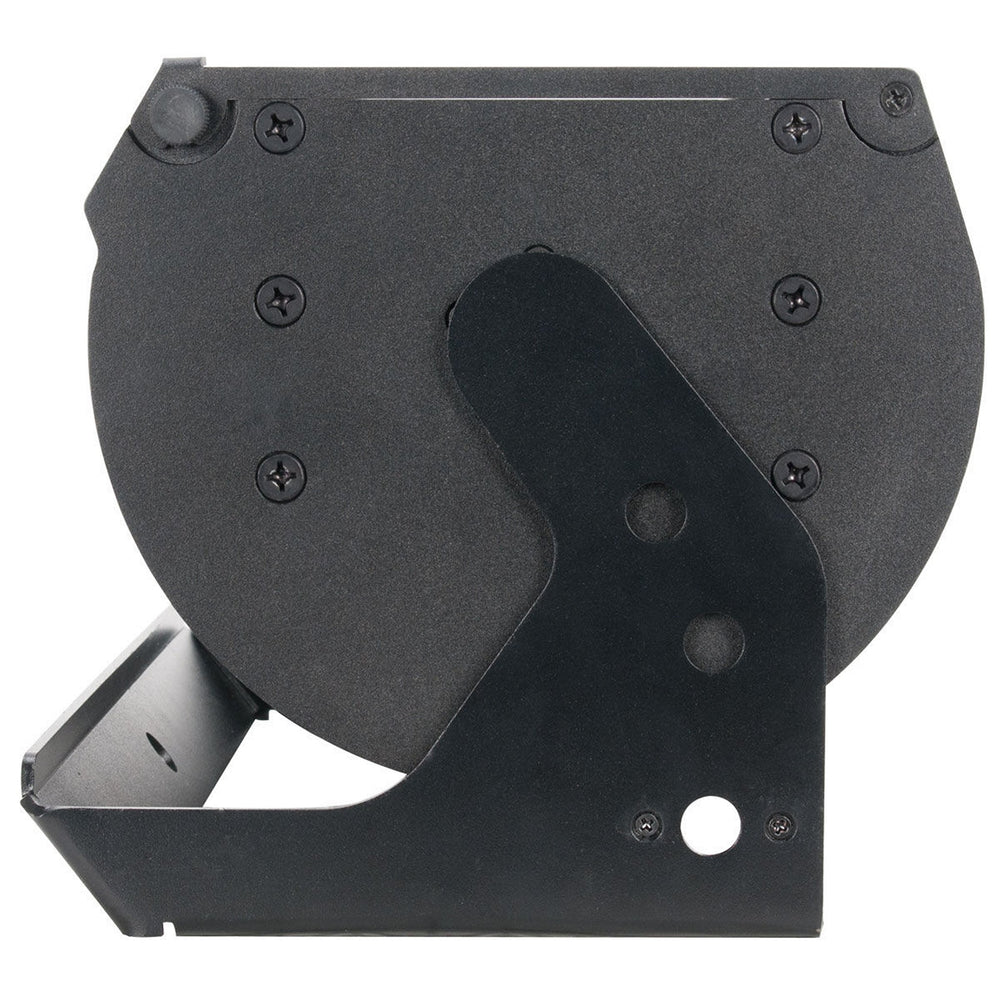

• 220° Manual Tilt Adjustable Mounting Bracket
• Rugged Powder Coated Die-Cast Aluminum Exterior

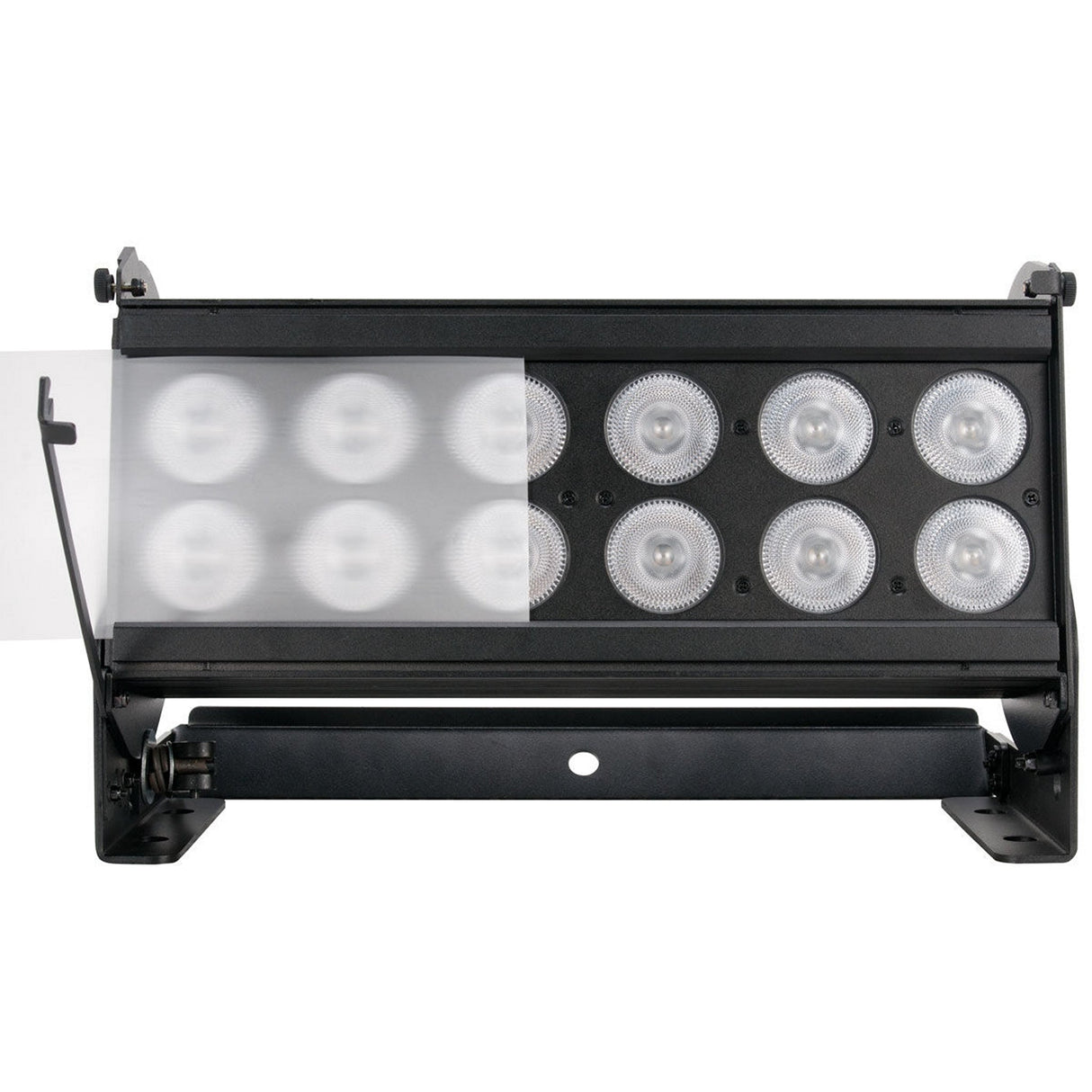

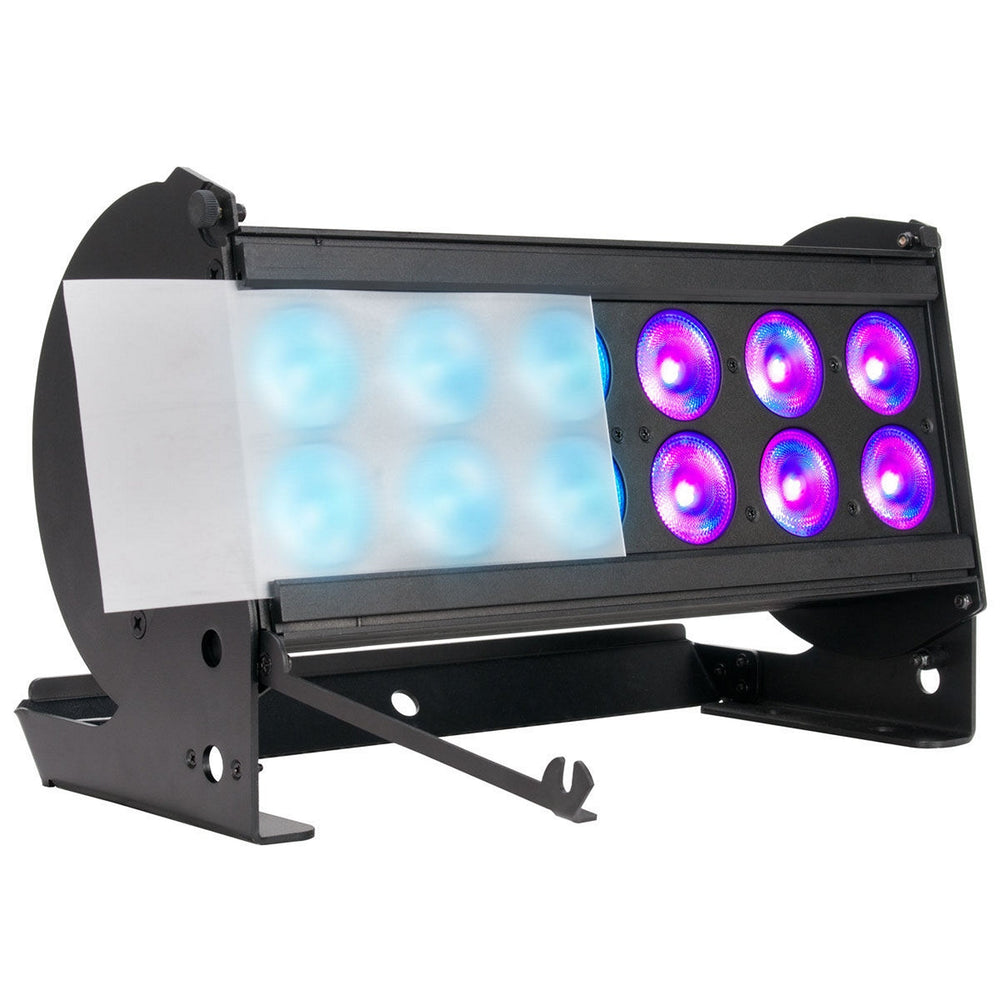

• Integrated Gel / Frost Filter Slot

Technical Specifications

SOURCE
(12) 25W 7-IN-1 RGBAW + Lime + UV LEDs
50,000 Hour Average LED Life*
EFFECTS
Individual Hue, Saturation, and Intensity Control
Special RGB SEVEN 3 Channel DMX Mode (RGB + Dynamic White, Amber, Lime, UV)
2 Pixel Mapping Zones with Pixel Flip Mode
12 Internal Program Macros with Speed and Fade Control
64 Unique 7-Color Macros
Selectable 16-bit Dimming Curve Mode
COLOR
RGBAW + Lime + UV (395nm)
CONTROL / CONNECTIONS
12 DMX Channel Modes (22 total channels)
DMX and Manual Control
4 Button Control Panel
180° Reversible OLED Menu Display
DMX Adjustable LED Refresh Rate (900-28,800 (Hz)
Adjustable LED Gamma Brightness (2.0, 2.2, 2.4, 2.8)
Art-Net, Kling-Net, and RDM Remote Device Management) Protocol Support

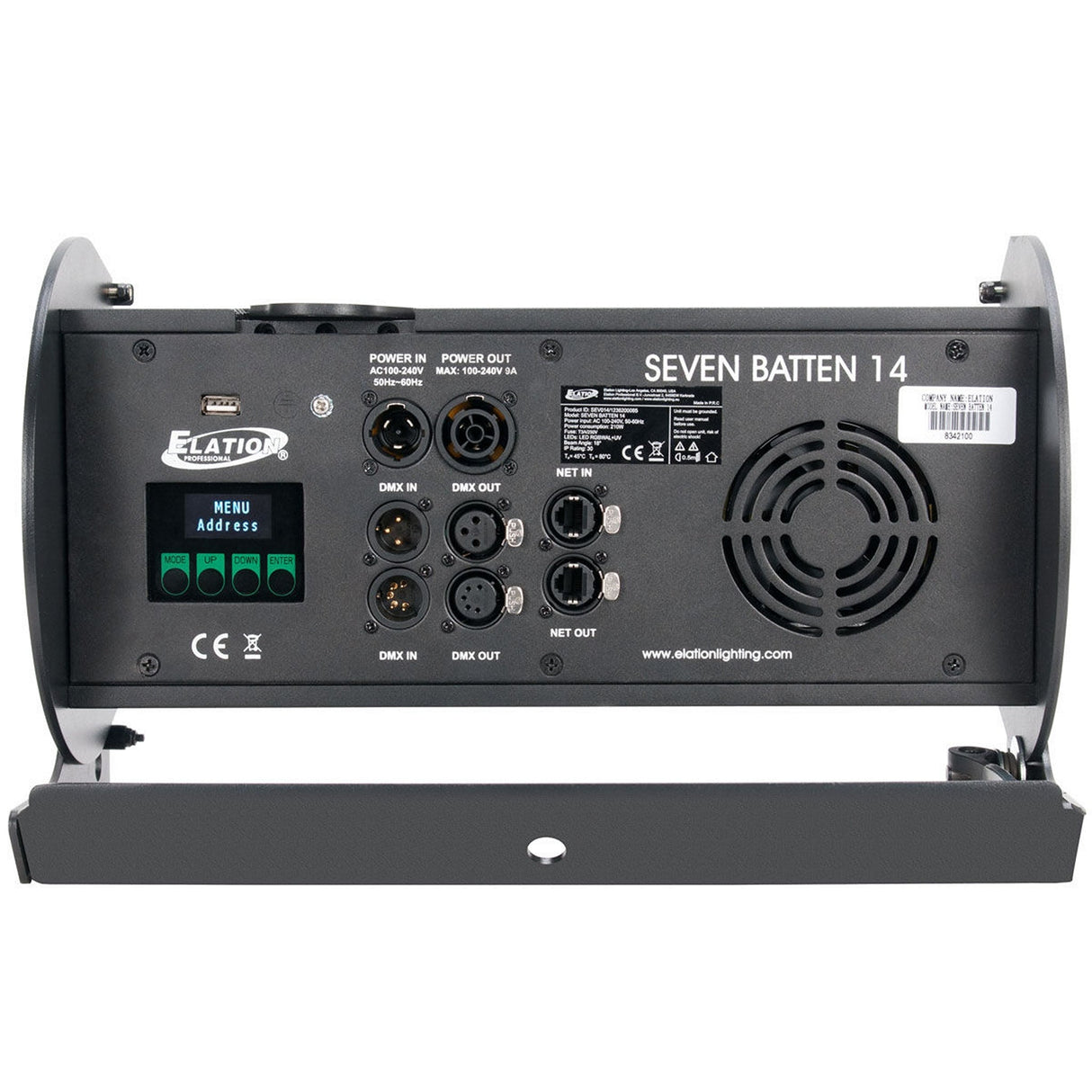

3/5pin DMX, RJ45 ethernet, and Locking Power In/Out
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 14.0” (355.6mm)
Width: 4.5” (114.3mm)
Vertical Height: 9.0” (228.6mm)
Weight: 17.0 lbs. (7.7kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
201W Max Power Consumption
14°F to 113°F (-10°C to 45°C)
