Elation Seven Batten 42 25 Watt 7-in-1 RGBAW/ Lime/UV Wash Luminaire LED Light

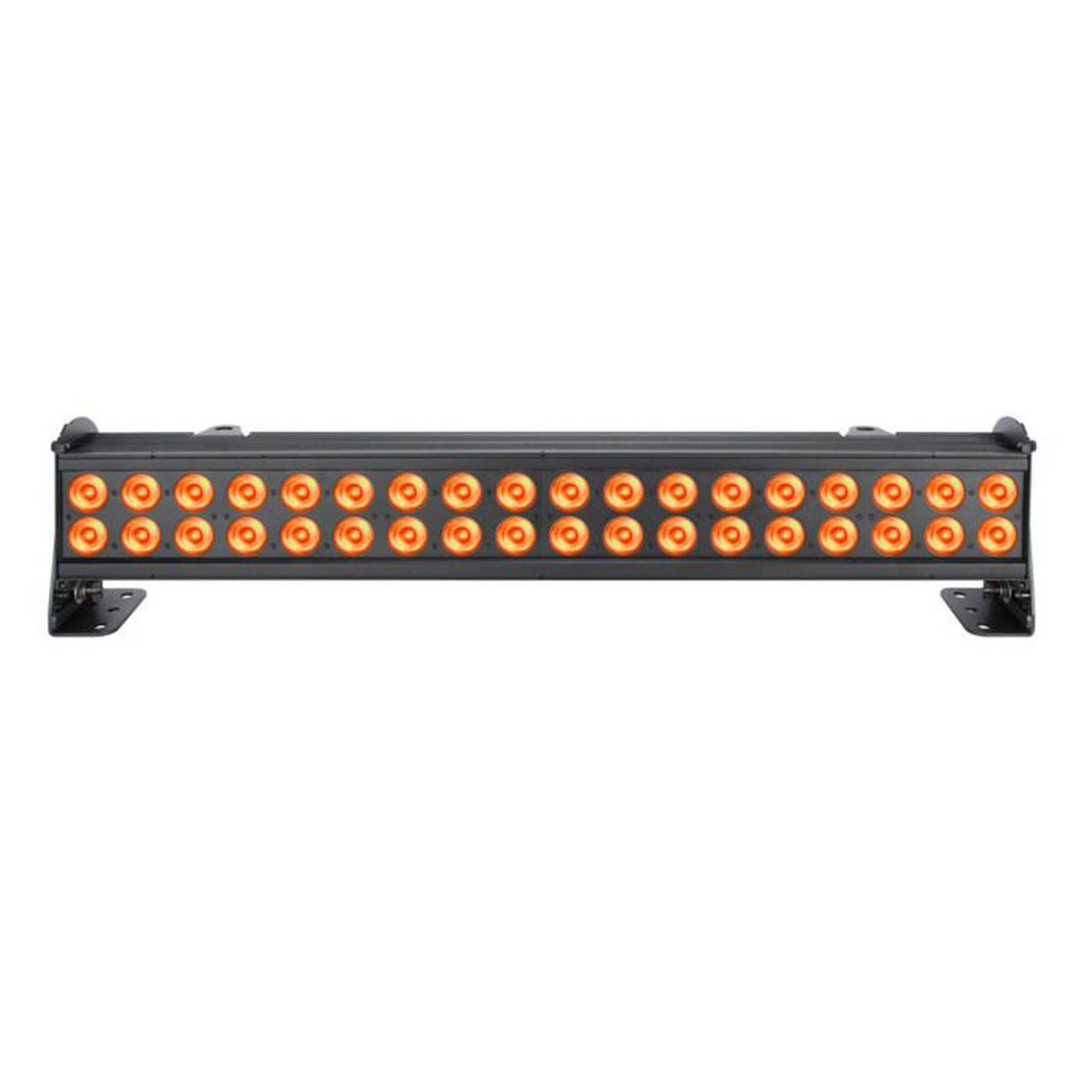

The SEVEN Batten 42 is a seven color 3.5 foot (1m) long batten wash luminaire with (36) 25W 7-in-1 RGBAW + Lime + UV (395nm) LEDs. Features include individual hue, saturation, and intensity control, special RGB SEVEN 3 channel mode (RGB + dynamic white, amber, lime, and UV), 6 pixel mapping zones with pixel flip mode, smooth color mixing, 12 internal programs with speed and fade control, 64 unique 7-color macros, selectable dimming curve modes, adjustable LED refresh rate and gamma brightness for flicker free operation for TV and FILM, DMX Art-Net, Kling-Net, and RDM (Remote Device Management) protocol support, 3/5pin DMX, RJ45 etherCON, and power in/out connections, dual 220° manual tilt adjustable mounting brackets, OLED menu display with a 4-button control panel, a multi-voltage universal auto switching power supply (100-240v), a rugged powder coated die-cast aluminum exterior, and an integrated gel / frost filter slot.
Key Features
- 3.5 Foot (1m) Seven Color Batten Wash Luminaire
- (36) 25W 7-in-1 RGBAW + Lime + UV (395nm) LEDs
- Individual Hue, Saturation, and Intensity Control
- Special RGB SEVEN 3 Channel Mode (RGB + Dynamic White, Amber, Lime, UV)
- 6 Pixel Mapping Zones with Pixel Flip Mode
- Smooth Color Mixing, Internal Programs with Speed and Fade Control
- 64 Unique 7-Color Macros
- Selectable 16-bit Dimming Curve Modes
- Adjustable LED Refresh Rate + Gamma Brightness
- Flicker Free Operation for TV and FILM
- Art-Net, Kling-Net, and RDM Protocol Support
- Dual 220° Manual Tilt Adjustable Mounting Brackets
- Rugged Powder Coated Die-Cast Aluminum Exterior
- Integrated Gel / Frost Filter Slot
Technical Specifications
SOURCE
(36) 25W 7-IN-1 RGBAW + Lime + UV LEDs
50,000 Hour Average LED Life*
EFFECTS
Individual Hue, Saturation, and Intensity Control
Special RGB SEVEN 3 Channel DMX Mode (RGB + Dynamic White, Amber, Lime, UV)
6 Pixel Mapping Zones with Pixel Flip Mode
12 Internal Program Macros with Speed and Fade Control
64 Unique 7-Color Macros
Selectable 16-bit Dimming Curve Mode
COLOR
RGBAW + Lime + UV (395nm)
CONTROL / CONNECTIONS
10 DMX Channel Modes (50 total channels)
DMX and Manual Control
4 Button Control Panel
180° Reversible OLED Menu Display
Adjustable Refresh Rate (900-28,800 (Hz)
Adjustable Gamma Brightness (2.0, 2.2, 2.4, 2.8)
Art-Net, Kling-Net, and RDM Remote Device Management) Protocol Support
3/5pin DMX, RJ45 etherCON, and Power In/Out
With Wired Digital Communication Network
SIZE / WEIGHT
Length
42.0” (1066.8mm)
Width
4.5” (114.3mm)
Vertical Height
9.0” (228.6mm)
Weight
39.0 lbs. (17.7kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
614W Max Power Consumption
5°F to 113°F (-15°C to 45°C)
