Elation SIX+ BAR L 20W RGBLA+UV LED Batten Fixture, IP65 Rated
Free Shipping
More finance options:
Estimated Shipping Widget will be displayed here!
Most orders placed before 10:00am PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Condition: New

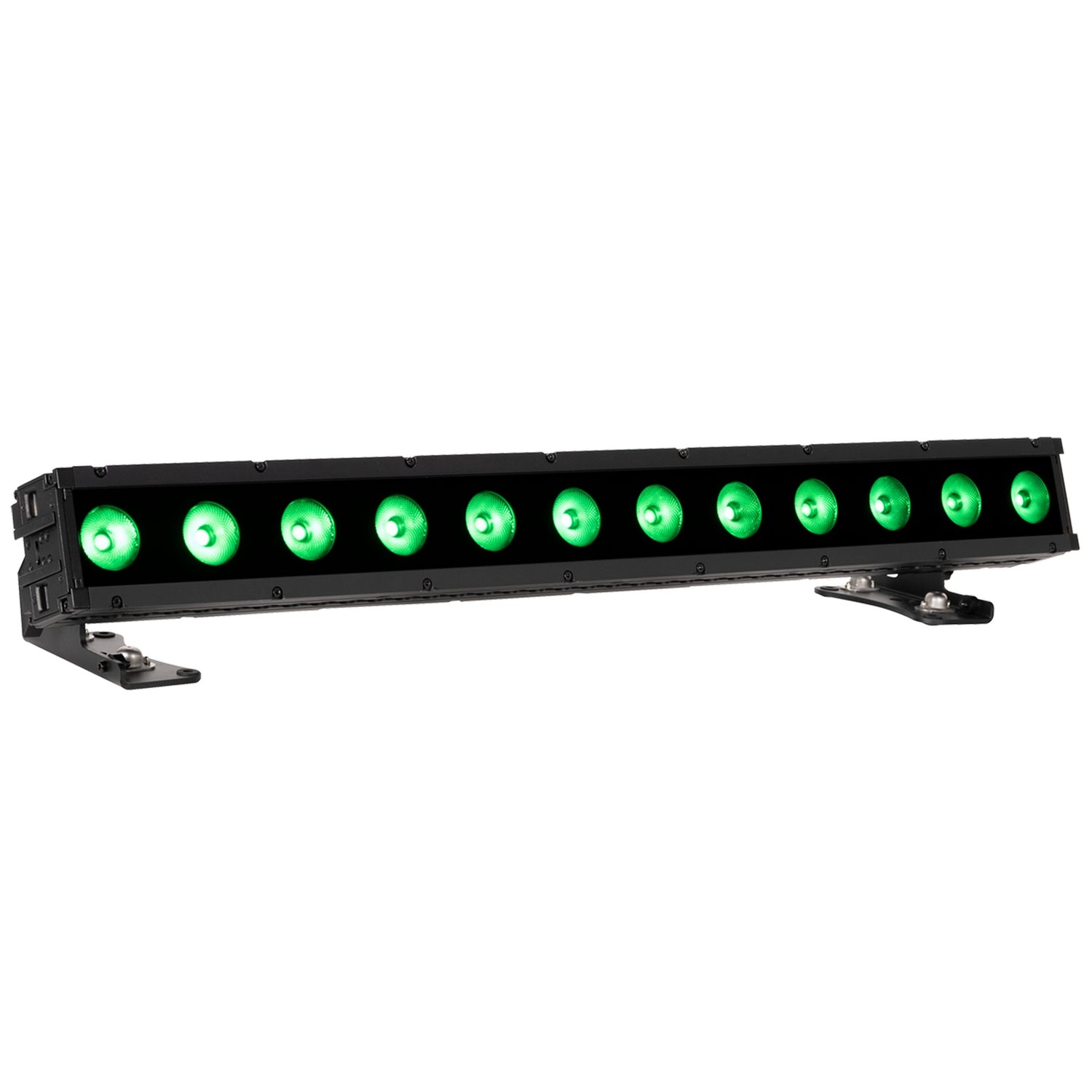

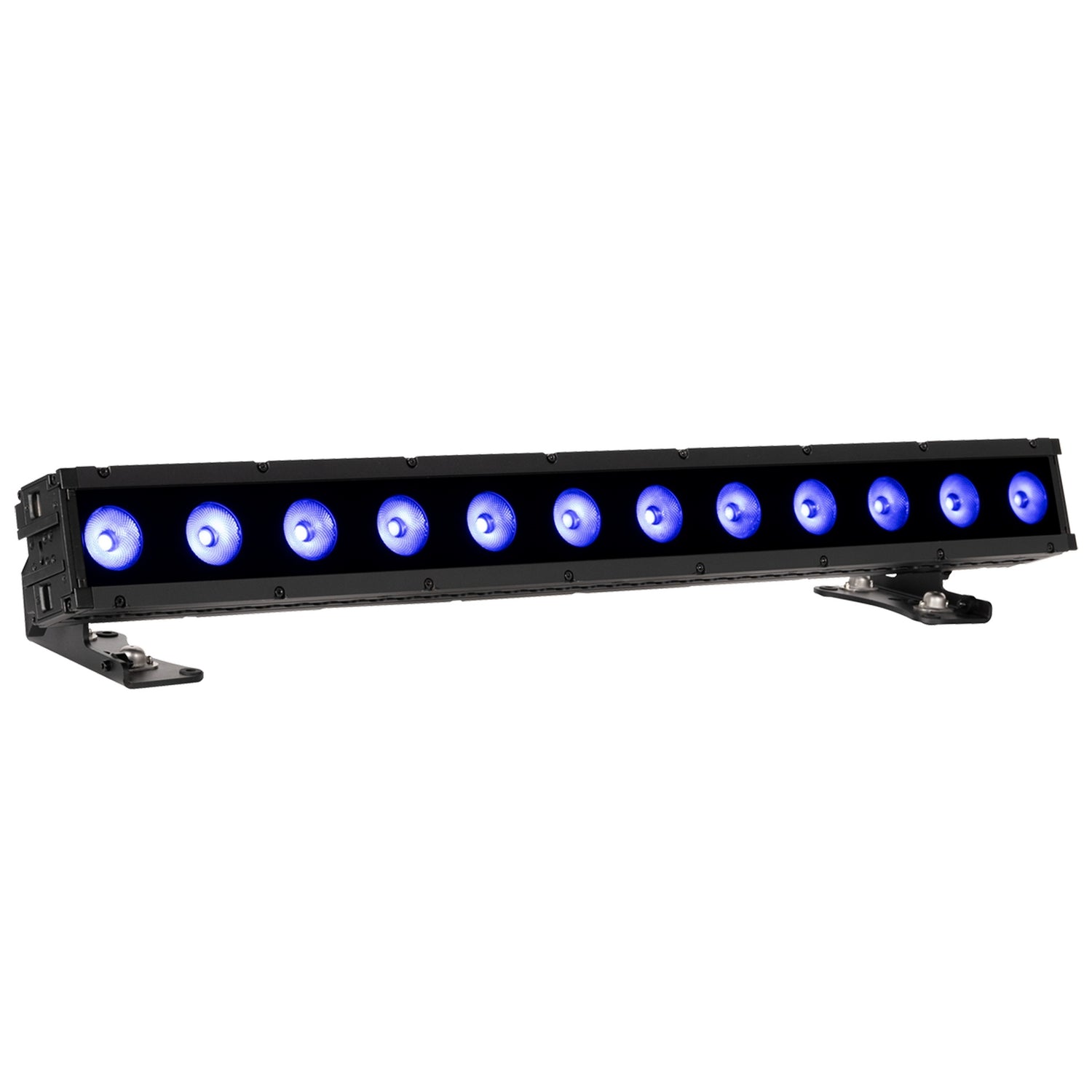

Elation SIX+ BAR L RGBLA+UV LED Batten (IP65)
Unleash clean, high-output color with the meter-long SIX+ BAR L—an all-weather LED batten built for tours, installs, and broadcast. Its RGB + Lime + Amber + UV engine delivers rich primaries, beautifully calibrated whites, and smooth, homogenized washes that hold up on camera and on stage. A fanless convection design keeps operation whisper-quiet for theaters and houselights while the included frost and glare shield make it equally at home as a wall/cyc wash or direct-view pixel strip.
End-to-end mechanical interconnection and integrated L-track on three sides give you flexible rigging options, fast alignment, and secure positioning. Designers get full pixel control, variable CCT from warm 2400K to crisp 8500K, CMY emulation, and a virtual gel library for instant looks. Robust IP65 construction with marine-grade C4-M coating stands up to outdoor use and coastal environments without sacrificing precision color or reliability.
Control is production-ready out of the box: DMX/RDM, Art-Net, sACN, and KlingNet over IP65-rated XLR and RJ45 connections, plus SixBar 1000 emulation modes for easy drop-in upgrades. Power linking, wide channel mode support, and included accessories streamline setup so crews can move quickly between venues.
Key Features
- (12) 20W RGBLA+UV LED array with homogenized optics
- 9,325-lumen output, 92.3 CRI; TLCI 83
- Fanless convection cooling for silent operation
- 20-Degree native beam / 32-Degree beam with included frost; wide, even field
- Variable CCT 2400K–8500K, CMY emulation, virtual gel library
- Full pixel control with smooth 16-bit dimming and strobe effects

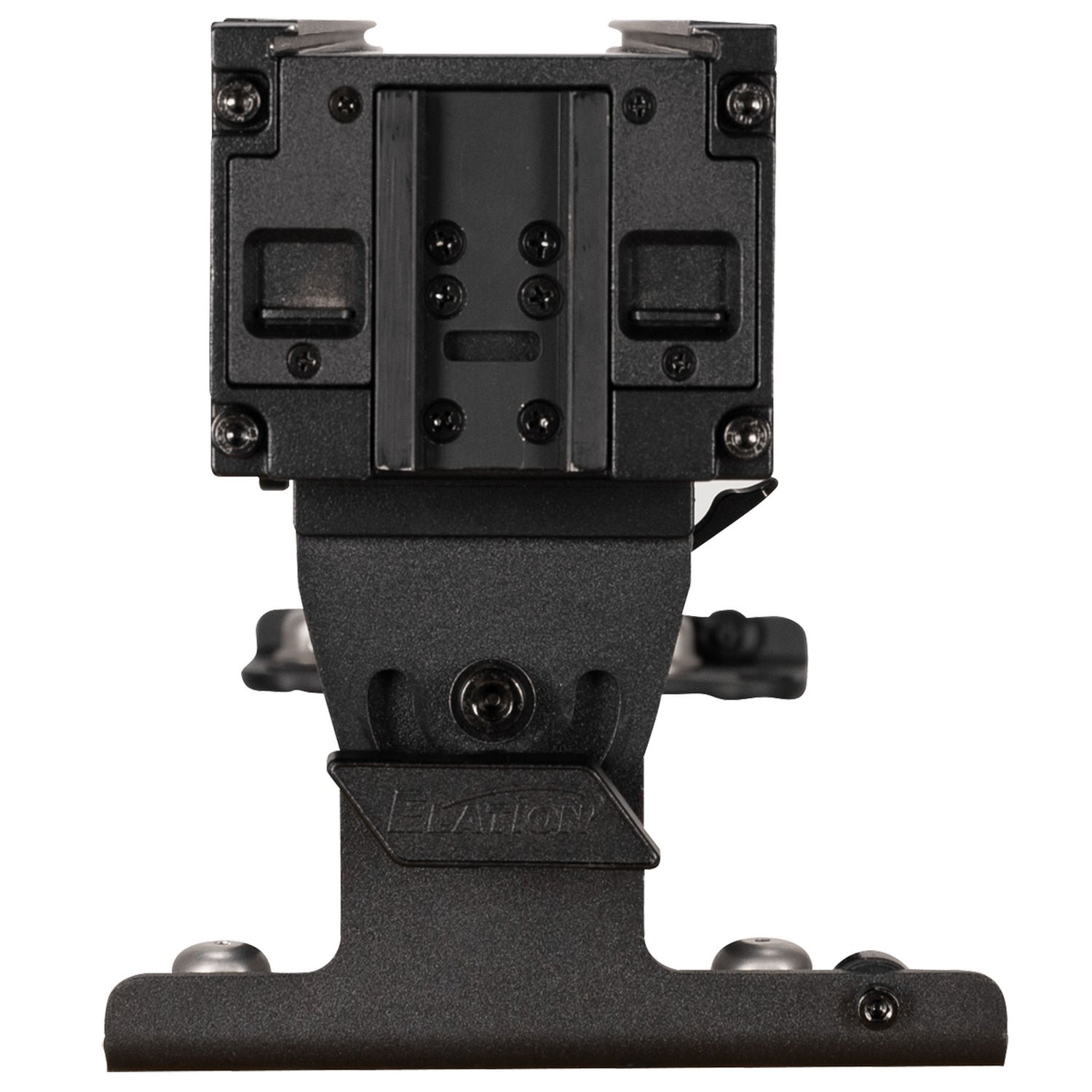

- Integrated L-track on three sides and end-to-end interconnection system
- IP65 weatherproof housing with C4-M marine-grade coating
- DMX/RDM, Art-Net, sACN, and KlingNet control; Aria x2 wireless device management
Technical Specifications
- LED Source: (12) × 20W RGBLA+UV; 30,000-hour average life
- Photometrics: 9,325 lm (integrating sphere) / 7,554 lm (goniometer); CRI 92.3; TLCI 83
- Optics: 20-Degree beam / 36-Degree field (no lens); 32-Degree beam / 60-Degree field (with frost)
- Dimming: Electronic, 16-bit modes and curves; strobe
- Control: 15 DMX modes (1–154 ch range) + 5 SixBar 1000 emulation modes (6/7/11/13/75 ch)

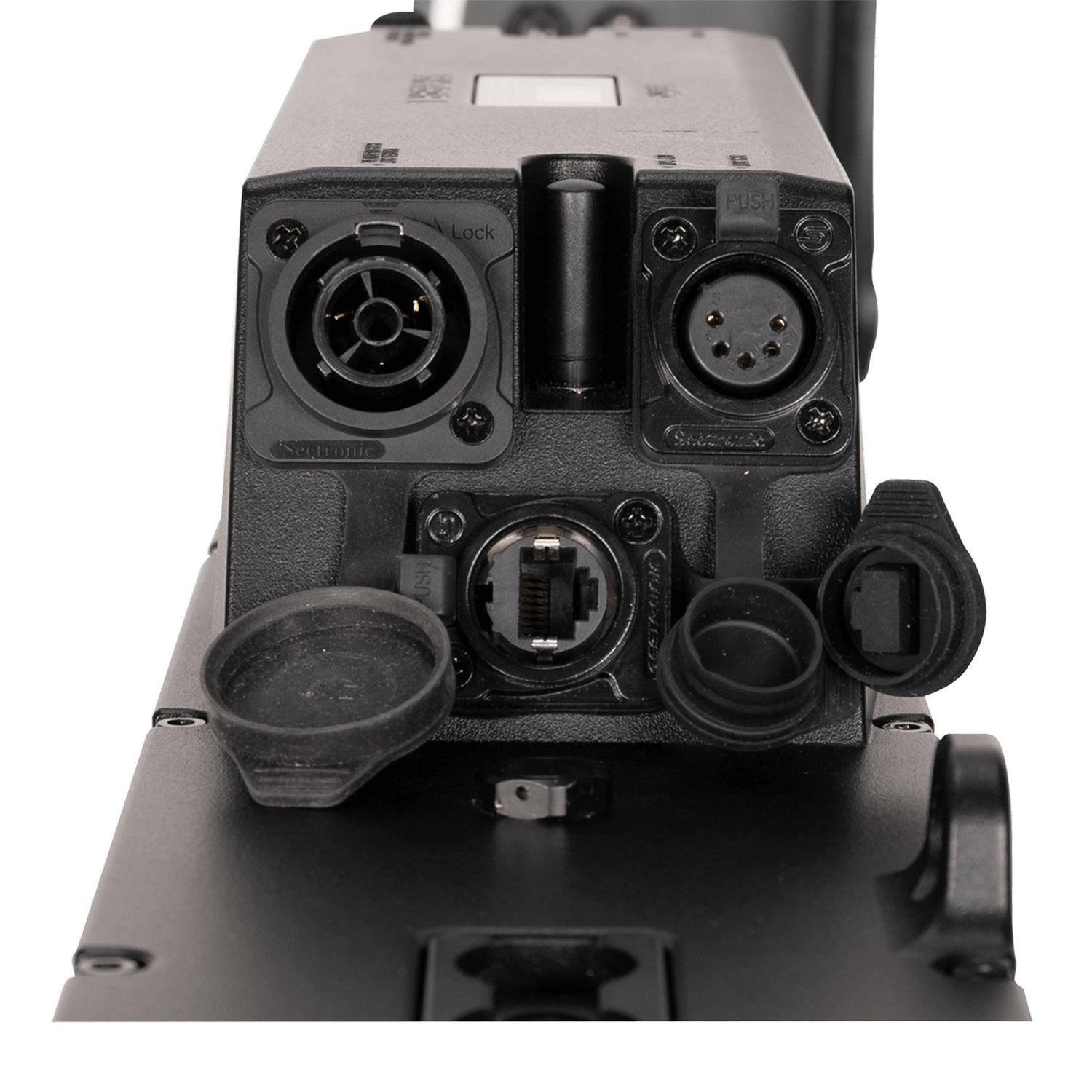

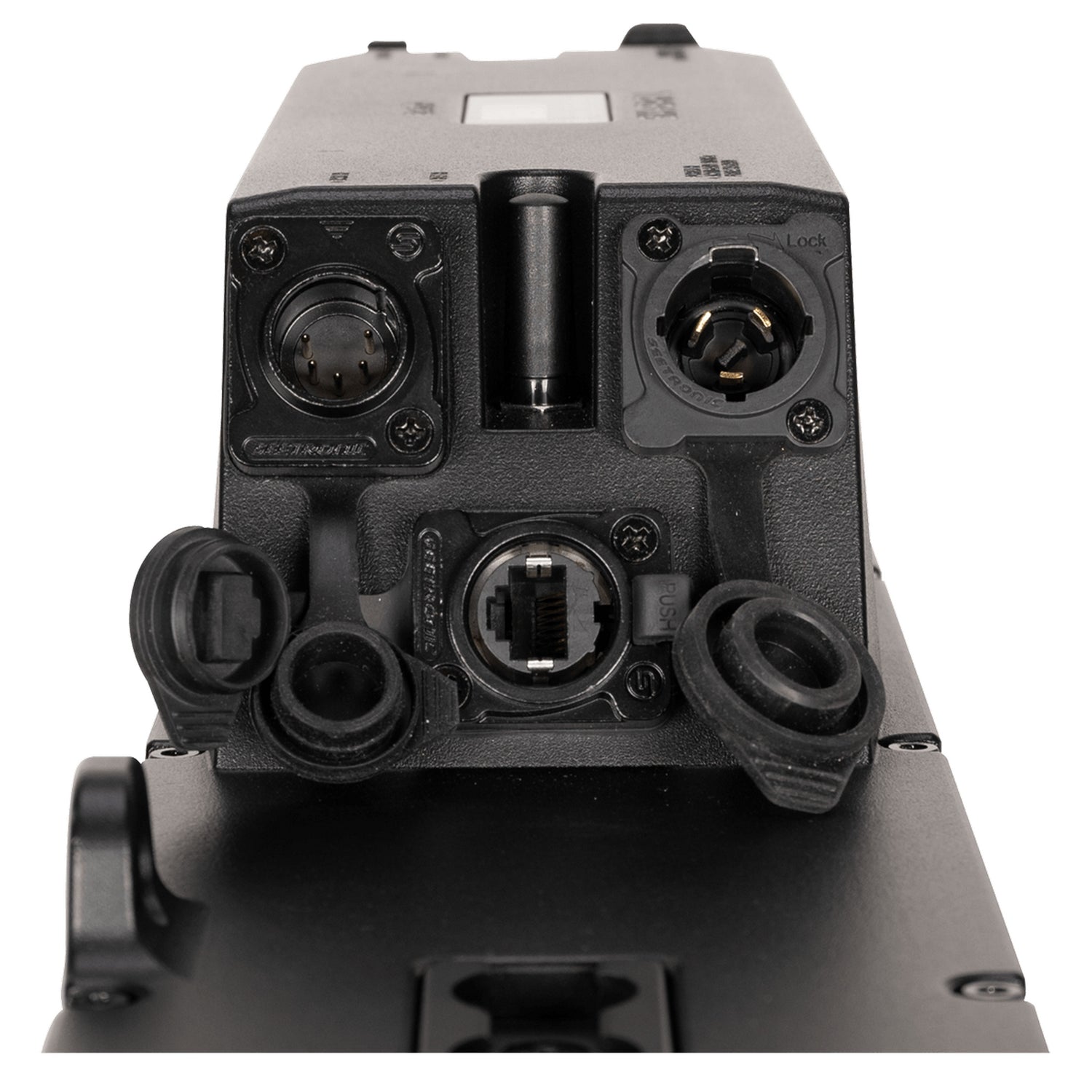

- Connections: IP65 5-pin XLR DMX in/out; IP65 RJ45 (Art-Net, sACN, KlingNet); 4-button UI with LED display
- Power: 100–240V AC, 50/60 Hz; 210W max; power thru @110V: 7 units, @240V: 16 units
- Cooling: Fanless convection
- Approvals/Ratings: CE, cETLus, FCC, UKCA, IP65
- Operating Temperature: 5-Degree F to 113-Degree F (-15-Degree C to 45-Degree C)
- Dimensions (L × W × H): 39.4-Inch × 6.9-Inch × 8.11-Inch
- Weight: 24 lb (10.9 kg)
What’s in the Box
- 1x Six+ Bar L fixture
- 1x IP65 locking power cable (in/out capable)
- 1x Frost filter
- 1x Glare shield
- 1x Fixture interconnect splice
- 1x Safety cable
