Condition: New

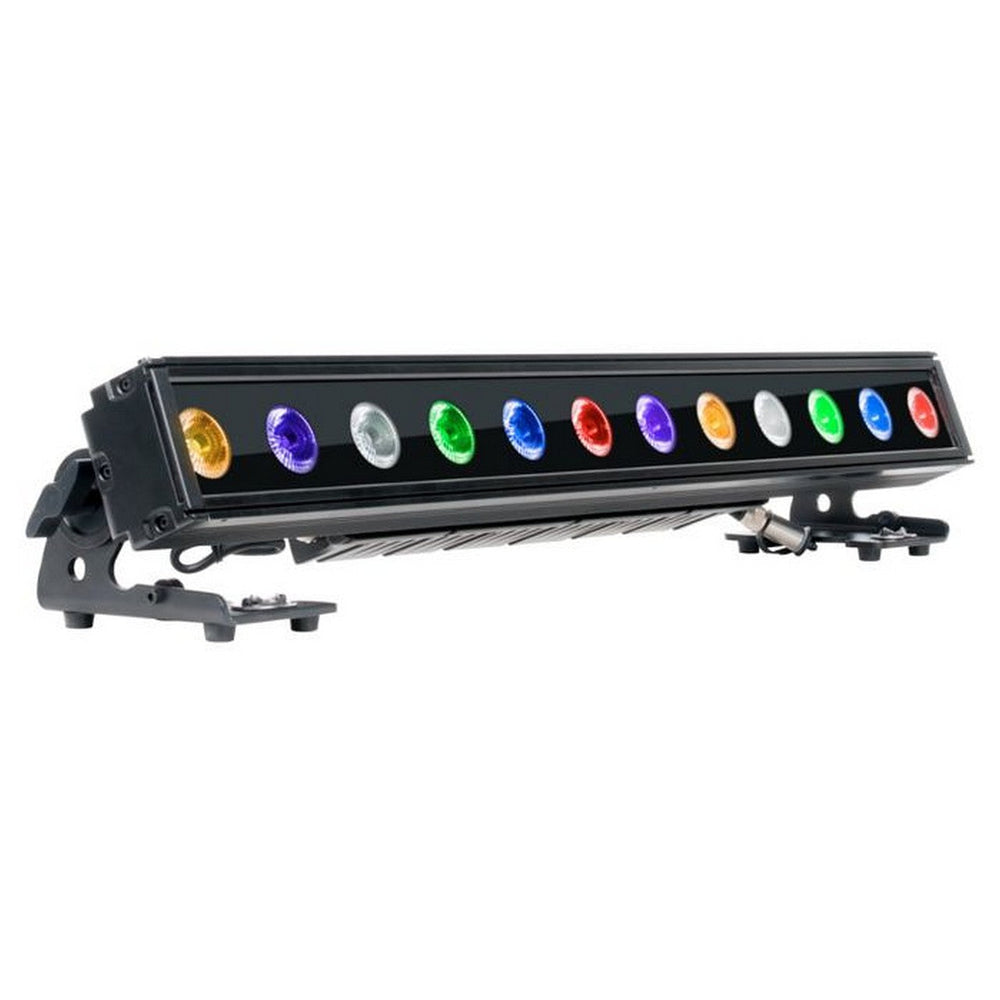

Elation SIXBAR 1000 IP 6-in-1 RGBAW UV LED Fixture
The IP65 rated SIXBAR 1000 IP features (12) 12W 6-IN-1 RGBAW+UV LEDs, 25 deg beam angle, pixel control, variable dimming curve modes, strobe and chase effects, a UV wavelength of 395nm, RDM (remote device management) protocol support, IP rated DMX and power in/out connections, LCD menu display with 4 touch button control panel, dual adjustable rigging/floor stand brackets, glare shield and frost filter included, multiple unit power linking, rugged die-cast aluminum exterior, flicker free operation for TV and FILM, 145W max power consumption, and a multi-voltage universal auto switching power supply (110-240v).
Key Features
- IP65 Rated
- 12 x 12W 6-in-1 RGBAW+UV LEDs
- 25 deg Beam Angle
- Pixel Control
- Rugged Die-Cast Aluminum Exterior
- Glare Shield and (2) Lens Filters Included
Technical Specifications
SOURCE
(12) 12W 6-in-1 RGBAW+UV LEDs
100,000 Hour Average LED Life**
**LED Life may vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
7,149 LUX 664 FC @3.3’ (1m) (25 deg Full ON)
EFFECTS
Pixel Control
Strobe and Chase Effects
Variable and Selectable Dimming Curves
CONTROL / CONNECTIONS
(8) DMX Channel Modes (6 / 7 / 11 / 13 / 36 / 72 / 75 / 79)
4 Button Touch Control Panel and LCD Menu Display
RDM (Remote Device Management)
IP Rated 5pin DMX In/Out
powerCON TRUE1 Power In/Out
With Wired Digital Communication Network
SIZE / WEIGHT (dimensions without Glare Shield)
Length
33.6” (853mm)
Width
5.6” (141.4mm)
Vertical Height
4.7” (120.5mm)
Weight
19.0 lbs. (8.6 kg)
ELECTRICAL / THERMAL
AC 110-240V - 50/60Hz
145W Max Power Consumption
Multiple Unit Power Linking
5deg F to 113deg F (-15 deg C to 45 deg C)
UV Wavelength
395nm
APPROVALS / RATINGS
CE | cETLus | IP65
INCLUDED ITEMS
powerCON TRUE1
Glare Shield
(2) Lens Filters
