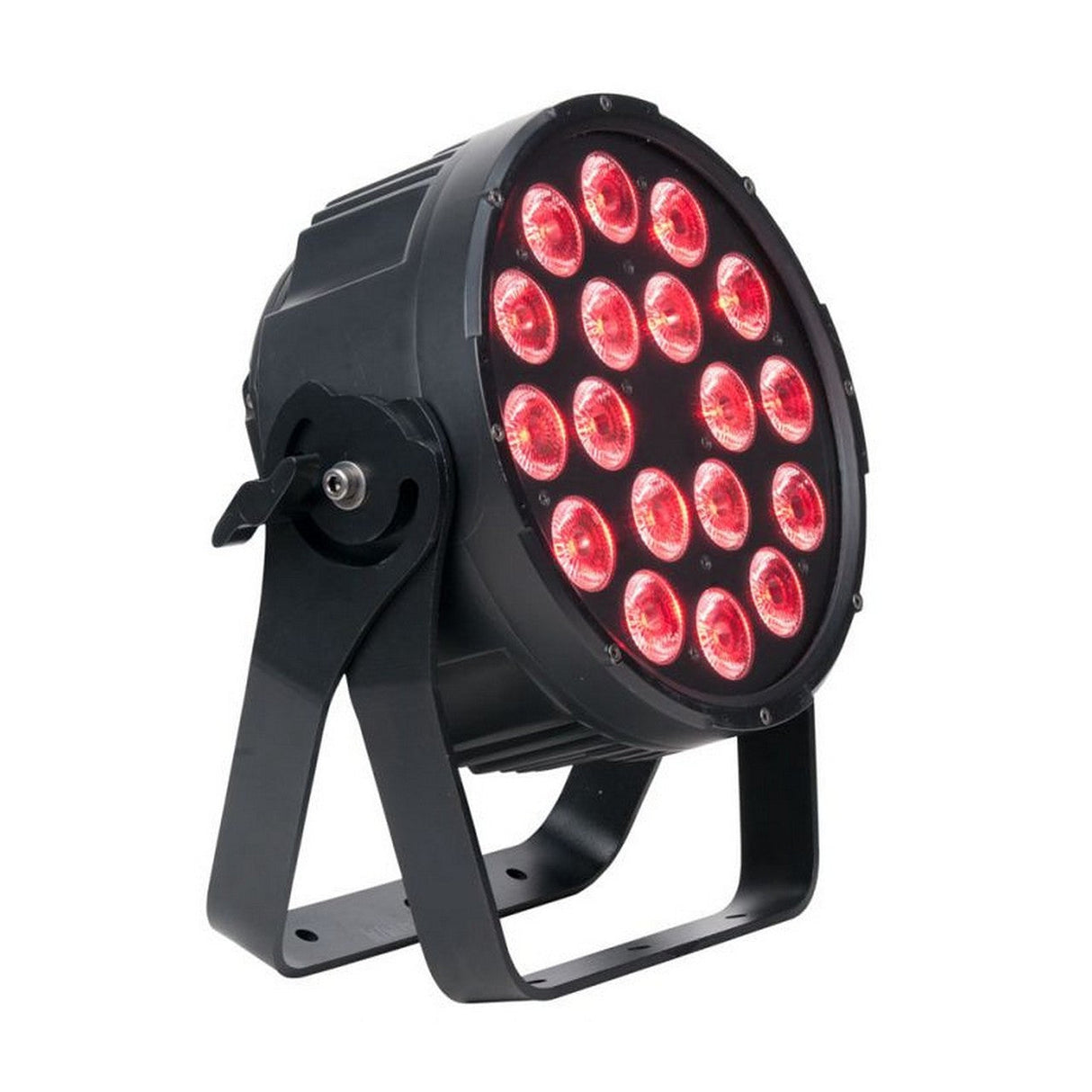

Elation SIXPAR 300IP 12W RGBAW UV 18 LEDs Par Fixture
Elation SIXPAR 300IP 12W RGBAW UV 18 LEDs Par Fixture
Free Shipping
Elation SIXPAR 300IP 12W RGBAW UV 18 LEDs Par Fixture
The new IP65 rated SIXPAR 300IP features (18) 12W 6-IN-1 RGBAW+UV LEDs, 100,000 average hour LED life, 15 deg beam and 25 deg field angles, electronic strobe and dimming (0-100%), 5 variable dimming curve modes, dual yoke / floor stand, multiple unit power linking, RDM (remote device management), rugged die-cast aluminum exterior, flicker free operation for TV and FILM, 220W max power consumption, and a multi-voltage universal auto switching power supply (110-250v).
Key Features
- IP65 Rated
- 15 deg Beam 25 deg Field Angles
- 5 Variable Dimming Curve Modes
- Dual Yoke / Floor Stand
- Multiple Unit Power Linking
- RDM - Remote Device Management
- Rugged Die-Cast Aluminum Exterior
- Flicker Free Operation for TV and FILM
Technical Specifications
SOURCE
(18) 12W 6-in-1 RGBAW+UV LEDs
100,000 Hour Average LED Life*
*LED Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
24,500 LUX 2,276 FC @3.3ā (1m) (15 deg Full ON)
8,500 LUX 790 FC @6.6ā (2m) (15 deg Full ON)
3,950 LUX 367 FC @9.8ā (3m) (15 deg Full ON)
2,150 LUX 200 FC @13.1ā (4m) (15 deg Full ON)
1,350 LUX 125 FC @16.5ā (5m) (15 deg Full ON)
EFFECTS
Electronic Strobe
Color and Chase Macros
Electronic Dimming: 0% - 100%
5 Variable Dimming Curve Modes
CONTROL / CONNECTIONS
(4) DMX Channel Modes (6 / 7 / 8 / 12)
(4) Button Touch Control Panel
LCD Menu Display
IP DMX In/Out
IP Power In/Out
SIZE / WEIGHT
Length: 14.4ā (365mm)
Width: 6.2ā (157mm)
Vertical Height: 14.4ā (365mm)
Weight: 19.2 lbs. (8.7 kg)
ELECTRICAL / THERMAL
AC 110-250V - 50/60Hz
220W Max Power Consumption
Power Linking: 5pcs @110V / 10pcs @240V
5 degF to 113 degF (-15 degC to 45 degC)
UV Wavelength: 395nm
APPROVALS / RATINGS
CE | cETLus | IP65
INSTALLATION
Rigging: Integrated Dual Yoke / Floor Stand
Working Position: Any (360 deg)
INCLUDED ITEMS
Male Edison to IP Female Power Cable 6,6 ft. (2m)
Male 3pin XLR to IP Female DMX Input Cable 3.3 ft (1m)
Female 3pin XLR to IP Male DMX Output Cable 3.3 ft (1m)
