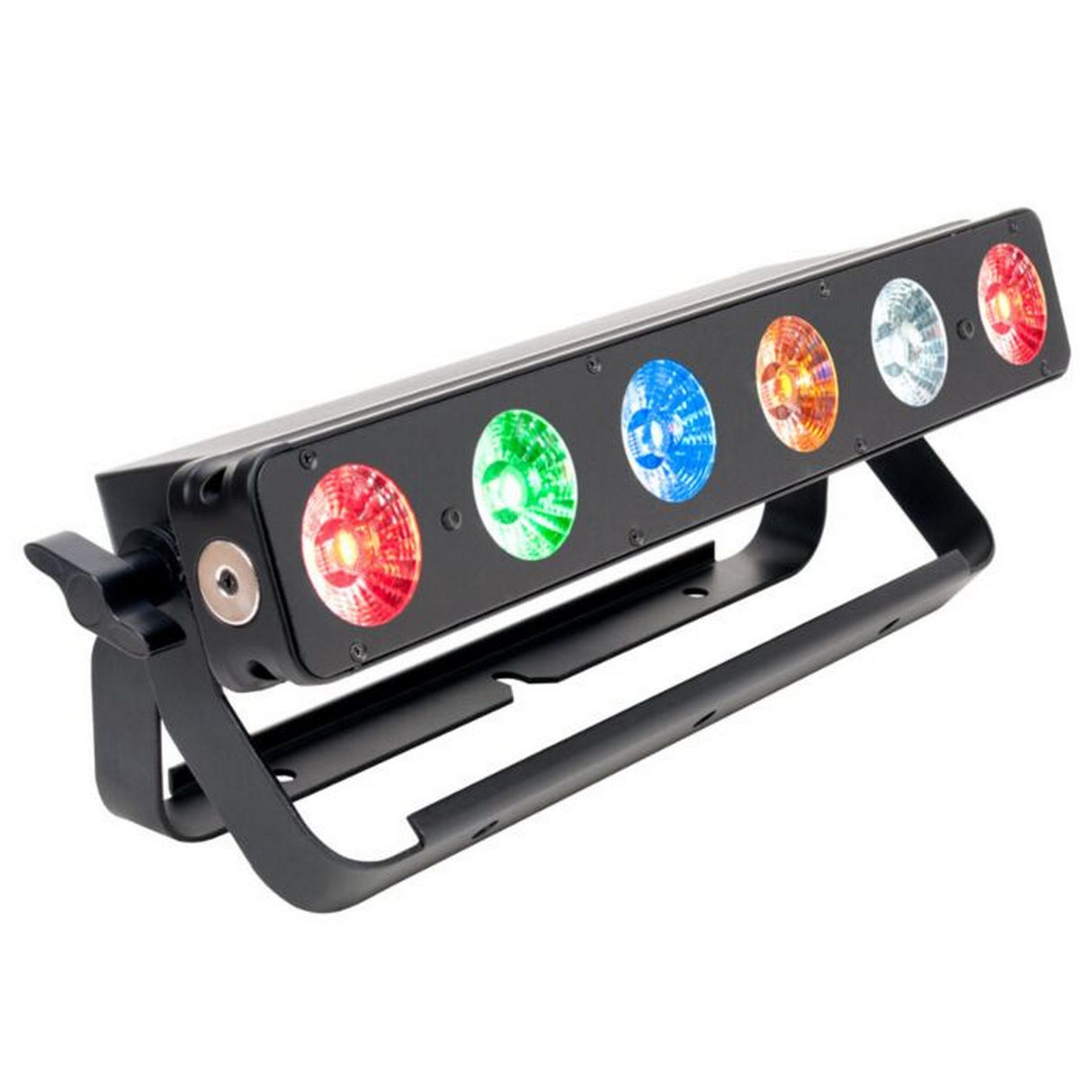

Elation SixPar 500 12W 6-In-1 RGBAW+UV LED Light
Free Shipping
Low In Stock
More finance options:
Estimated Shipping Widget will be displayed here!
Orders placed between Monday - Friday before
1:00 PM PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Condition: New
Elation SixPar 500 12W 6-In-1 RGBAW+UV LED Light
The SIXBAR 500 features (6) 12W 6-IN-1 RGBAW+UV LEDs, 100,000 average hour LED life, 30° beam angle, individual control of each LED, variable dimming curve modes, strobe and chase effects, a UV wavelength of 395nm, ArtNet, KlingNet and RDM (remote device management) protocol support, 3pin and 5pin DMX, Locking Power Cable and RJ45 in/out connections, LCD menu display with 4 button control panel, integrated dual rigging brackets, multiple unit power linking, rugged die-cast aluminum exterior, frost filter and glare shield included, flicker free operation for TV and FILM, 93W max power consumption, and a multi-voltage universal auto switching power supply (110-240v).
Key Features
- 30° Beam Angle
- ArtNet and KlingNet Support
- RDM - Remote Device Management
- Individual LED Control
- Variable Dimming Curve Modes
- Multiple Unit Power Linking
- Rugged Die-Cast Aluminum Exterior
- Flicker Free Operation for TV and FILM
Technical Specifications
SOURCE
(6) 12W 6-in-1 RGBAW+UV LEDs
100,000 Hour Average LED Life*
PHOTOMETRIC DATA
6,500 LUX 604 FC @3.3’ (1m) (30° Full ON)
1,934 LUX 180 FC @6.6’ (2m) (30° Full ON)
901 LUX 84 FC @9.8’ (3m) (30° Full ON)
508 LUX 47 FC @13.1’ (4m) (30° Full ON)
318 LUX 30 FC @16.4’ (5m) (30° Full ON)
EFFECTS
Strobe and Chase Effects
Individual LED Control
Variable and Selectable Dimming Curves
CONTROL / CONNECTIONS
8 DMX Channel Modes (6 / 7 / 11 / 13 / 18 / 36 / 39 / 43)
4 Button Control Panel and LCD Menu Display
ArtNet + KlingNET Protocol Support
RDM (Remote Device Management)
(2) ethernet Ports
3pin and 5pin DMX In/Out
Locking Power Cable In/Out
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 17.7” (450mm)
Width: 8.1” (206.4mm) *with included glare shield
Vertical Height: 6.1” (155mm)
Weight: 9.0 lbs. (4.1 kg)
ELECTRICAL / THERMAL
AC 110-240V - 50/60Hz
93W Max Power Consumption
Power Linking: 11pcs @110V / 25pcs @240V
5°F to 113°F (-15°C to 45°C)
UV Wavelength: 395nm
