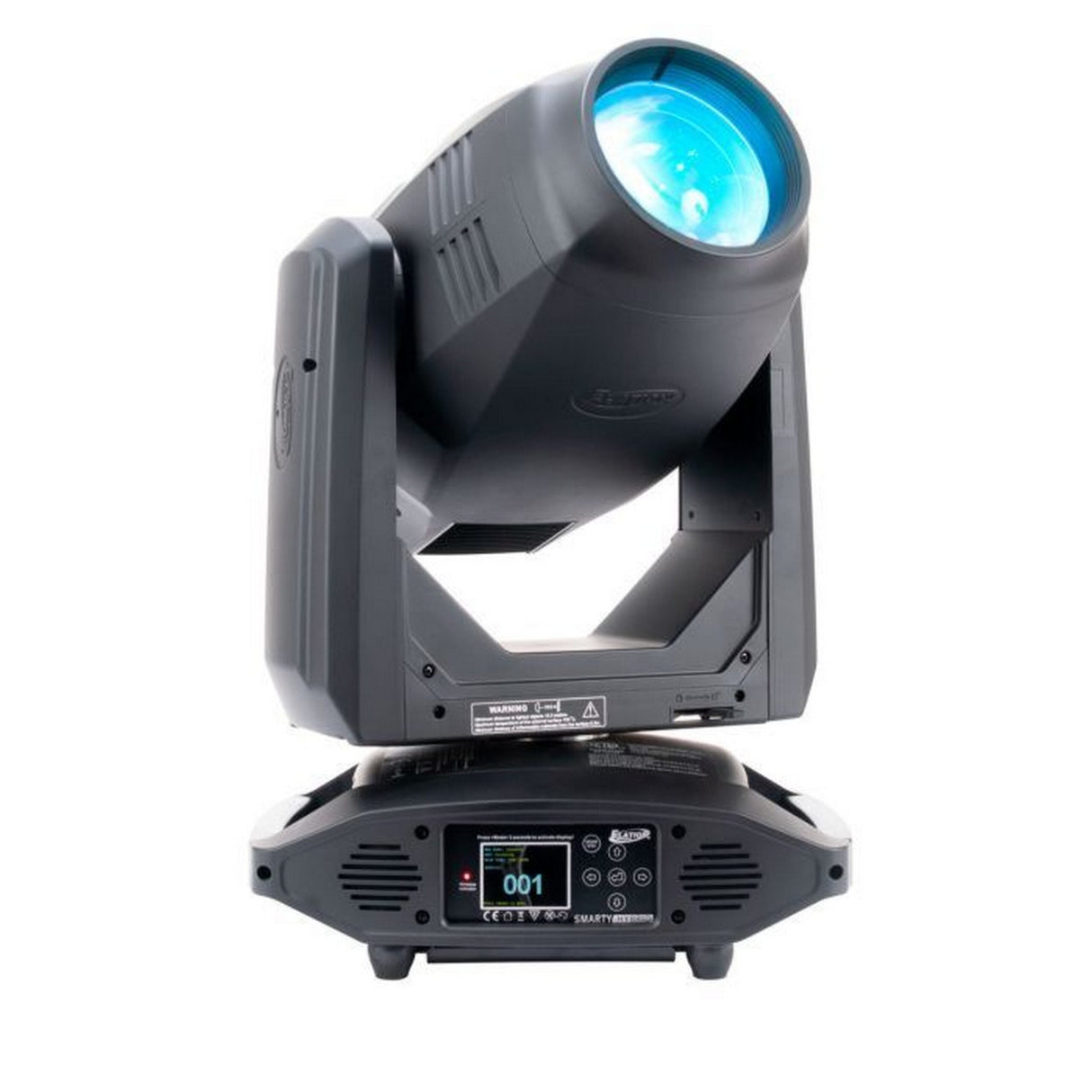

Elation Smarty Hybrid FIL 3-In-1 Smart Hybrid Beam, Spot, Wash Luminaire
Elation Smarty Hybrid FIL 3-In-1 Smart Hybrid Beam, Spot, Wash Lumi...
Elation Smarty Hybrid FIL 3-In-1 Smart Hybrid Beam, Spot, Wash Luminaire
The Smarty Hybrid FIL is a compact full featured CMY color mixing spot, beam, and wash hybrid luminaire featuring the all new Philips MSD Platinum 200 Flex lamp with “FLEX” technology which uses a smartly designed discharge lamp/ballast package to produce high output and compact performance at an efficient, long life solution of up to 6,000 hours. Features include 11,000 total lumen output, motorized zoom ranges of 1° to 18° in beam mode, 3° to 27° in spot mode, and 5° to 33° in wash mode, a full CMY color mixing system, a full frost filter for wash effects, 13 dichroic colors including a quad-color filter, CTB, CTO, and UV, 8 rotating-interchangeable glass and 12 static-stamped metal gobos, a 16-facet and 5-facet linear independent rotating prisms, multiple CMY color, gobo, and prism macros, motorized focus with an auto-focus feature, high speed shutter and strobe, lamp hibernation mode, DMX, RDM (Remote Device Management), Art-NET, and sACN protocol support, Elation’s E-FLY internal wireless DMX transceiver, 5pin XLR, RJ45 etherCON, and Neutrik TRUE1 power in/out connections, full color 180° reversible LCD menu display with battery backup, a multi-voltage universal auto switching power supply (100-240V), and a comprehensive 2-year / 6,000 hour ultimate warranty**
Key Features
- 3-in-1 Smart Hybrid Beam, Spot, Wash Luminaire
- New Philips MSD Platinum 200 Flex Lamp
- Up To 6,000 Lamp Hours*
- FLEX Lamp Technology from 190 to 280W + Hibernation Mode
- Motorized Zoom: 1° - 18° Beam, 3° - 27° Spot, 5° - 33° Wash
- Full Frost Filter for Wash Effects
- Full CMY Color Mixing System
- 13 Colors including Quad Color, CTB, CTO, and UV
- 8 Rotating Interchangeable Glass Gobos
- 12 Static-Stamped Metal Gobos
- 16-Facet and 4-Facet Linear Rotating Prisms
- Multiple CMY Color, Gobo, and Prism Macros
- Motorized Focus with Auto-Focus Feature
- DMX, RDM, Art-NET, and sACN Support
- Elation’s E-FLYInternal Wireless DMX Transceiver
Technical Specifications
SOURCE
Philips MSD Platinum 200 Flex 280W Lamp
Up To 6,000 Hour Lamp Life*
PHOTOMETRIC DATA
11,000 Total Lumen Output
128,426 LUX 11,931 FC @49.2’ (15m) (Min Zoom Beam)
135,108 LUX 12,552 FC @16.4’ (5m) (Min Zoom Spot)
EFFECTS
Beam, Spot, and Wash Modes
Motorized Zoom: 1° - 18° Beam, 3° - 27° Spot, 5° - 33° Wash
Full Frost Filter for Wash Effects
16-Facet and 4-Facet Linear Rotating Prisms
CMY Color, Gobo, and Prism Macros
Motorized Focus with Auto-Focus Feature
High Speed Shutter and Strobe
COLOR
Full CMY Color Mixing System
13 Colors including Quad Color, CTB, CTO, and UV
GOBOS
2 Gobo Wheels
8 Interchangeable-Rotating / Indexing Glass Gobos
12 Static-Stamped Metal Gobos
CONTROL / CONNECTIONS
2 DMX Channel Modes (20/34 channels)
Full Color 180° Reversible LCD Menu Display
6 Button Menu Control Panel
16 Bit Resolution Adjustable Movement
DMX, RDM, Art-NET, and sACN Protocol Support
Elation E-FLY Internal Wireless DMX Transceiver
Hibernation Mode (Power Save)
5pin DMX In/Out
RJ45 etherCON In/Out
Neutrik TRUE1 Power In/Out
With Wired Digital Communication Network
SIZE / WEIGHT
Length
15.2” (385mm)
Width
15.9” (405mm)
Vertical Height
24.0” (610mm)
Weight
49.0 lbs. (22.2 kg)
