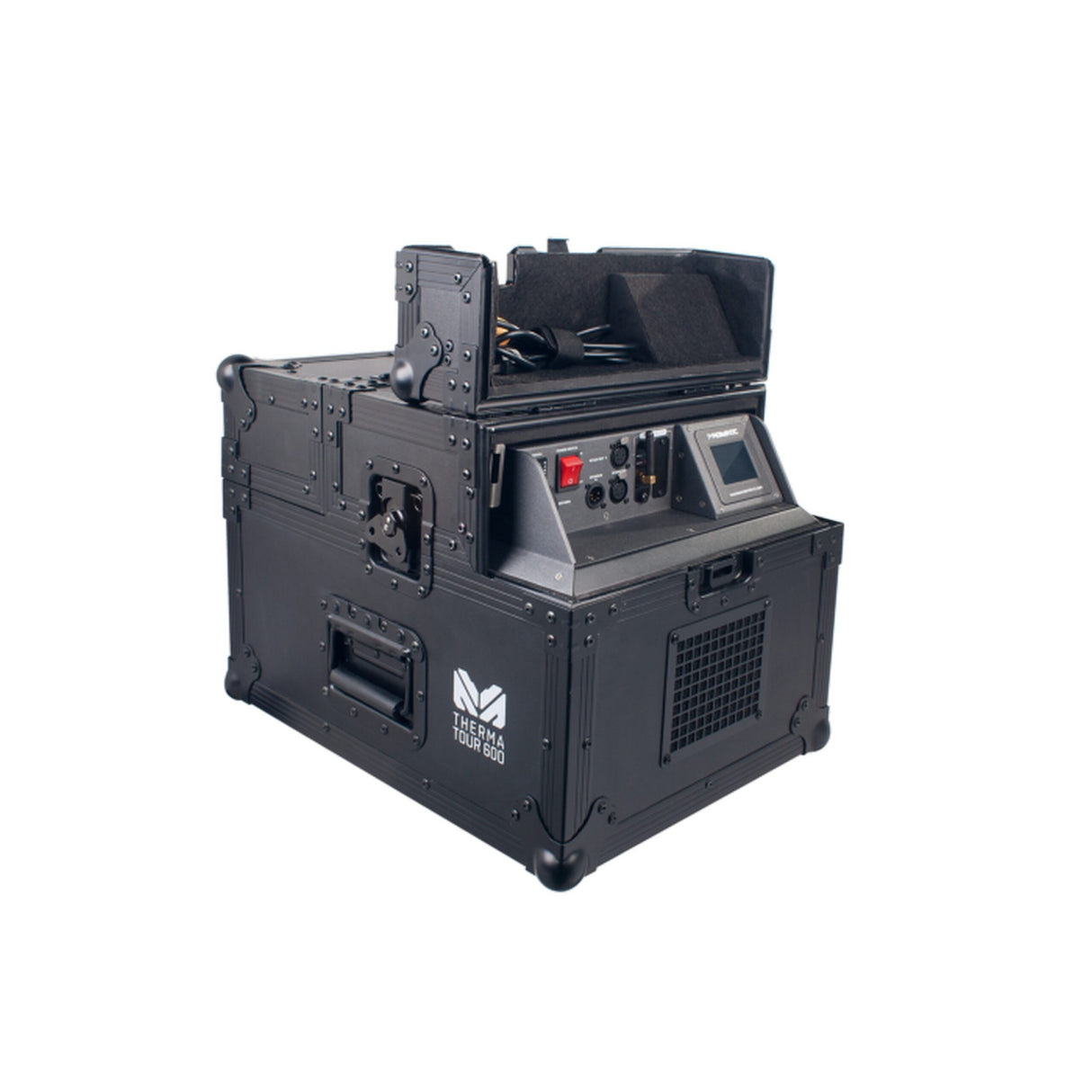

Elation Therma Tour 600 350 Watt Premium Oil-Based Premium Haze Effect Generator

The Therma Tour 600 is a premium oil-based haze effect generator that produces an exceptionally fine, long-lasting atmospheric haze that excels at revealing light beams and mid-air effects. The 350W Therma Tour 600 creates a safe, clean and odorless haze effect that leaves no residue. The perfect small-particle haze for highlighting light beams, the unit holds two liters of fluid for over 35-hours of run time with no warm up time required. Hang time is incredibly long at over 3 hours in an enclosed space! Compact yet ruggedly built to withstand the day in and day out rigors of on-the-road use, multiple control options include a wireless RF remote, Elation E-Fly wireless DMX, wired remote, Magmatic App, and manual touch screen control.

Key Features

• 350 watt low power consumption
• Over 35 hours of run time
• Haze lasting up to 3 hours after machine is off
• Rugged mobile road case design
• Soundproof insulation for indoor use

Technical Specifications

PERFORMANCE
Rated Power
350W
Max Output
3,800 CFM* (cu ft/min.) ()
Ready Time
Instant
Fluid Capacity
0.66043 Gallons (2.5 liters)
Fluid Consumption
0.033814 oz/min (1.0 ml/min)
CONSTRUCTION
Advanced HPA (high pressure air) Pump Technology
Energy Saving Mode with Auto-Clean Process
Sealed Fluid Reservoir
External Visual Fluid Level Detection
Compact Light Weight Mobile Design
CONTROL
3 DMX Channel Modes (1 / 3)
Onboard LCD Touch Control Panel
DMX-512 and RDM Protocol Support
Optional MAGFLY Wireless DMX Transceiver
Optional MAGRF Wireless and Wired Remotes
CONNECTIONS
Locking 5pin XLR Connector In/Out
IP65 Locking Power Connector In
With Wired Digital Communication Network
SIZE / WEIGHT
Length
19.57 in. (497mm)
Width
14.06 in. (357mm)
Height
13.31 in. (338mm)
Weight
66 lbs. (30kg)
ELECTRICAL
AC 100-120V 50/60Hz
10A (NFB)
Max Power Consumption: 370W
THERMAL
Maximum Ambient Temperature (Ta max) 104F (40C)
Exterior Surface Temperature, Steady State: 122F (50C)
