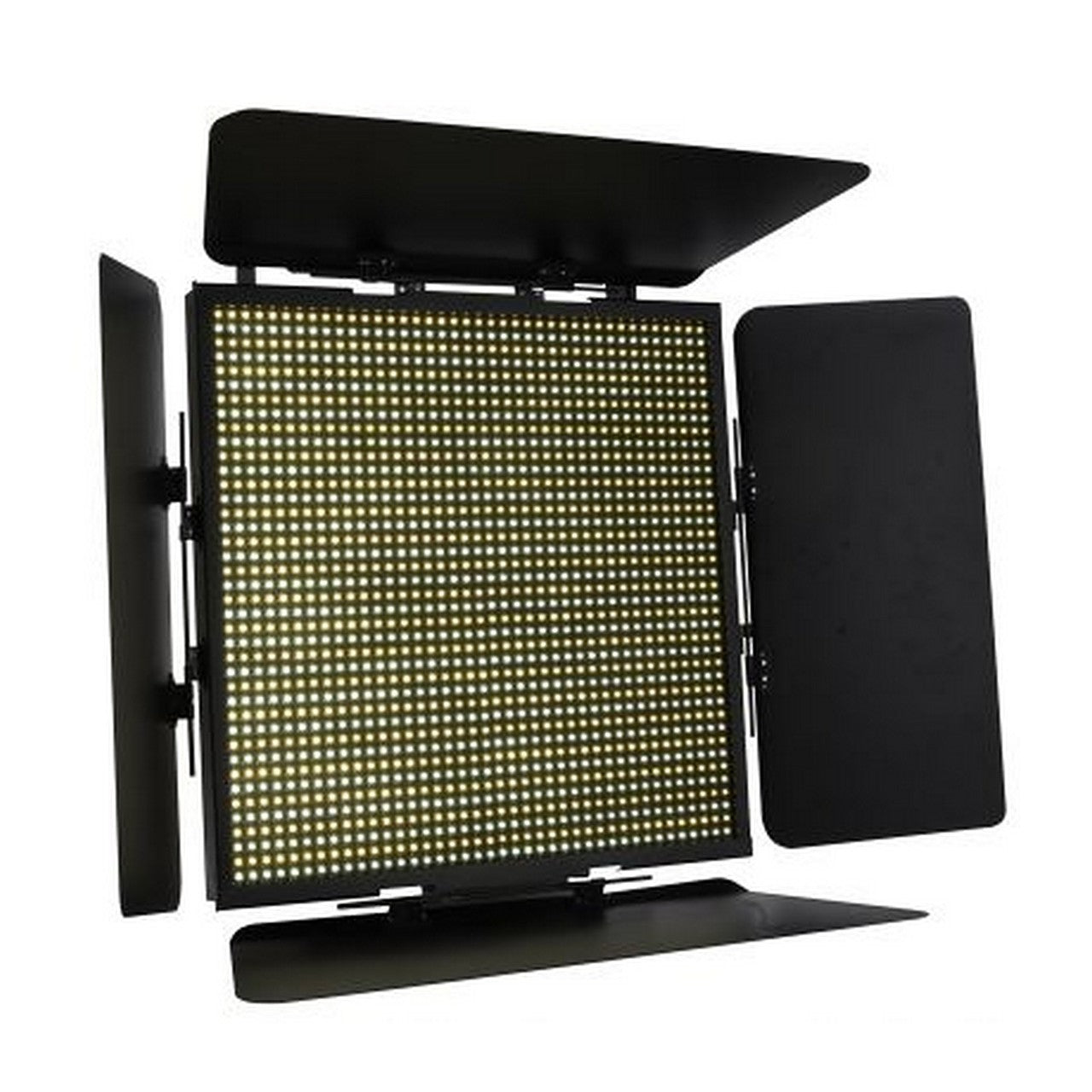

Elation TVL4000 II Low Heat High CRI Dynamic LED Array Panel
The new improved TVL4000 II features a low heat, >90CRI, dynamic LED array panel consisting of 800 warm white and 800 cool white LEDs, 30 deg beam angle, variable manual and DMX controlled color temperature (3,200K - 6,500K) and dimming, adjustable barn doors, magnetic gel/diffuser holder, flicker free operation for broadcast TV and FILM, 3 and 5 pin DMX in/out and power in connections, (4) button (2) dial LCD display control panel, 160W max power consumption, and a multi-voltage universal auto switching power supply (100-240v).
Key Features
- Low Heat, >90CRI Dynamic LED Array Panel
- 30 deg Beam Angle
- Variable Color Temperature Settings (3,200K - 6,500K)
- Adjustable Barn Doors
- Magnetic Gel/Diffuser Holder
- Manual and DMX Controlled Color Temp and Dimming
- Flicker Free Operation for Broadcast TV and FILM
Technical Specifications
SOURCE
(800) Warm White + (800) Cool White LEDs
PHOTOMETRIC DATA
1500 LUX 139 FC @6.6’ (2M) (30 deg Warm White 3,200K)
1900 LUX 177 FC @6.6’ (2M) (30 deg Cool White 6,500K)
3400 LUX 316 FC @6.6’ (2M) (30 deg Full On 4,500-5,000K)
EFFECTS
Variable Color Temperature (3,200K - 6,500K)
Electronic Dimming (0% - 100%)
CONTROL / CONNECTIONS
(3) DMX Channel Modes (2/2/3)
Manual and DMX Color Temperature and Dimming
(4) Button and (2) Dial Control Panel
LCD Menu Display
3pin and 5pin DMX In/Out
Power In
SIZE / WEIGHT
Length: 25.9” (658mm)
Width: 22.7” (576mm)
Vertical Height: 5.1” (130mm)
Weight: 27.0 lbs. (12 kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
160W Max Power Consumption
TA: 40 deg C Max Ambient Temperature
INCLUDED ITEMS
180 deg Dual / Yoke Bracket
Power Cable
APPROVALS / RATINGS
CE | cETLus | RoHs | IP20
