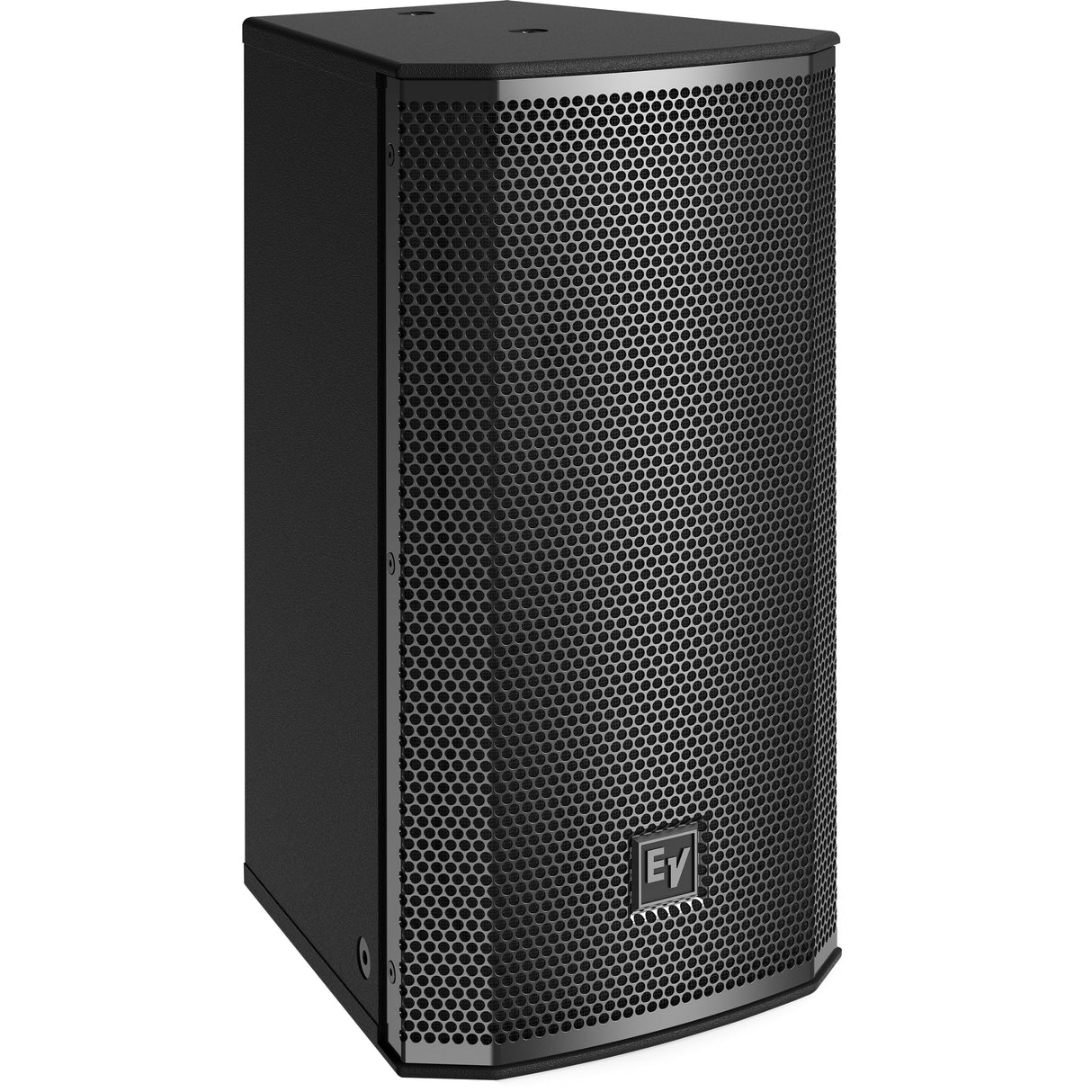

Electro-Voice EVC-1082-96B 8-Inch 90 x 60 Indoor Passive Speaker without Rigging Hardware, Black
EVC loudspeakers from Electro-Voice are two-way systems that can be used in a broad range of applications where wide bandwidth, vertical and horizontal directivity control, and high efficiency are required in a compact, cost-effective package. EVC loudspeakers are voiced to complement other EV-Innovation models (EVF, EVH, EVA, and EVU).
The high frequency section of EVC loudspeakers comprises a single 1¼-inch pure titanium dome compression driver directly coupled to a rotatable constant directivity waveguide that delivers uniform pattern control and smooth, linear response. The low frequency section employs a high-output woofer that was developed using state-of-the-art, computer aided optimization to provide low distortion, high efficiency, and maximum intelligibility at high sound pressure levels. The passive crossover implements a modified fourth-order design with slopes of 24 dB per octave for smooth off axis response and improved definition through the critical vocal range.
The EVC series is an extremely cost-effective solution for many fixed-install applications. The enclosures are constructed of 15-mm plywood and finished with EVCoat for enhanced durability. The loudspeakers have been designed with multiple M10 suspension points as well as attachment points for an optional U-bracket or multi-mount style pan/tilt wall mount. All EVC series loudspeakers accept wire gauges up to 10 AWG (6 mm). The input panel also accepts optional covers with NL4-type connectors or weatherized gland-nuts.
For 70V/100V operation, the input panel has an internal landing pad for mounting EV's high-quality TK-150 audio transformer. Adding a TK-150 to the EVC input panel engages EV's patented Automatic Saturation Compensation (ASC), which preserves low frequency performance while presenting a stable load to the amplifier regardless of how many loudspeakers are connected in parallel. An EVC loudspeaker with a transformer installed sounds virtually identical to the same model without a transformer.
Technical Specifications
Max Calculated SPL
120dB
Rotatable coverage
90° x 60°
Frequency Range (-10 dB)
55Hz-25kHz
Suspension
eight M10 Suspension Points, optional U Bracket or pan/tilt wall mount
Minimum Impedance
6Ω
HF Transducer
DH-2005
Frequency Response (-3 dB)
75Hz-21kHz
LF Transducer
EVS-2008
Grille
18 GA cold-rolled steel with rotatable logo (18 GA stainless steel with hydrophobic cloth on PI models)
Weight Net
24.69lbs (11.2kg)
Shipping Weight
28lbs (12.7kg)
Environmental Specs
IEC 60529, IP44 (IP55 for PI versions)
Nominal Impedance
8Ω
Axial Sensitivity (SPL, 1 W @ 1 m)
91dB
Power Handling (Continuous / Peak)
200/400/800W
Connectors
Dual four-pin 10 AWG (6 mm) Phoenix/Euro Block screw-terminals
Enclosure
15mm weather-resistant plywood with EV Coat
Color
Black or White
Dimensions (H x W x D)
492 x 248 x 277mm
Passive crossover frequency
1.8kHz
Rec. high-pass frequency, 4th Order
50 Hz for 8Ω (50 Hz with TK-150 transformer)
