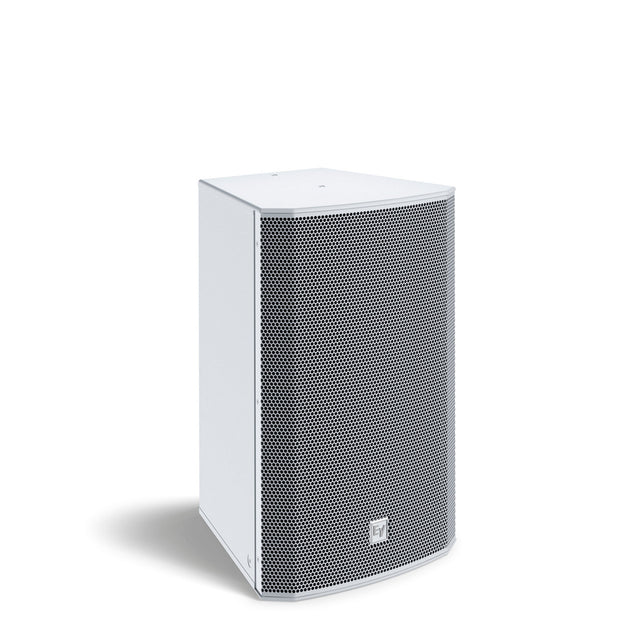

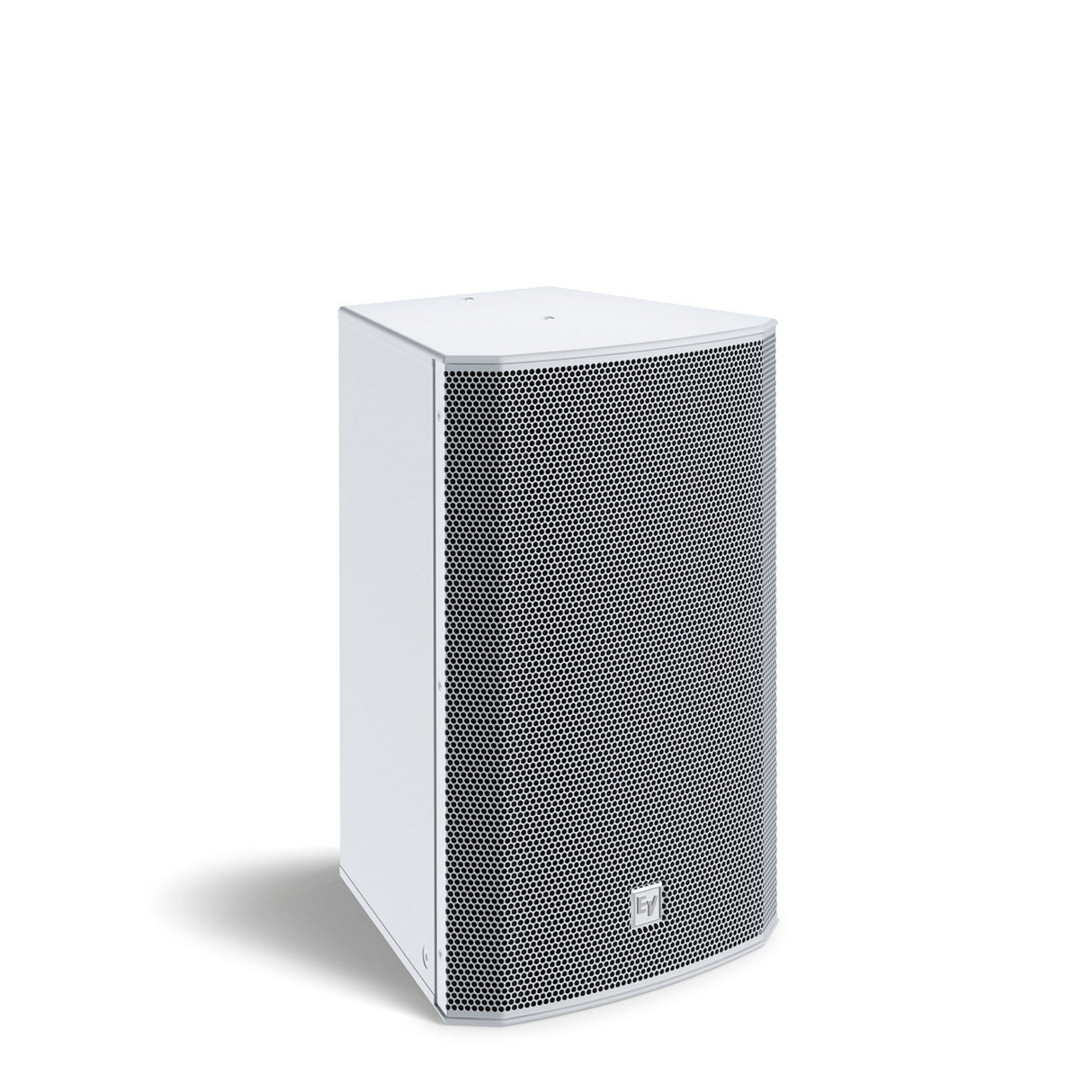

Electro-Voice EVC-1122-95W 12-Inch 90 x 55 Indoor Passive Speaker without Rigging Hardware, White
EVC loudspeakers from Electro-Voice are two-way systems that can be used in a broad range of applications where wide bandwidth, vertical and horizontal directivity control, and high efficiency are required in a compact, cost-effective package. EVC loudspeakers are voiced to complement other EV-Innovation models (EVF, EVH, EVA, and EVU).
The high frequency section of EVC loudspeakers comprises a single 1¼-inch pure titanium dome compression driver directly coupled to a rotatable constant directivity waveguide that delivers uniform pattern control and smooth, linear response. The low frequency section employs a high-output woofer that was developed using state-of-the-art, computer aided optimization to provide low distortion, high efficiency, and maximum intelligibility at high sound pressure levels. The passive crossover implements a modified fourth-order design with slopes of 24 dB per octave for smooth off axis response and improved definition through the critical vocal range.
The EVC series is an extremely cost-effective solution for many fixed-install applications. The enclosures are constructed of 15-mm plywood and finished with EVCoat for enhanced durability. The loudspeakers have been designed with multiple M10 suspension points as well as attachment points for an optional U-bracket or multi-mount style pan/tilt wall mount. All EVC series loudspeakers accept wire gauges up to 10 AWG (6 mm). The input panel also accepts optional covers with NL4-type connectors or weatherized gland-nuts.
For 70V/100V operation, the input panel has an internal landing pad for mounting EV's high-quality TK-150 audio transformer. Adding a TK-150 to the EVC input panel engages EV's patented Automatic Saturation Compensation (ASC), which preserves low frequency performance while presenting a stable load to the amplifier regardless of how many loudspeakers are connected in parallel. An EVC loudspeaker with a transformer installed sounds virtually identical to the same model without a transformer.
Technical Specifications
Max Calculated SPL
126dB
Rotatable coverage
90° x 55°
Frequency Range (-10 dB)
50Hz-25kHz
Suspension
eight M10 Suspension Points, optional U Bracket or pan/tilt wall mount
Minimum Impedance
7Ω
HF Transducer
DH-3
Frequency Response (-3 dB)
70Hz-22kHz
LF Transducer
EVS-12M
Grille
18 GA cold-rolled steel with rotatable logo (18 GA stainless steel with hydrophobic cloth on PI models)
Weight Net
44.75lbs (20.3kg)
Shipping Weight
50.04lbs (22.7kg)
Axial Sensitivity (SPL, 1 W @ 1 m)
95dB
Power Handling (Continuous / Peak)
300/600/1200W
Connectors
Dual four-pin 10 AWG (6 mm) Phoenix/ Euro Block screw-terminals
Enclosure
15mm weather-resistant plywood with EV Coat
Color
Black or white
Dimensions (H x W x D)
616 x 395 x 401mm
Passive crossover frequency
1.6kHz
Rec. high-pass frequency, 4th Order
45 Hz for 8Ω (50 Hz with TK-150 transformer)
Environmental Specs
IEC 60529, IP44 (IP55 for PI versions)
Nominal Impedance
8Ω
