Electro-Voice EVID-C8.2-G2 8-Inch Coaxial Ceiling Speaker, Pair

Electro-Voice | SKU: EV-EVIDC82G2-F01U417783
$28900

Free Shipping




Estimated Shipping Widget will be displayed here!


Condition: New

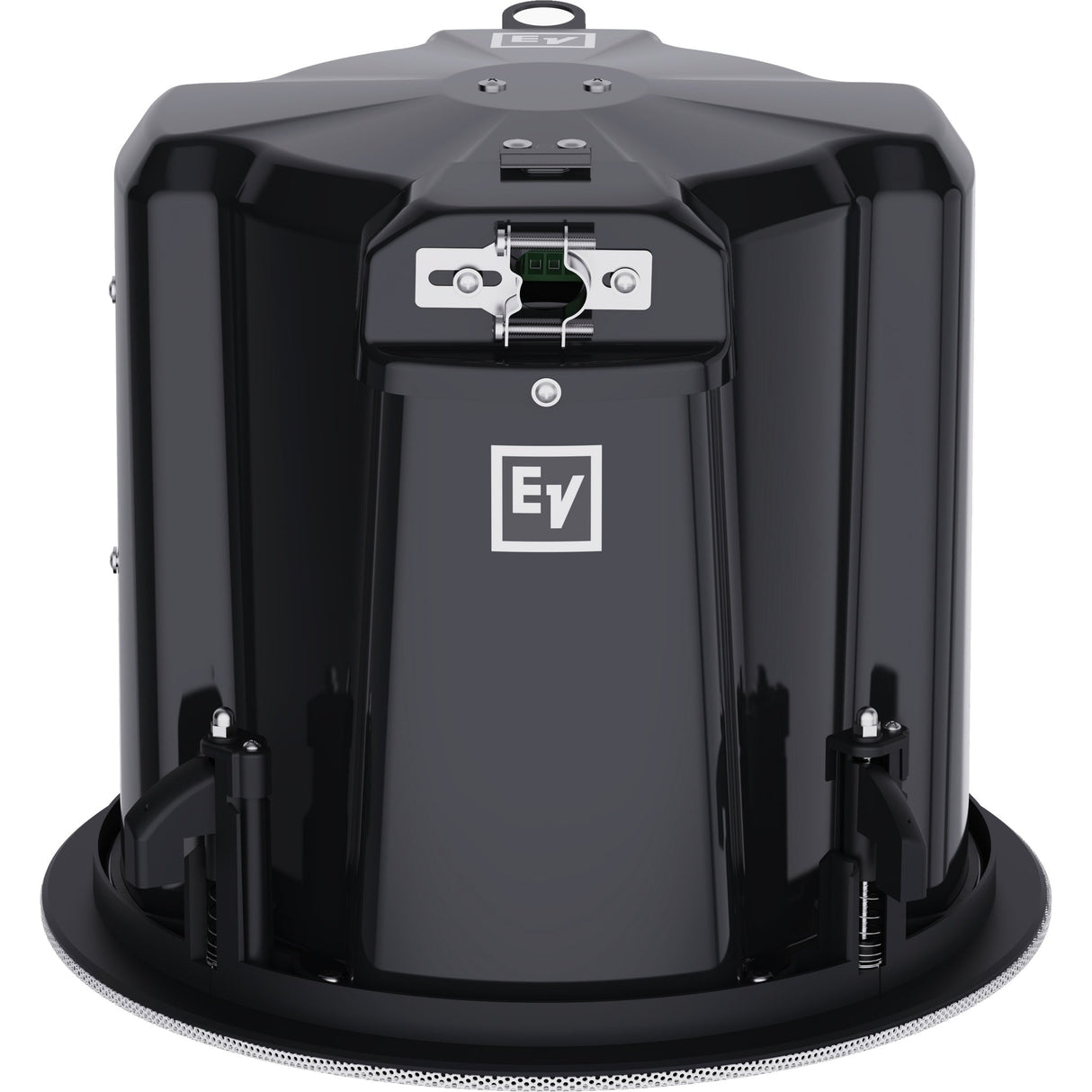

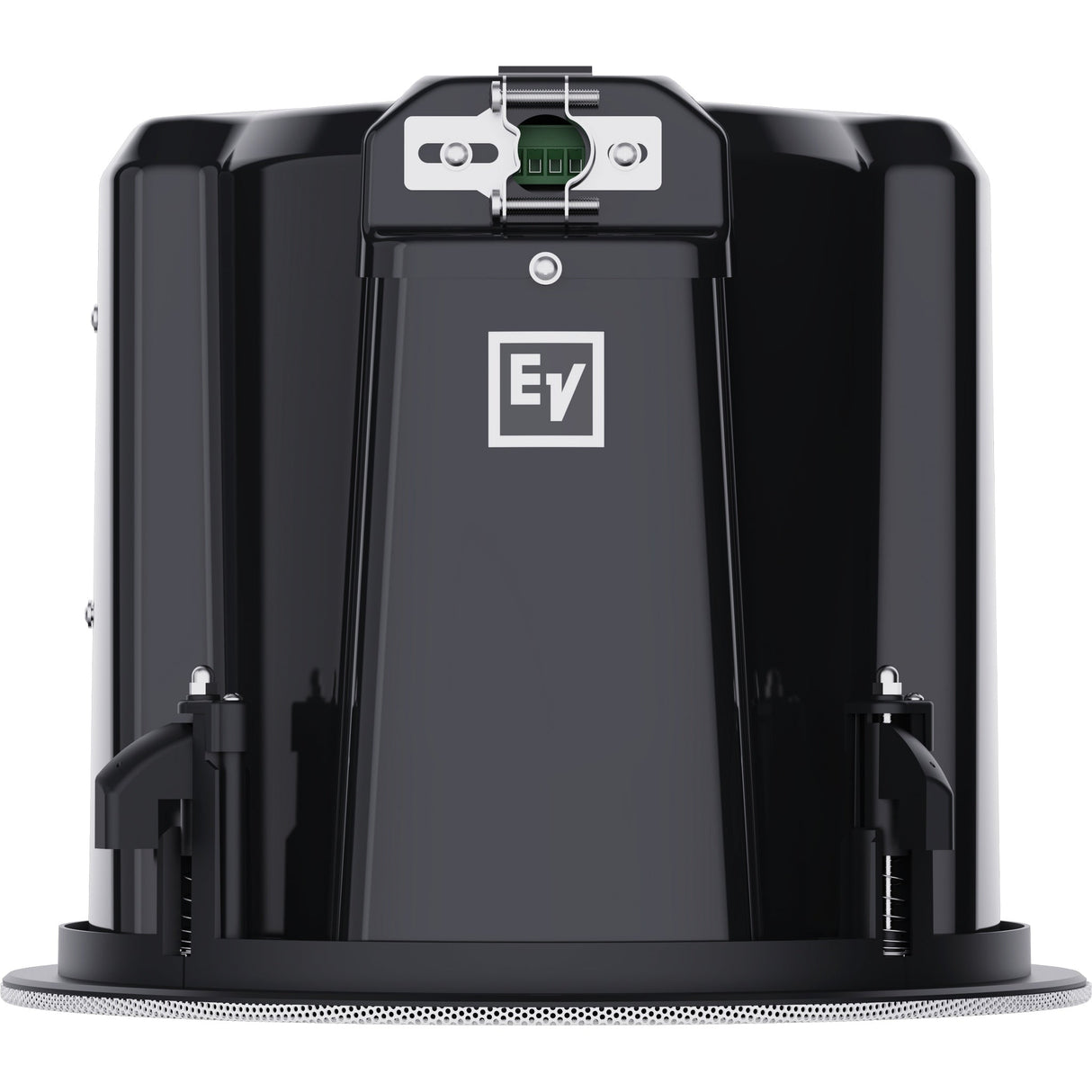

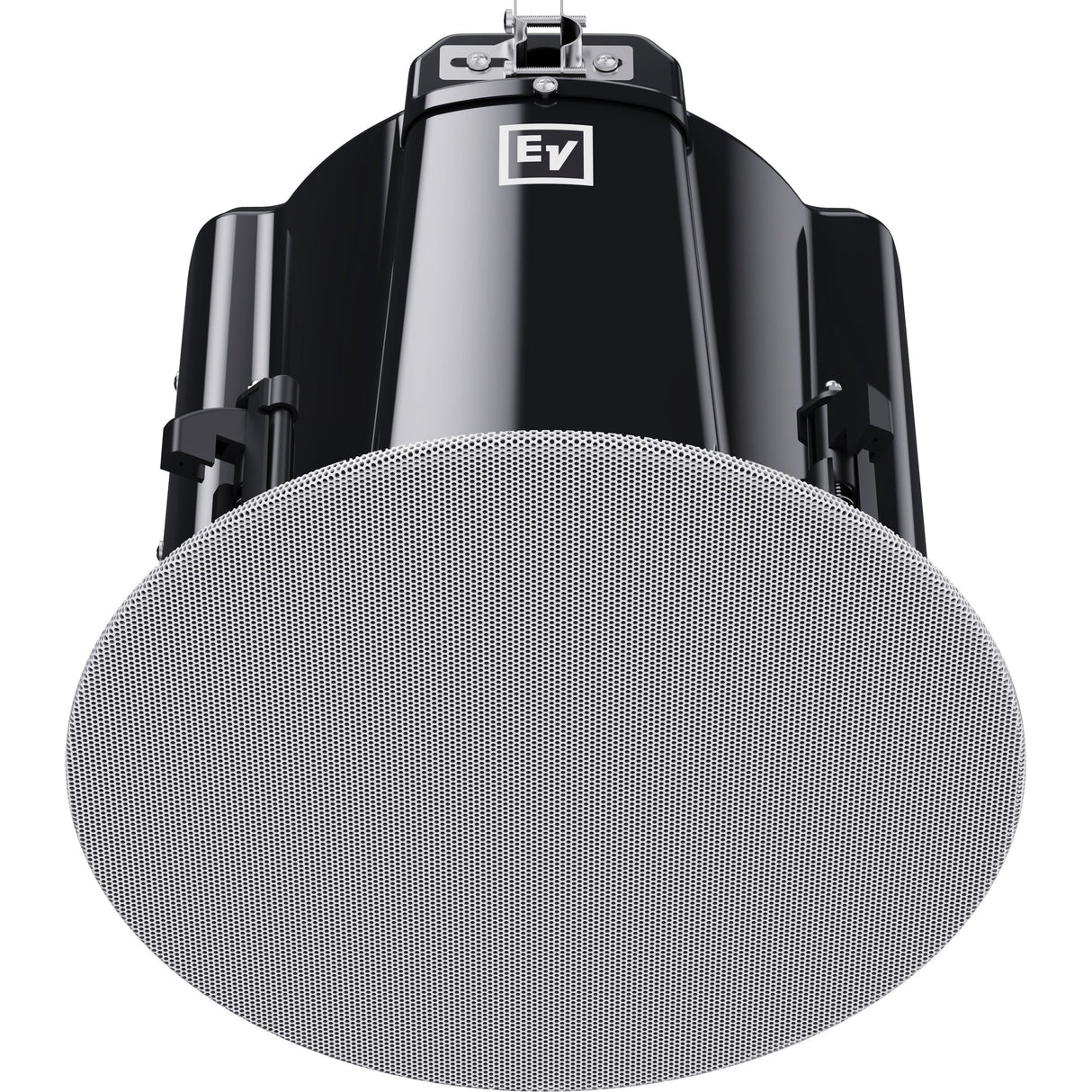

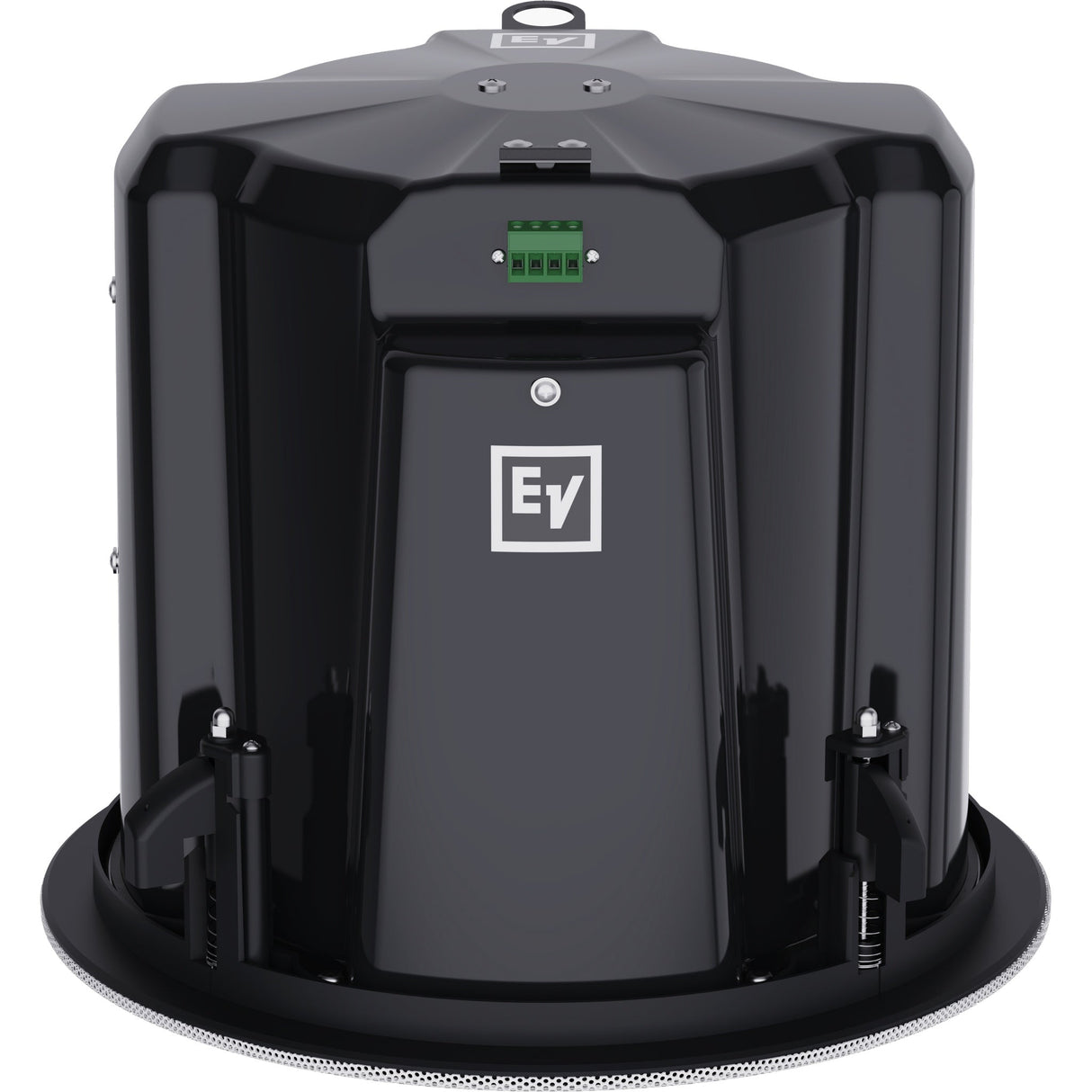

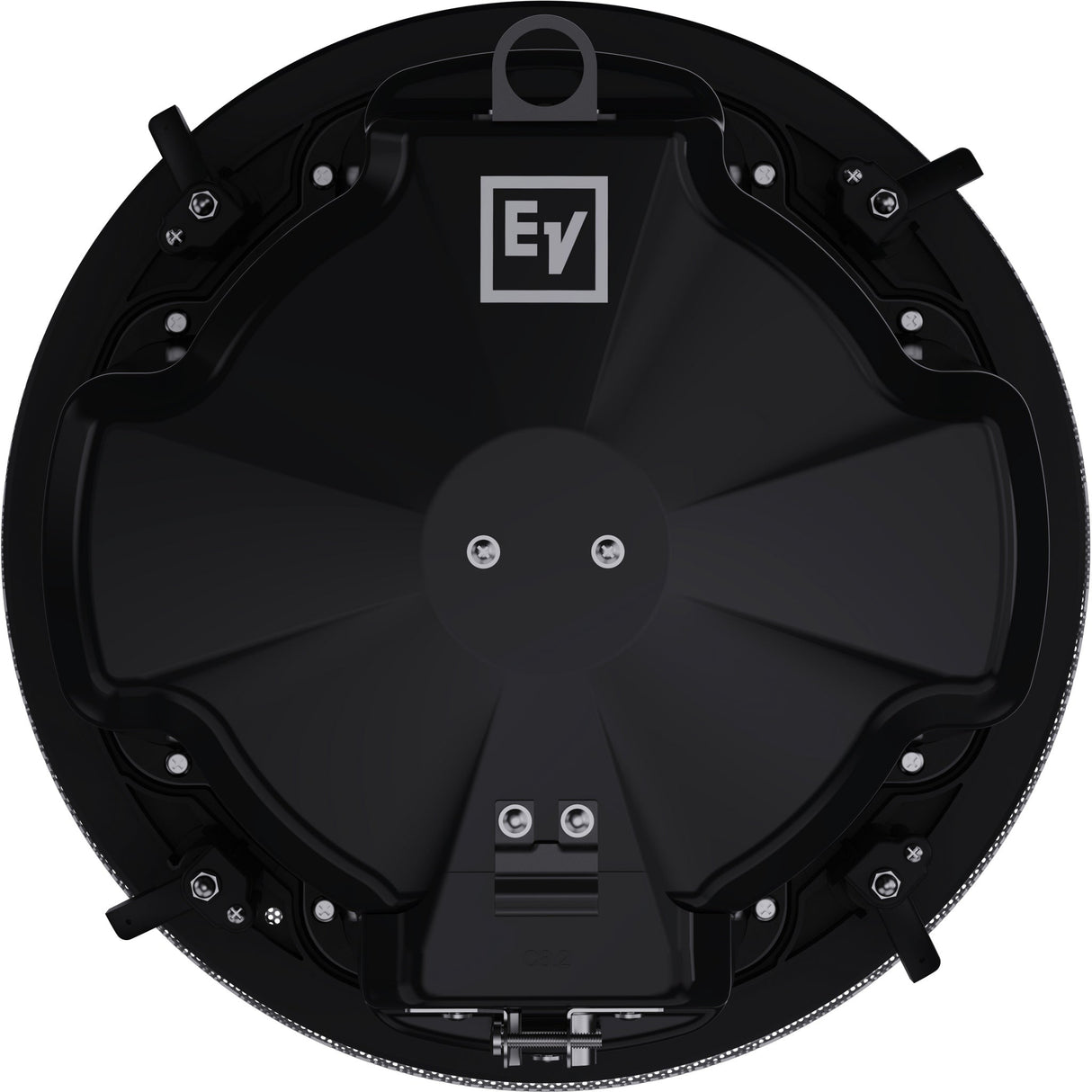

Electro-Voice EVID-C8.2-G2 8-Inch Coaxial Ceiling Speaker, Pair

The Electro-Voice EVID-C8.2-G2 is a powerful 8-inch coaxial ceiling speaker designed for large-scale commercial installations. Delivering strong bass extension, high-output performance, and excellent speech intelligibility, it is ideal for environments such as auditoriums, schools, retail stores, restaurants, and houses of worship. Its bezel-less magnetic grille ensures a clean ceiling appearance that blends seamlessly with modern architecture.

This ceiling speaker features selectable transformer taps for 70V/100V distributed audio systems, along with an 8-ohm bypass for direct low-impedance operation. The front-baffle tap switch makes adjustments quick and simple during installation. Built for durability and safety, the EVID-C8.2-G2 carries UL and CSA certifications and includes an EZ-Install system for secure mounting.

With its larger 8-inch woofer compared to smaller models, the EVID-C8.2-G2 offers extended low-frequency response and greater headroom, making it the go-to option for spaces that require both full-range music reproduction and clear voice announcements.

Key Features

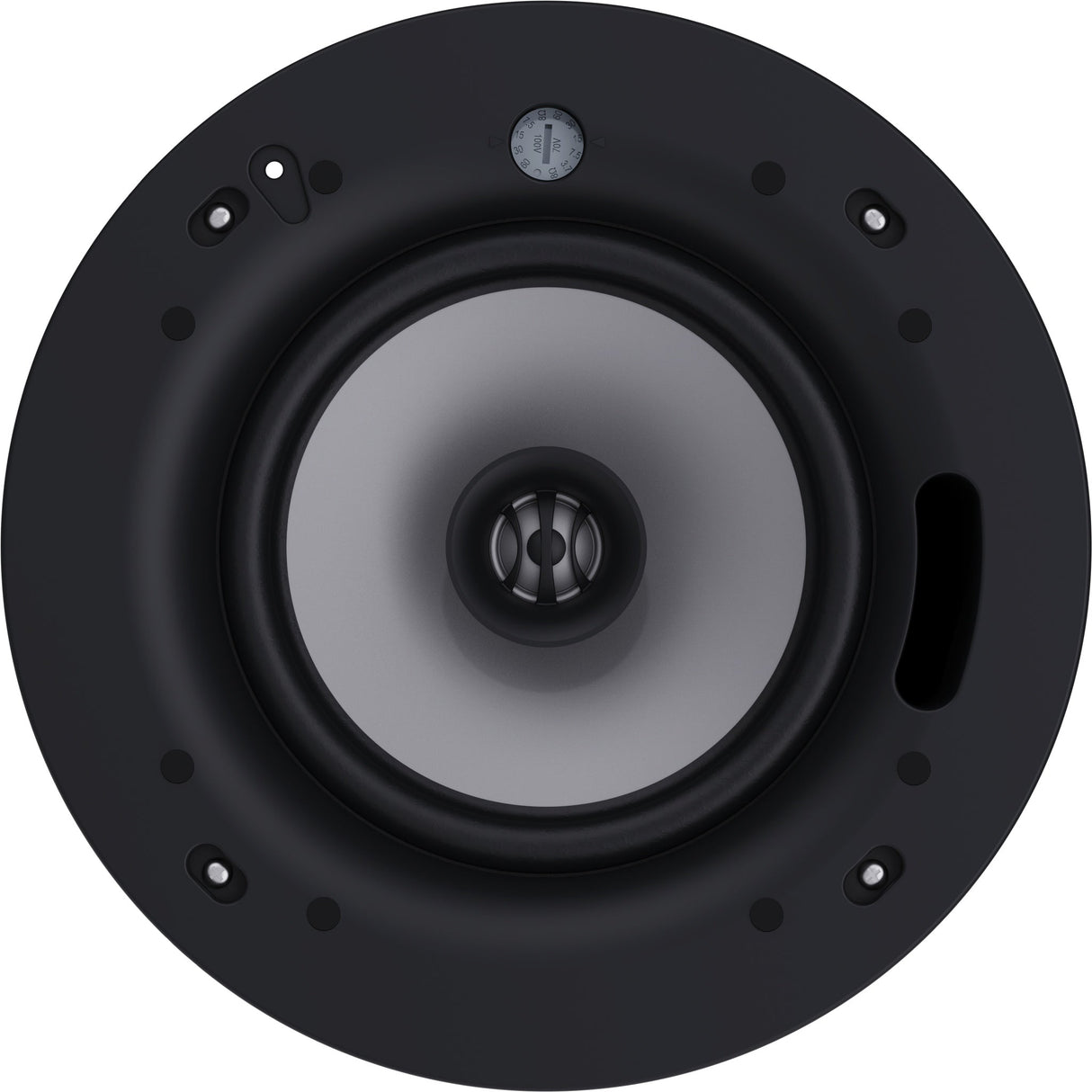

  • 8-inch coaxial two-way design with 1-inch tweeter for full-range performance
  • Selectable transformer taps for 70V/100V operation plus 8-ohm bypass
  • Handles 90 W continuous power and up to 360 W peak power
  • 90-degree conical coverage ensures wide and even sound distribution

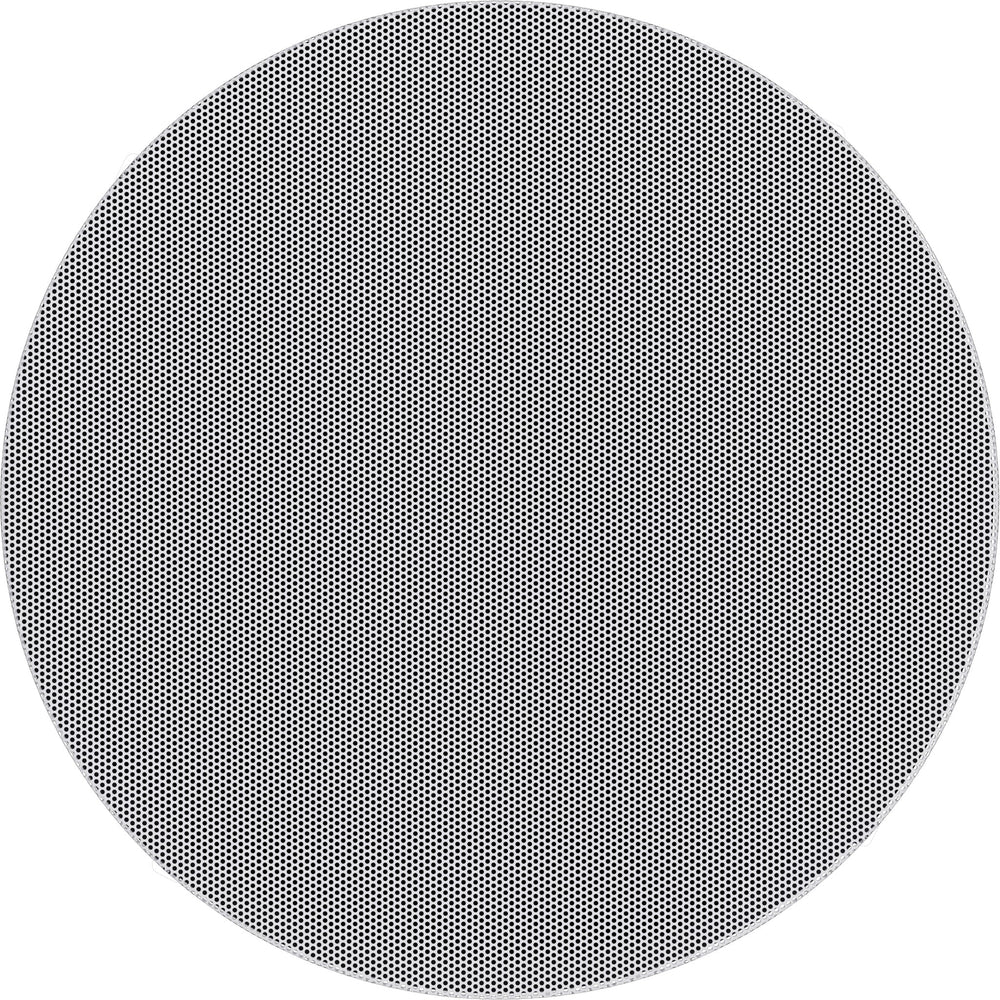

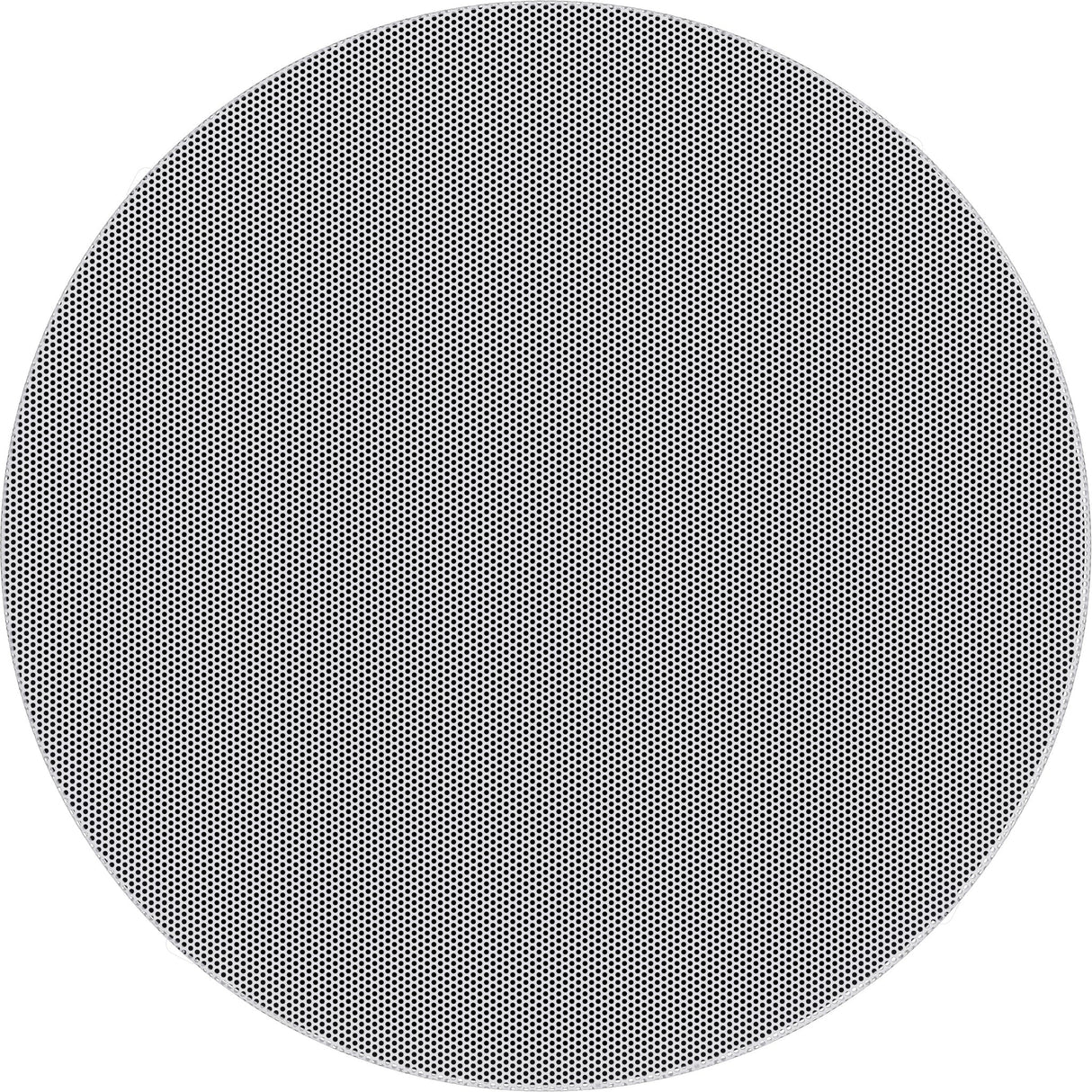

  • Bezel-less magnetic grille for sleek, unobtrusive ceiling integration
  • Front-baffle tap switch for easy system adjustments
  • UL and CSA certified for plenum spaces and commercial safety standards

Technical Specifications

  • Driver Size: 8 in woofer with 1 in tweeter
  • Frequency Response (-10 dB): 50 Hz – 20 kHz
  • Sensitivity (1 W/1 m): 90 dB SPL
  • Power Handling (Continuous/Peak): 90 W / 360 W
  • Nominal Impedance: 8 ohm (bypass)
  • Transformer Taps (70V): 3.8, 7.5, 15, 30, 60 W
  • Transformer Taps (100V): 7.5, 15, 30, 60 W
  • Coverage Angle: 90-degree conical
  • Cutout Diameter: 10.7 in
  • Overall Diameter Ɨ Depth: 11.9 in Ɨ 9.8 in
  • Mounting Depth: 9.6 in
  • Color: White (RAL 9003 Signal White)
  • Weight: 13.20 lb
