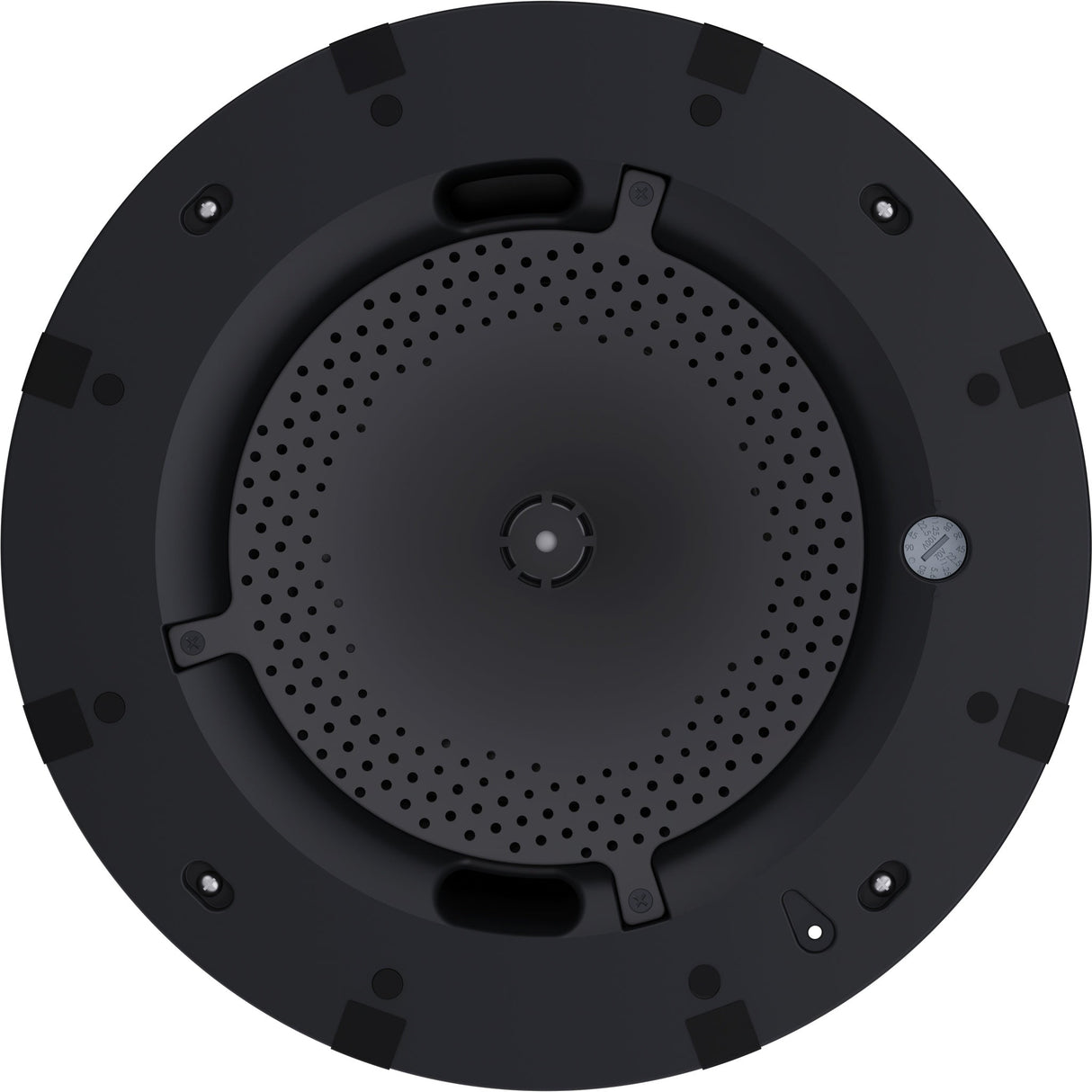

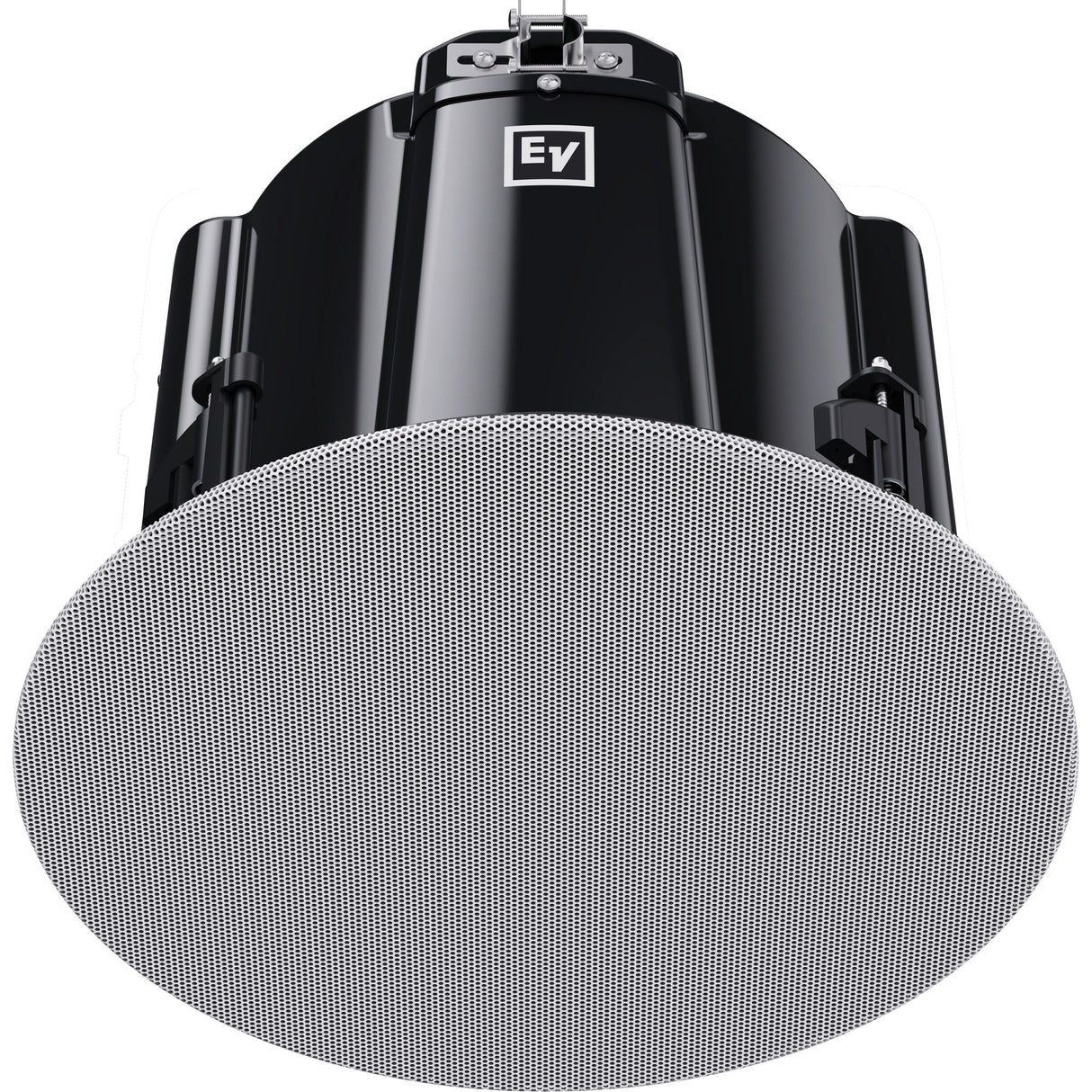

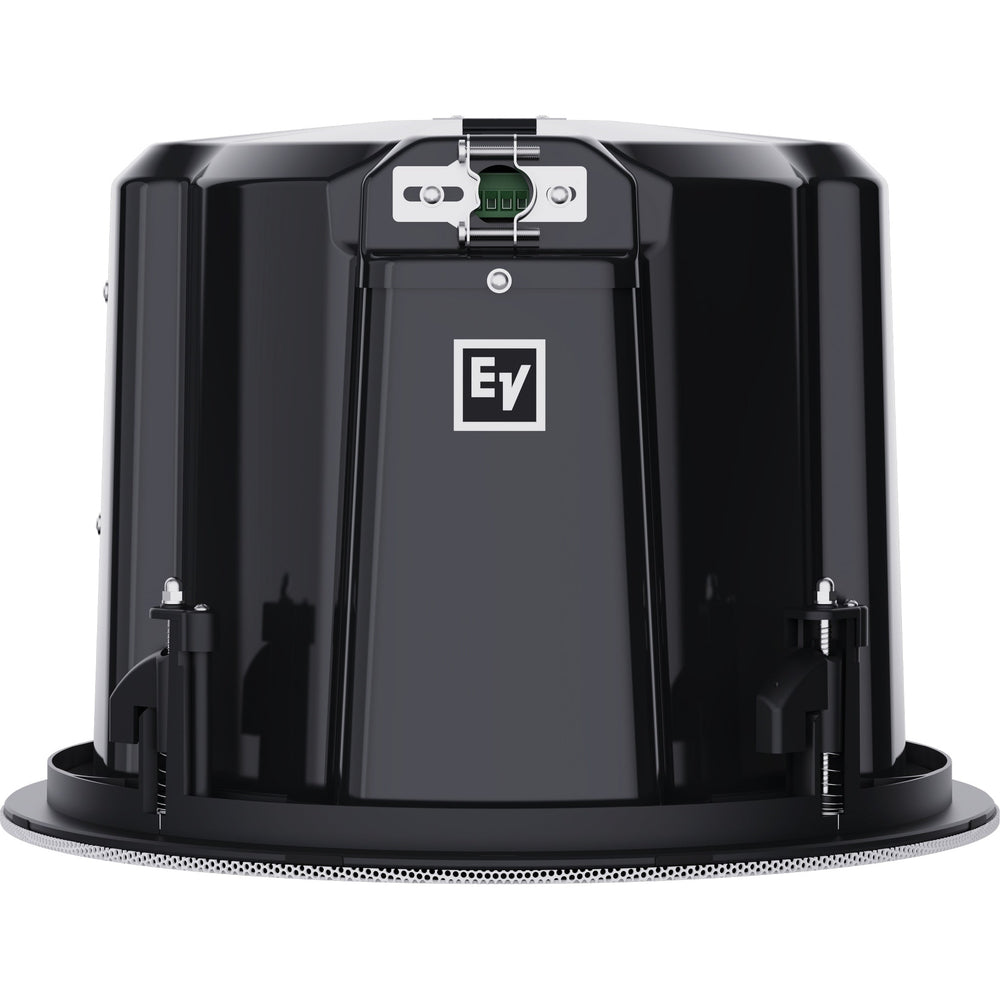

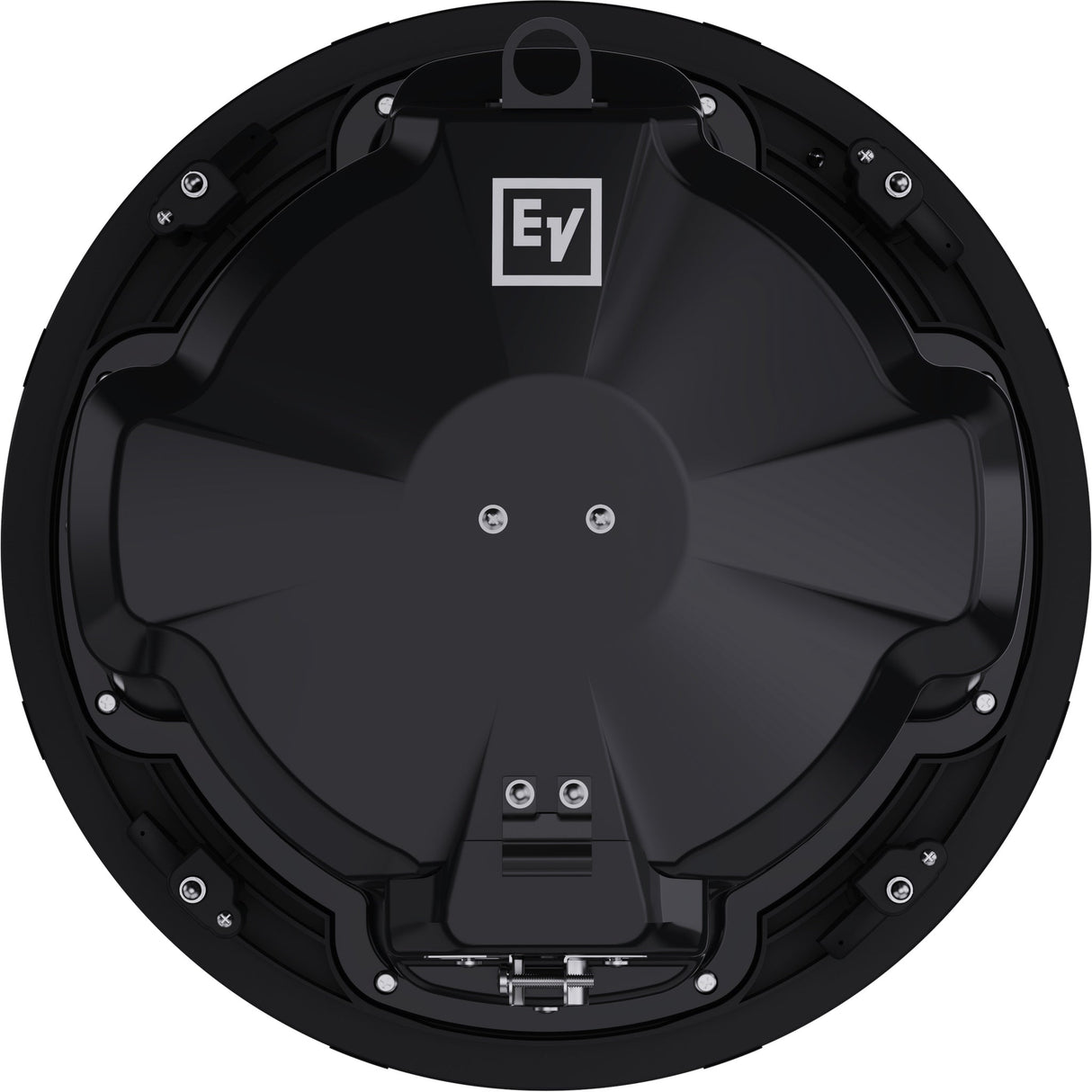

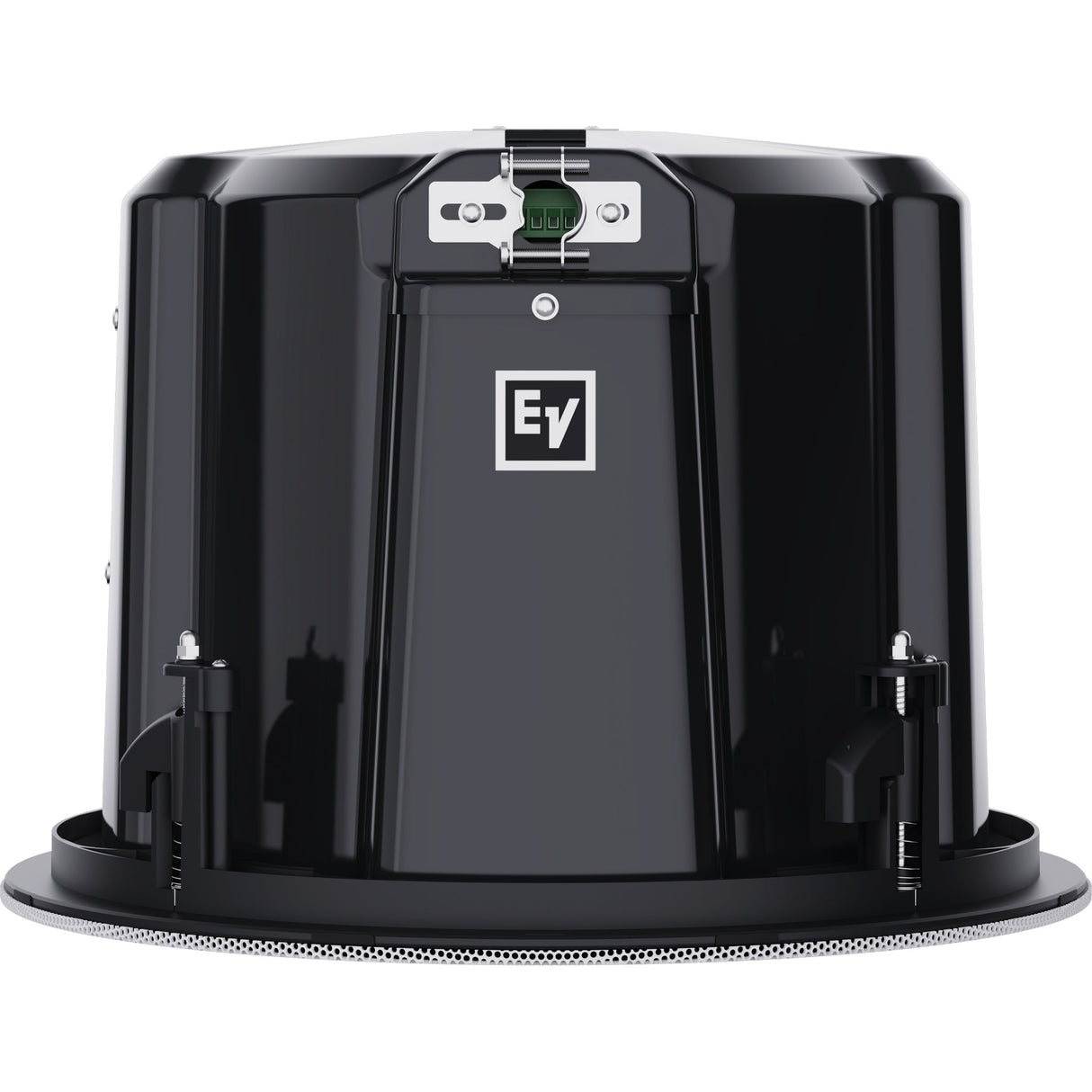

Electro-Voice EVID-C8.2HC-G2 8-Inch High Ceiling Coaxial Speaker, Pair
The Electro-Voice EVID-C8.2HC-G2 is a specialized ceiling speaker designed for very high ceiling commercial spaces that need extra power, clarity, and coverage. Its “HC” version builds on the standard EVID line by offering elevated SPL performance, extended power handling, and enhanced coverage to cut through distance and height without losing fidelity or presence.

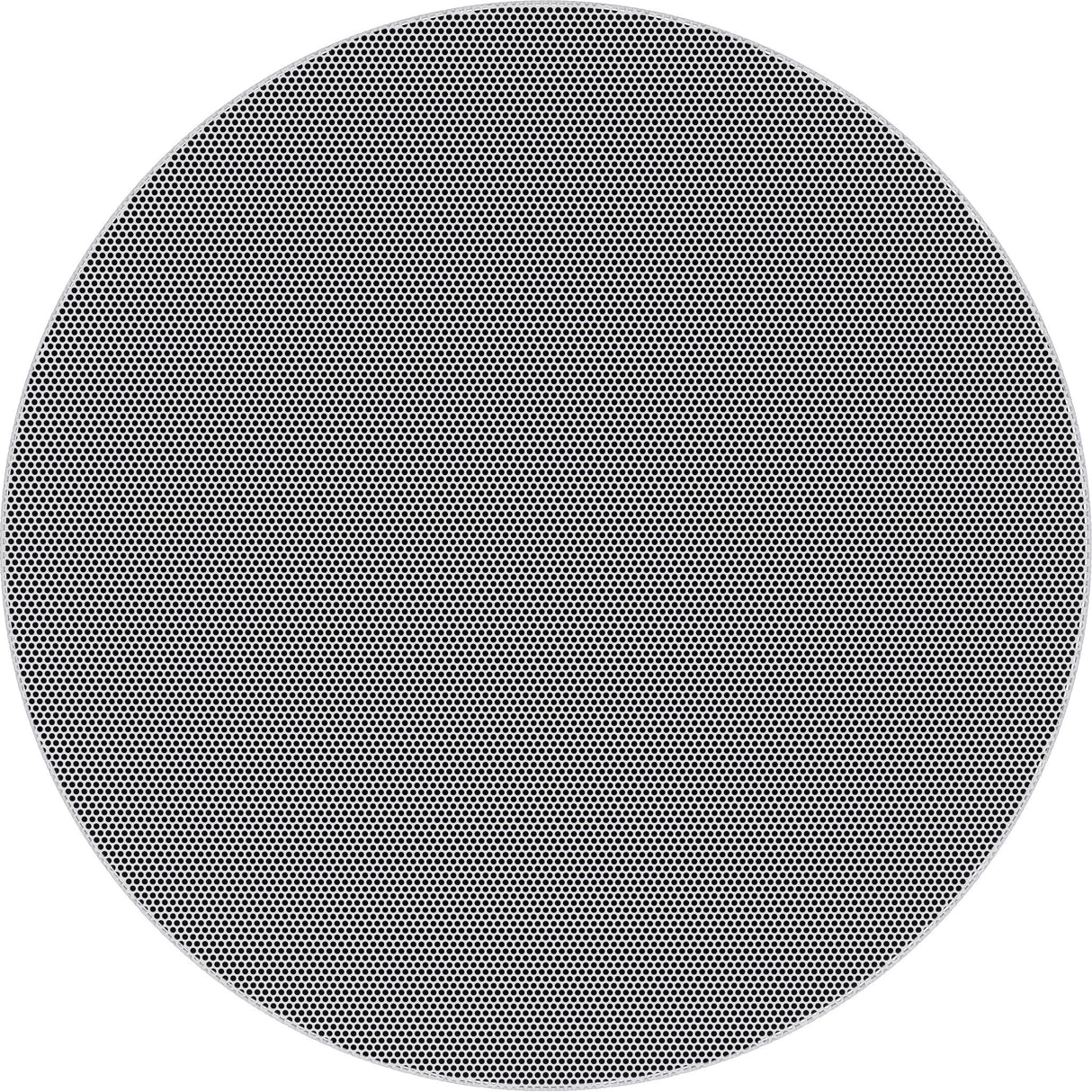

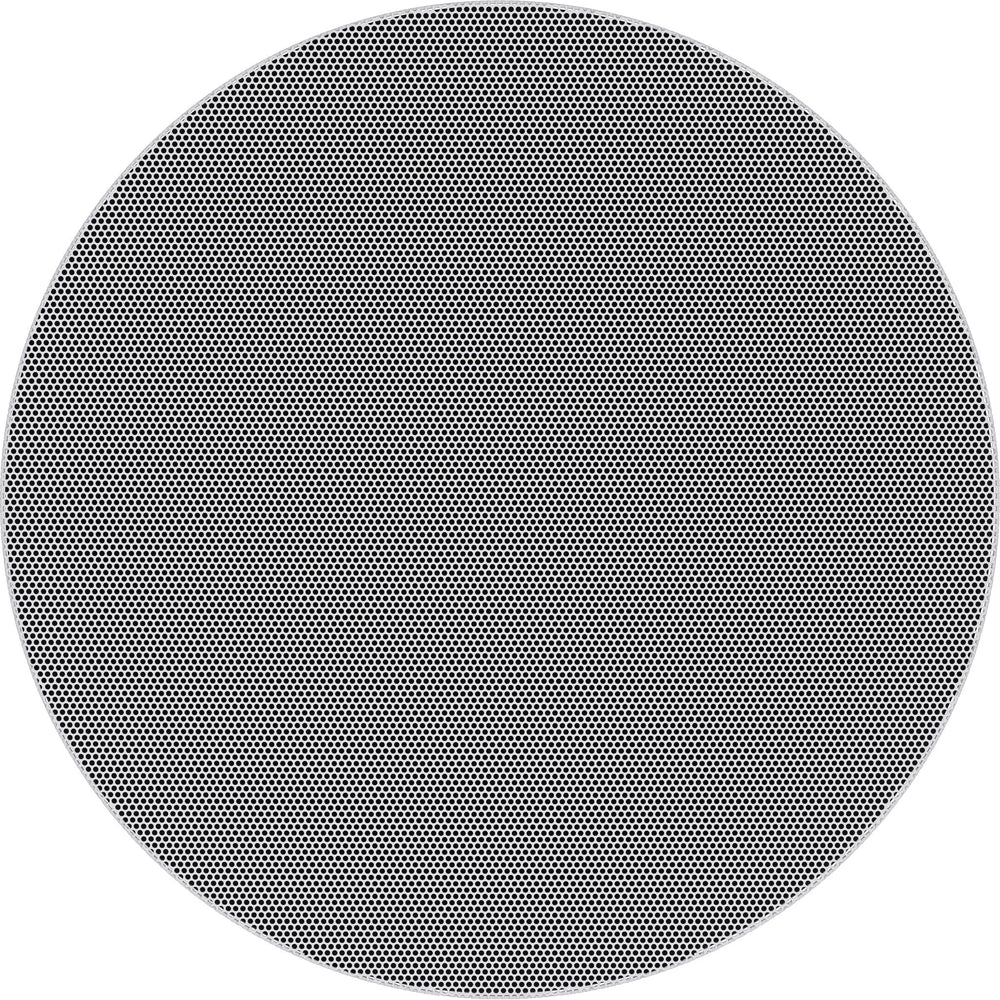

This speaker features selectable transformer taps for 70-volt or 100-volt distributed systems, as well as an 8-ohm bypass, giving flexibility in both high-voltage and low-impedance setups. With its EZ-Install mounting system, bezel-less magnetic grille, tile bridge, and mounting ring included, the EVID-C8.2HC-G2 simplifies installation even in challenging structural environments.
When used in high ceiling scenarios—such as auditoriums, atriums, lobbies, gymnasiums, or large retail spaces—this model delivers robust continuous sound (118 dB SPL) and peaks at 124 dB, ensuring that both music and announcements are heard clearly across the vertical space. Its durable materials, safety certifications, and reliable performance make it a top choice where ordinary speakers might struggle.
Key Features
- High-ceiling version with elevated output: continuous SPL 118 dB, peak SPL 124 dB
- Selectable transformer taps (70/100 V) plus 8-ohm bypass for flexible system design
- 180 W continuous power handling, 720 W peak power capability
- Wide 75-degree conical coverage to improve off-axis response in large open spaces
- EZ-Install mounting system with tile bridge and mounting ring included
- Front-baffle wattage tap switch for easy configuration without removing the grille
- Certified for safety: UL 1480A, UL 2043, CSA 22.2 205; suitable for air-handling ceiling spaces
Technical Specifications
- Brand: Electro-Voice
- Model: EVID-C8.2HC-G2
- Frequency Response (-10 dB): 60 Hz - 20 kHz
- Sensitivity (1 W / 1 m): 95 dB SPL
- Power Handling (Continuous / Peak): 180 W / 720 W
- Nominal Impedance: 8 ohm (bypass)
- Transformer Taps 70 V / 100 V: 90 W / 45 W / 22.5 W / 11.25 W / 5.6 W
- Coverage Angle: 75° conical

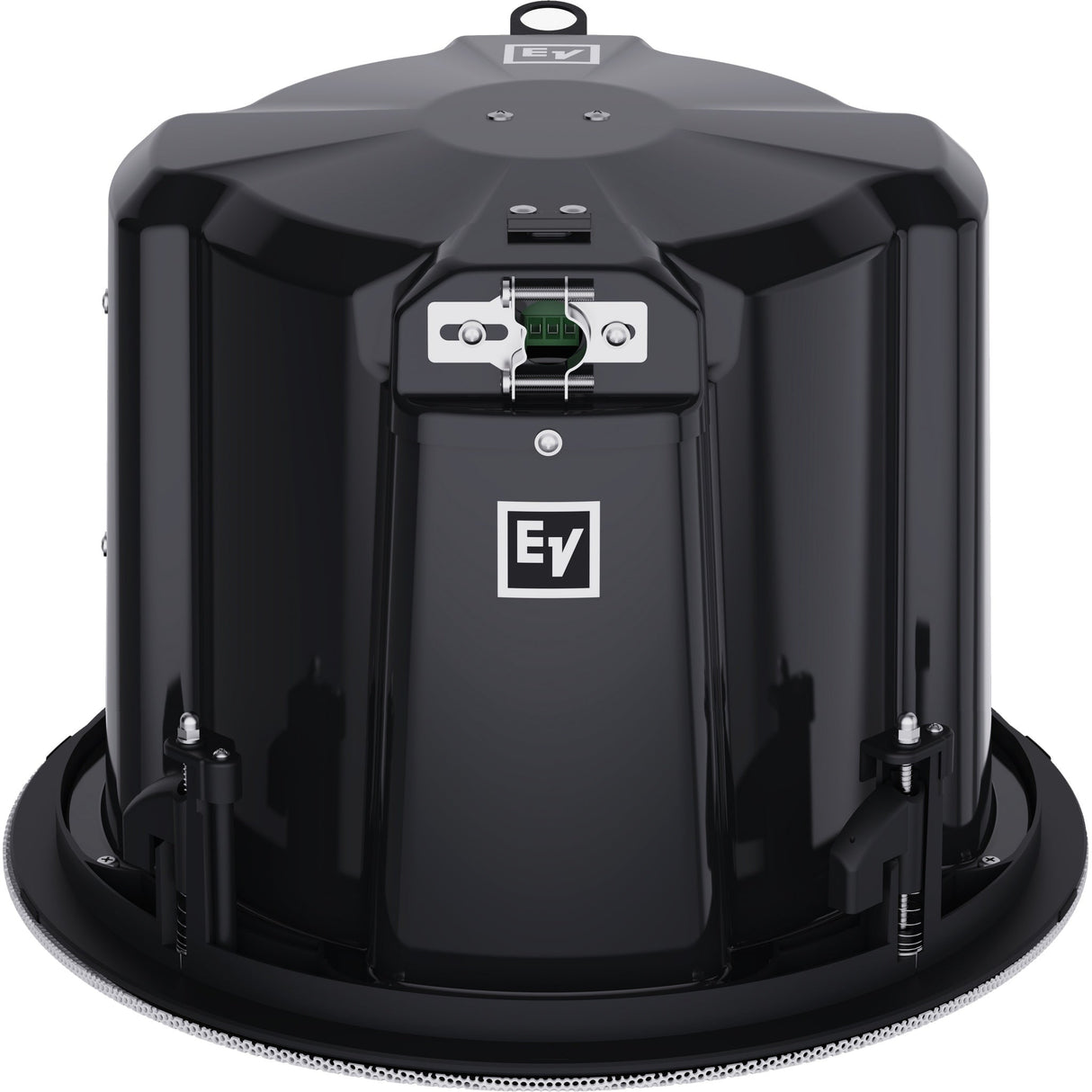

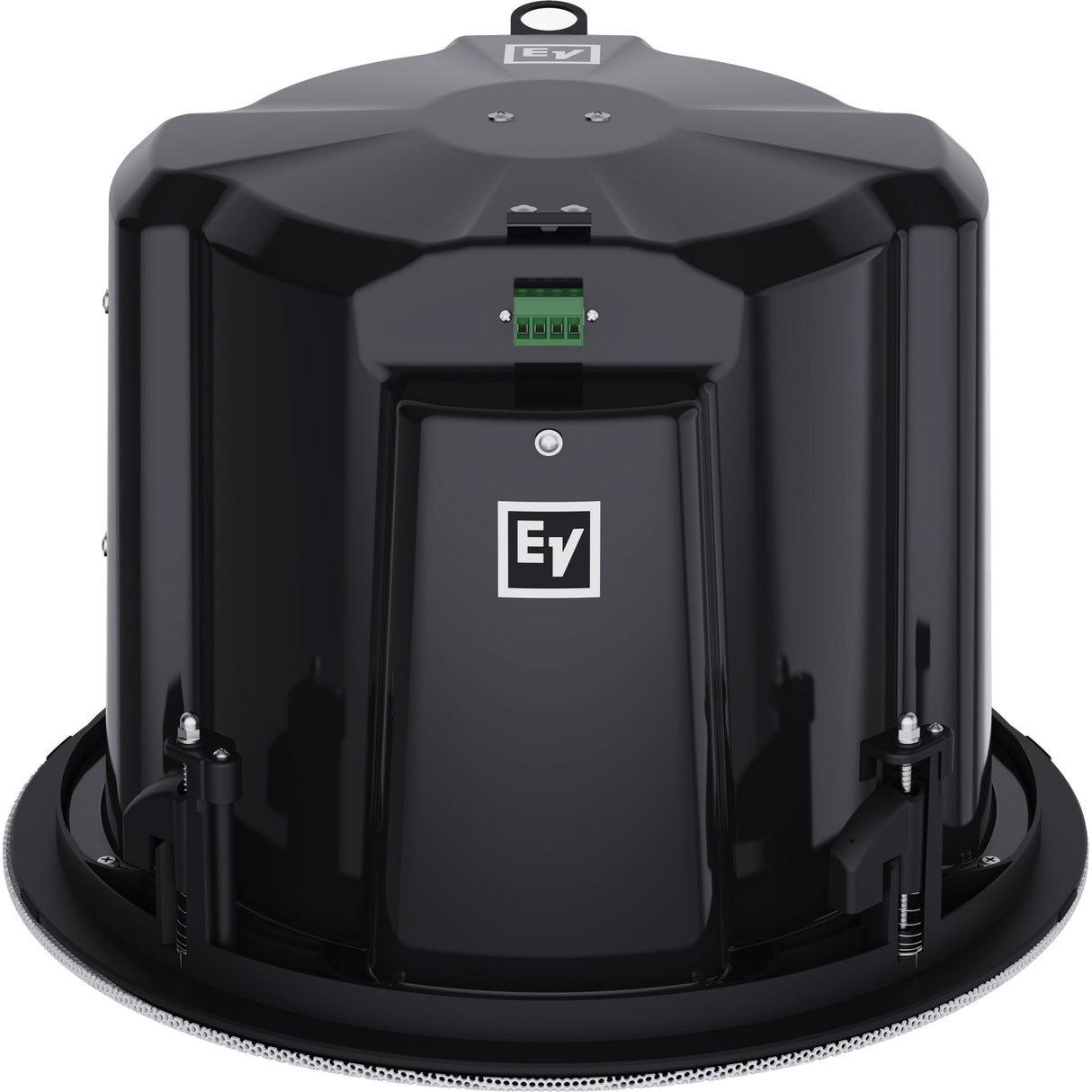

- Connector Type: 4-pin Euroblock, with pass-through
- Mounting Cut-Out Diameter: 12.7 in
- Overall Diameter × Depth: 13.9 in × 9.9 in
- Mounting Depth: 9.5 in
- Color: White (RAL 9003 Signal White)
- Weight: 13.2 lb
