Condition: New

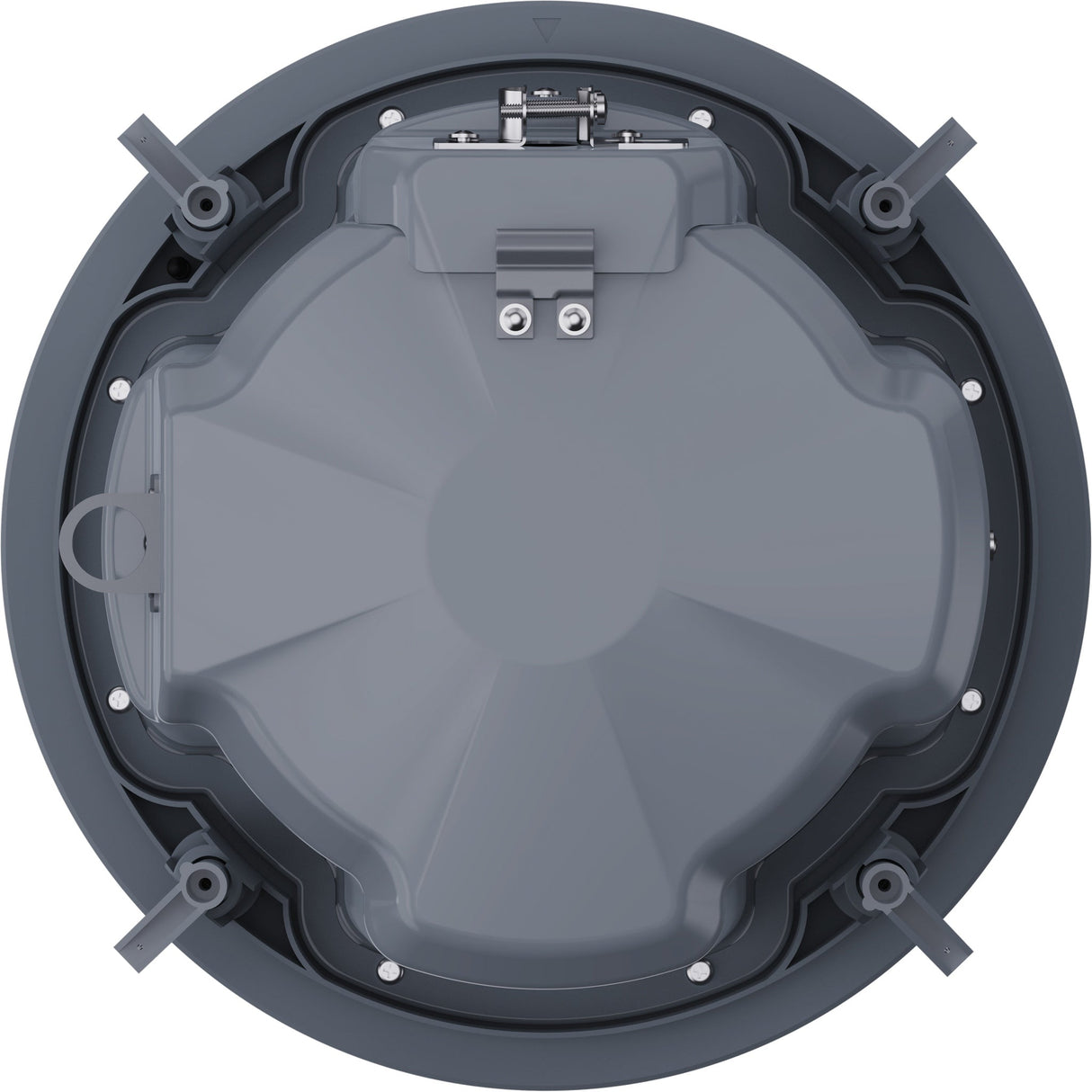

Electro-Voice EVID-EC6.2 6.5-Inch Ceiling Speaker, Pair
The Electro-Voice EVID-EC6.2 is a 6.5-inch two-way ceiling speaker engineered for clear, full-range sound in commercial spaces. Its bezel-less magnetic grille blends into modern interiors while the coaxial design delivers articulate speech and rich background music across wide coverage areas.
Flexible power options include selectable 70V/100V transformer taps and an 8 ohm bypass, so it drops easily into distributed audio systems or standard low-impedance designs. Installers benefit from front-baffle tap selection, plus an included tile bridge and C-ring for fast, secure mounting.
With strong continuous output, wide 110-degree conical coverage, and safety certifications for plenum use, the EVID-EC6.2 is a reliable choice for retail, hospitality, education, worship, and corporate environments.
Key Features
- 6.5-inch coaxial two-way design for balanced music and intelligible speech
- Selectable 70V/100V taps plus 8 ohm bypass for flexible system integration

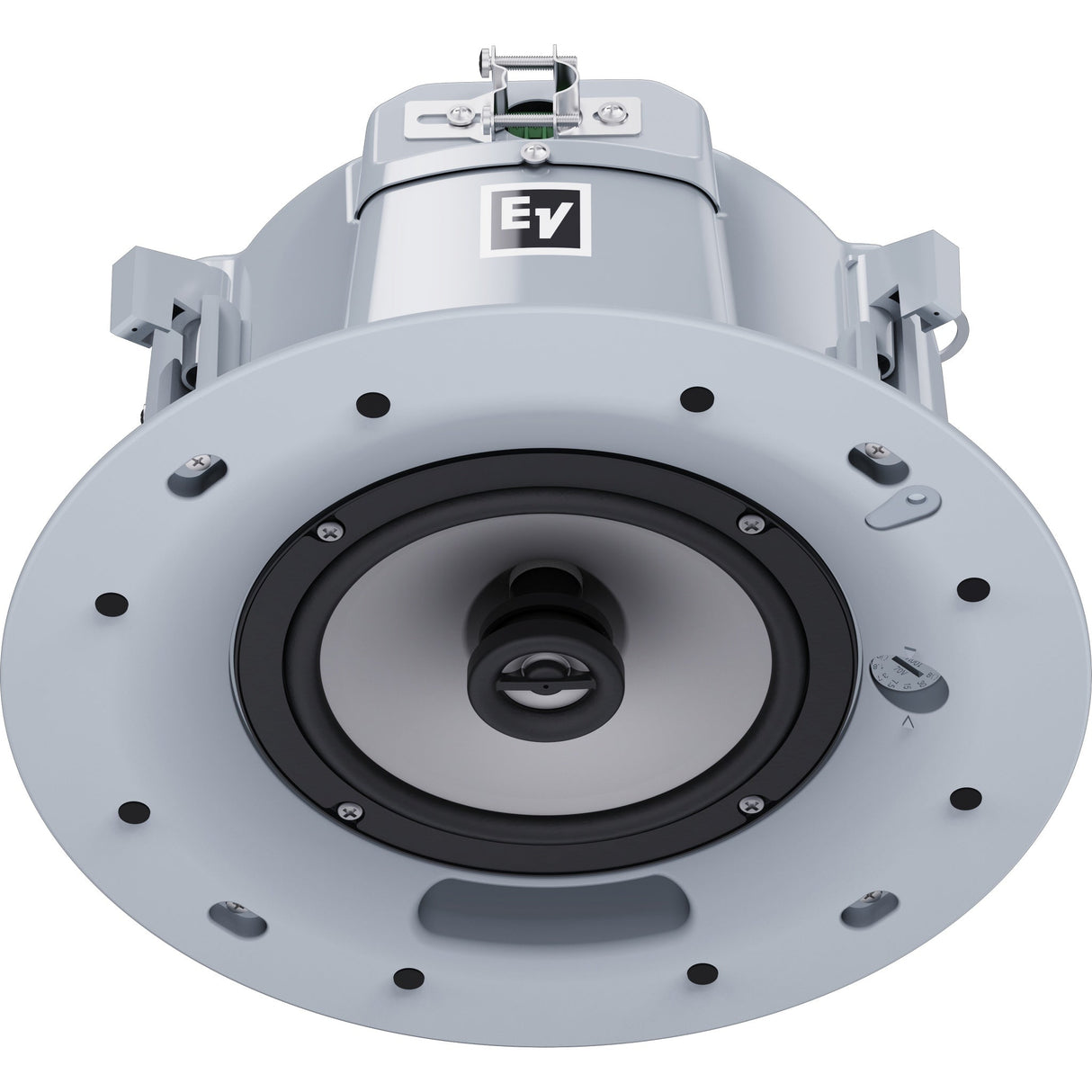

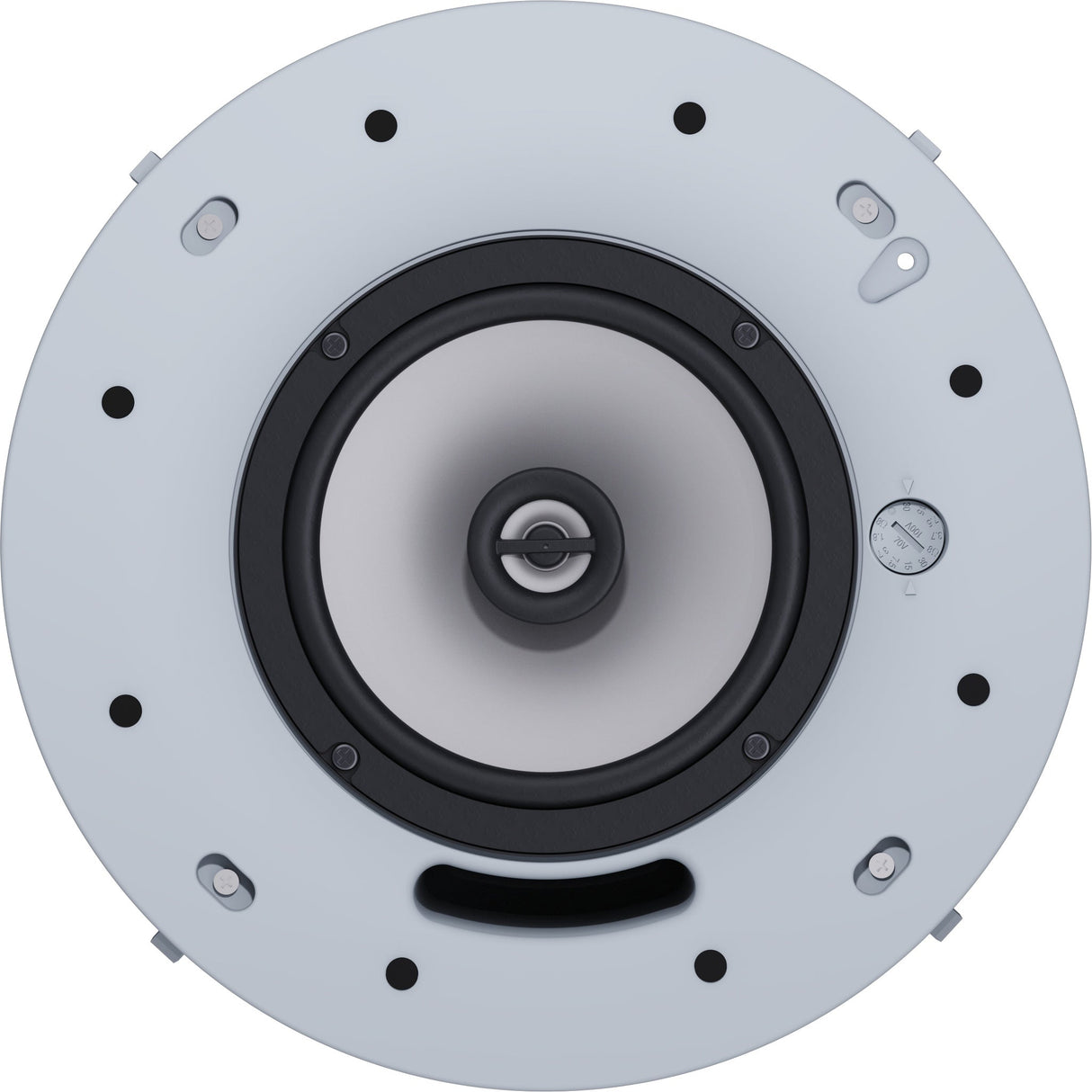

- Front-baffle wattage selector for quick adjustments during installation

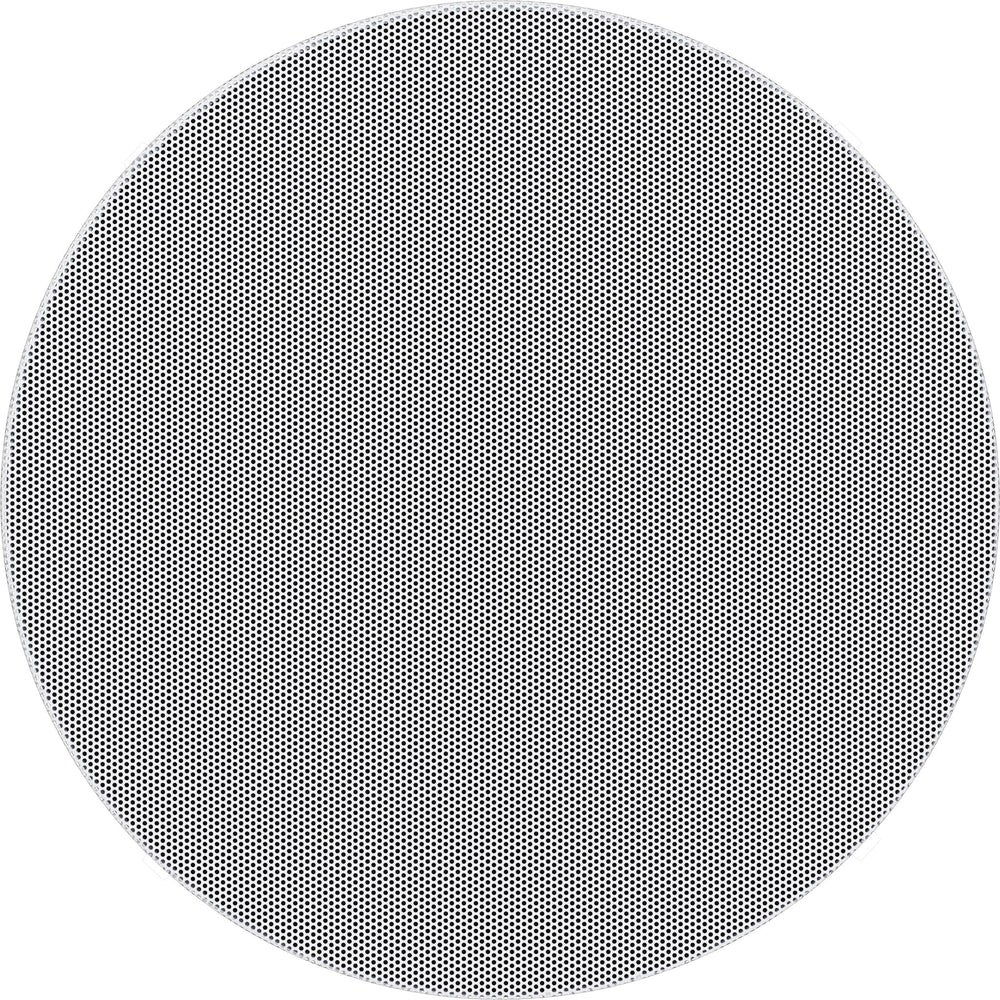

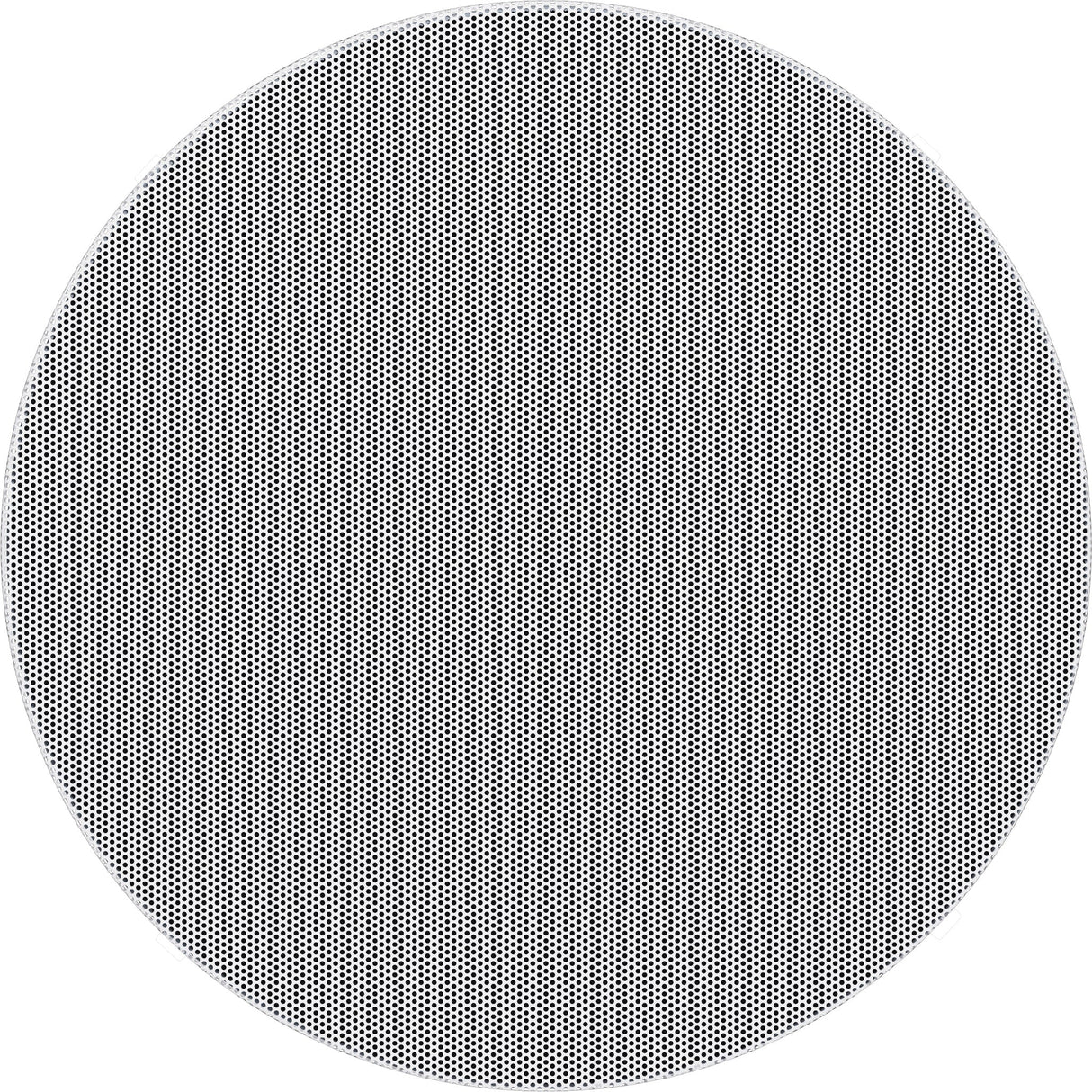

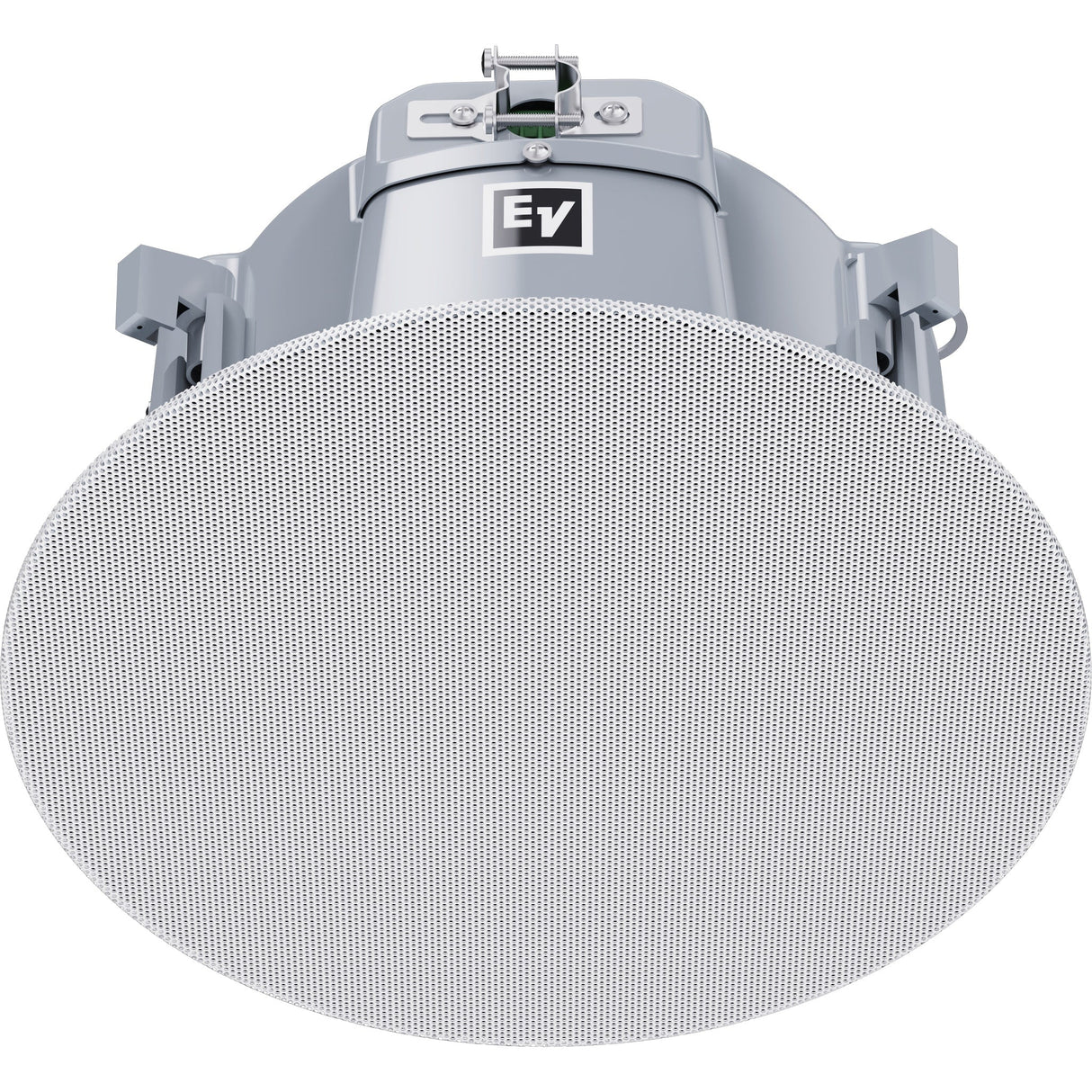

- Bezel-less magnetic grille with semi-gloss white finish for low-profile aesthetics
- Includes tile bridge and mounting ring for safe drop-ceiling installs
- UL 1480A, UL 2043, CSA C22.2 No. 205 and IEC 62368-1 certified; IP34 rated for indoor use
Technical Specifications
- Frequency Range (-10 dB): 80 Hz ā 20 kHz
- Sensitivity (1 W/1 m): 92 dB SPL
- Maximum SPL (Continuous/Peak): 110 dB / 116 dB
- Power Handling (Continuous/Peak): 60 W / 240 W
- Recommended High-Pass: 70 Hz (24 dB/oct)
- Nominal Impedance: 8 ohm (bypass)
- Transformer Taps 70 V: 30 W, 15 W, 7.5 W, 3.75 W, 1.88 W
- Transformer Taps 100 V: 30 W, 15 W, 7.5 W, 3.75 W
- LF / HF Transducers: 6 in woofer / 1 in HF
- Ccoverage Angle: 110° conical

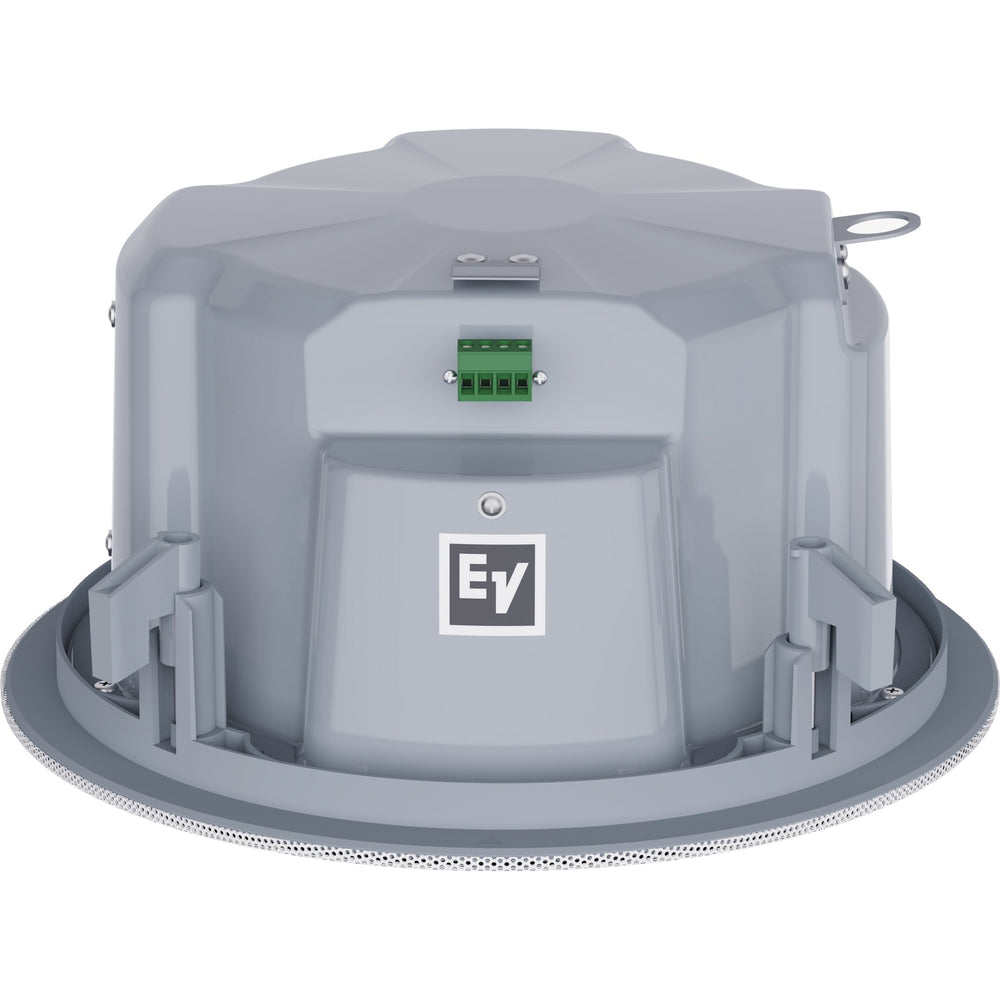

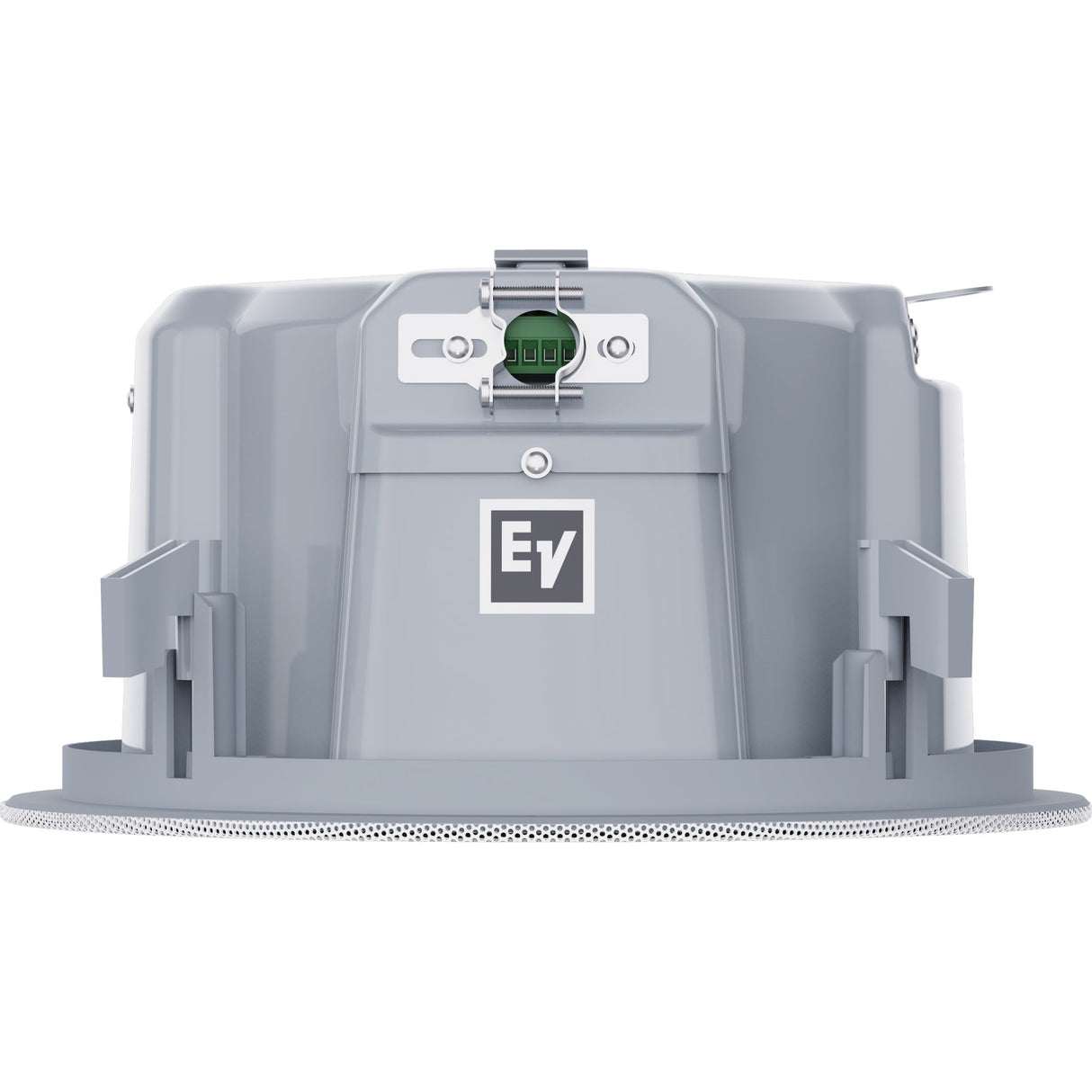

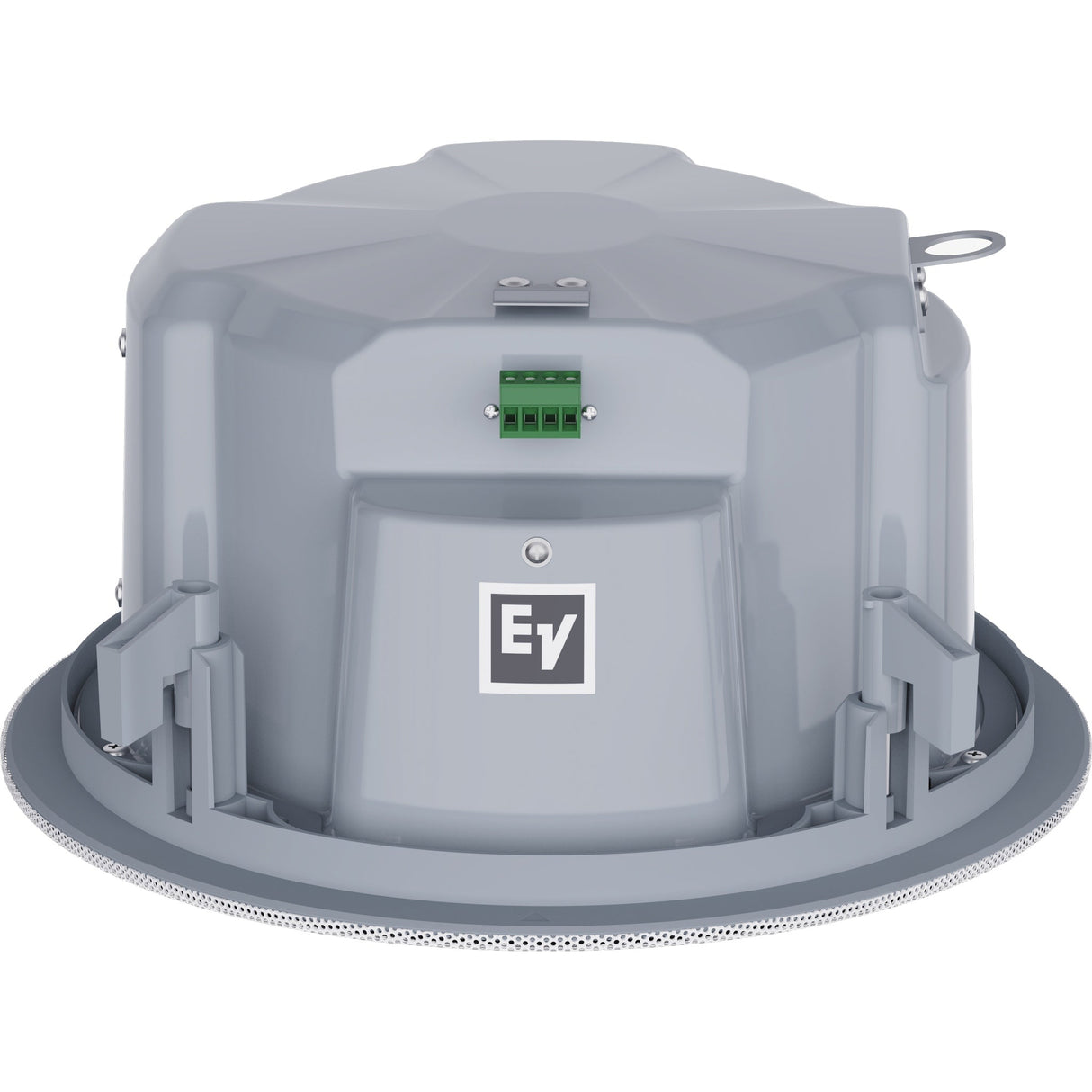

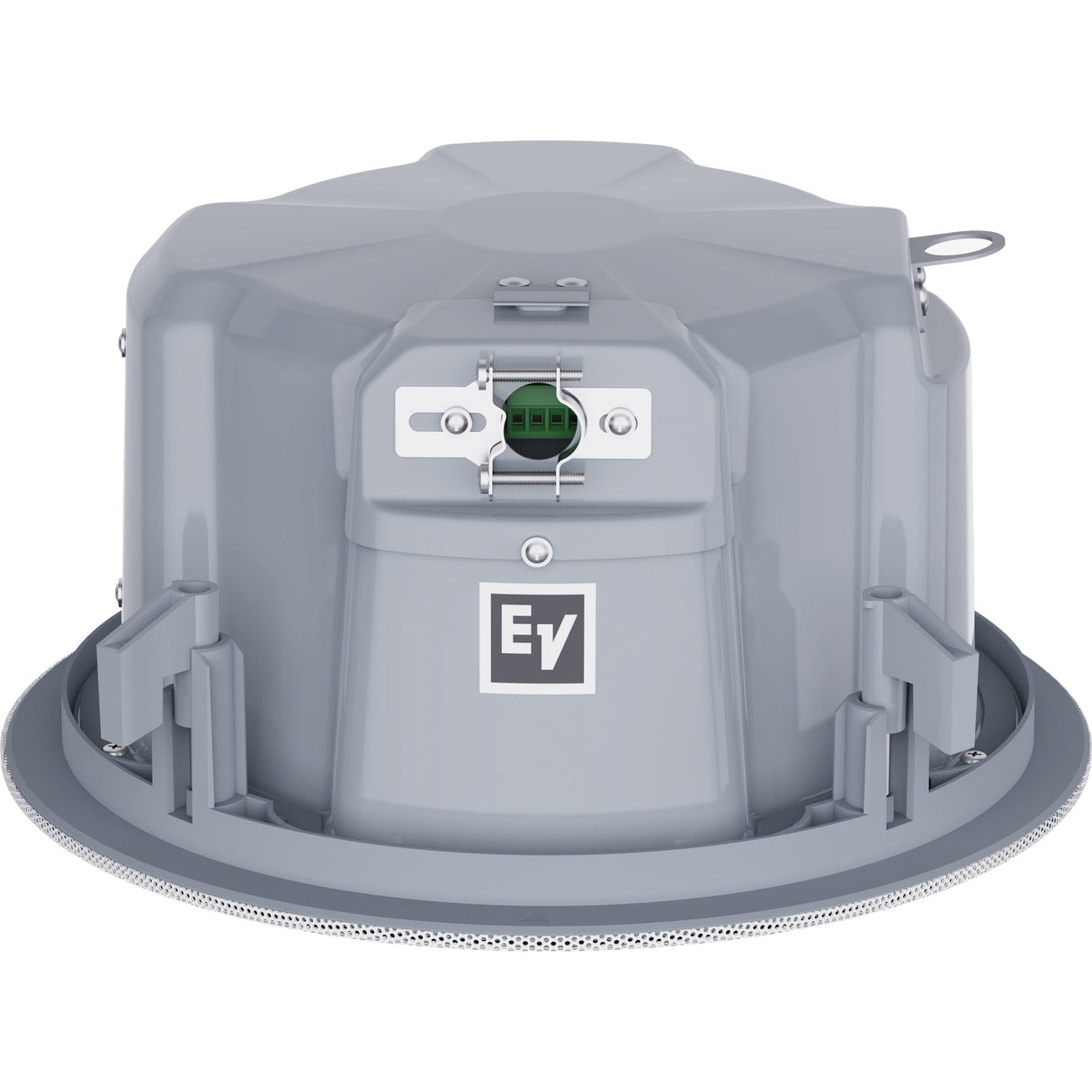

- Connector Type: 4-pin Euroblock with pass-through (up to 12 AWG / 3.3 mm²)
- Cutout Diameter: 10.7 in
- Overall Diameter Ć Depth: 11.9 in Ć 6.1 in
- Mounting Depth: 5.9 in
- Ceiling Thickness Range: 0.5 in ā 1.5 in
- Color: White (RAL 9003 Signal White)
- Weight: 7.9 lb
- Ingress Protection: IP34 (indoor)
- Operating Temperature: 32 °F ā 122 °F (0 °C ā 50 °C)
