Electro-Voice EVOLVE Wall Mount Kit, Phoenix, White
The EVOLVE WMK (wall-mount kit) and EVOLVE TM-B (truss-mount bracket) enable users to mount the column speaker array of an EVOLVE 30M, 50 or 50M system at a greater height or distance from its dedicated subwoofer than the provided distance pole allows.
The kits allow users more acoustic and aesthetic flexibility when using an EVOLVE system. For example, the array can be wall-mounted or truss-mounted at an increased height for a longer throw into the listening area; the subwoofer can be stowed away from the array for a more streamlined stage setup or to save space.
Four WMK options are available, equipped with either Phoenix-style / Euroblock or NL4 connectors and finished in black or white. The TM-B is equipped with NL4 connectors and comes in black.
Key Features
- Innovative mounting system for simple and secure installation of EVOLVE 30M, EVOLVE 50 and EVOLVE 50M systems, available in black or white.
- Sturdy wall-mount bracket with 15° of downward tilt and 45° of left and right adjustment.
- Subwoofer and column adapters available with either Phoenix-style / Euroblock (internally secured PCB screw terminal blocks) or NL4 connectors.
- Use correctly rated speaker cable for optimal performance: wire gauges 1.5 mm² - 2.5 mm² (AWG16 - AWG14).

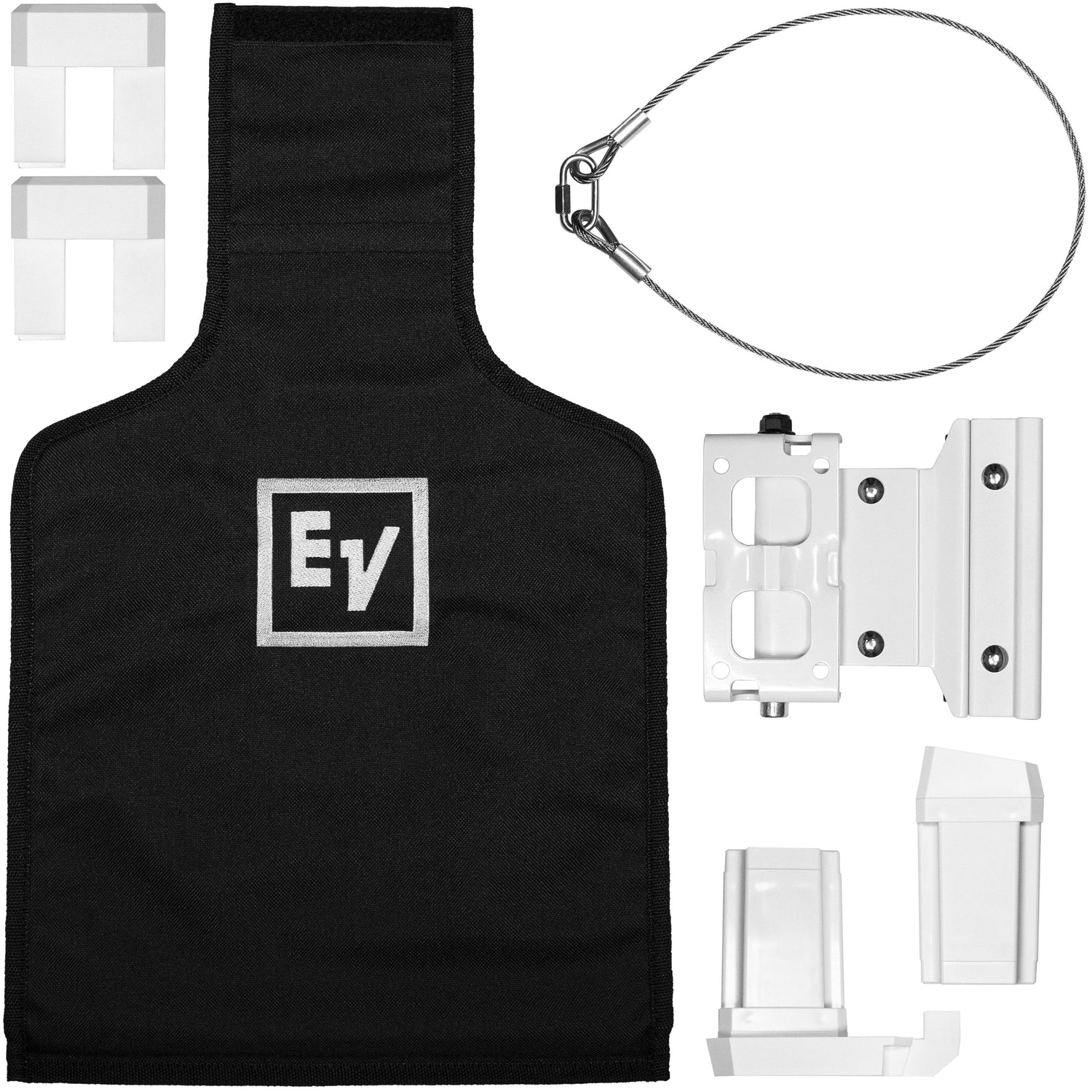

- Includes: wall-mount bracket, subwoofer amplifier and input cover, column speaker adapter, subwoofer adapter, secondary auxiliary support cable, installation manual, two rubber grommets (Phoenix kits only).
Technical Specifications
Electrical
Connector type Phoenix (removable screw connector)
Environmental
Usage
Indoor
Mechanical
Color
Black or white
Dimension (H x W x D) (mm)
80 mm x 400 mm x 400 mm
Dimension (H x W x D) (in)
3.1 in. x 15.75 in. x 15.75 in.
WLL (kg)
5 kg
WLL (lb)
11 lb
Weight (kg)
1.35 kg
Weight (lb)
3 lb
Shipping weight (kg)
1.80 kg
Shipping weight (lb)
4 lb
Electrical
Connector type
NL4
Environmental
Usage
Indoor
Mechanical
Color
Black or white
Dimension (H x W x D) (mm)
80 mm x 400 mm x 400 mm
Dimension (H x W x D) (in)
3.1 in. x 15.75 in. x 15.75 in.
WLL (kg)
5 kg
WLL (lb)
11 lb
Weight (kg)
1.35 kg
Weight (lb)
3 lb
Shipping weight (kg)
1.80 kg
Shipping weight (lb)
4 lb
