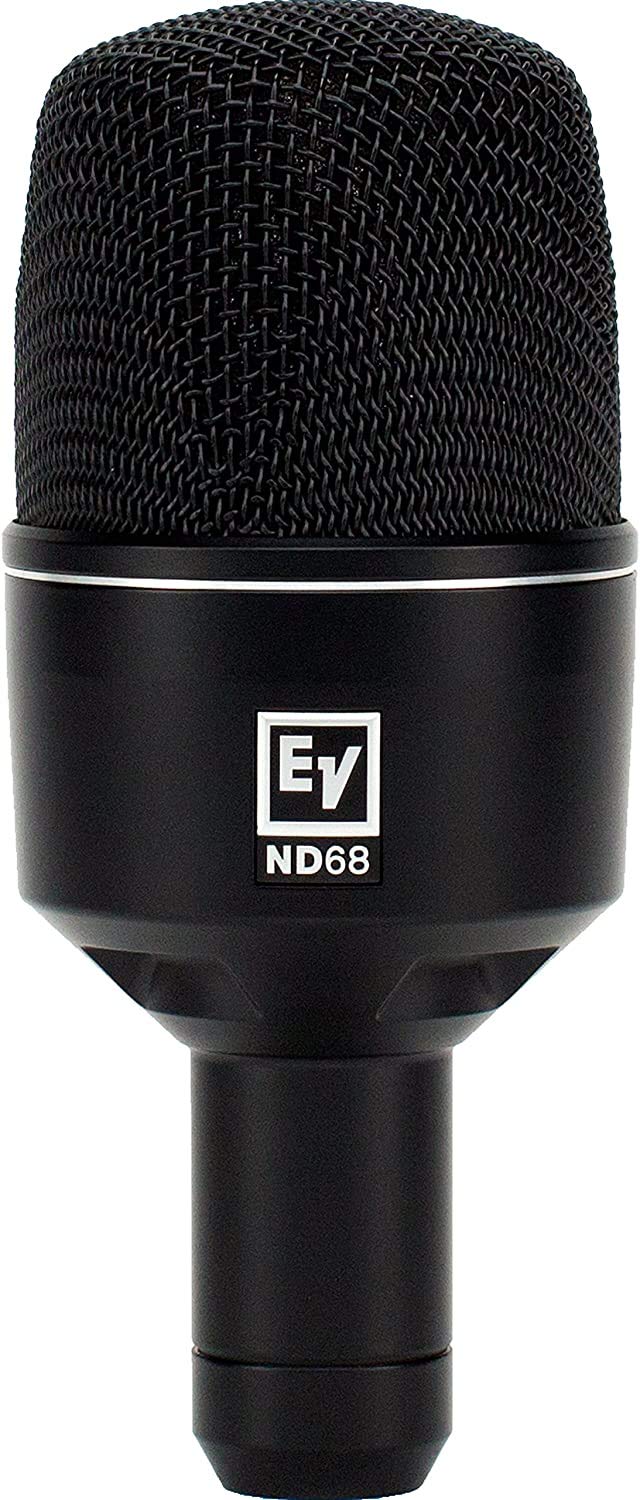

Electro-Voice ND68 Dynamic Supercardioid Bass Drum Microphone
The Electro-Voice ND68 is a robust, high-performance large-diaphragm dynamic microphone designed specifically for kick drums and low-frequency instruments. Its supercardioid polar pattern delivers excellent acoustic isolation from nearby instruments, allowing focused and clear capture of deep lows with relaxed midrange and aggressive high-frequency punctuation. Created for both live stage and studio use, the ND68 provides a rich and detailed frequency response with exceptional transient handling capability, making it perfect for powerful, punchy bass sounds.
Key Features
- Excellent acoustic isolation: Minimizes bleed from other instruments with a precise supercardioid polar pattern.
- Large-diaphragm dynamic capsule: Offers a rich and detailed tonal response tailored for bass drums and low-frequency instruments.
- Extremely high SPL handling capability: Handles close miking of high SPL transients and RMS wave fronts up to 144 dB SPL without distortion.
- Humbucking coil: Protects against line hum and electromagnetic interference, allowing use near speaker cabinets and EMF sources with confidence.
- Memraflex grille: Durable, tight-mesh grille resists denting and rough treatment, ideal for on-tour and live performance conditions.
- Hydrophobic cloth membrane: Prevents moisture and debris from reaching the diaphragm, increasing reliability.
- Passive, no phantom power required: Simplifies setup and compatibility with all standard microphone inputs.
Specifications
● Audio
○ Frequency Response: 20 Hz – 11,000 Hz
○ Maximum SPL: Over 140 dB (up to 144 dB SPL handling)
○ Open Circuit Voltage: 0.8 mV/Pascal
● Microphone
○ Type: Dynamic
○ Polar Pattern: Supercardioid
○ Power Requirement: Passive (no phantom power required)
○ Impedance: 150 Ω (Low-Z balanced)
● Physical
○ Case Material: Die cast zinc
○ Finish: Black polyurethane paint
○ Diameter (max): 2.39" (60.8 mm)
○ Height: 5.63" (143 mm)
○ Weight (net): 13.19 oz (374 g)
Package Contents
- Electro-Voice ND68 Dynamic Supercardioid Bass Drum Microphone
- Gig Bag for microphone protection
- Electro-Voice 320 Stand Clamp compatible with RE20, RE27, and ND868 microphones
- Euro Thread Adapter for versatile mounting options
- Limited 3-Year Warranty ensuring product reliability
