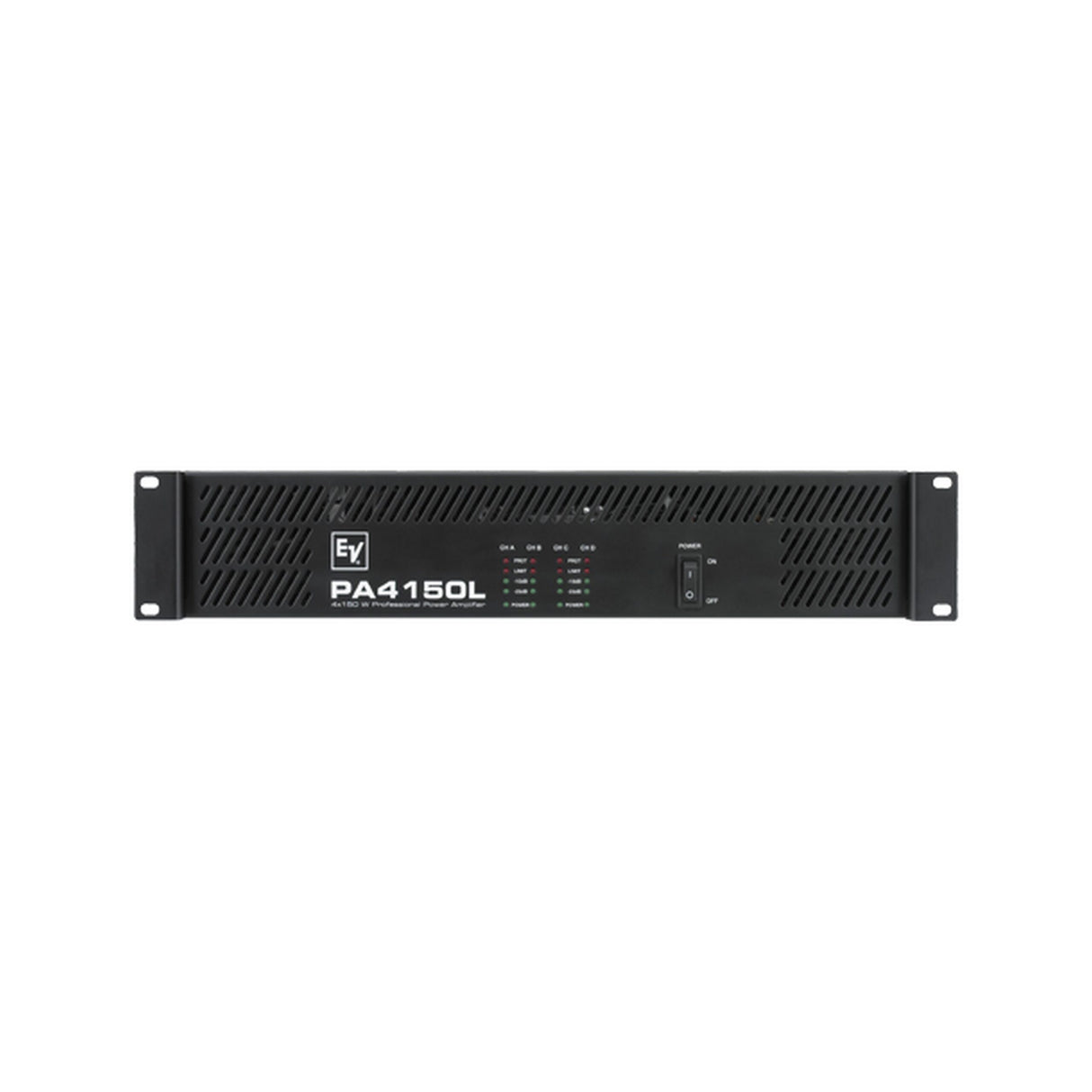

Electro-Voice PA 4150L Quad 150 W/CH Power Amplifier, 120V
Electro-Voice PA 4150L Quad 150 W/CH Power Amplifier, 120V
Free Shipping
Electro-Voice PA 4150L Quad 150 W/CH Power Amplifier, 120V
Quad 150 W/CH Power Amplifier
Key Features
- Flexible multi-channel power for installation
- Ideal for sound reinforcement, paging, and life safety
- 150 W per channel into 4 ohms
- Bridged mode for dual 315 W outputs into 8 ohms
- Compact 2 RU design
- Stepped rear-panel level attenuation
- Selectable 50 Hz or 300 Hz high-pass filter
- Thermal protection, peak limiting, turn-on delay
- Phoenix-type inputs and outputs
- Three-stage front-to-rear fans
- Integrated rack ears for direct mounting
Technical Specifications
Weight Net
39.68lbs (18kg)
Depth
15.98" (406mm)
Width
19.02" (483mm)
Height
3.46" (88mm)
Amplifier Gain
30dB
Channels
4
Continuous Rated Power (1 kHz, THD 1%) 2ohms
160Watts
Continuous Rated Power (1 kHz, THD 1%) 4ohms
160Watts
Continuous Rated Power (1 kHz, THD 1%) 8ohms
100Watts
Continuous Rated Power (20-20 kHz, THD<0,2%) 4ohms
150Watts
Continuous Rated Power (20-20 kHz, THD<0,2%) 8ohms
75Watts
Crosstalk
< < -75dB (ref. 1kHz, @ 10% rated output power)
DIM 30
< 0.1%
Frequency Response (-3 dB)
< 10Hz - 40kHz (-1dB, ref. 1kHz)
Impedance
4/8ohms
Input Impedance (Balanced)
> 20kohms
Input Sensitivity
0 dBu (775mV) (@ rated output power or voltage, 1kHz)
Intermodulation Distortion (SMPTE)
< 0.1%
Network Control (IRIS-Net)
No
Number of Channels
4
Rated output power (*rated load) THD < 0.2%, 20Hz - 20kHz
150/75W (4ohms/8ohms)
Rated output power (*rated load) THD < 1%, 1kHz
160/100W (4ohms/8ohms)
Signal-to-Noise Ratio (A-weighted)
101dB
Slew Rate
16V/s
Total Harmonic Distortion
< 0.1%
