The Eliminator Lighting Mega Flat PAK EP LED with Wired Digital Communication Network offers a practical solution for mobile entertainers seeking to enhance their events with uplighting or mobile stage capabilities. This comprehensive package comprises four (4) popular Eliminator Lighting Mega Par Profile EP LED Wash Fixtures, along with four (4) IEC to Edison power cables, three (3) DMX connector cables, and a protective soft carrying case designed to safeguard the Mega Par Profile EP fixtures during transportation and storage.

The Mega Flat Pak EP's slim design and vibrant RGB + UV output make it ideal for uplighting, stage washing, and wall washing applications. The included carrying case accommodates four Mega Par Profile Plus fixtures, DMX cables, and offers an additional compartment for a compact LED Controller (sold separately).

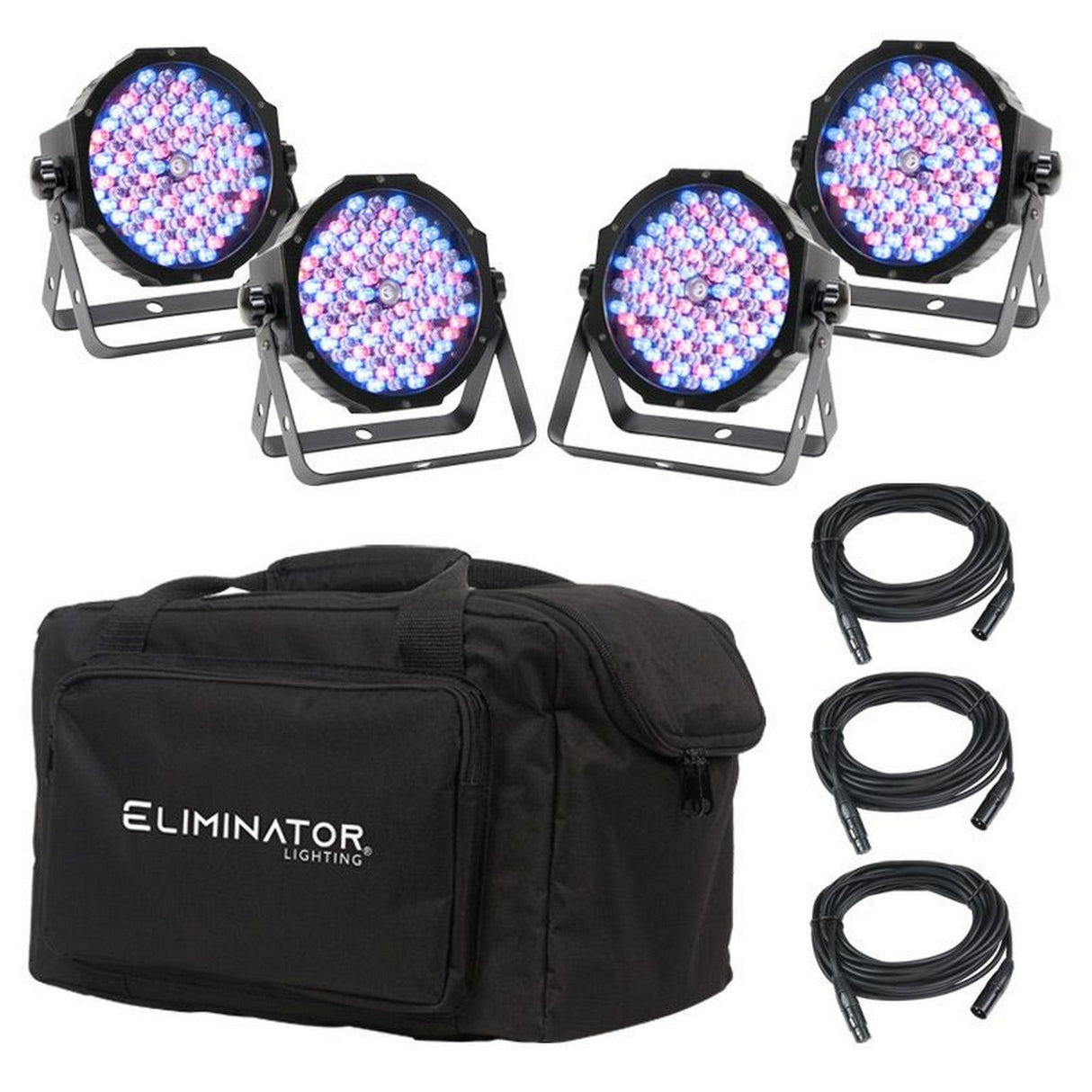

System Includes:
4x Eliminator Lighting Mega Par Profile EP Fixtures
4x (1M/3ft.) IEC to Edison Power Cables
3x (2m/6 ft) DMX Cables
1x Eliminator Lighting F4 Par Bag EP
Please note that IEC power link cables are not included but are available for separate purchase in lengths of 3, 6, 10, and 15 feet (Items: ECCOM-3, ECCOM-6, ECCOM-10, & ECCOM-15).

Key Features

• Efficient RGB+UV Color Blending (rapid or gradual color transition)

• Side-mounted Power & DMX Ins/Outs for horizontal or vertical setup options

• Option for Inverted Display Mode

• Dynamic Color Strobe Feature

• Supports ADJ LED RC2 wireless infrared remote control for up to 30 ft./ 10M range (remote sold separately)

Technical Specifications

Source:
• 107x 10mm LEDs (26 Red, 45 Green, 36 Blue LEDs) + 1 3W UV LED)
• Light output: 345 LUX @ 2M; 92 LUX @ 4M (30-degree beam)
• Beam Angle: 30 degrees
• Long Life LEDs (50,000 hrs.)

Control:
• 5 DMX Channel modes: 4/5/6/9/10 channels
• 5 Operational modes: RGB+UV Dimmer Mode, Sound Active Mode, Auto Run Mode, Static Color Mode, & DMX Controlled
• 16 Sound Active shows
• 32 Built-in shows (16 Color Changing Shows & 16 Color Fading Shows)
• 64 built-in Color Macros
• Stand Alone or Primary/Secondary Configuration
• 5 Dimmer Curves (Standard, Stage, TV, Architectural, & Theatre)
• With Wired Digital Communication Network
• Electronic Dimming: 0-100%
• 4-button function display

Connections:
• 3-pin DMX In/Out
• IEC AC IN/OUT on rear to daisy chain power (up to 33 @ 120V and 60 @ 230V)

Electrical:
• Multi-voltage Operation: AC 100 - 240V, 50/60Hz
• Power Draw: 16W Max

Dimensions & Weight:
• Dimensions (LxWxH): 9”x 8.75”x 3.5”/ 225x220x85mm
• Weight: 3 lbs./ 1.1 kg.

What’s Included:
• Includes scissor yoke to hang on truss, mount on a wall or set on the ground
• Power cable length: 1.8 meter (IEC)
