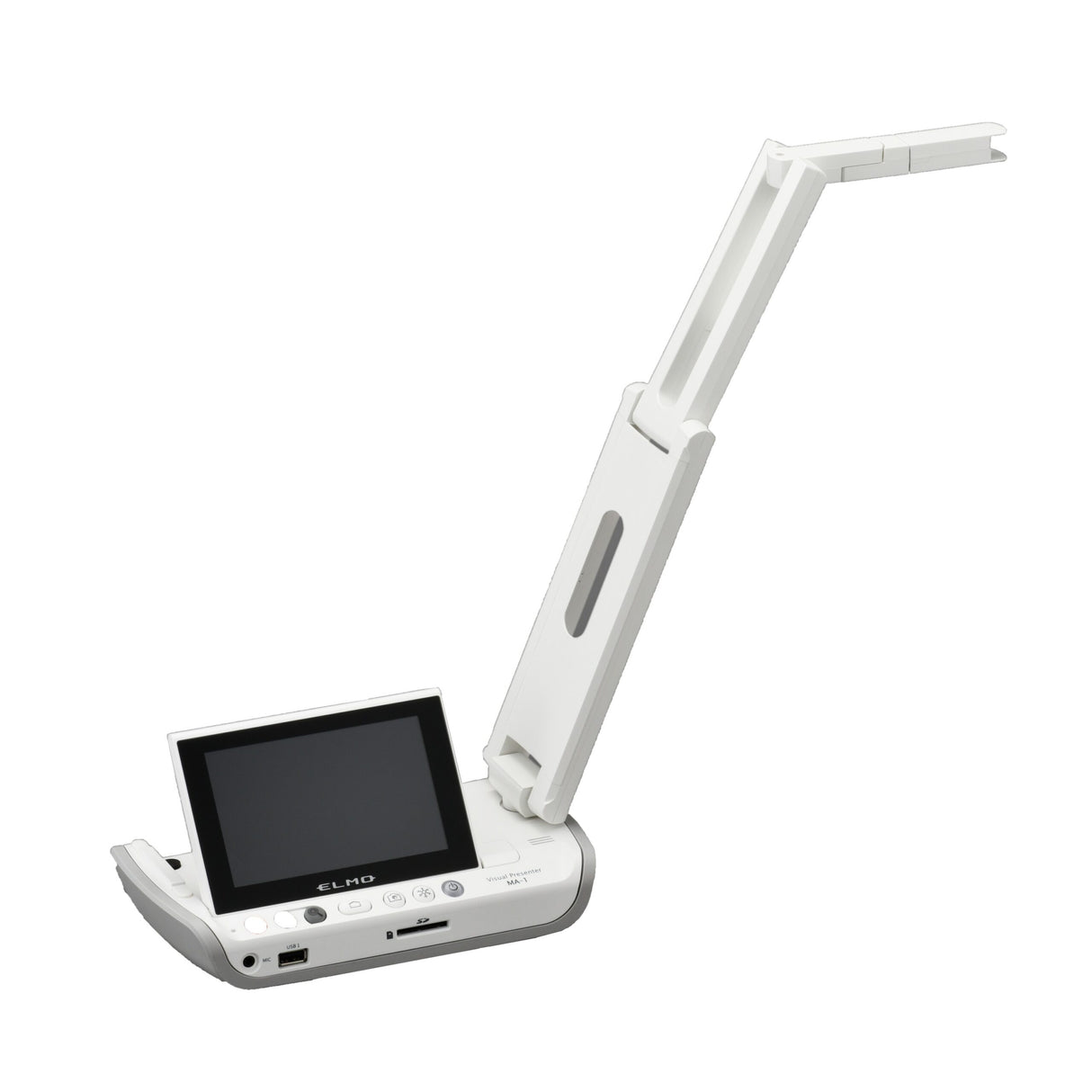

ELMO MA-1 Full HD Stem Document Camera
ELMO MA-1 Full HD Stem Document Camera
Free Shipping
ELMO MA-1 Full HD Stem Document Camera
Intuitively designed for the most immersive STEM experience, the MA-1 STEM Cam opens up a world of endless learning possibilities in the K-12 classroom. The MA-1 is our first Android-based document camera, with a multi-touch screen for navigation giving users the ability to browse the web and access educational apps over Wi-Fi or using a wired network connection.
The MA-1 comes with built-in Miracast wireless display connectivity and a built-in battery that enables educators to move about the classroom to directly engage with students without having to be tethered to their desks.
Key Features
-
16x Zoom in Full HD
The MA-1 offers 16x digital zoom at 1080p Full HD. -
Multiple Connectivity Options
The MA-1 comes with HDMI out(Type A), HDMI In (Type A), RGB Out (D-sub 15p), USB (Type A) x 2, USB (Type B), Ethernet (RJ-45), Audio Out (3.5mm Stereo), Audio In (3.5mm Stereo), W-Fi (IEEE 802.11 a/b/g/n - 2.4GHz & 5GHz) and Miracast wireless display technology. -
Multi-Touch Screen
The MA-1 features a five-inch multi-touch screen for navigation an compatible with HID-compliant input devices. -
Powered by Android
The MA-1 is powered by Android to offer support for a wide range of educational apps, opening up a world of learning without ever needing additional equipment. Android is a trademark of Google LLC.
Technical Specifications
POWER SOURCE
DC5V In, Internal Battery (~3 Hour Runtime)
MAX POWER CONSUMPTION
15W (Charging Battery)
OUTSIDE DIMENSIONS
W 8.6Ć¢ā¬Ā x D 4.5Ć¢ā¬Ā x H 13.5Ć¢ā¬Ā (Setup)
W 8.6Ć¢ā¬Ā x D 4.5Ć¢ā¬Ā x H 2.25" (Folded)
WEIGHT
2.1lbs
EXTERNAL CONTROL TERMINAL
Navigation buttons on base
LENS
F=2.0
FRAME RATE
30fps at 1080p
ZOOM
16x Digital
FOCUS
Auto (one push)
IMAGING AREA
13Ć¢ā¬Ā x 17.25Ć¢ā¬Ā 4:3
EFFECTIVE PIXELS
H: 3280 V: 2464
BRIGHTNESS
Auto (Set value 0~12)
IMAGE ROTATION
90 / 180
ILLUMINATION
White LED
WIRED
HDMI out(Type A), HDMI In (Type A), RGB Out (D-sub 15p), USB (Type A) x 2, USB (Type B), Ethernet (RJ-45), Audio Out (3.5mm Stereo), Audio In (3.5mm Stereo)
WIRELESS
W-Fi (IEEE 802.11 a/b/g/n - 2.4GHz & 5GHz), Miracast
