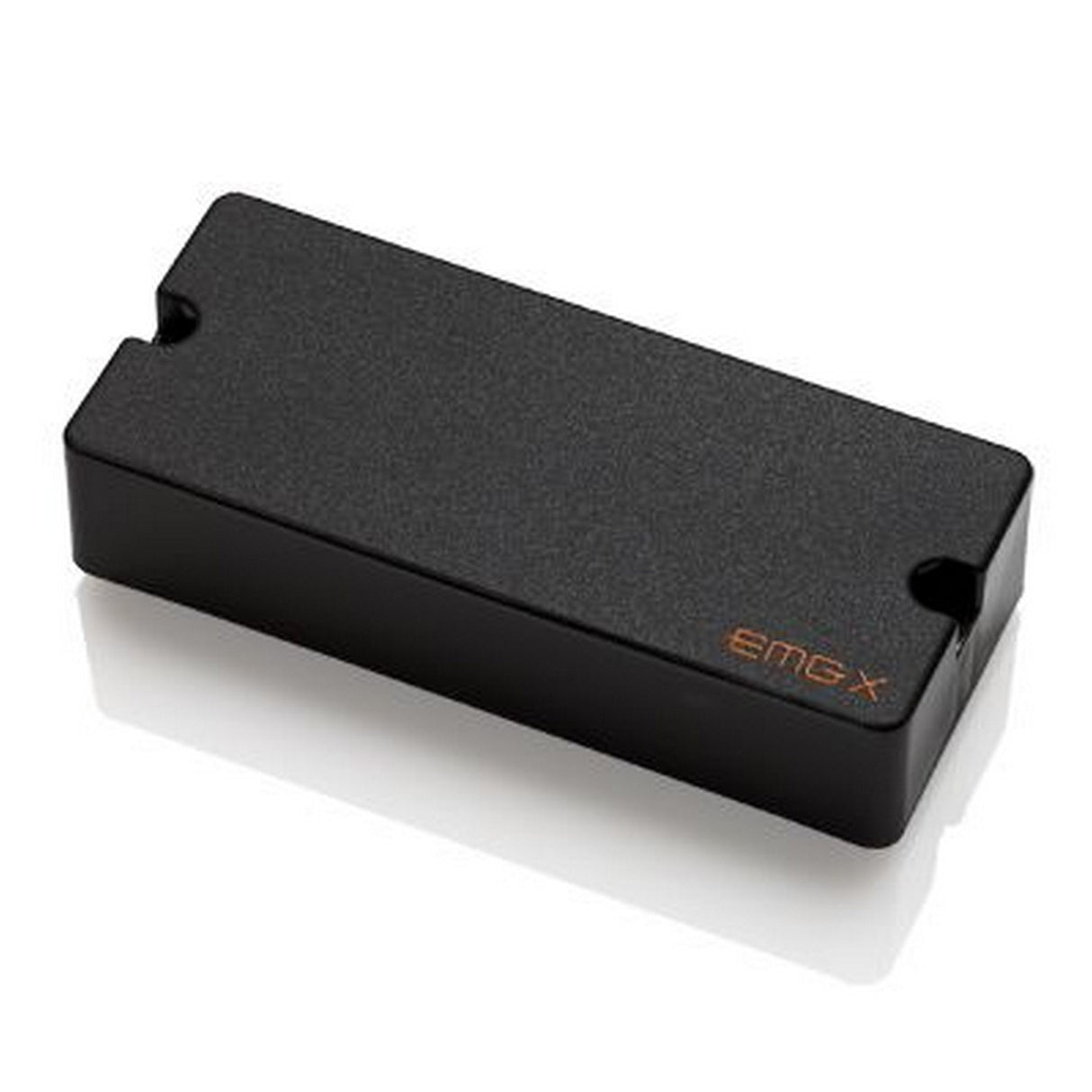

EMG 35TWX 4-String Ceramic/Steel Dual Mode Single Reverse Single Coil Bass Pickup

EMG 35-TW-X Ceramic/Steel Dual Mode Single Reverse Single Coil Bass Pickup

The EMG 35-TW-X is a versatile bass pickup that combines two independent tonal options within a single housing: a single-coil and a humbucker, both enhanced by EMG's X Series preamp for increased dynamic response and clarity. In single-coil mode, it functions as the JCSX pickup, utilizing ceramic and steel magnets to deliver a rich, warm tone. Switching to humbucker mode engages the CSX dual-coil configuration, producing a big, aggressive sound with a pronounced mid-range.

The X Series preamp provides the 35-TW-X with a broader dynamic range and increased headroom while maintaining traditional string-to-string balance. This design includes an Active Tone Control (VLPF) that attenuates high frequencies, similar to a passive tone control, resulting in a noiseless single-coil pickup that bridges the gap between active and passive sound characteristics.

For bassists considering the installation of two TWX pickups in the same instrument, it's important to note that each pickup requires a push/pull pot for switching between single-coil and humbucker modes. Consequently, using EMG's BT or BQ Systems, which include a balance control, is not recommended. If a balance control is desired, consider using a DPDT toggle switch to manage single/dual coil outputs instead.

Key Features

• Dual-mode design: Single-coil (JCSX) and humbucker (CSX) in one pickup
• X Series preamp for enhanced dynamic range and clarity
• Active Tone Control (VLPF) for high-frequency attenuation
• Noiseless operation in single-coil mode
• Easy switching between tonal options with included push/pull pot

Technical Specifications

Logo Color: Copper
Magnet Type: Ceramic & Steel
Resonant Frequency: 3.50 kHz
Output Voltage (String): 1.00 V
Output Voltage (Strum): 3.00 V
Output Noise (60 Hz): -107 dBV
Output Impedance: 2.00 kΩ
Current (@9V): 160 µA
Battery Life: 1500 hours
Maximum Supply Voltage: 27 V DC

Dimensions: 3.5" x 1.5" x 0.9"
Weight: 0.2 lbs

What's Included

• 1 25k active tone pot (VLPF)
• 1 push/pull pot
• 1 battery bus
• 1 stereo output jack
• 1 pair mounting screws
• 1 pickup cable
• 2 connect cables
• 1 output cable
• 1 battery cable
