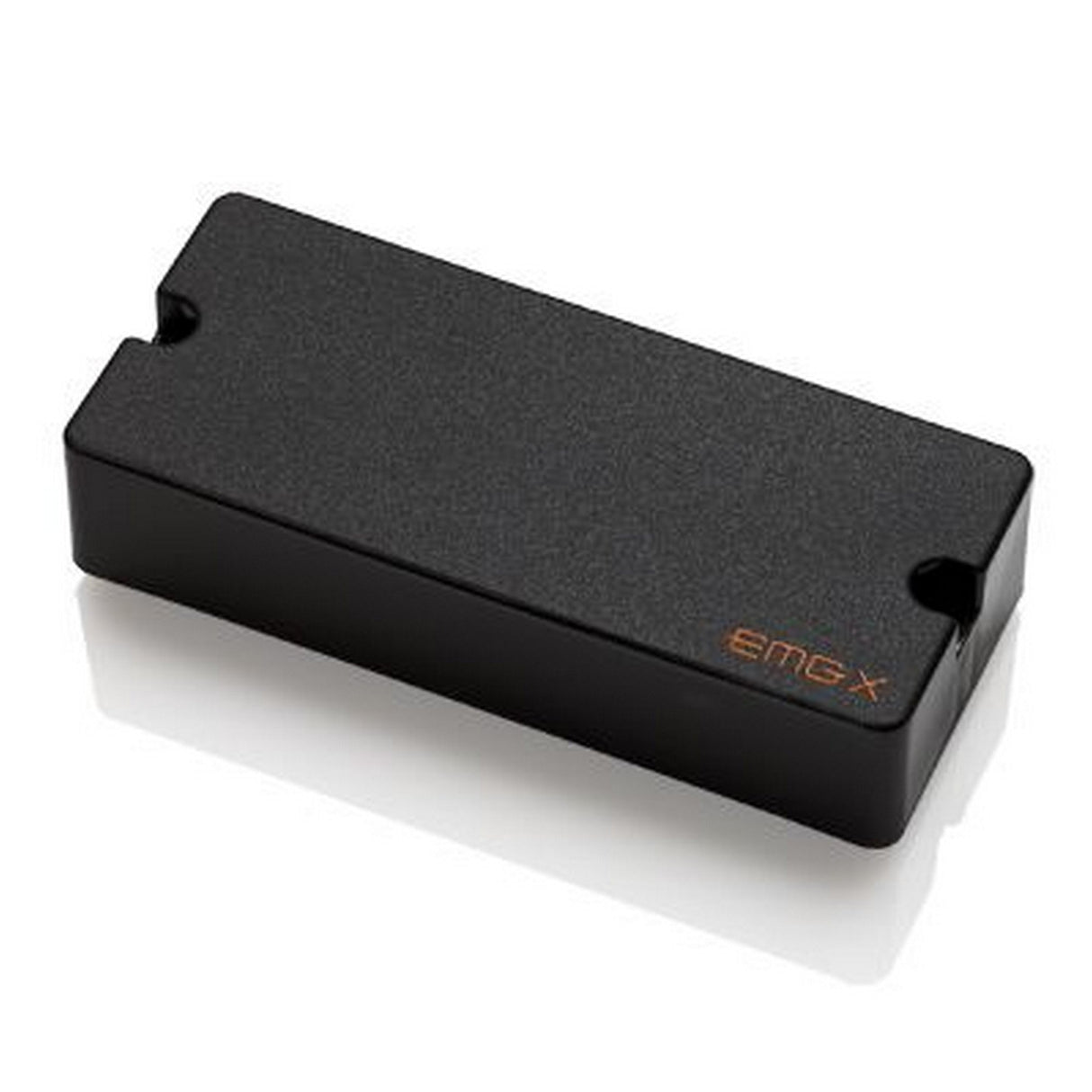

EMG 40CSX 5-String Ceramic/Steel Bass Humbucker Pickup w/Active Tone Control - Black

EMG 40CSX 5-String Ceramic/Steel Bass Pickup

The EMG 40CSX is a modern humbucker designed for bass players seeking a robust tone with controlled high frequencies. Featuring dual coils loaded with ceramic and steel magnets, this pickup delivers warmth and punch, complemented by a smooth top end and substantial output. The on-board X Series preamp enhances dynamic response and touch sensitivity, offering a feel reminiscent of passive pickups while preserving the expansive sonic range characteristic of active designs.

Specifically crafted for five-string basses, the EMG 40CSX utilizes an extended 4-inch (102mm) housing. The X Series preamp not only broadens the dynamic range but also increases headroom, ensuring a balanced string-to-string response. This combination results in a versatile pickup capable of delivering both powerful lows and articulate highs, making it suitable for various playing styles and genres.

Installation is straightforward with EMG's exclusive solderless wiring system, allowing for quick and hassle-free setup. Whether you're upgrading your existing instrument or building a custom bass, the EMG 40CSX offers a blend of modern technology and classic tonal qualities to enhance your sound.

Key Features

• Dual-coil humbucker with ceramic and steel magnets
• On-board X Series preamp for enhanced dynamics and touch sensitivity
• Extended 4-inch housing ideal for five-string basses (4" x 1.5" Housing)
• Solderless installation system for easy setup
• Warm, punchy tone with smooth high-end response

Technical Specifications

Logo Color: Silver
Magnet Type: Ceramic & Steel
Resonant Frequency: 2.50 kHz
Output Voltage (Finger, Thumb): 2.50 V
Output Voltage (Thump): 8.50 V
Output Noise (60 Hz): -108 dBV
Output Impedance: 2.00 kΩ
Current @ 9V: 80 µA
Battery Life: 3000 hours
Maximum Supply: 27 V DC

What's Included

• 1 25k volume pot
• 1 25k active tone pot (VLPF)
• 1 battery bus
• 1 stereo output jack
• 1 pair mounting screws
• 1 pickup cable
• 2 connect cables
• 1 output cable
• 1 battery cable
