EMG 45HZ 6-String Ceramic/Steel Soapbar Humbucker Bass Pickup - Black

EMG 45HZ 6-String Ceramic/Steel Soapbar Humbucker Bass Pickup

The EMG 45HZ is tailor-made for bassists who prefer the rich, warm tones of passive pickups in their 6-string bass guitars. Available in both black and ivory, this pickup features a 4.5-inch extended housing that's perfect for extended range instruments. Its humbucking design ensures low noise while providing plenty of output, making it suitable for a variety of musical styles. Utilizing ceramic bar magnets with steel, the tone is warm with a smooth attack, offering a big mid-range response that's ideal for both studio recordings and live performances.

Installation is simplified with EMG's solderless system, allowing for an easy upgrade without the need for soldering equipment. This passive model brings back the classic feel of vintage bass with modern reliability and performance, giving your bass the depth and clarity it deserves.

Whether you're crafting complex basslines or providing the backbone for a rhythm section, the EMG 45HZ delivers the tone and character needed to make your bass resonate in any musical context.

Color Options:

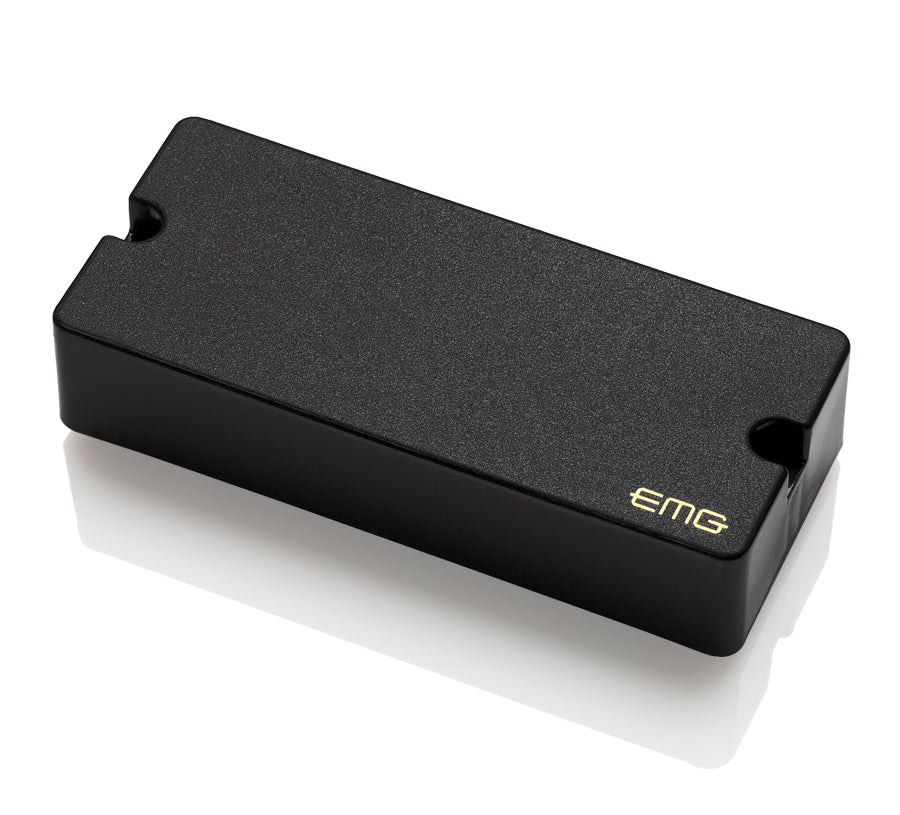

• Black

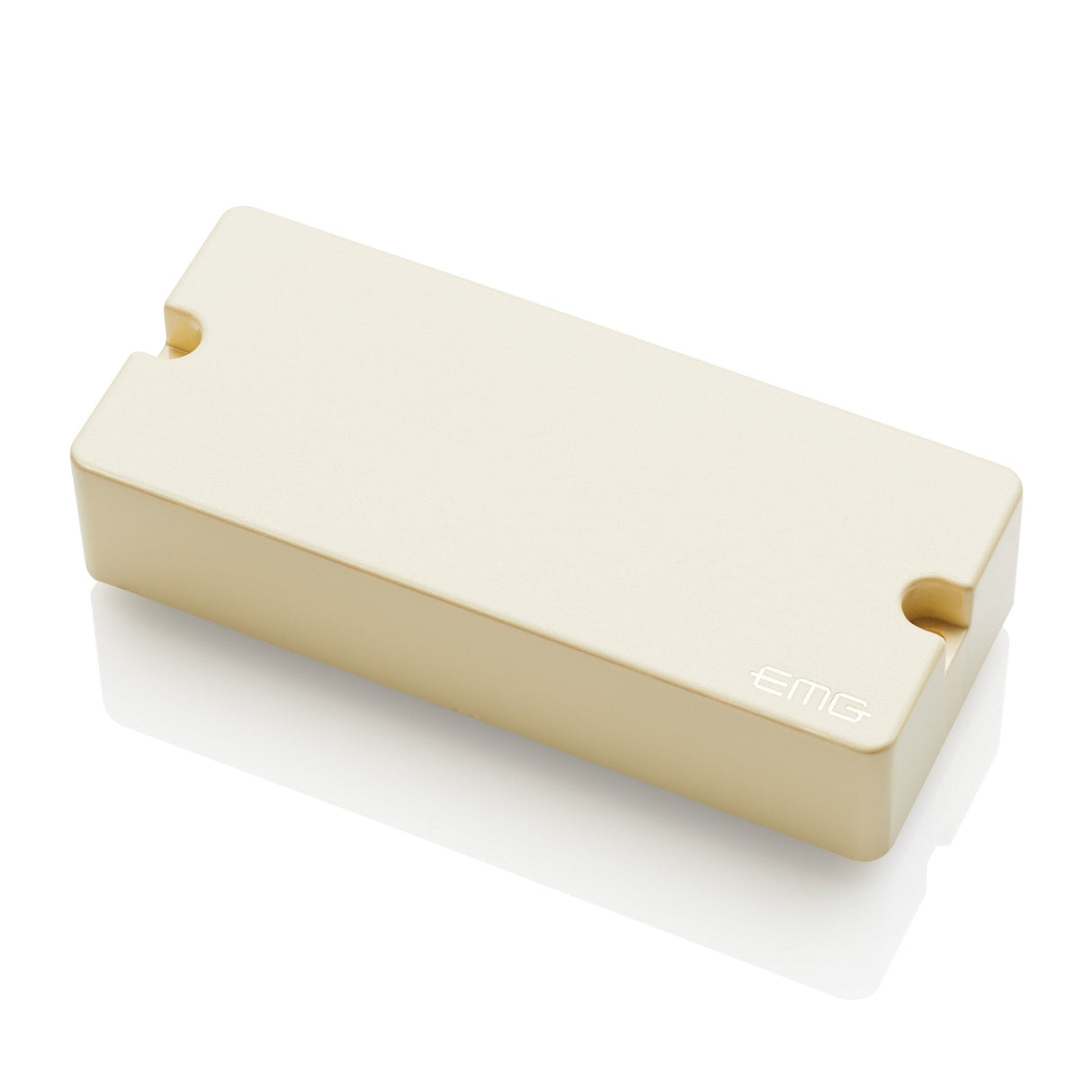

• Ivory

Key Features

• Designed for 6-string basses
• Passive pickup for a warm, rich tone
• Humbucking design for low noise and high output
• Ceramic bar magnets with steel for smooth attack and big mid-range
• EMG's solderless wiring for easy installation

Technical Specifications

Model: 45-HZ
Logo Color: Silver
Magnet Type: Ceramic/Steel
Inductance (Henries) (1): 3.62
DC Resistance (kOhm): 11
Resonant Frequency (KHz) (2): 2.40
Resonant Frequency (KHz) (3): 4.05
Impedance at Resonance (kOhm) (2): 54.5
(1) Wired in Series
(2) Loaded with 500K Volume and Tone with a 20' (6M) Cable
(3) Loaded with 1 MegOhm / 47 pf

What's Included

Package Includes:

• 1 250k volume pot
• 1 250k tone pot
• 1 mono output jack
• 2 pair mounting screws
• 1 bridge ground connector
• 1 pickup cable
• 2 connect cables
• 1 output cable
• 1 bridge ground wire

Disclaimer: The image above may not accurately depict the product and is for reference only. Some variations in appearance may occur.
