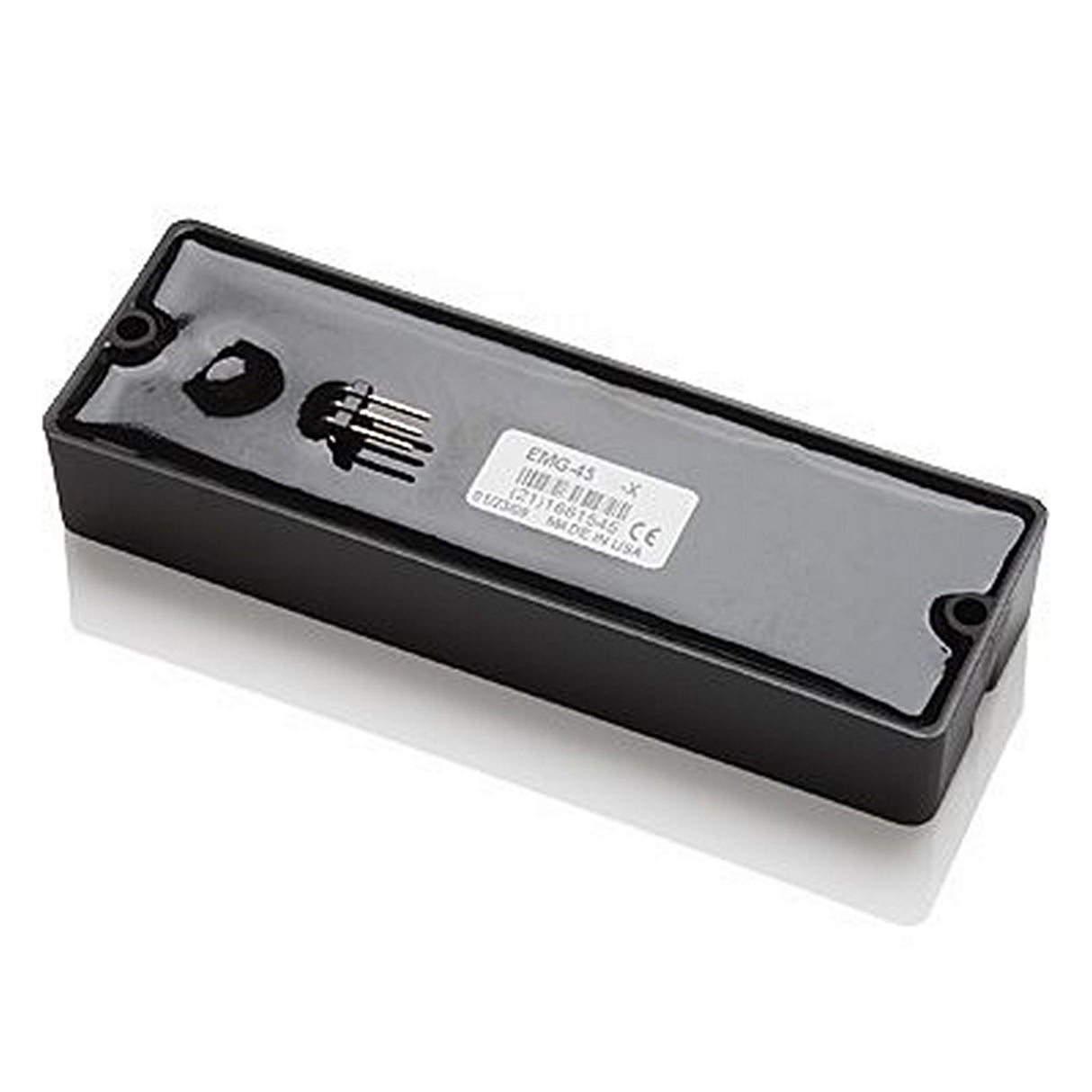

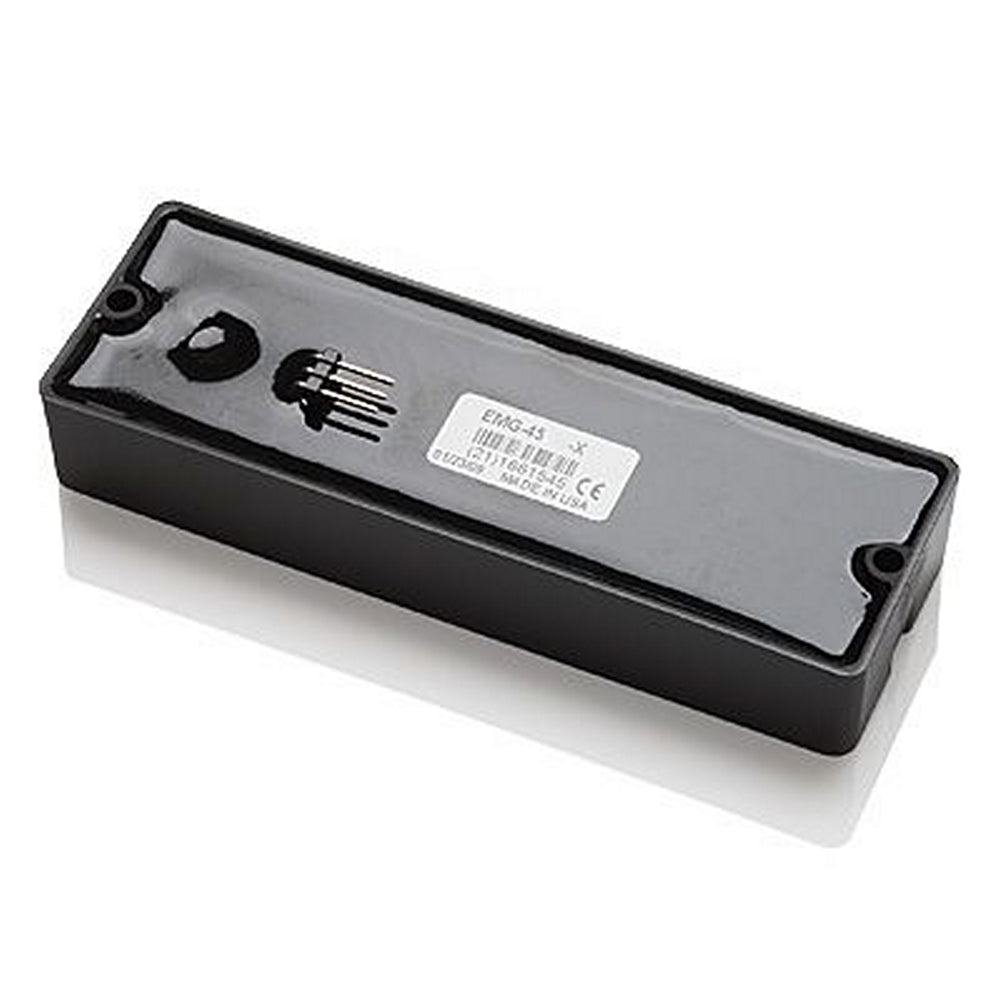

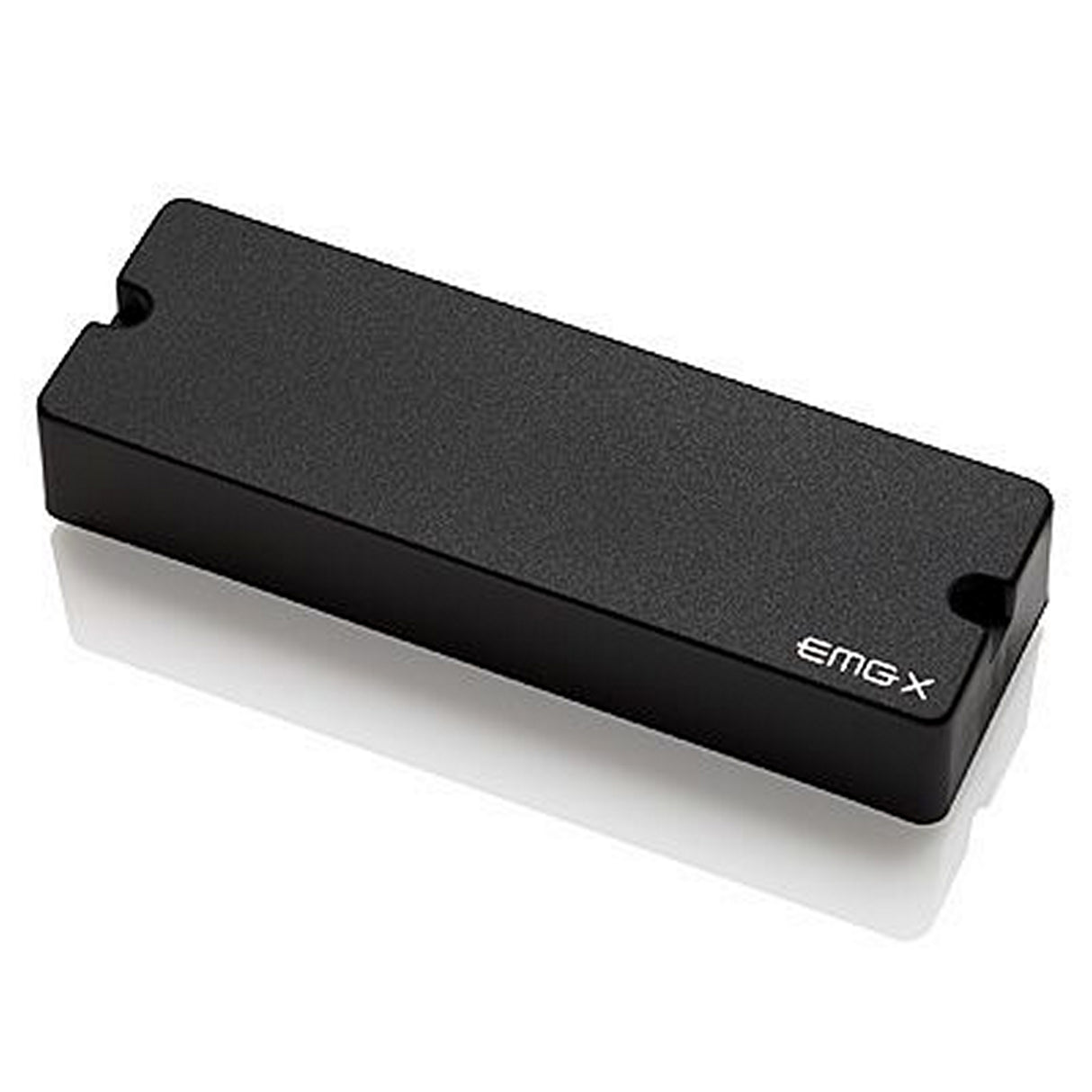

EMG 45JX 6-String Ceramic Jazz Soapbar Pickup w/Active VLPF Tone Control - Standard, Black

EMG 6 String X Series Ceramic Jazz Pickup with Active VLPF Tone Control

The EMG 6 String X Series Ceramic Jazz Pickup is tailored for bassists seeking the iconic Jazz Bass sound with modern enhancements. Available in both standard and reverse location orientations, both housed in a sleek 4.5" by 1.5" soapbar black housing. These pickups feature ceramic magnets for a warm, punchy tone, enhanced by an active Variable Low Pass Filter (VLPF) tone control which allows for precise sound shaping, offering flexibility from bright and articulate to warm and mellow tones.

With EMG's solderless wiring system, upgrading your bass is straightforward, making these pickups an ideal choice for those looking to enhance their instrument's sound without soldering. The active design ensures low noise and high output, perfect for both stage and studio where tone control and clarity are paramount.

Whether in standard or reverse location, these pickups provide the performance and adaptability needed to stand out in any musical context, with the reverse location potentially offering a unique tonal character due to altered magnetic field interaction with the strings.

Variants Available:

• Standard Location - EMG 6 String X Series Ceramic Jazz Pickup in 4.5" x 1.5" Soapbar Housing Black w/ Active VLPF Tone Control
• Reverse Location - EMG 6 String X Series Ceramic Jazz Pickup in Reverse Location 4.5" x 1.5" Soapbar Housing Black w/ Active VLPF Tone Control

Key Features

• Designed for 6-string basses
• Ceramic magnets for a rich, versatile Jazz Bass tone
• Active VLPF tone control for precise sound shaping
• Low noise and high output for professional use
• EMG's solderless wiring for easy installation

Technical Specifications

Model: 45J-X (Standard and Reverse Location)
Logo Color: Silver
Magnet Type: Ceramic
Resonant Frequency (KHz): 4.05
Output Voltage (Finger, Thumb): 2.00
Output Voltage (Thump): 8.00
Output Noise (60 Hz): -101
Output Impedance (Kohm): 2.00
Current @ 9V (Microamps): 80
Battery Life (Hours): 3000
Maximum Supply (Volts DC): 27
Dimensions: 4.5 inches x 1.5 inches x 0.6 inches
Housing Size: 4.5 inches

What's Included

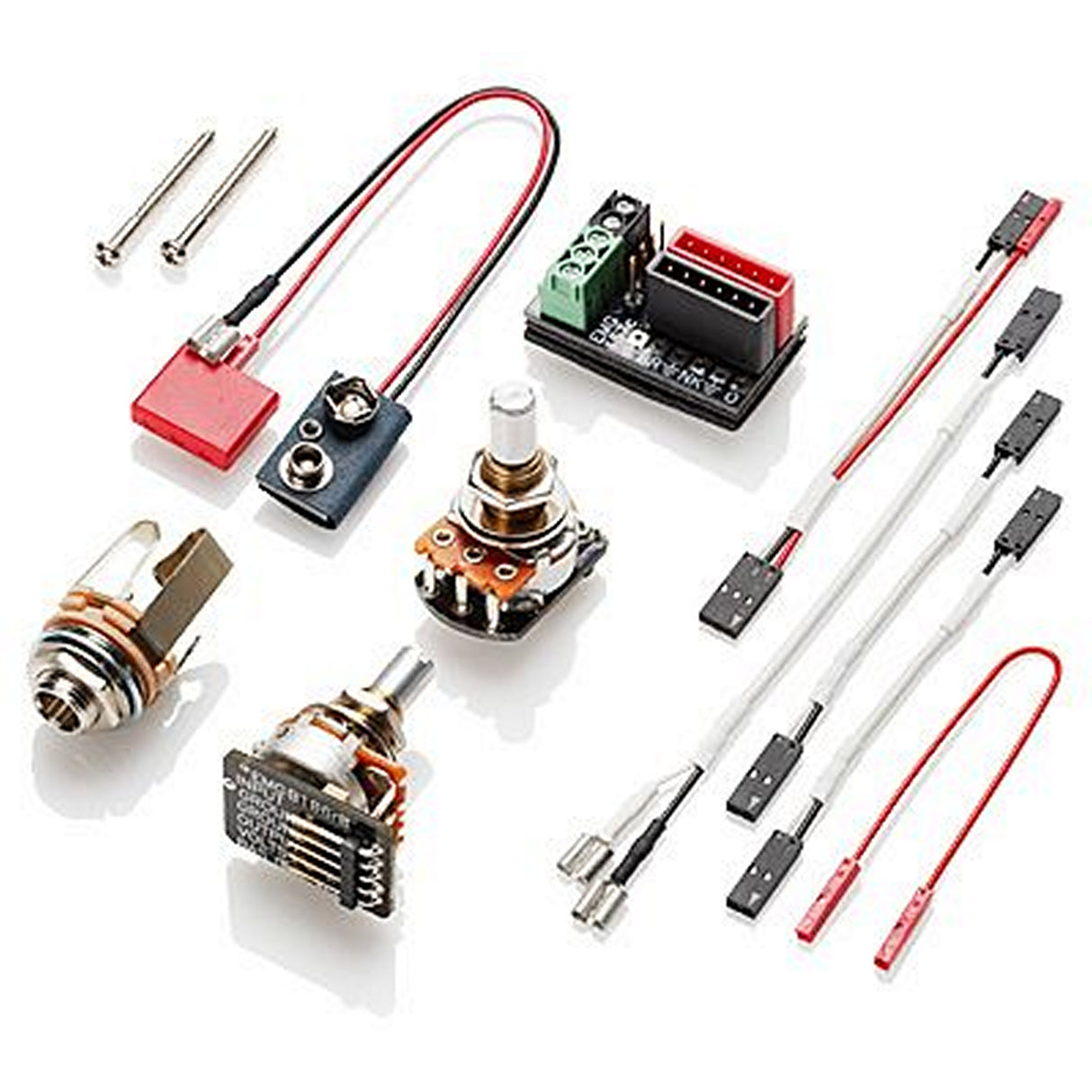

Package Includes EMG's exclusive Solderless Install System:

• 1 25k volume pot
• 1 25k active tone pot (VLPF)
• 1 battery bus
• 1 stereo output jack
• 1 pair mounting screws
• 1 pickup cable
• 2 connect cables
• 1 output cable
• 1 battery cable

Disclaimer: The image above may not accurately depict the product and is for reference only. Some variations in appearance may occur.
