EMG 45PXRCBLK 6-String Ceramic Reverse Pickup with VLPF Tone Control, Fender P

EMG 45PXRCBLK 6 String X Series Ceramic Reverse P Pickup with VLPF Tone Control

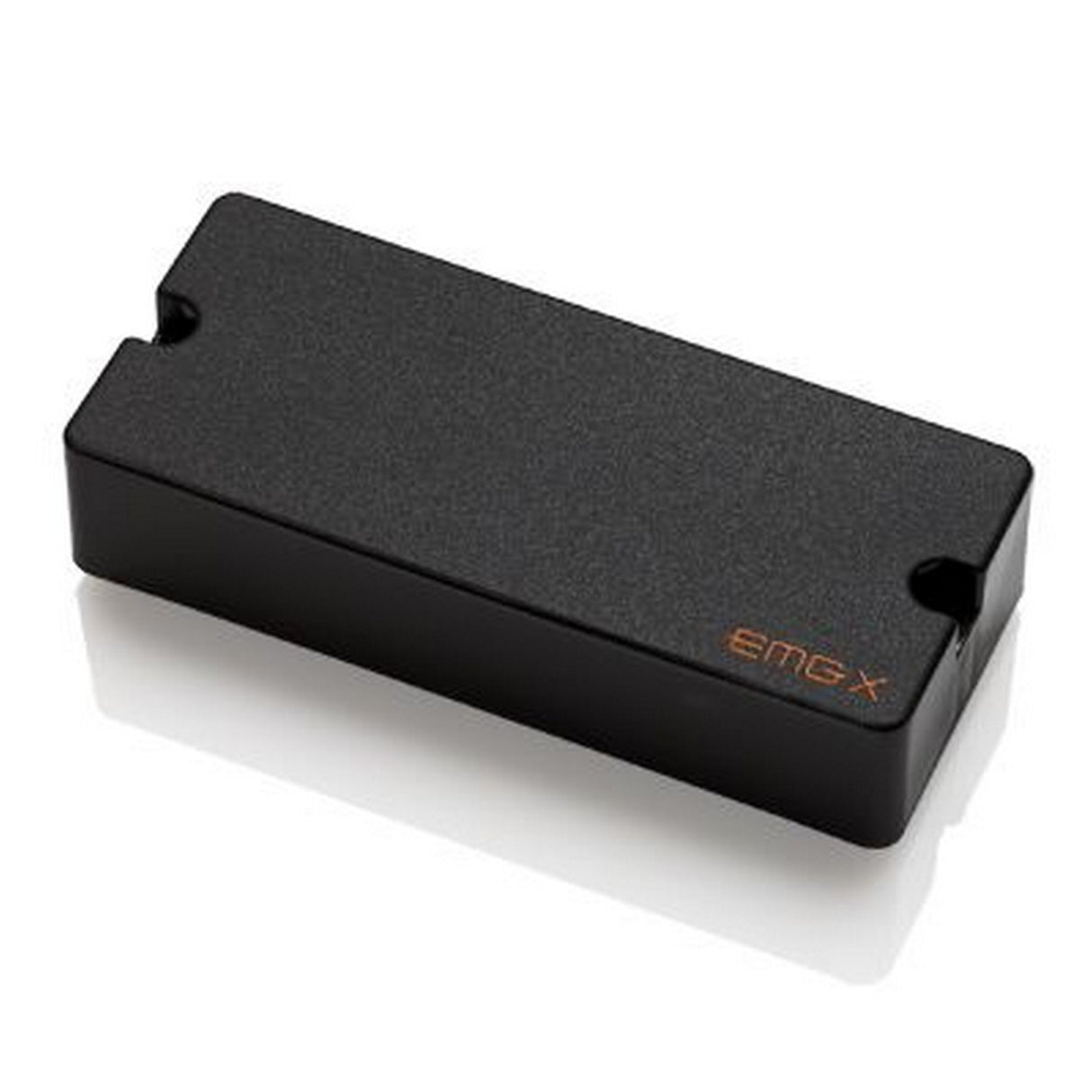

The EMG 45PXRCBLK is an innovative addition to the 6-string bass world, housed in a 4.5" x 1.5" soapbar black housing with a Fender P orientation and featuring a reverse coil configuration. This X Series pickup uses ceramic magnets to produce a warm, vibrant tone with the classic P Bass character, enhanced by a modern twist. The inclusion of a Variable Low Pass Filter (VLPF) tone control allows for precise sound shaping, offering versatility from bright and snappy to smooth and deep tones.

EMG's solderless installation system ensures that upgrading your bass is straightforward. The reverse P coil orientation provides a unique tonal quality, potentially changing the string response and balance, which can be particularly interesting for musicians looking for a new sound palette.

This pickup is ideal for both studio and live settings, where its low noise, high output, and adjustable tone control can help your bass lines cut through any mix with clarity and character.

Key Features

• Designed for 6-string basses with Fender P orientation
• Ceramic magnets with reverse coil for a unique P Bass tone
• VLPF tone control for detailed sound shaping
• Low noise and high output for professional use
• EMG's solderless wiring for easy installation

Technical Specifications

Model: 45PXRCBLK
Logo Color: Silver
Magnet Type: Ceramic
Resonant Frequency (KHz): 2.61
Output Voltage (Finger, Thumb): 2.00
Output Voltage (Thump): 8.50
Output Noise (60 Hz): -101
Output Impedance (Kohm): 2.00
Current @ 9V (Microamps): 80
Battery Life (Hours): 3000
Maximum Supply (Volts DC): 27
Dimensions: 4.5 inches x 1.5 inches x 0.6 inches
Housing Size: 4.5 inches

What's Included

Package Includes EMG's exclusive Solderless Install System:

• 1 25k volume pot
• 1 25k active tone pot (VLPF)
• 1 battery bus
• 1 stereo output jack
• 1 pair mounting screws
• 1 pickup cable
• 2 connect cables
• 1 output cable
• 1 battery cable

Disclaimer: The image above may not accurately depict the product and is for reference only. Some variations in appearance may occur.
