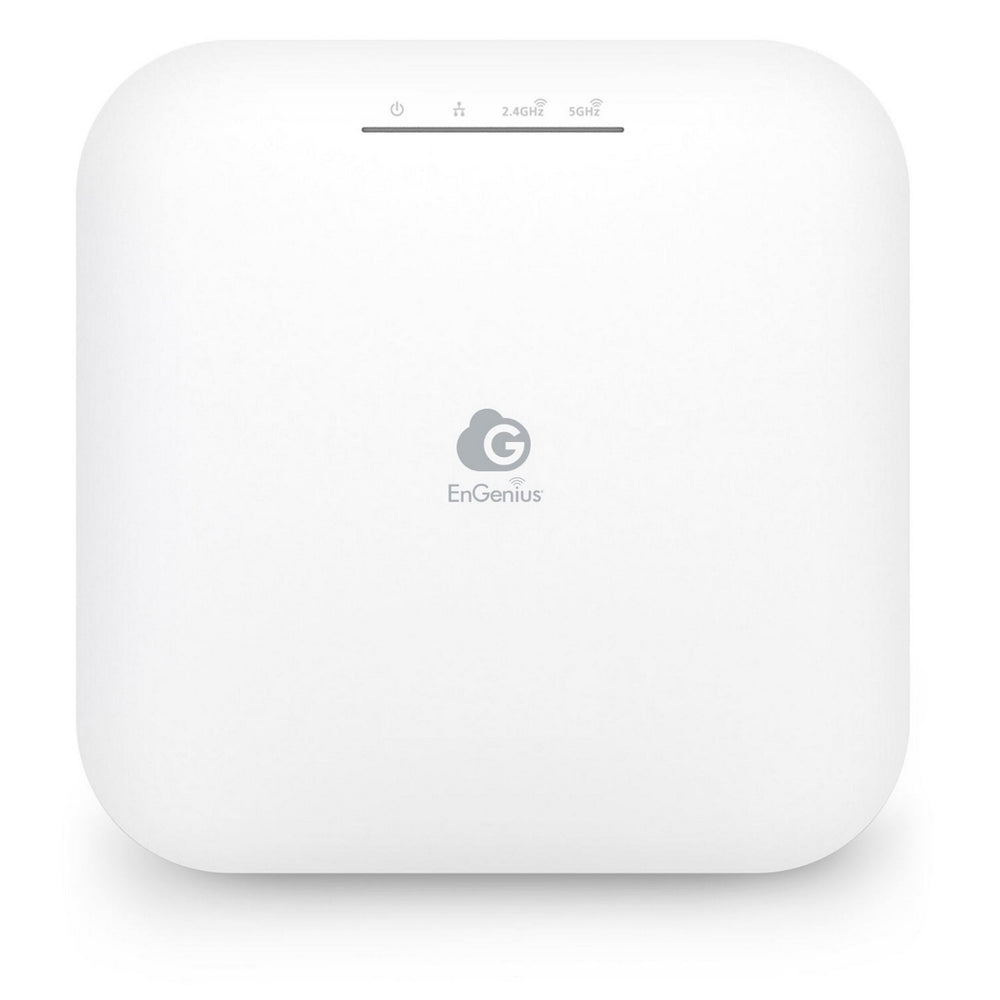

EnGenius ECW230 Cloud Managed Wi-Fi 6 4 x 4 Indoor Wireless Access Point

EnGenius ECW230 Cloud Managed Wi-Fi 6 4 x 4 Indoor Wireless Access Point

EnGenius Cloud Managed ECW230 Wi-Fi 6 (802.11ax) 4x4 Managed Indoor Wireless Access Point features 802.11ax technology, such as OFDMA, MU-MIMO, and spatial reuse, to expand the capabilities of Wi-Fi. The low-profile AP provides high-density support & maximum speeds of 1,148 Mbps (2.4 GHz frequency) and 2,400 Mbps (5 GHz frequency).

Key Features

• Dual concurrent 802.11ax architecture & backward-compatible with 11ac/a/b/g/n client devices; 4 x 4 antenna
• Supports up to 2,400 Mbps in 5-GHz frequency band & 1,148 Mbps in 2.4-GHz frequency band
• 2.5 GbE realizes greater throughput and supports 802.3at & 48V PoE input for flexible installation over 100 meters (328 feet)
• Uplink and downlink of OFDMA improves transmission to APs and client devices
• Target wake time for power-saving of client & IoT devices

Technical Specifications

Standards
IEEE 802.11ax on 2.4 GHz
IEEE 802.11ax on 5 GHz
Backward compatible with 802.11a/b/g/n/ac
Processor
Qualcomm Quad-Core ARM Cortex A53s @ 2.0GHz CPU
Antenna
4 x 2.4 GHz
3 dBi
4 x 5 GHz
3 dBi
Integrated Omni-Directional Antenna
Physical Interface
1 x 10/100/1000/2500 N-BASE-T, RJ-45 Ethernet Port
1x DC Jack
1 x Reset Button
LED Indicators
1 x Power
1 x LAN
1 x 2.4 GHz
1 x 5 GHz
Power Source
Power-over-Ethernet
802.3at Input
12VDC /2A
Maximum Power Consumption
19.5W
Wireless & Radio Specifications
Operating Frequency
Dual-Radio Concurrent 2.4 GHz & 5 GHz
Operation Modes
AP, Mesh
Frequency Radio
2.4 GHz
2400 MHz ~ 2482 MHz
5 GHz
5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725 MHz ~ 5850 MHz
Transmit Power
Up to 23 dBm on 2.4 GHz
Up to 23 dBm on 5 GHz
(Maximum power is limited by regulatory domain)
Tx Beamforming (TxBF)
Radio Chains/Spatial Stream
4 x 4:4
SU-MIMO
Four (4) spatial stream SU-MIMO for 2.4GHz and four spatial stream SU-MIMO for 5GHz up to 3,548 Mbps wireless data rate to a single wireless client device under the both 2.4 GHz and 5GHz radio.
MU-MIMO
Four (4) spatial streams Multiple (MU)-MIMO for up to 2400 Mbps wireless data rate to transmit to two (2) two streams MU-MIMO 11ax capable wireless client devices under 5GHz simultaneously.
Four (4) Multiple (MU)-MIMO for up to 1,148 Mbps wireless data rate to transmit to two streams MUMIMO 11ax capable wireless client devices under 2.4GHz simultaneously.
Supported Data Rates (Mbps):
802.11ax
2.4 GHz
9 to 1148 (MCS0 to MCS11, NSS = 1 to 4)
5 GHz
18 to 2400 (MCS0 to MSC11, NSS = 1 to 4)
802.11b
1, 2, 5.5, 11
802.11a/g
6, 9, 12, 18, 36, 48, 54
802.11n
6.5 to 600 Mbps (MCS0 to MCS31)
802.11ac
6.5 to 1733 Mbps (MCS0 to MCS9, NSS = 1 to 4)
Supported Radio Technologies
802.11ax
Orthogonal Frequency Division Multiple Access (OFDMA)
802.11b
Direct-sequence spread-spectrum (DSSS)
802.11ac/a/g/n
Orthogonal Frequency Division Multiple (OFDM)
Channelization
802.11ax supports very high throughput (VHT) -VHT 20/40/80 MHz
802.11ac supports very high throughput (VHT) -VHT 20/40/80 MHz
802.11n supports high throughput (HT) -HT 20/40 MHz
802.11n supports very high throughput under the 2.4GHz radio -VHT40 MHz (256-QAM)
802.11n/ac/ax packet aggregation: A-MPDU, A-SPDU
Supported Modulation
802.11ax
BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
802.11ac
BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
802.11a/g/n
BPSK, QPSK, 16-QAM, 64-QAM
802.11b
BPSK, QPSK, CCK
Management
Multiple BSSID
8 SSIDs for both 2.4GHz and 5GHz radios.
VLAN Tagging
Supports 802.1q SSID-to-VLAN Tagging
Cross-Band VLAN Pass-Through
Management VLAN
Spanning Tree
Supports 802.1d Spanning Tree Protocol
QoS (Quality of Service)
Compliant with IEEE 802.11e Standard
WMM
SNMP
v1, v2c, v3
MIB
I/II, Private MIB
Wireless Security
WPA3
WPA2 Enterprise (AES)
WPA2 AES-PSK
Hide SSID in Beacons
MAC Address Filtering, Up to 32 MACs per SSID
Wireless STA (Client) Connected List
SSH Tunnel
Client Isolation
Environmental & Physical
Temperature Range
Operating
32F~104F (0C~40C)
Storage
-40F~176 F (-40C~80C)
Humidity (non-condensing)
Operating
90% or less
Storage
90% or less
Device Dimensions & Weights
ECW230 Device
Weight
1.31 lbs. (597 g)
Length
8.27” (210 mm)
Width
8.27” (210 mm)
Height
1.31” (33.2 mm)
Packaging
Weight
1.96 lbs. (891 g)
Length
9.65” (245 mm)
Width
9.65” (245 mm)
Height
3.35” (85 mm)
Package Contents
1 - ECW230 Cloud Managed Indoor Access Point
1 - Ceiling Mount Base (9/16” Trail)
1 - Ceiling Mount Base (15/16” Trail)
1 - Ceiling and Wall Mount Screw Kits
1 - Quick Installation Guide
Warranty
2 Year
Certifications
CE
FCC
IC
