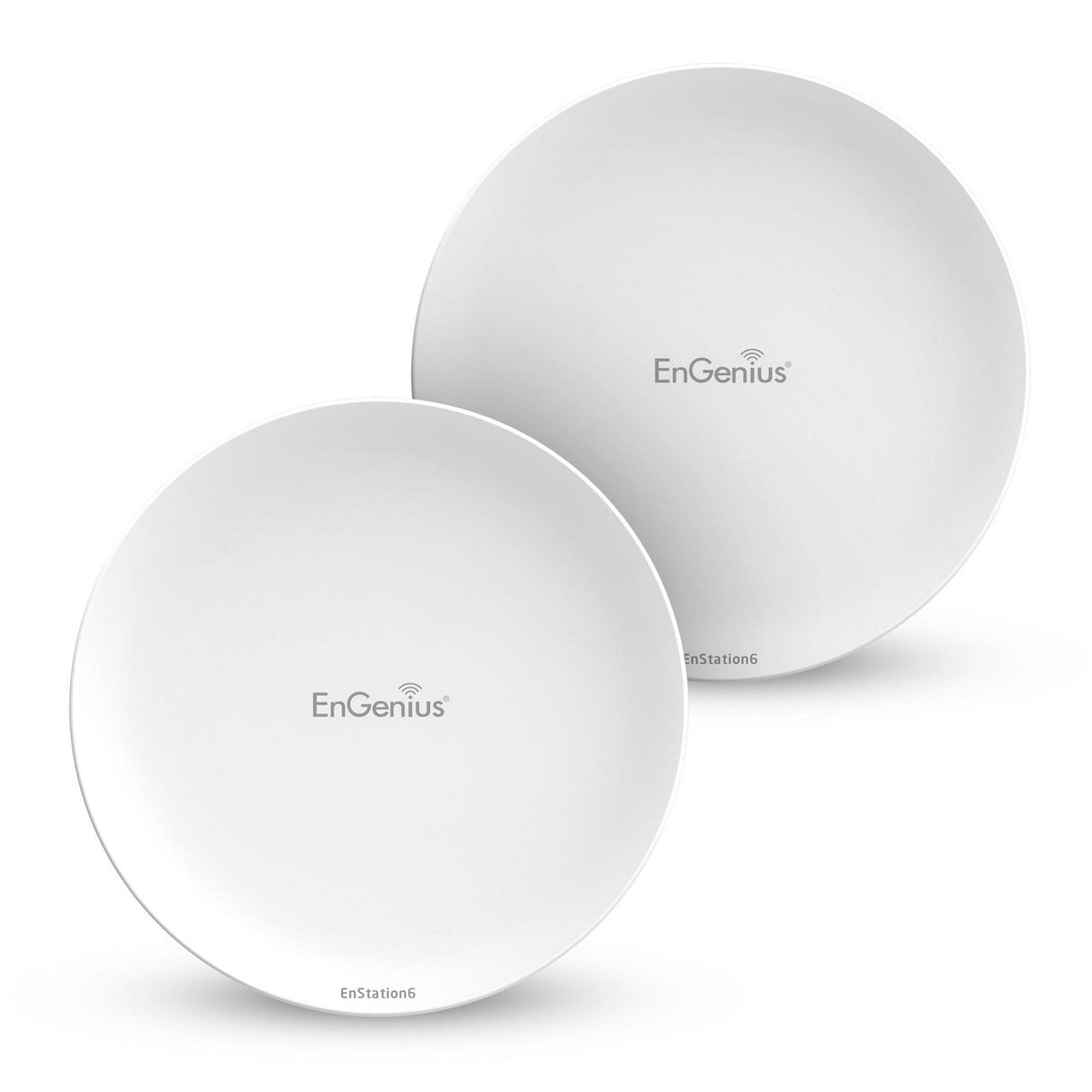

EnGenius EnStation6 Kit Point to Point WiFi 6 Outdoor AX1200 5GHz Bridge

EnGenius EnStation6 Kit Point to Point WiFi 6 Outdoor AX1200 5GHz Bridge

The EnGenius EnStation6 KIT is a high-performance solution designed to enhance outdoor wireless connectivity. Leveraging advanced Wi-Fi 6 (802.11ax) technology, it provides exceptional speed, range, and reliability, making it ideal for bridging connectivity between buildings, expansive properties, or other outdoor setups. With its ability to deliver stable, high-speed connections, the EnStation6 KIT is perfect for handling 8K ultra HD video streaming and multi-application traffic.

This outdoor wireless bridge offers versatile deployment modes, including Access Point, Station, WDS Access Point, and WDS Station, ensuring adaptability to diverse network setups. Its powerful internal antennas and beamforming capabilities focus and optimize signal transmission over long distances. Built to withstand challenging environmental conditions, the EnStation6 KIT is a durable and dependable option for enterprise-level outdoor networking.

Included in the package are two EnStation6 devices, enabling flexible point-to-point or multi-point setups. With easy installation and robust PoE support, this kit eliminates the need for costly infrastructure like fiber cables, delivering a cost-effective wireless solution.

Key Features

• Advanced Wi-Fi 6 (802.11ax) on 5 GHz for high-speed, efficient connectivity
• Supports point-to-point and multi-point deployments
• Handles 8K ultra HD video streaming and heavy data traffic
• Robust construction for outdoor environments
• Includes two devices with versatile operation modes

Technical Specifications

Standards: IEEE 802.11ax on 5 GHz (Backward compatible with 802.11b/g/n/ac)

Processor: Qualcomm® Quad-Core ARM Cortex A53s @ 1.0GHz CPU

Antenna:
5 GHz (Port 1)
- Average Antenna Gain: 19 dBi
- Polarization: Linear
- Azimuth Beam Width: 30°
- Elevation Beam Width: 18°
- VSWR: 1:2.0
5 GHz (Port 2)
- Average Antenna Gain: 19 dBi
- Polarization: Linear
- Azimuth Beam Width: 18°
- Elevation Beam Width: 30°
- VSWR: 1:2.0

Physical Interface:

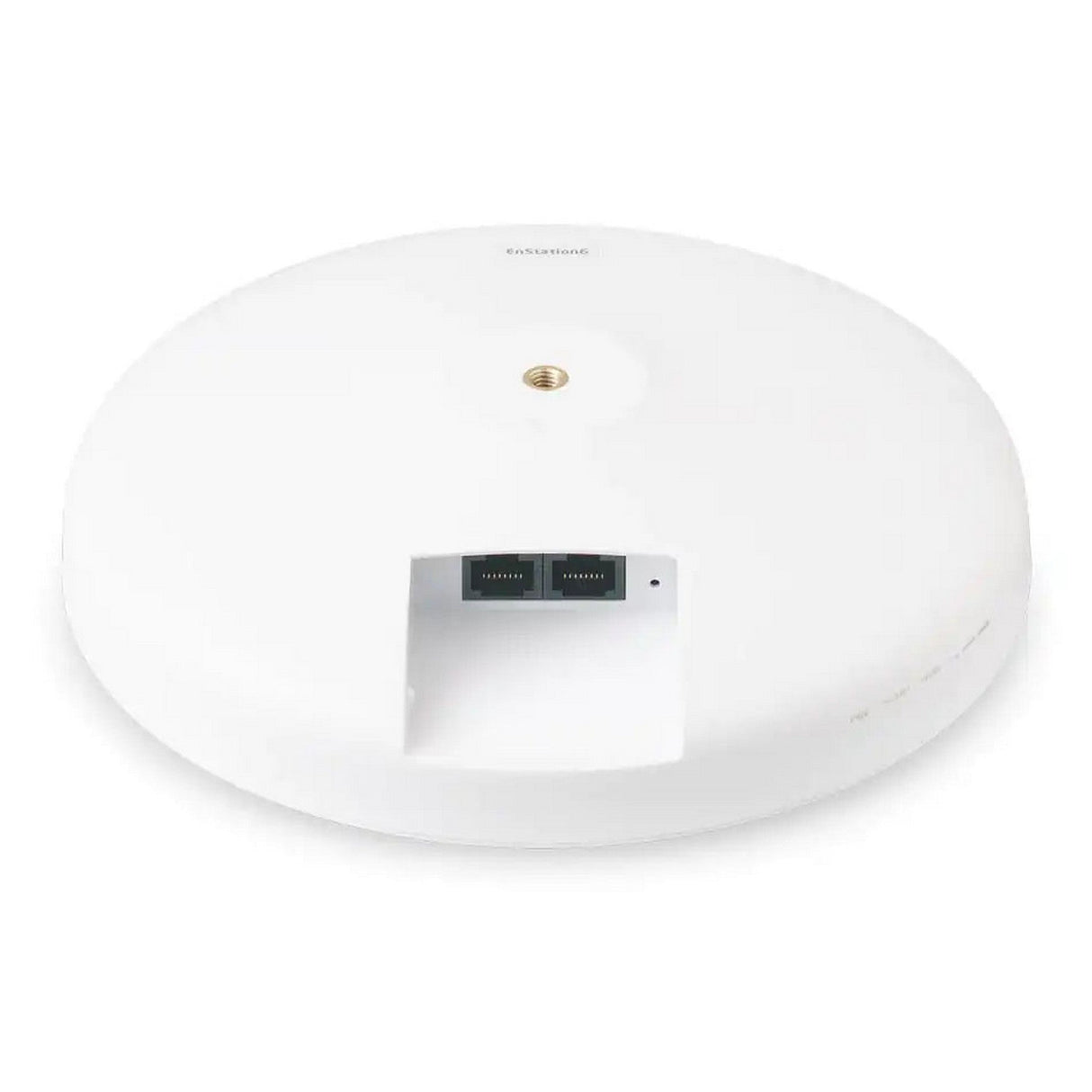

2 x 10/100/1000 BASE-T, RJ-45 Ethernet Port
1 x Reset Button

LED Indicators:
1 x Power
1 x LAN 1
1 x LAN 2
1 x WLAN
1 x Signal

Power Source: EPA5006GP PoE Injector

Maximum Power Consumption: 12.5W

Surge Protection:
Line to Line: 1 KV
Line to Ground: 2 KV

ESD Protection:
Contact: 4 KV
Air: 8 KV

Wireless & Radio Specifications:
Operating Frequency: Single-Radio 5 GHz
Operation Modes: Access Point, Station, WDS Access Point, WDS Station
Frequency Radio: 5 GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725 MHz ~ 5850 MHz
Transmit Power: Up to 26 dBm on 5 GHz
Tx Beamforming (TxBF): Increasing signal reliability and transmitting distance
Radio Chains/Spatial Stream: 2x2:2
SU-MIMO: Two (2) spatial stream SU-MIMO for 5GHz up to 1,200 Mbps wireless data rate with VHT80 to a single 2x2 wireless client device under 5GHz radio
MU-MIMO: Two (2) spatial streams multiple (MU)-MIMO for up to 1,200 Mbps wireless data rate to transmit to two (2) stream MU-MIMO 11ax capable wireless client devices under 5GHz simultaneously
Supported Data Rates (Mbps):
5 GHz: 18 to 1200 (MCS0 to MSC11, NSS = 1 to 4)
802.11ac: 6.5 to 867 Mbps (MCS0 to MCS9, NSS = 1 to 2)
802.11n: 6.5 to 300 Mbps (MCS0 to MCS15)
802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54

Environmental & Physical:
Operating Temperature: -4ºF ~ 140ºF (-20ºC ~ 60ºC)
Storage Temperature: -40ºF ~ 176ºF (-40ºC ~ 80ºC)
Operating Humidity: 90% or less (non-condensing)
Storage Humidity: 90% or less (non-condensing)

Dimensions & Weights:
EnStation6 Device:
Weight: 1.11 lbs. (460 g)
Depth: 7.48" (190 mm)
Height: 1.49" (38 mm)
EnStation6 Packaging:
Weight: 2.47 lbs. (1.21 kg)
Length: 12.63" (321 mm)
Width: 9.72" (247 mm)
Height: 3.46" (88 mm)

What’s Included

• 2 x EnStation6 Outdoor Wireless Bridge/Access Points
• 2 x PoE Injectors (EPA5006GR)
• 2 x Power Cord

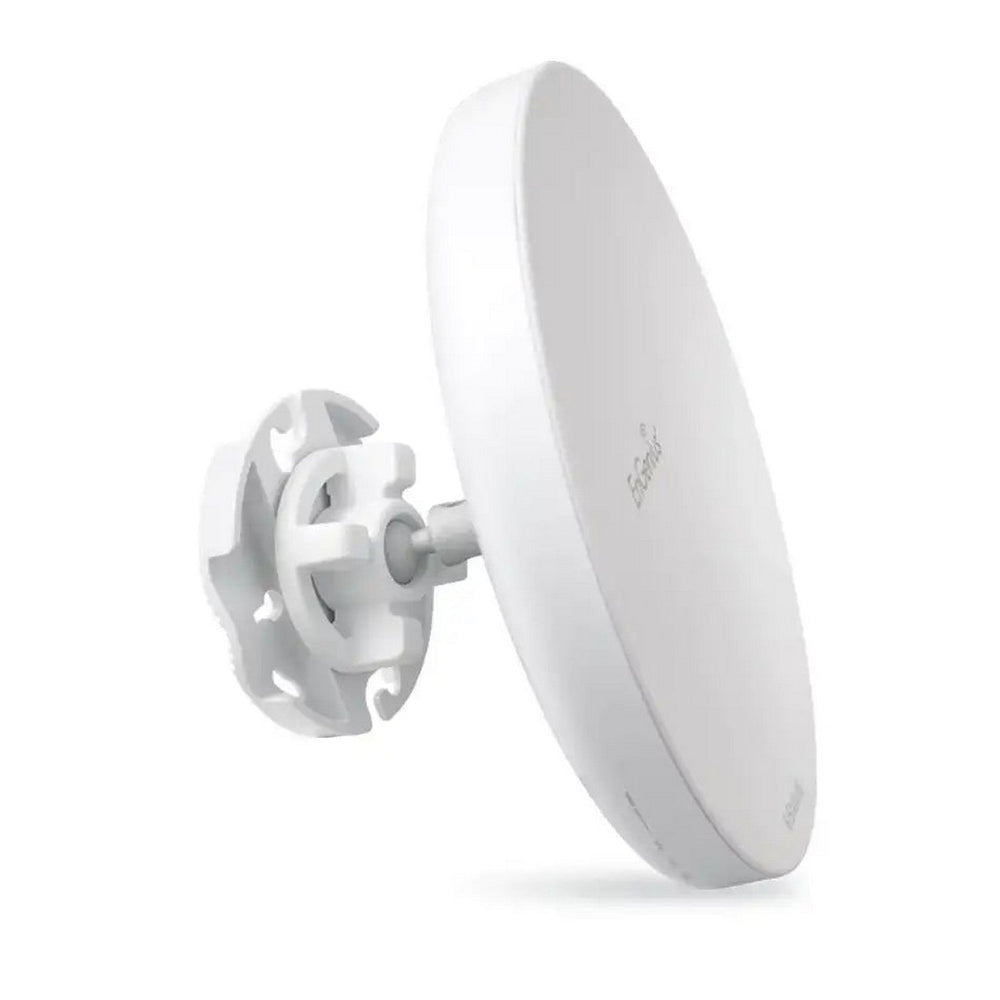

• 4 x Pole Mount Brackets
• 2 x Pole Mount Straps
• 2 x Wall Mount Screw Kits
• 2 x Product Card
