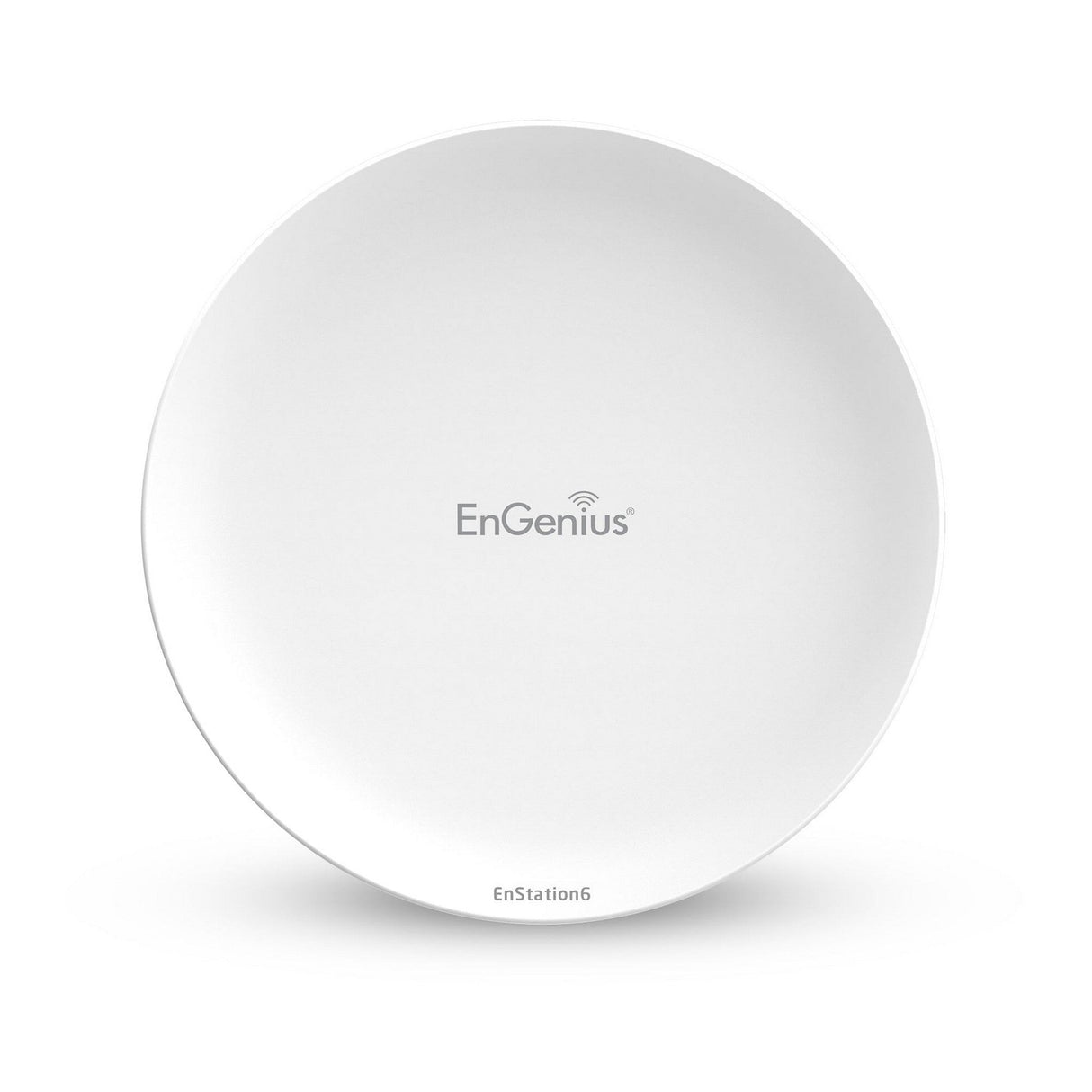

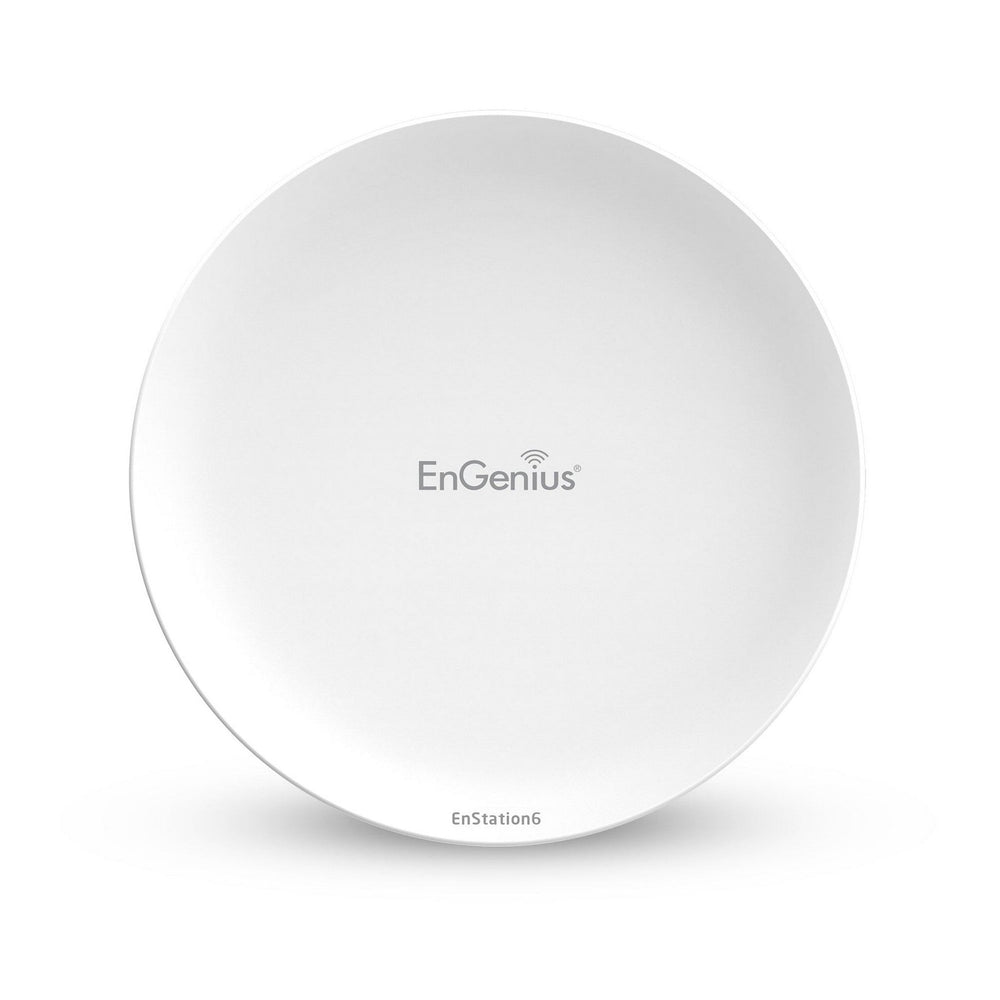

EnGenius EnStation6 Point to Point WiFi 6 Outdoor AX1200 5GHz Bridge

EnGenius EnStation6 Point to Point WiFi 6 Outdoor AX1200 5GHz Bridge

The EnGenius EnStation6 5 GHz Wi-Fi 6 (802.11ax) 2x2 Outdoor Wireless Bridge represents the forefront of wireless technology, delivering high-density Wi-Fi performance for building-to-building and expansive outdoor property connections without the high costs associated with fiber cabling. Leveraging Wi-Fi 6 advancements, this bridge significantly boosts throughput, enhances efficiency, and supports 8K ultra HD video streaming alongside heavy multi-application traffic, all while providing extended bandwidth over greater distances. When paired with another Wi-Fi 6 bridge in point-to-point or multipoint deployments, the EnStation6 utilizes the latest Wi-Fi innovations to achieve longer ranges, effectively serving as an "invisible wire" for seamless connectivity.

Designed for high-performance and efficient Wi-Fi in outdoor environments, the EnStation6 features beamforming technology to optimize antenna signal, reception, and reliability for connected clients. Its 2x2 directional antennas support up to 1,200 Mbps in the 5 GHz band, while the high 26 dBm transmit power extends Wi-Fi coverage across yards or between buildings. The integrated high-gain 19 dBi directional antenna enables wireless network extensions up to 5 miles in point-to-point configurations. Encased in an IP55-rated weatherproof and dustproof housing, the EnStation6 is built to withstand various outdoor conditions, ensuring durable and reliable performance.

The EnStation6 offers flexible management options with operation modes including Access Point, Client Bridge, WDS Access Point, and WDS Station, allowing for versatile deployment scenarios. This adaptability makes it suitable for a wide range of applications, from extending network coverage in large outdoor areas to establishing stable connections between separate buildings. By integrating the latest Wi-Fi 6 technology, the EnStation6 ensures that users experience high-performance and efficient Wi-Fi connectivity in outdoor settings.

Key Features

• Wi-Fi 6 technology for high-performance and efficient outdoor Wi-Fi
• Beamforming optimizes antenna signal, reception, and reliability
• 2x2 directional antennas supporting up to 1,200 Mbps in the 5 GHz band
• High 26 dBm transmit power extends Wi-Fi coverage between buildings
• High-gain 19 dBi integrated directional antenna extends wireless networks up to 5 miles in point-to-point setups
• IP55-rated weatherproof and dustproof housing for durability

Technical Specifications

Standards: IEEE 802.11ax on 5 GHz (Backward compatible with 802.11b/g/n/ac)

Processor: Qualcomm® Quad-Core ARM Cortex A53s @ 1.0 GHz CPU

Antenna:
5 GHz (Port 1)
- Average Antenna Gain: 19 dBi
- Polarization: Linear
- Azimuth Beam Width: 30°
- Elevation Beam Width: 18°
- VSWR: 1:2.0
5 GHz (Port 2)
- Average Antenna Gain: 19 dBi
- Polarization: Linear
- Azimuth Beam Width: 18°
- Elevation Beam Width: 30°
- VSWR: 1:2.0

Physical Interface:

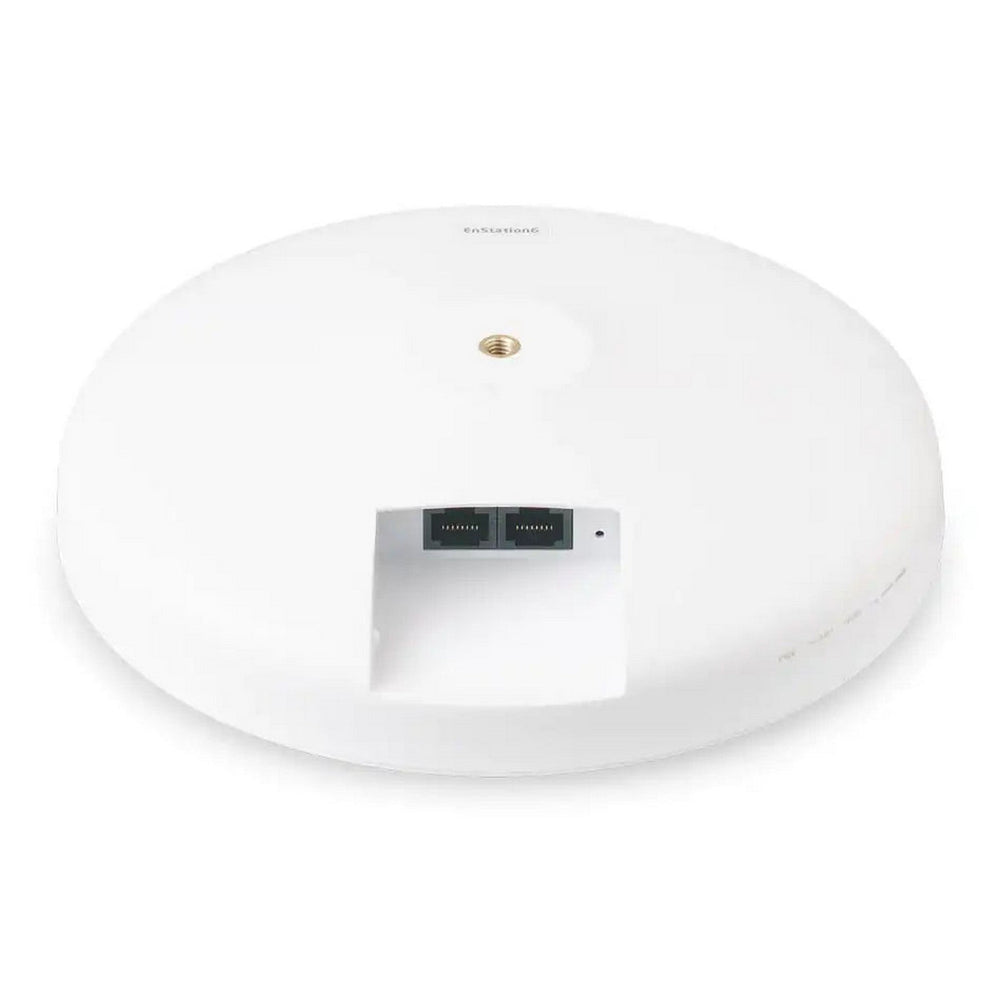

2 x 10/100/1000 BASE-T, RJ-45 Ethernet Port
1 x Reset Button

LED Indicators:
1 x Power
1 x LAN 1
1 x LAN 2
1 x WLAN
1 x Signal

Power Source: EPA5006GP PoE Injector
Maximum Power Consumption: 12.5 W

Surge Protection:
Line to Line: 1 kV
Line to Ground: 2 kV

ESD Protection:
Contact: 4 kV
Air: 8 kV

Wireless & Radio Specifications:
Operating Frequency: Single-Radio 5 GHz
Operation Modes: Access Point, Station, WDS Access Point, WDS Station
Frequency Radio: 5 GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725 MHz ~ 5850 MHz
Transmit Power: Up to 26 dBm on 5 GHz
Tx Beamforming (TxBF): Increasing signal reliability and transmitting distance
Radio Chains/Spatial Stream: 2x2:2
SU-MIMO: Two (2) spatial stream SU-MIMO for 5 GHz up to 1,200 Mbps wireless data rate with VHT80 to a single 2x2 wireless client device under 5 GHz radio
MU-MIMO: Two (2) spatial streams multiple (MU)-MIMO for up to 1,200 Mbps wireless data rate to transmit to two (2) stream MU-MIMO 11ax capable wireless client devices under 5 GHz simultaneously
Supported Data Rates (Mbps): 18 to 1200 (5 GHz), 6.5 to 867 Mbps (802.11ac), 6.5 to 300 Mbps (802.11n), 6 to 54 Mbps (802.11a/g)
Supported Radio Technologies: 802.11ax (OFDMA), 802.11ac/a/g/n (OFDM)
Channelization: HE 20/40/80 MHz (802.11ax), VHT 20/40/80 MHz (802.11ac), HT 20/40 MHz (802.11n)

What’s Included

• 1 x EnStation6 Outdoor Wireless Bridge/Access Point
• 1 x PoE Injector (EPA5006GR)
• 1 x Power Cord

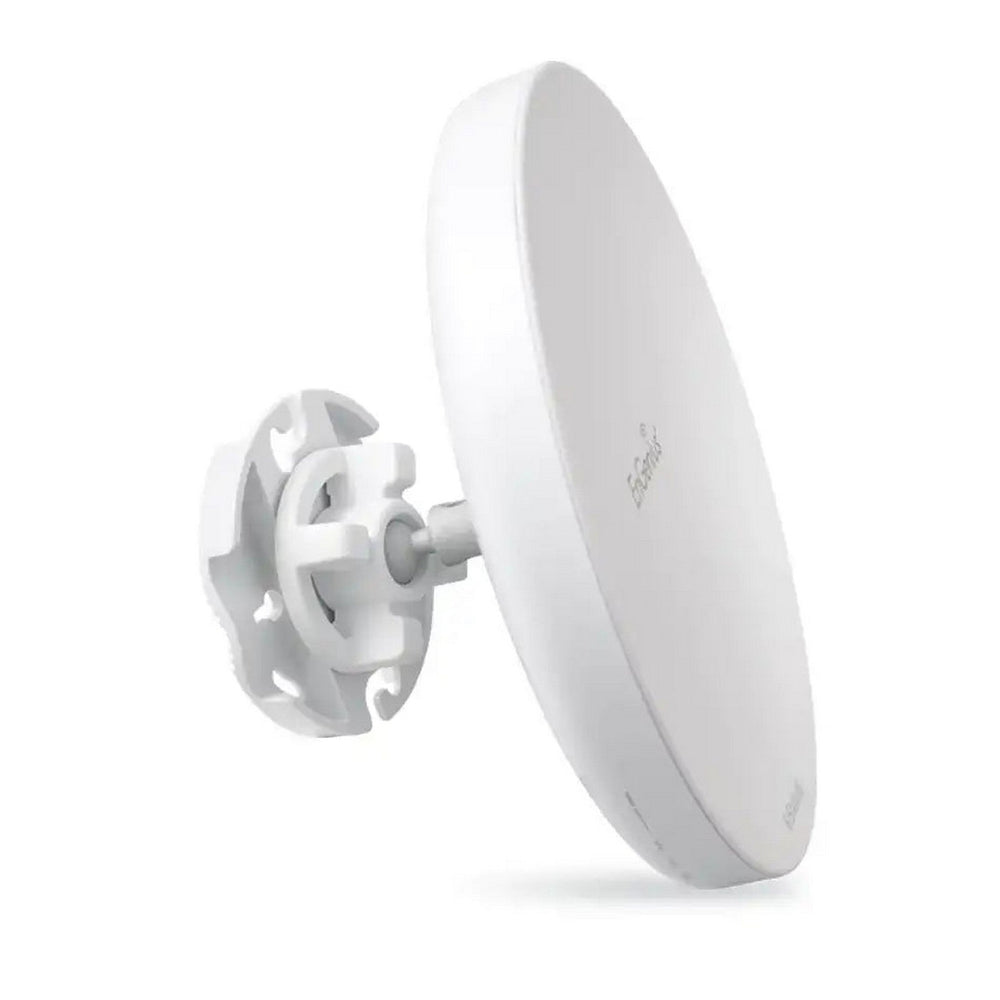

• 2 x Pole Mount Brackets
• 1 x Pole Mount Strap
• 1 x Wall Mount Screw Kit
• 1 x Product Card
