ESE ES-188E NTP Referenced Master Clock/Time Code Generator
ESE | SKU: ESE-ES188
ESE ES-188E NTP Referenced Master Clock/Time Code Generator

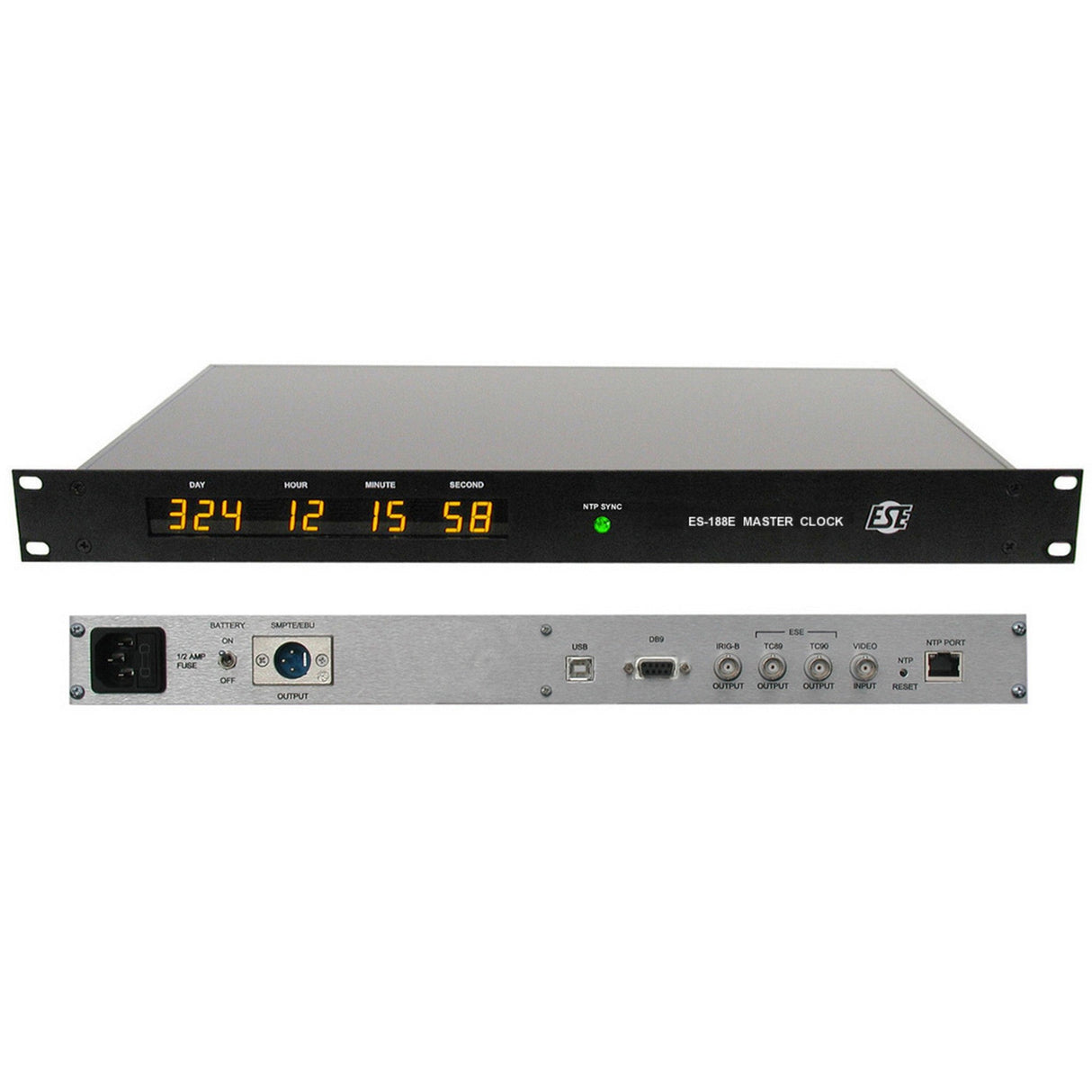

The ES-188 is an NTP referenced Master Clock and Time Code Generator. It displays nine digits (Day of Year, Hour, Minute & Second) of time as received via a user selected NTP server. Simultaneously, the ES-188 generates several types of time code (ESE-TC89, ESE-TC90, USB, RS232C/ASCII, SMPTE/EBU and IRIG-B) and a 1PPS signal. These outputs allow the ES-188 to easily interface with new or existing computer, automation and clock systems.
Key Features
- ESE, SMPTE/EBU, IRIG-B, RS-232 & USB Time Code outputs
- NTP Ethernet Port (RJ-45)
- 1 PPS (pulse-per-second) output
- Front Panel nine digit .56" yellow LED display
- NTP Sync Indicator
- Time Zone Offset
- Automatic Daylight Saving Time Correction
- Time Advance/Retard Feature for Synchronization Purposes
- Configuration via RS-232 & USB
- PC Software Included
- 4 Hour Battery backup
- NTP Lock LED Indicator and TTL output
- 1.75" Rackmount enclosure
