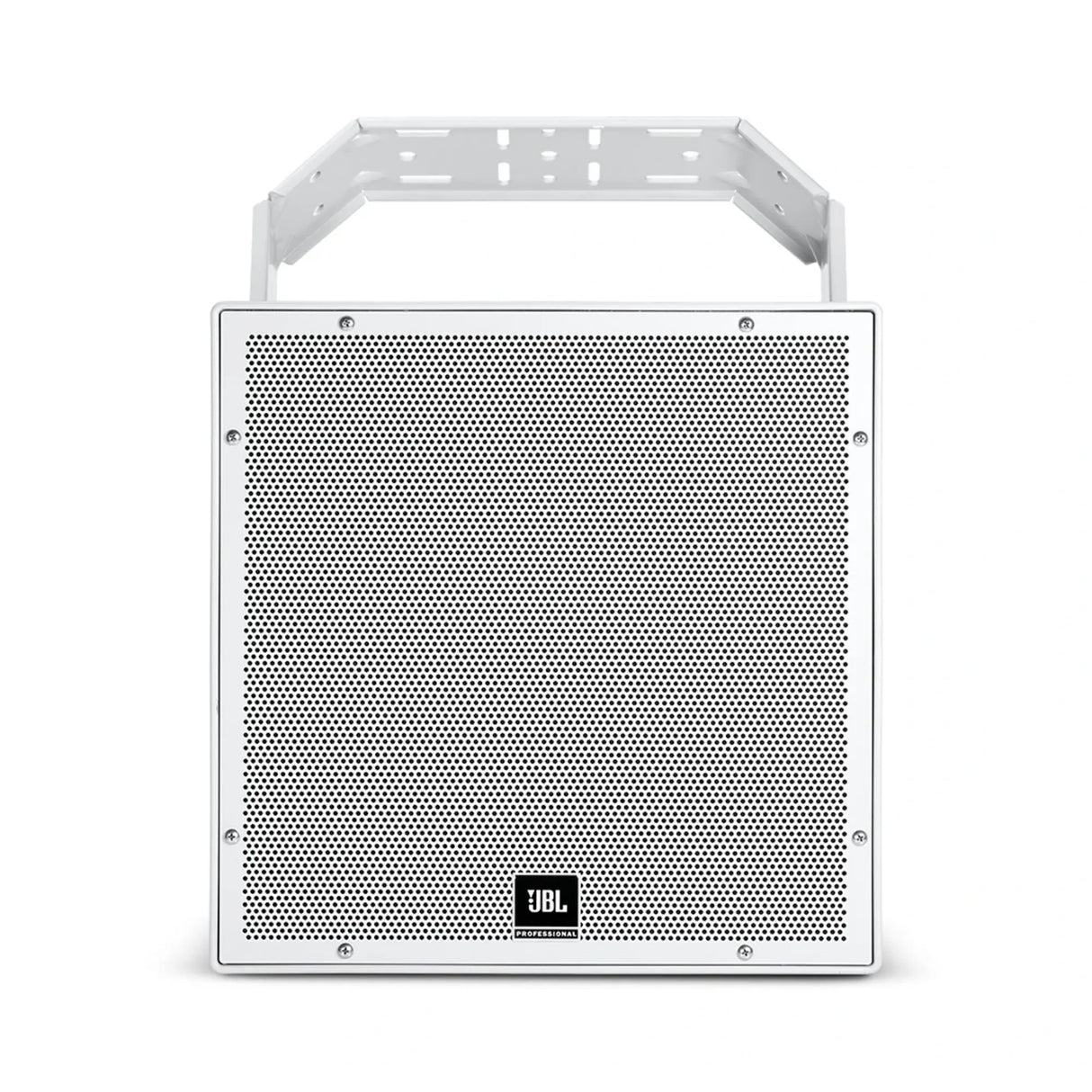

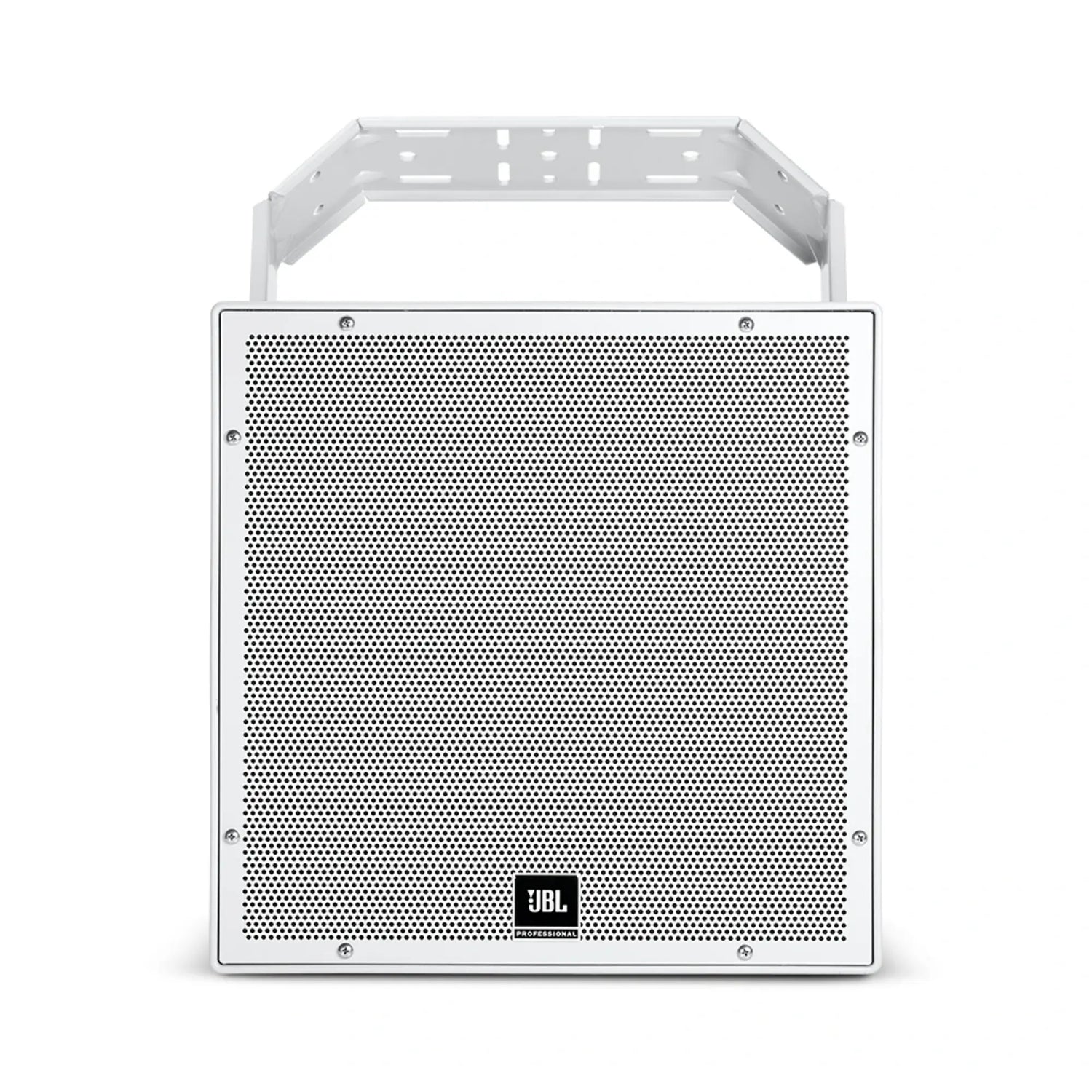

JBL AWC159 15-Inch 2-Way Coaxial Loudspeaker (Gray)
The JBL AWC159 is a highly weather-resistant, compact 15-inch coaxial 2-way loudspeaker ideal for a broad range of applications including sports facilities, stadiums, fairgrounds, rodeos, skating rinks, themed entertainment venues, water parks, and outdoor background music or paging systems. Engineered for outstanding speech clarity and extended music response, this loudspeaker features advanced components and a rugged design built to withstand harsh environmental conditions.
Key Features
● Weather Resistance
○ IP56 rating for protection against dust and powerful water jets
○ Exceeds military specs for humidity, salt spray, temperature, and UV exposure
● Superior Audio Performance
○ 90° x 90° broadband pattern control for consistent sound coverage
○ Kevlar-reinforced 380 mm (15 in) woofer cone for durability and sound quality
○ 38 mm (1.5 in) compression driver with patented high-temperature polymer diaphragm for low distortion and high output
○ Advanced crossover network for smooth, natural midrange and constant coverage
○ 500 Watt continuous pink noise power handling with high sensitivity for high SPL capability
Specifications
● Acoustic
○ Frequency Range (-10 dB): 52 Hz – 20 kHz
○ Frequency Response (±3 dB): 80 Hz – 20 kHz
○ Coverage Pattern: 90° x 90°
○ Sensitivity (2.83V @ 1m): 98 dB (average 80 Hz – 20 kHz)
○ Maximum SPL: 125 dB (direct 8Ω), 123 dB (300 W tap)
● Electrical & Mechanical
○ Impedance: 8 ohms
○ Power Rating: 500 W continuous pink noise (2000 W peak)
○ Transformer Taps: 70V: 300W, 150W, 75W, 38W; 100V: 300W, 150W, 75W
○ Enclosure: ABS with glass fiber, heavily braced
○ Grille: Zinc-rich extra-thick powder coated steel with foam and woven poly mesh backing
○ Dimensions (WxHxD): 486 x 486 x 479 mm (19.1 x 19.1 x 18.8 in); Depth with gland nut: 507 mm (19.9 in); Total with bracket: 546 mm (21.5 in)
○ Weight: 45.42 lb
Package Contents
● Included Items
○ All-Weather Compact 2-Way Coaxial Loudspeaker with 15" LF
○ U-bracket (color matched to gray)
