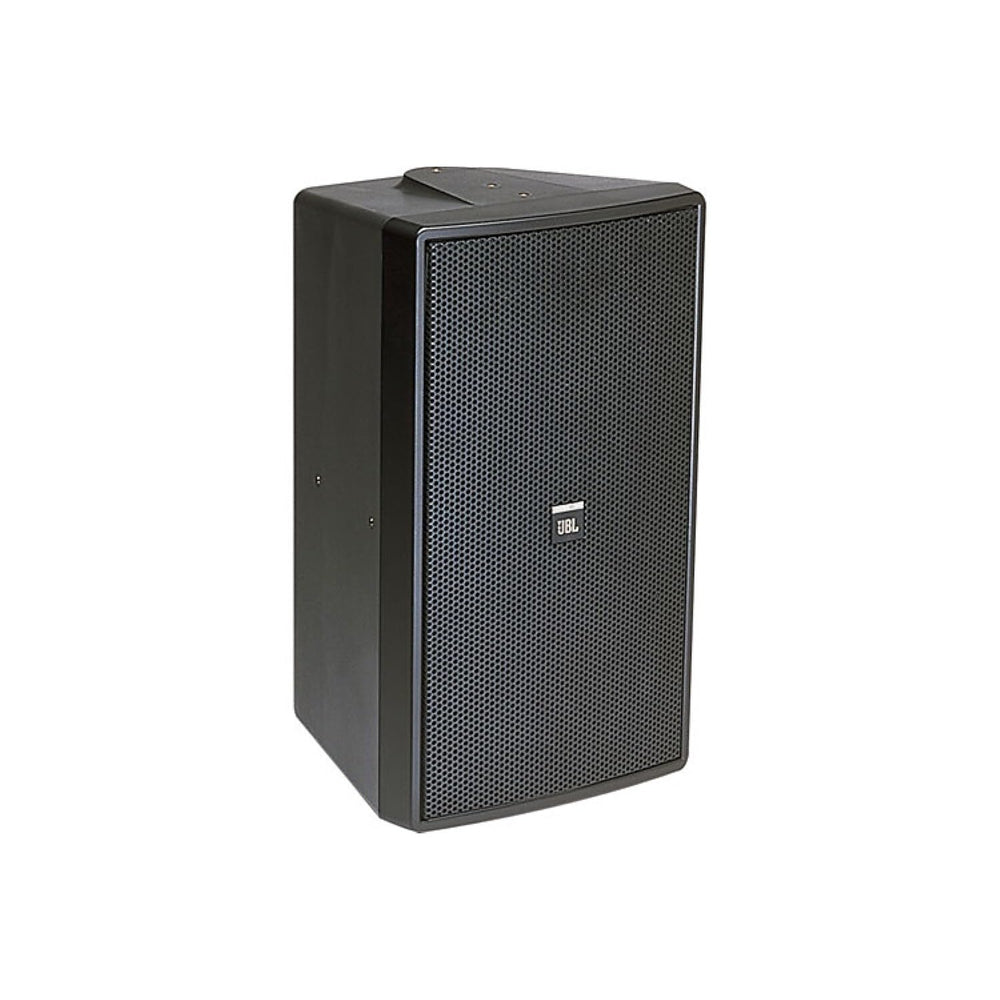

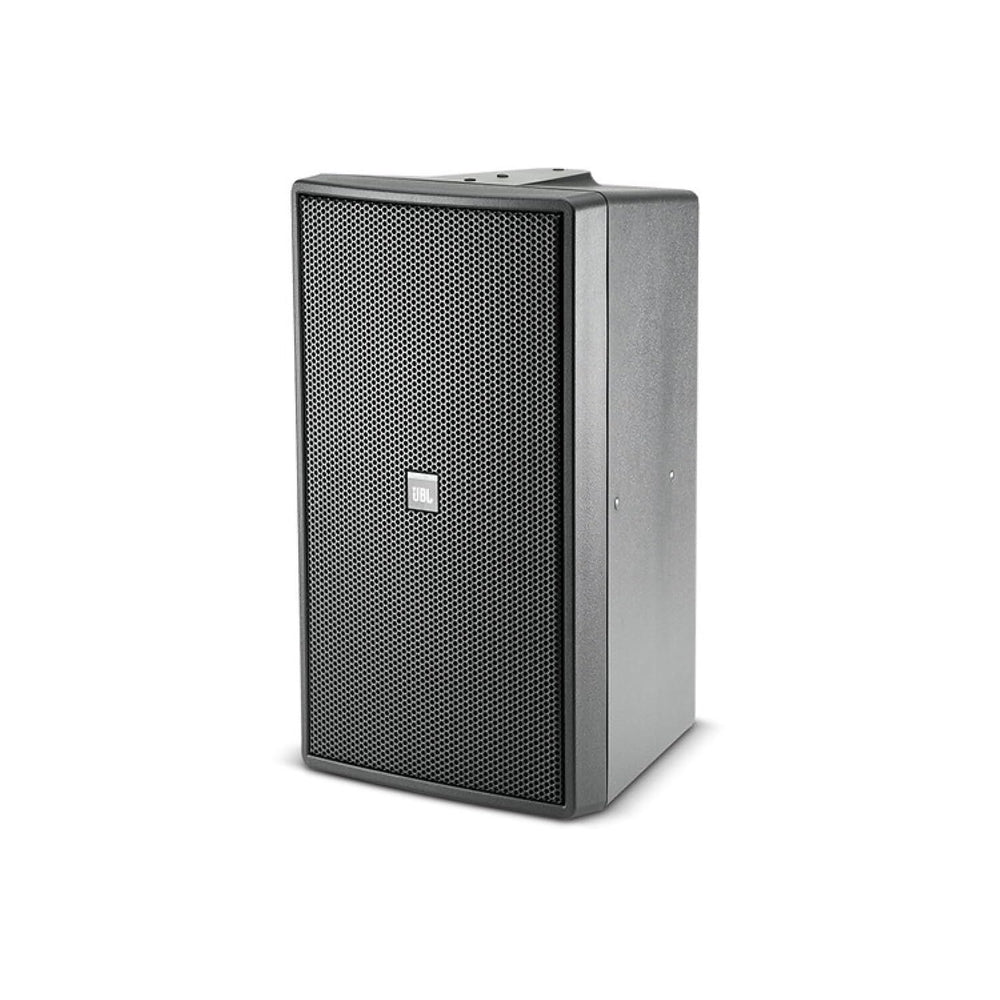

JBL C29AV-1 Control Premium Indoor/Outdoor Monitor Speaker – Black
The JBL Control 29AV-1 in black is a premium high-performance monitor speaker designed for both indoor and outdoor applications. With a Kevlar-reinforced 8-inch woofer and a titanium-diaphragm compression driver, it delivers smooth frequency response, extended bandwidth, and exceptional clarity. The rotatable horn ensures consistent 110° x 85° coverage, while the weather-resistant enclosure and grille allow reliable use in challenging environments. Featuring SonicGuard™ overload protection, a low-loss line transformer for distributed systems, and flexible mounting options, the C29AV-1 is ideal for houses of worship, clubs, auditoriums, restaurants, and outdoor venues.
Key Features
- Extended frequency response: 37 Hz – 18 kHz (-10 dB) for full-range sound
- Rotatable horn: 110° x 85° coverage pattern for vertical or horizontal placement
- High power capacity: 300W continuous program power with SonicGuard™ protection
- Integrated transformer: 110W low-loss line transformer with 8 Ω bypass
- Durable drivers: 8-inch Kevlar cone woofer and 1-inch titanium diaphragm compression driver
- Weather resistant: IP-X4 rated enclosure, grille foam, and protective input panel cover
- Flexible mounting: InvisiBall® system plus 10 suspension points and U-bracket compatibility
- Professional build: Rugged HIPS enclosure with thermoset composite coated steel grille
Specifications
● System
○Type: Passive monitor speaker
○Frequency Range (-10 dB): 37 Hz – 18 kHz
○Frequency Response (±3 dB): 43 Hz – 15 kHz
○Power Capacity: 300W continuous program (150W continuous pink noise)
○Maximum SPL @ 1 m: 118 dB (short-term), 112 dB (long-term)
○Sensitivity: 90 dB (1W @ 1m)
○Nominal Impedance: 8 Ω (Thru position)
○Transformer Taps: 70V: 110W, 55W, 28W, 14W / 100V: 110W, 55W, 28W
● Transducers
○LF Driver: 200 mm (8 in) Kevlar cone woofer, 50 mm (2 in) voice coil
○HF Driver: 25 mm (1 in) titanium diaphragm compression driver
○Coverage Pattern: 110° x 85°, rotatable horn
● Physical & Environmental
○Enclosure Material: High-impact polystyrene (HIPS)
○Grille: Thermoset composite coated steel with foam backing
○Termination: Screw-down terminal strip with MTC-PC2 sealed input cover
○Environmental Rating: IEC 529 IP-X4; meets Mil-Spec 810 for humidity, salt spray, temperature & UV
○Dimensions (H x W x D): 520 x 306 x 277 mm (20.5 x 12.0 x 10.9 in)
○Net Weight: 12.2 kg (26.8 lb)
○Shipping Weight: 14.0 kg (30.8 lb)
Package Contents
- JBL C29AV-1 Speaker: Single black unit
- MTC-PC2 Panel Cover: Sealed input panel for weather resistance
- InvisiBall® Mounting Kit: Mounting base and hex wrench
- User Documentation: Installation and safety guide
