Rolls MS20C Microphone XLR Splitter Combiner Isolator
Rolls | SKU: RLS-ACC-MS20C
Loading...
$6900
Unit price
/
Unavailable
Last 1
More finance options:
Estimated Shipping Widget will be displayed here!
Enjoy free standard shipping on all orders over $99. Please note that this offer excludes oversized, overweight, special orders, custom products, and items with minimal profitability.
Orders placed between Monday - Friday before
1:00 PM PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Orders placed between Monday - Friday before
1:00 PM PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Condition: New

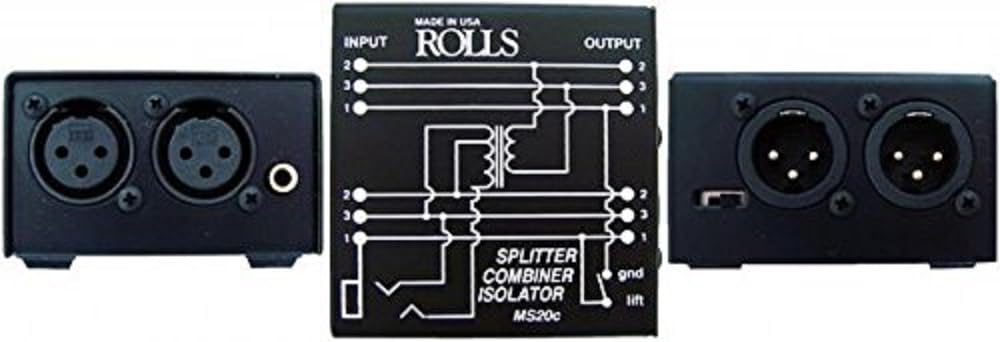

Rolls MS20C Microphone XLR Splitter Combiner Isolator
The MS20c Splitter / Combiner / Isolator will split a single balanced XLR signal into two isolated signals, combine two balanced XLR signals together into a single, or simply isolate a balanced line for buzz or hum elimination. Please note that when combining two condenser microphones, phantom power voltage is passed to only one of the microphones due to the internal isolation transformer.
Key Features
- Splits balanced XLR input, or 1/8" input to two balanced XLR
- Combines two balanced XLR signals to one XLR output. NOTE: Will only pass phantom power to one microphone.
- One signal is transformer isolated from the other
- Ground Lift switch for noise elimination
Technical Specifications
Input Impedance
XLR: 600 Ohms, 1/8" (3.5mm): 10K Ohms
Output Impedance
600 Ohms
Frequency Response
35 Hz - 20 kHz
Max Level
+26 dBm
Dimensions
3" x 2.25" x 1.2"
Weight
10 Ounces
