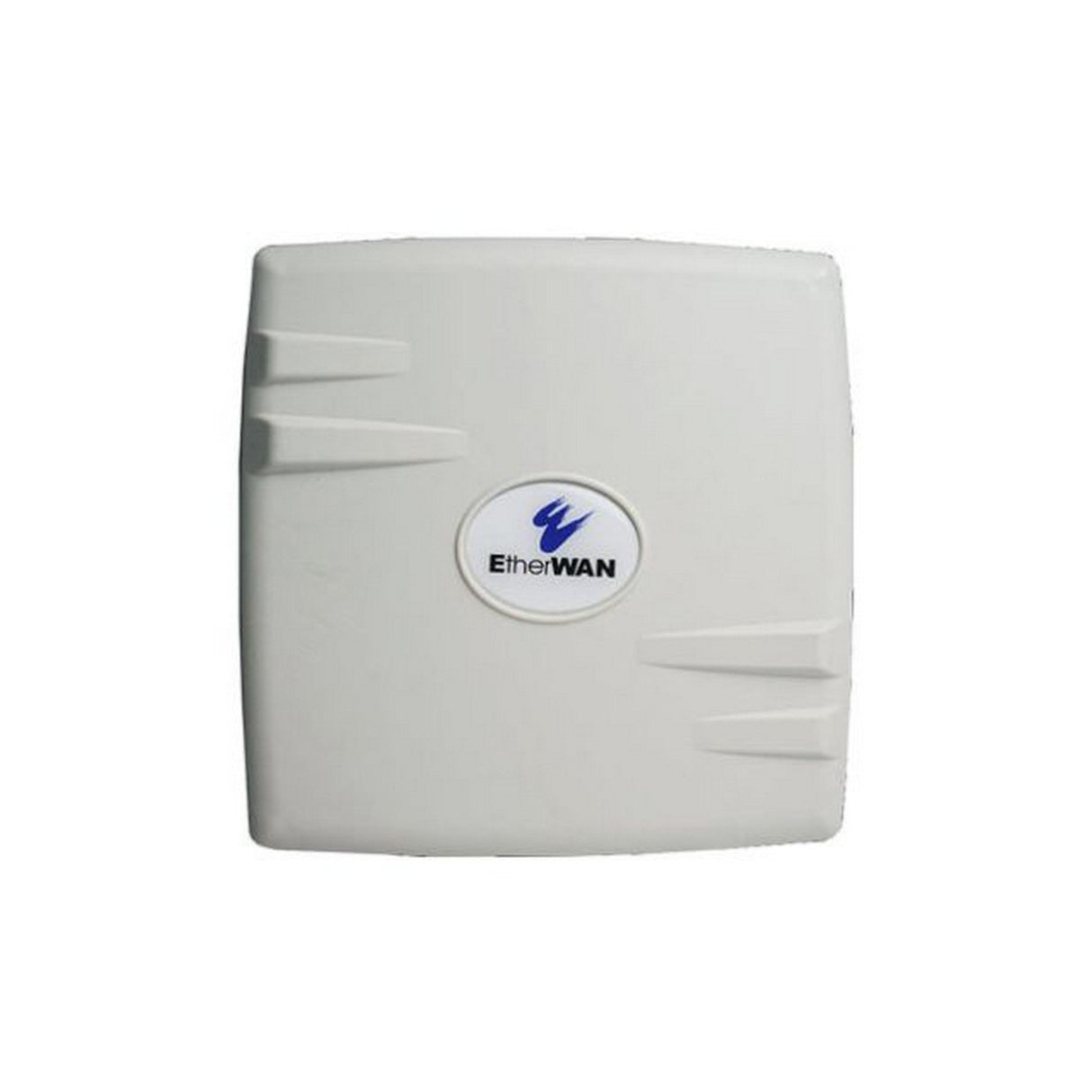

EtherWAN EasyLink Series Preconfigured IP67 Wireless Bridge Kit
EtherWAN EasyLink Series Preconfigured IP67 Wireless Bridge Kit
EtherWAN's EasyLink is a pre-configured point to point (PtP) Bridge kit which allows for connecting remote locations wirelessly up to 2 miles away. EasyLink's simple setup allows you to connect locations by mounting the hardware, powering them on and aligning the units using the built-in alignment LEDs. Each kit contains two paired units that connect automatically using a highly secure, unique, hidden SSID and randomly-generated passphrase to keep your valuable equipment secure right out of the box. No need for complicated setup software, just plug it in, aim it and you are connected.
Key Features
- Mount units to a pole or wall using included mount kit
- Signal strength LED's for easy alignment
- Just power and align using supplied PoE injectors and power supplies
- No technical expertise needed
- Encrypted & Authenticated Wireless Connection (WPA2)
- Every kit has unique SSID and security settings
- Fanless and ruggedized outdoor IP67 enclosure (Rainproof)
- Wide operating temperature range (-40 to 167°F)
- Connections up to 2 miles away
Technical Specifications
Wireless
Frequency 5 GHz
Max data rate 300 Mbit/s
Number of chains: 2
Standards 802.11a/n
WPA2 Passphrase
256-bit AES-CCM Encryption
Dynamic Frequency selection
Layer 2 Features
Auto-negotiation for port speed and duplex
Redundant Protocols (always enabled)
IEEE 802.1D STP
IEEE 802.1w RSTP
IEEE 802.1s MSTP
Ethernet
10/100/1000BASE-T Passive PoE
Wireless
802.11a/n
LED Indicators
Standards
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-T
IEEE 802.3ab 1000BASE-T
IEEE 802.3x full duplex and flow control
IEEE 802.1D STP
IEEE 802.1s MSTP
IEEE 802.1w RSTP
IEEE 802.11w Management Frame Protection (MFP)
Power
PoE in (Passive PoE)
PoE in input Voltage 6-30V
Max power consumption 10W
Casing Material
UV Protected Polystyrene case
Dimensions
185 x 185 x 63.5mm (W x D x H)
7.28" x 7.28" x 2.5"
Weight (shipping)
5.3lbs (2.4kg)
Installation Type
Pole/Wall
Operating Temp.
-40 to 75°C (-40 to 167°F)
Storage Temp.
-45 to 85°C (-49 to 185°F)
Relative Humidity
5% to 95% (non-condensing)
Wind Survivability
200km/h
*Power supply rated 5 to 158°F
ISO
Manufactured in ISO-9001 facility
EMI
FCC Part 15B Class A
PCC Part 15C
Environmental Test Compliance
IEC 60068-2-6 Fc (Vibration Resistance)
EN 61000-4-3 (Radiated RFI)
Warranty
3 Years

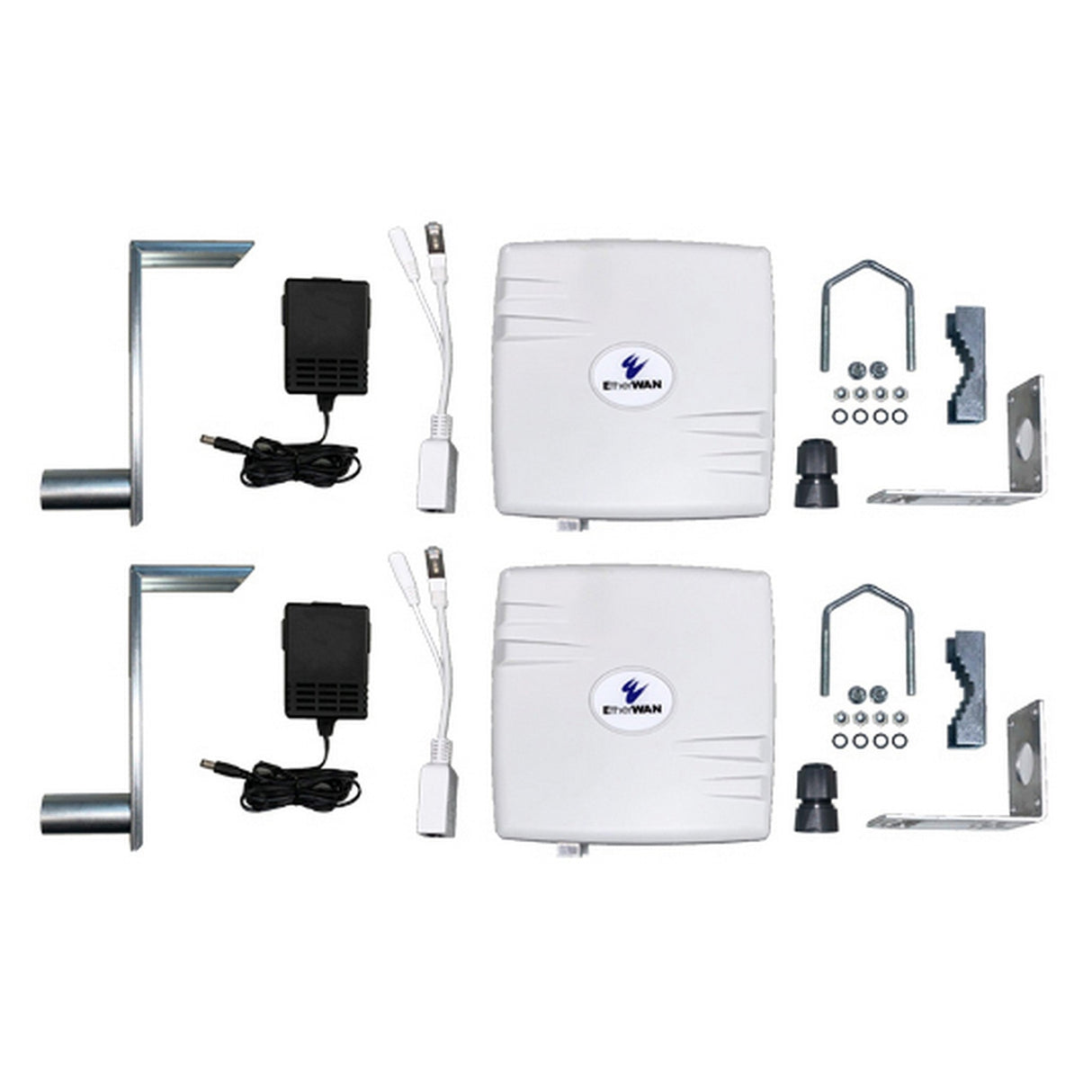

What’s Included
2 x units preconfigured to connect with optimal performance up to 300Mbps
Includes all Mounting Hardware
Includes 2 x power supplies and 2 x PoE injectors
