Description

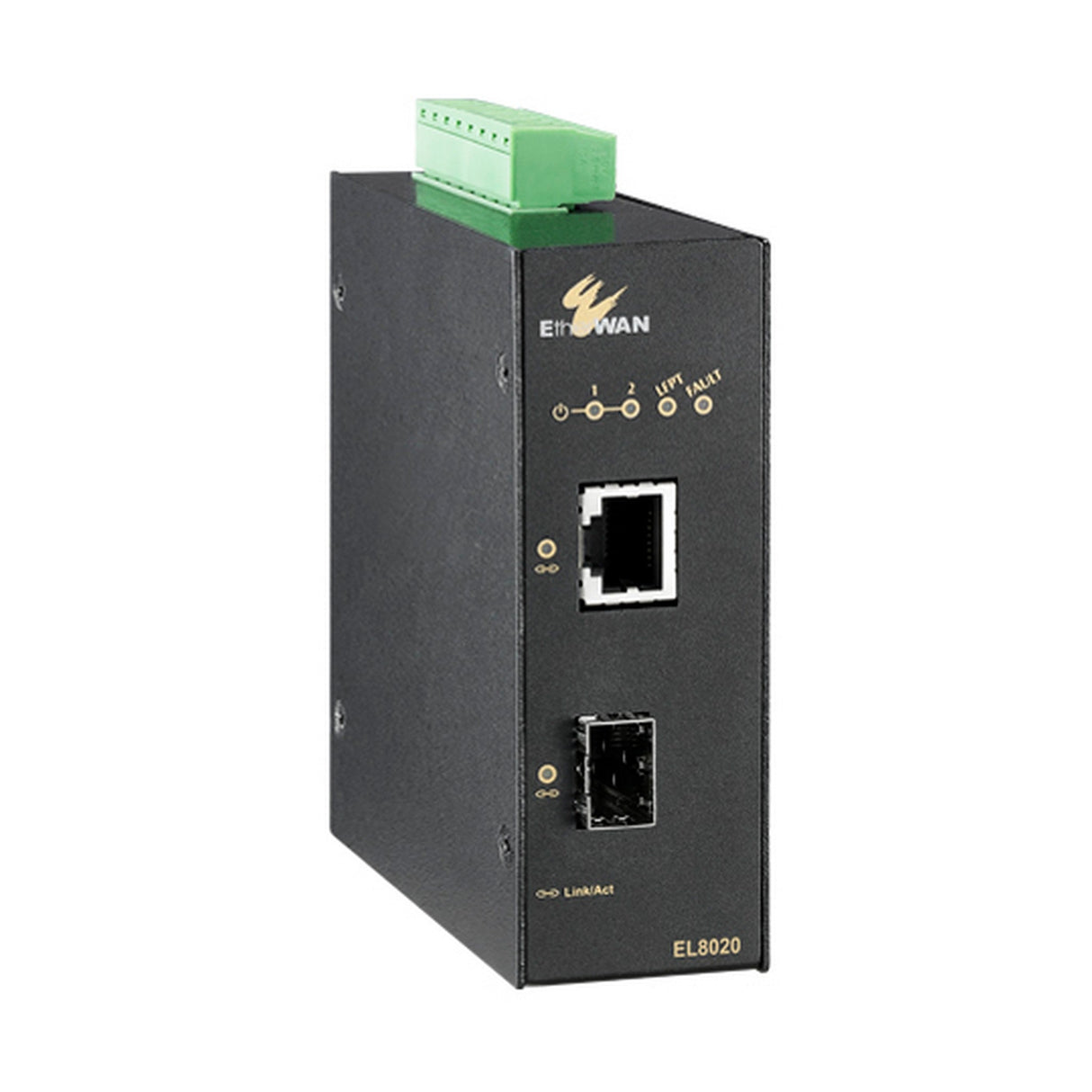

EtherWAN EL8020-V1E Hardened 10/100/1000BASE-TX to 100/1000 SFP Media Converter
The EL8020 Series provides media conversion between 10/100/1000BASE-TX and 100/1000 SFP Fiber. Built specifically for mission critical applications in harsh environments, the EL8020's hardened design features high shock & vibration resistance, electrical noise immunity, wide operating temperature range from -40 to 75°C (-40 to 167°F), and aluminum housing. With two power inputs, link down alarming, Link-Fault-Pass-Through and a wide range of fiber connectivity options, the EL8020 is the ideal media converter for environments where connectivity is crucial.
Key Features
- 10/100/1000BASE-TX and 100/1000 SFP Ethernet transmission conversion
- 1000Mbps Full duplex and full wire-speed forwarding rate
- Jumbo frames up to 10K bytes to increase throughput and transmission efficiency
- Relay alarm configured by DIP switch to notify users when power fails or link is down
- Supports -40 to 75°C (-40 to 167°F) operating temperature

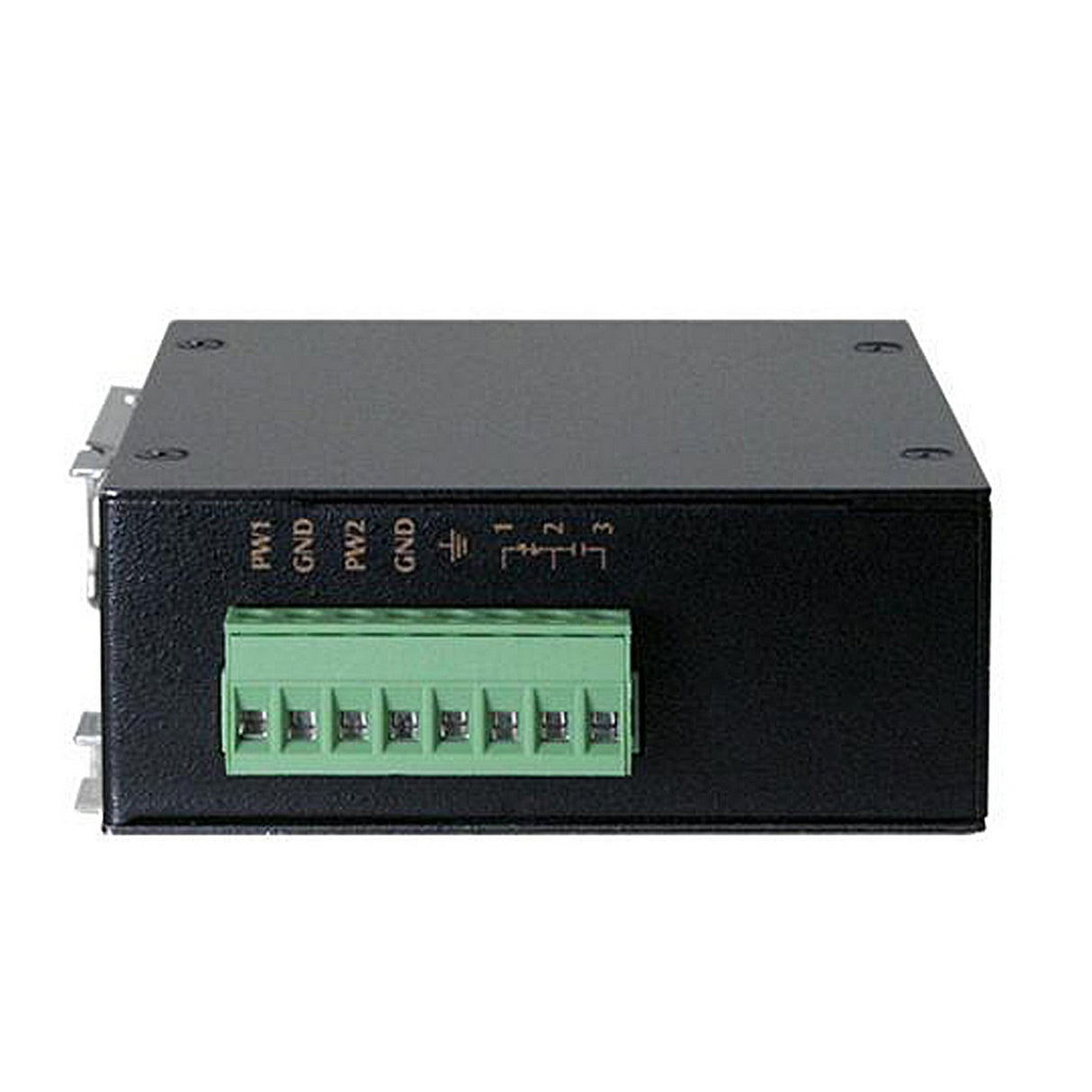

- Redundant power inputs on terminal block connector
- Supports DIN-Rail mounting
- Provides constant monitoring of the links connected to the media converters
- If a copper or a fiber link fails, the media converter will pass the fail state on throughout the link, disabling the fiber link and the copper link on the opposite end
Technical Specifications
Standards
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab 1000BASE-T
Forward and Filtering Rate
14,880pps for 10Mbps
148,810pps for 1000Mbps
1,488,100pps for 1000Mbps
Processing Type
Auto Negotiation
Auto MDI/MDIX
Input
12-48VDC
Power Consumption
0.912W Max, 76mA@12VDC, 38mA@24VDC, 19mA@48VDC
Protection
Overload Current Protection
Reverse Polarity Protection
Casing
Aluminum Case
IP30
Dimensions
35.8 x 90 x 100mm (W x D x H) (1.41" x 3.54" x 3.94")
Weight
0.23Kg (0.51lbs.)
Installation
DIN-Rail
Ethernet Port
10/100/1000BASE-TX: 1 port
100/1000 SFP: 1 port
LED Indicators
Per Unit: Power 1, Power 2, Fault, LFPT
Per Port: Link/Activity

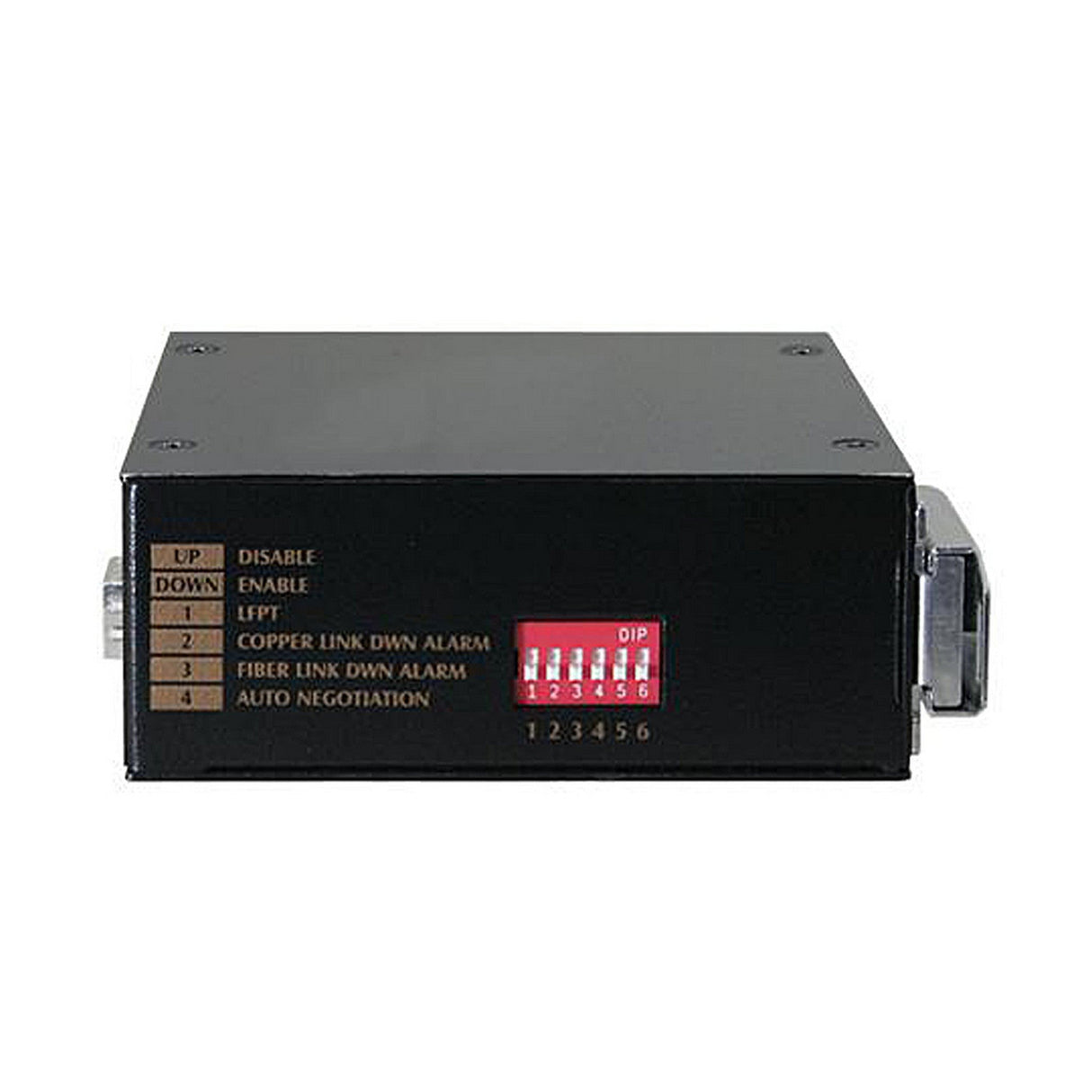

DIP Switch
No.1: LFPT On/Off
No.2: Alarm for copper port On/Off
No.3: Alarm for fiber port On/Off
No.4: Auto-negotiation for fiber port On/Off
Alarm Contact
Relay contact rating with current 0.6A/30VDC
Operating Temperature
-40 to 75°C (-40 to 167°F)
Storage Temperature
-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity
5% to 95% (non-condensing)
Regulatory Approvals
ISO
Manufactured in an ISO 9001 facility
Safety
UL 61010
Industrial Compliance
EN 50121-4
EMI
FCC Part 15B Class A
VCCI Class A
EN 55032
EN 61000-3-2
EN 61000-3-3
EN 61000-6-3
EMS
EN 61000-6-2
EN 61000-4-2 (ESD Standards)
EN 61000-4-3 (Radiated RFI Standards)
EN 61000-4-4 (Burst Standards)
EN 61000-4-5 (Surge Standards)
EN 61000-4-6 (Induced RFI Standards)
EN 61000-4-8 (Magnetic Field Standards)
Environmental Test Compliance
IEC 60068-2-6 Fc (Vibration Resistance)
IEC 60068-2-27 Ea (Shock)
FED STD 101C Method 5007.1 (Free fall w/package)
