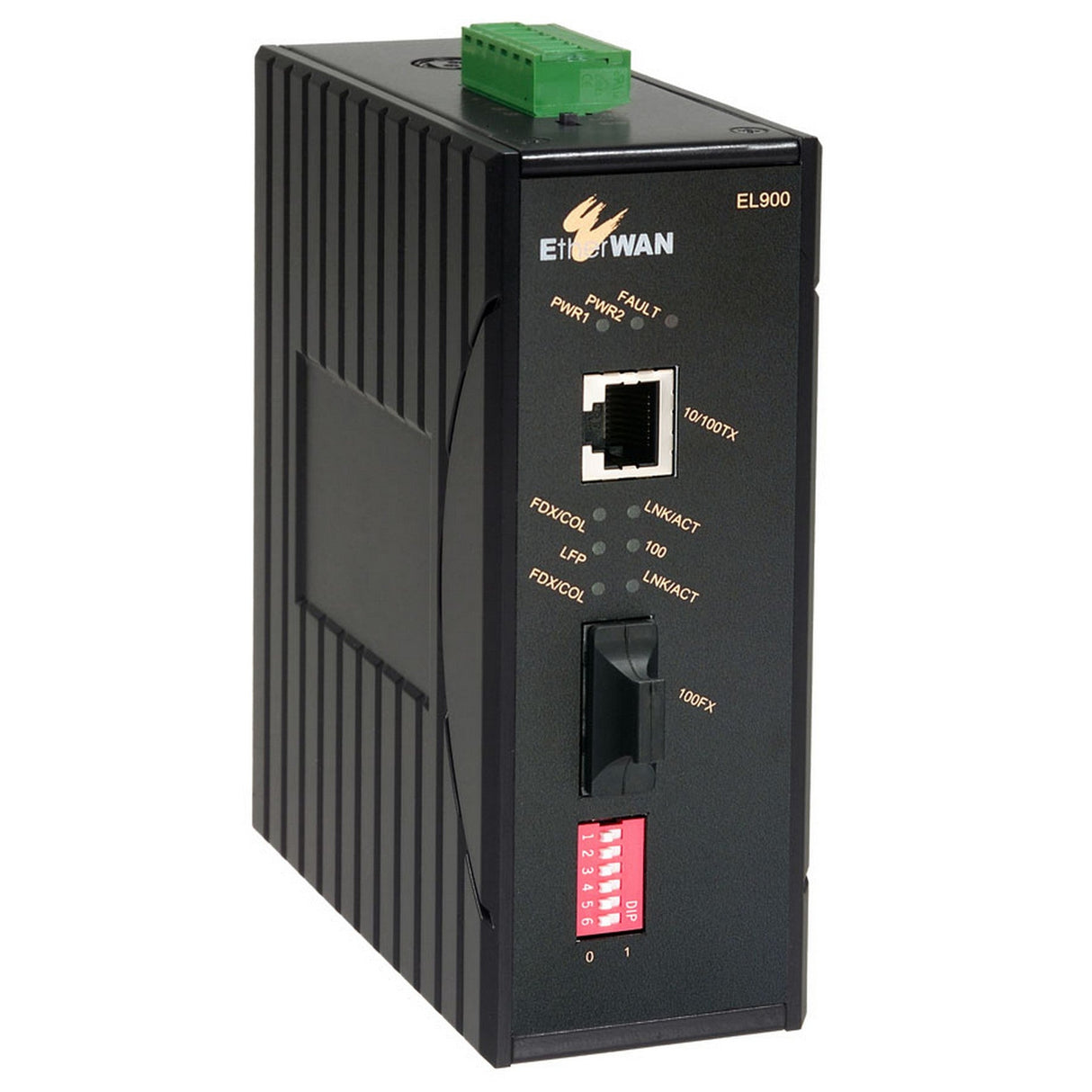

EtherWAN EL900-A-B-1-A 10/100BASE-TX to 100BASE-FX Hardened Media Converter DC Terminal Block, Multi-Mode SC, 2Km
EtherWAN EL900-A-B-1-A 10/100BASE-TX to 100BASE-FX Hardened Media Converter DC Terminal Block, Multi-Mode SC, 2Km
The EL900 Series provides media conversion between 10/100BASE-T and 100BASE-SX-LX Fiber. Built specifically for mission-critical applications in harsh environments, the EL900's hardened design features high shock & vibration resistance, electrical noise immunity, wide operating temperature range from -40Ā°C to 75Ā°C, and ruggedized aluminum housing. With triple power inputs, link down alarming, Link-Fault-Pass-Through and a wide range of fiber connectivity options, the EL900 is the ideal media converter for harsh environments.
Technical Specifications
Standards
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX and 100BASE-FX
IEEE 802.3x Full duplex and flow control
Forward and Filtering Rate
14,880pps for 10Mbps
148,810pps for 100Mbps
Packet Buffer Memory
128K bits
Processing Type
Store-and-forward
Auto Negotiation
Half-Duplex back-pressure and IEEE 802.3x Full-Duplex flow control
Auto MDI/MDIX
Input

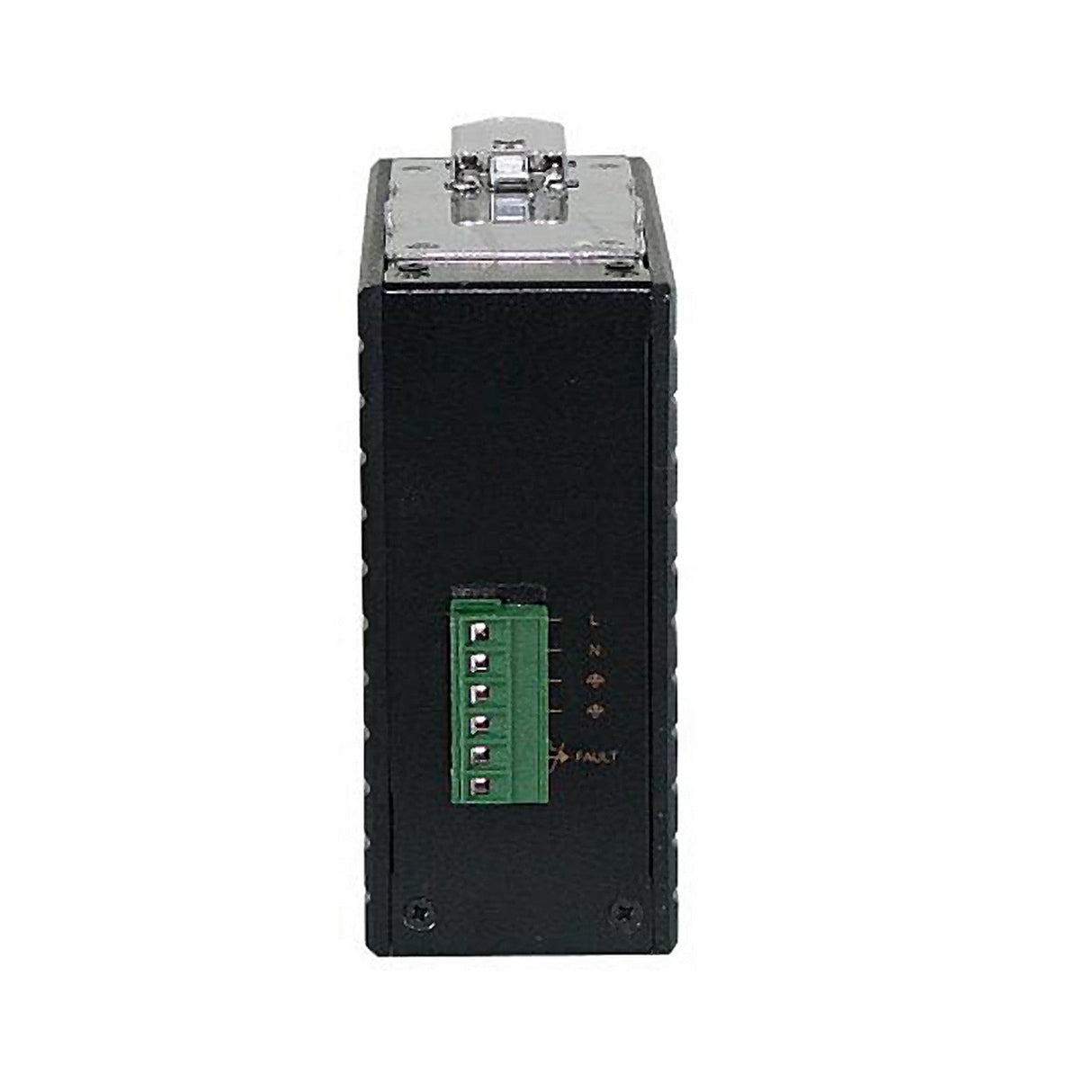

10-48VDC (DC Terminal Block)
12VDC (DC Jack) or 24VAC, 0.185A (AC Terminal Block)
Power Consumption
4.32W Max
0.36A@12VDC
0.09A@48VDC
Protection
Overload Current Protection
Reverse Polarity Protection
Casing
Aluminum Case
IP30
Dimensions
50 x 110 x 135mm (W x D x H)
(1.97" x 4.33" x 5.31")
Weight
0.8Kg (1.76lbs.)
Installation

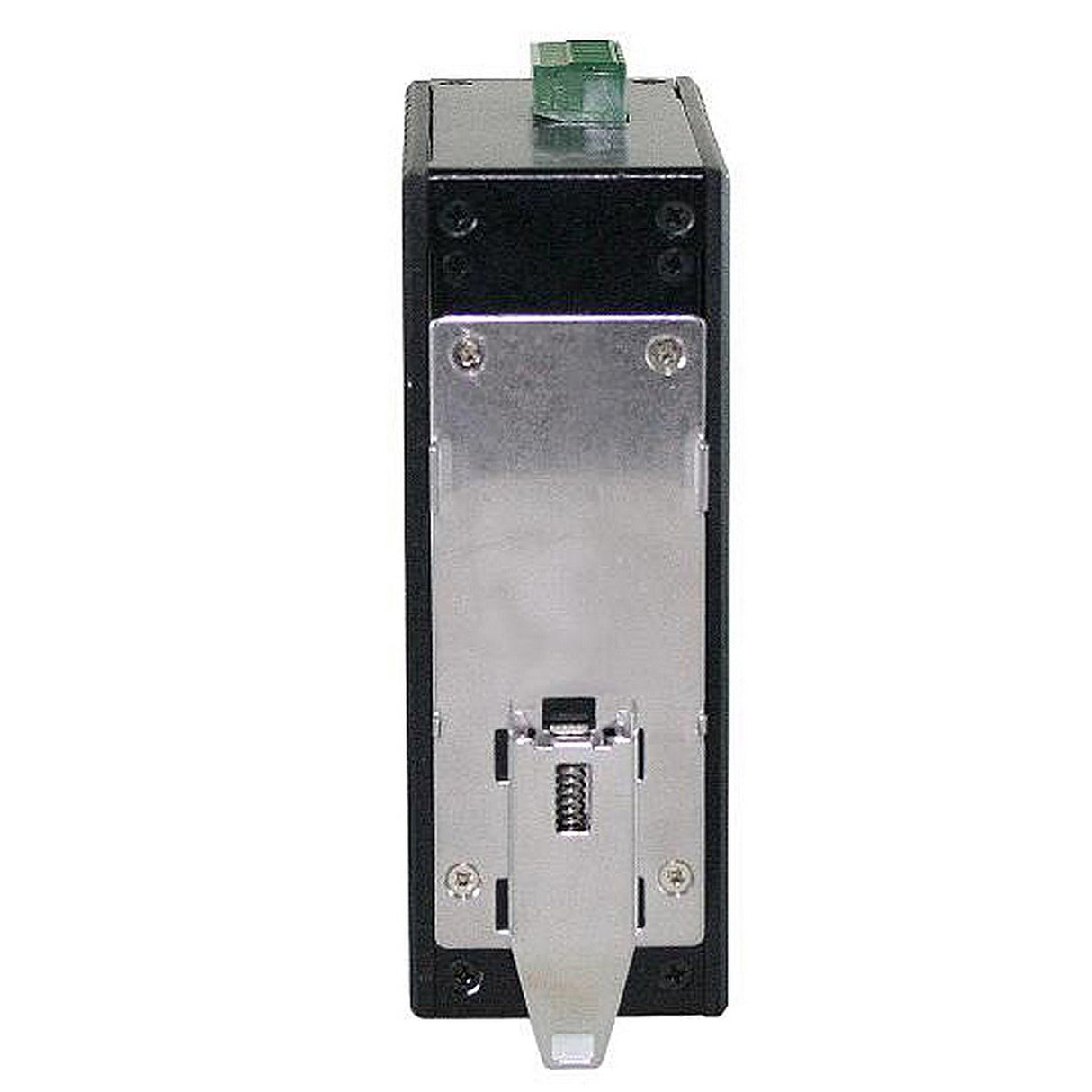

DIN-Rail (top hat type 35mm) or panel mounting
Ethernet Ports
10/100BASE-TX: 1 ports
100BASE-FX: 1 ports
LED Indicators
Per Unit: Power1, Power2, Alarm
Per 10/100BASE-TX port: Link/Activity, 100, Full-Duplex/Collision, LFPT
Per 100BASE-FX port: Link/Activity, Full-Duplex/Collision
Relay Contact
Dry contact with current 0.6A/30VDC
Operating Temperature
-40 to 75Ā°C (-40 to 167Ā°F)
Storage Temperature
-40 to 85Ā°C (-40 to 185Ā°F)
Ambient Relative Humidity
5% to 95% (non-condensing)
Regulatory Approvals
ISO
Manufactured in an ISO 9001 facility
Safety
ISA 12.12.01
Class 1, Division 2 group A, B, C & D for hazardous locations
UL 60950-1
EN 60950-1
IEC 60950-1
EMC
FCC Part 15B Class A
VCCI Class A
EN 55022
EN 61000-3-2
EN 61000-3-3
EN 61000-6-3
EMS
EN 61000-6-2
EN 61000-4-2 (ESD Standards)
EN 61000-4-3 (Radiated FRI Standards)
EN 61000-4-4 (Burst Standards)
EN 61000-4-5 (Surge Standards)
EN 61000-4-6 (Induced RFI Standards)
EN 61000-4-8 (Magnetic Field Standards)
Environmental Test Compliances
IEC 60068-2-6 Fc (Vibration)
IEC 60068-2-27 Ea (Shock)
FED STD 101C Method 5007.1 (Free fall w/ package)
IEC 60068-2-27 Ea (Shock)
NEMA TS1/2
* Environmental requirements for traffic control equipment
