EtherWAN EX19082A Unmanaged 10-Port Gigabit PoE Ethernet Switch

EtherWAN | SKU: ETH-ETHERWANEX19082A
$35757

Free Shipping




Estimated Shipping Widget will be displayed here!


Condition: New

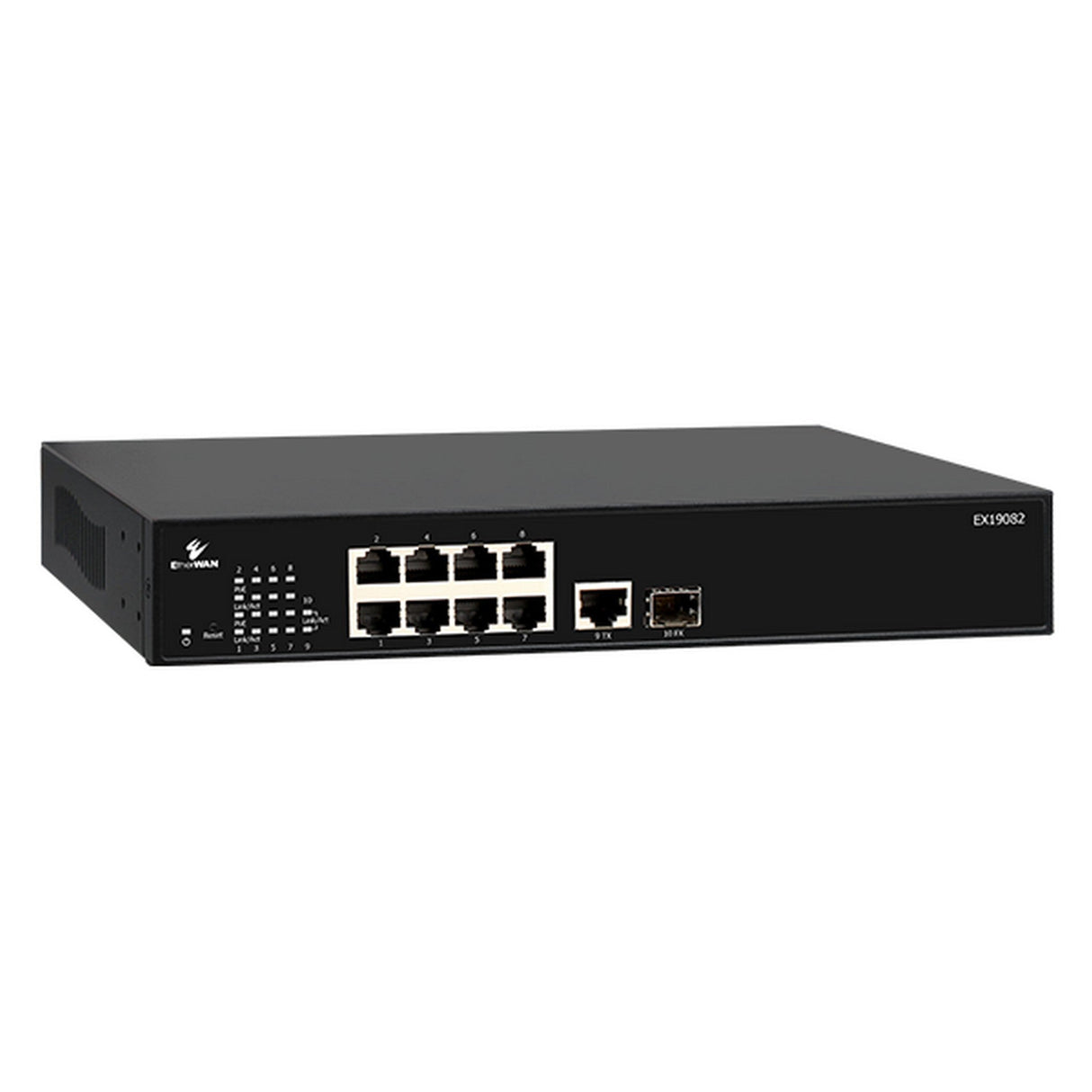

EtherWAN EX19082A Unmanaged 10-Port Gigabit PoE Ethernet Switch

EtherWAN's EX19082A is a 10-port Gigabit Power over Ethernet switch with high performance and features suited for small-business and commercial environments. The EX19082A is equipped with 8 10/100/1000BASE-T(X) PoE+ ports and 2 Gigabit uplink ports (1 TX + 1 SFP). With full wire speed throughput, port speeds up to gigabit for 4K cameras and higher, and a power budget of 240W, the EX19082A is the perfect solution for security networks.

Technical Specifications

Ethernet
10/100/1000BASE-T(X): 8 PoE+ ports + 1 TX port
1000BASE SFP: 1 port
LED Indicators
Per Unit: Power
Per Port PoE: Status
Per Port Link: Link/Activity
Standards
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab 1000BASE-T
IEEE 802.3z 1000BASE-SX/1000BASE-LX
IEEE 802.3x Full duplex and flow control
IEEE 802.3af Power over Ethernet (PoE)
IEEE 802.3at Power over Ethernet (PoE+)
Forward and Filtering Rate
14,880pps for 10Mbps
148,880pps for 100Mbps
1,488,000pps for 1000Mbps
Processing Type
Store-and-Forward
Auto-Negotiation
Half-duplex back-pressure full-duplex
flow control
Auto MDI/MDIX
Switching Fabric
20Gbps
MAC Table Size
8K
Packet Buffer Memory
4Mb
Input
100-240VAC, 50/60Hz
Power Consumption
Device: 23W (without PoE)
PoE Power Budget: 240W
Casing Material
Metal
Dimensions
266 x 161 x 44mm (W x D x H)
10.5" x 6.34" x 1.73"
Weight
4lbs (1.8kg)
Installation Type
Rack mounting, Desktop
Operating Temp.
0 to 50°C (32 to 122°F)
Storage Temp.
-10 to 70°C (14 to 158°F)
Relative Humidity
10% to 90% (non-condensing)
Regulatory
ISO
Manufactured in ISO-9001 facility

EMI
FCC Part 15 Class B

Safety
UL 60950-1
Warranty
3 Years
What's Included
Ethernet Switch
AC power cord
Quick Install Guide
