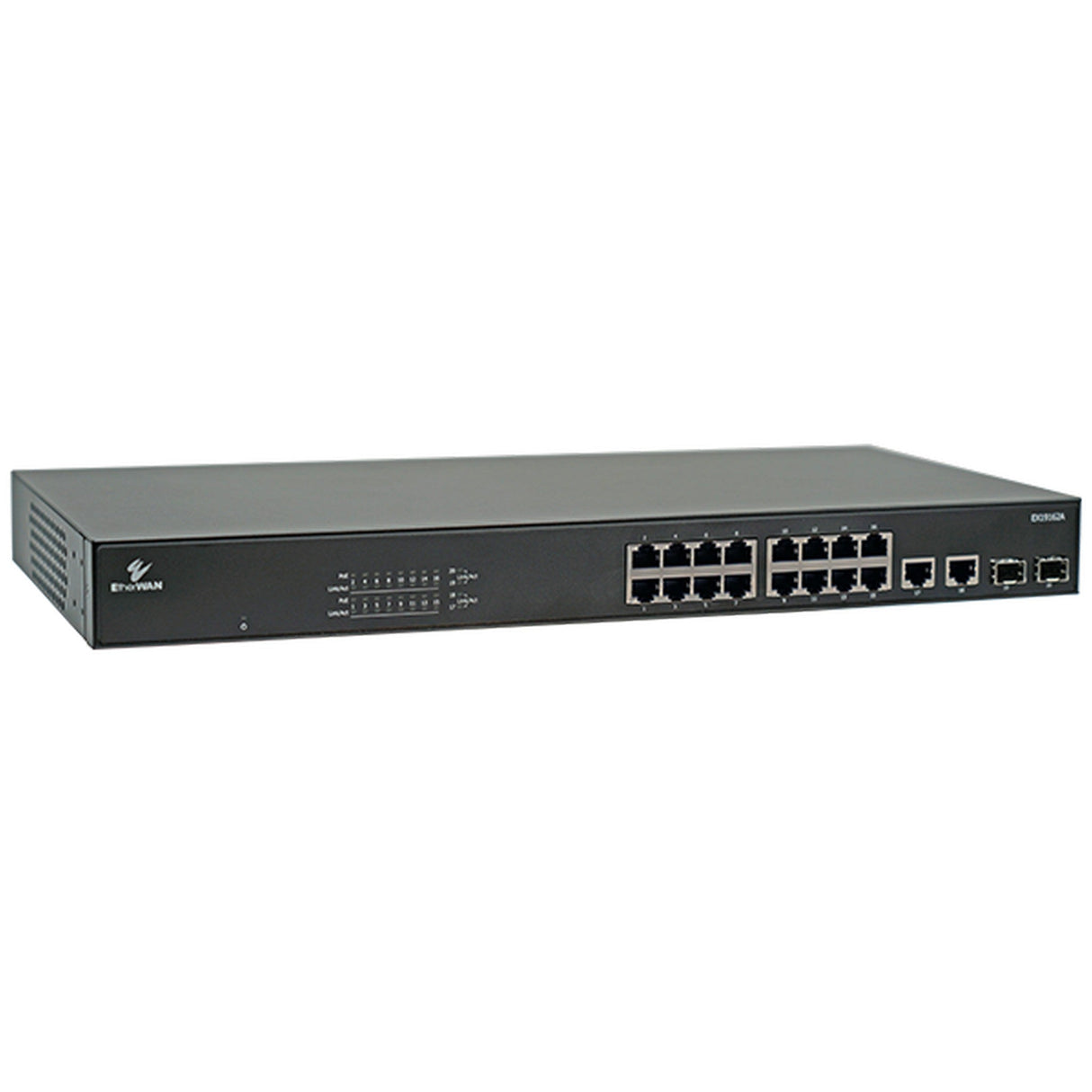

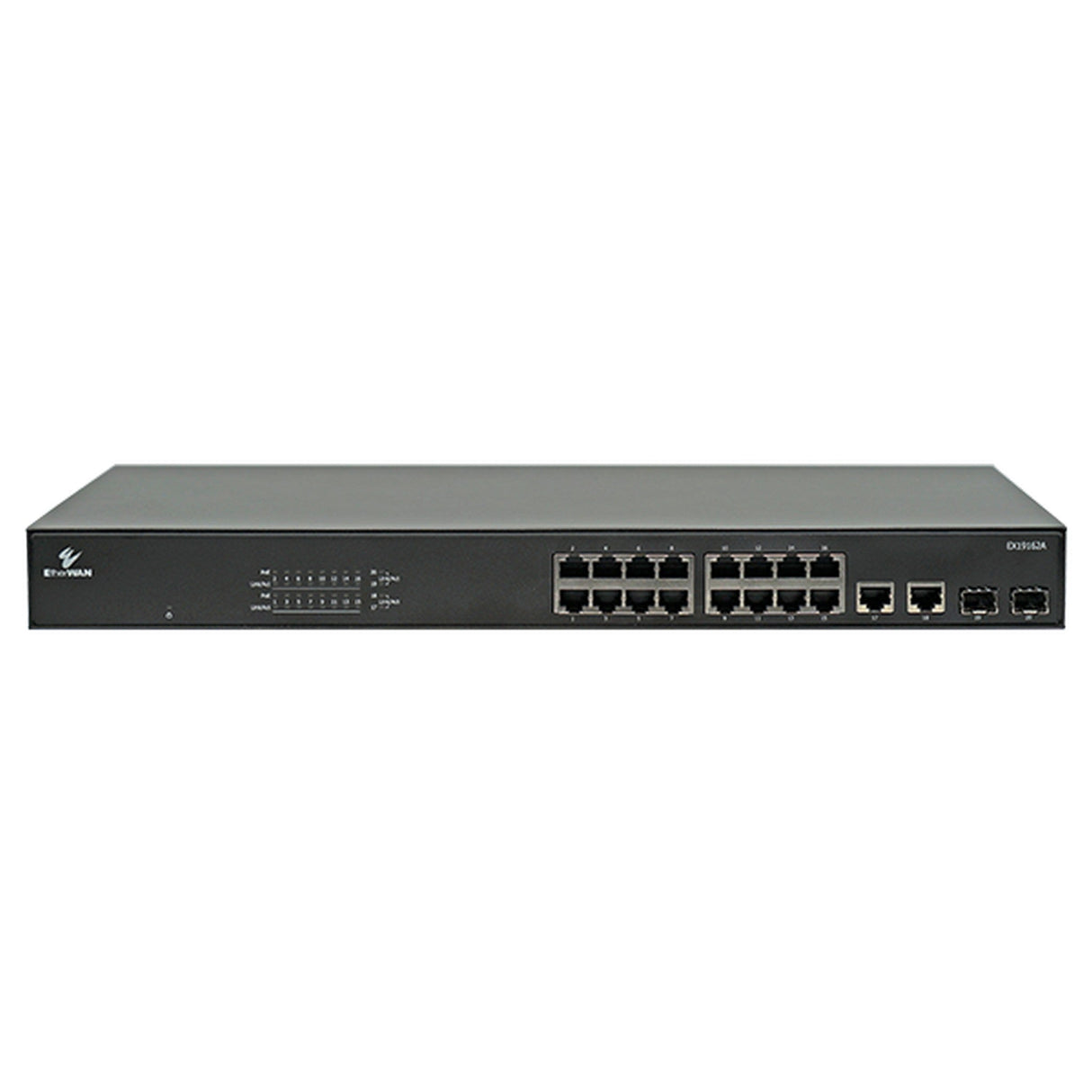

EtherWAN EX19162A Unmanaged 16-Port Gigabit PoE Ethernet Switch with 2-Port SFP and 2-Port RJ45
EtherWAN's EX19162A is a 20-port Gigabit Power over Ethernet switch with high performance and features suited for small-business and commercial environments. The EX19162A is equipped with 16 10/100/1000BASE-T(X) PoE+ ports along with 4 gigabit uplink ports (2 RJ45 and 2 SFP). With full wire speed throughput, port speeds up to gigabit for 4K cameras and higher, and a power budget of 250W, the EX19162A is the perfect solution for security networking.
Technical Specifications
Ethernet
10/100/1000BASE-T(X): 18 ports
10/100/1000BASE-T(X): 18 ports
LED Indicators
Per Unit: Power
Per Port PoE: Status
Per Port Link: Link/Activity
Reset Button
Restore factory default settings
Standards
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX/100BASE-FX
IEEE 802.3ab 1000BASE-T
IEEE 802.3z 1000BASE-SX/1000BASE-LX
IEEE 802.3x full duplex and flow control
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet (PoE+)
Switching Fabric
40Gbps
MAC Table Size
8K
Packet Buffer Memory
4Mb
Forward/Filtering Rate
14,880pps for 10Mbps
148,880pps for 100Mbps
1,488,000pps for 1000Mbps
Processing Type
Store-and-Forward
Auto-Negotiation
Half-duplex back-pressure full-duplex flow control
Auto MDI/MDIX
Input
100-240VAC, 50/60Hz
Power Consumption
Device:20W (Without PoE)
PoE Power Budget
250W
Casing Material
Metal
Dimensions
17.3" x 8.66" x 1.73" (W x D x H)
440 x 220 x 44mm (W x D x H)
Weight
6.6lbs (3Kg)
Installation Type
Rack Mounting
Operating Temp.
32 to 122°F (0 to 50°C)
Storage Temp.
-4 to 176°F (-20 to 80°C)
Relative Humidity
10% to 90% (non-condensing)
Regulatory
ISO
Manufactured in ISO-9001 facility
EMI
FCC Part 15 Class A
Safety
UL 62368-1
Warranty
Limited Lifetime
What's Included
Ethernet Switch
AC power cord
Mounting brackets, screws
Quick install guide
