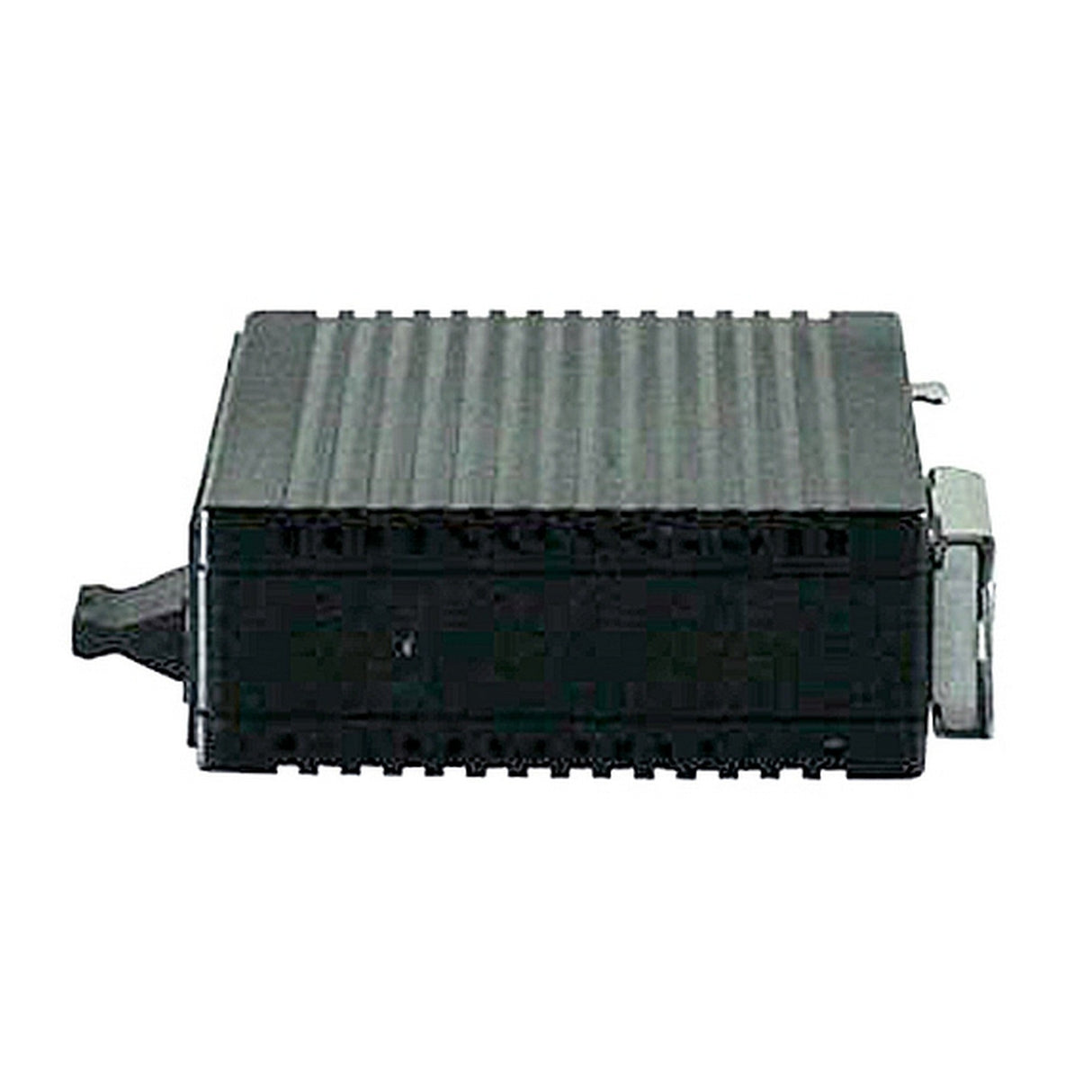

EtherWAN EX42005-00-1-A 5-Port 10/100BASE-TX Industrial Unmanaged Ethernet Switch with 4kV Surge Protection
EtherWAN EX42005-00-1-A 5-Port 10/100BASE-TX Industrial Unmanaged Ethernet Switch with 4kV Surge Protection
EtherWAN's EX42000 Series is a compact industrial unmanaged Fast Ethernet switch, designed for easy deployment in harsh environments.

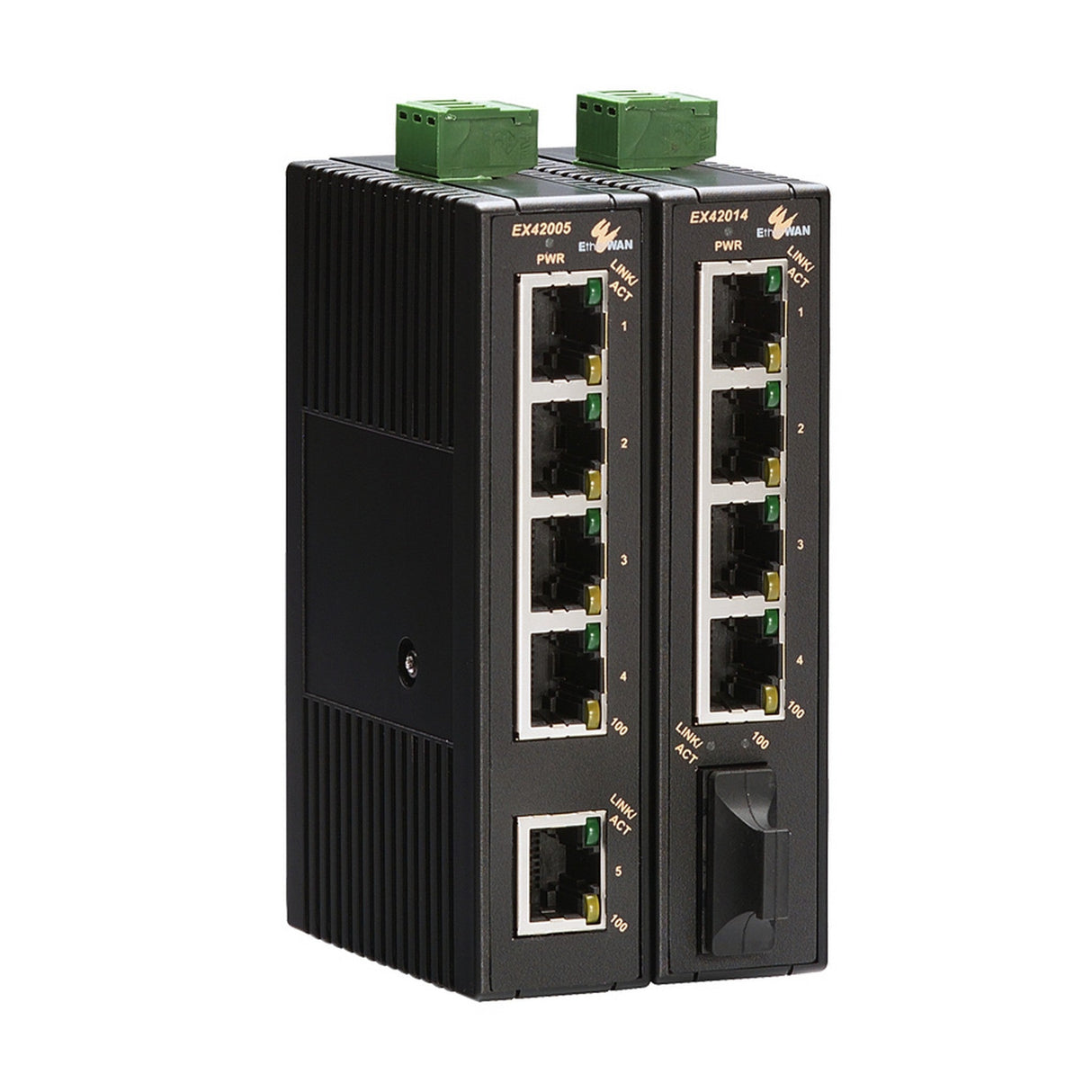

The EX42000 Series is equipped with 5 Fast Ethernet copper ports, or a combination of 4 Fast Ethernet copper ports and 1 Fast Ethernet fiber port for long distance connectivity. This switch features 10/100Mbps transfer speeds, full/half-duplex auto-negotiation, and auto MDI/MDIX operation, allowing for fast and hassle-free connection and setup.
Although unmanaged, the EX42000 is feature-rich with full wire speed Fast Ethernet throughput, QoS (Quality of Service), Broadcast storm protection, IEEE 802.3az EEE (Energy Efficient Ethernet), and 4 kV surge protection. The EX42000 can be DIN rail mounted, and its compact size makes it an ideal solution for factory floors, warehouses, and locations without climate control.
Key Features
- Supports -10 to 60Ā°C (14 to 140Ā°F) operating temperature
- Supports DIN-Rail mounting
- Fiber Connectivity
- Up to one 100BASE-FX port with SC and ST options
- 4kV Surge Protection on Data port
- Augmented 4 kV surge protection in accordance with EN 61000-4-5
- Broadcast Storm Protection Threshold
- 30 Frames / 10ms for 100Mbps
Technical Specifications
Standards
IEEE 802.3u 100BASE-TX/FX
IEEE 802.3x full-duplex flow control
IEEE 802.3az Energy Efficient Ethernet
IEEE 802.1p Quality of Service (QoS)
Forward/Filtering Rate
14,880pps for 10Mbps
148,810pps for 100Mbps
Packet Buffer Memory
448K bits
Processing Type
Store-and-Forward
Auto Negotiation
Half-duplex back-pressure and IEEE 802.3x full-duplex flow control
Auto MDI/MDIX
Address Table Size
1K MAC addresses
Input

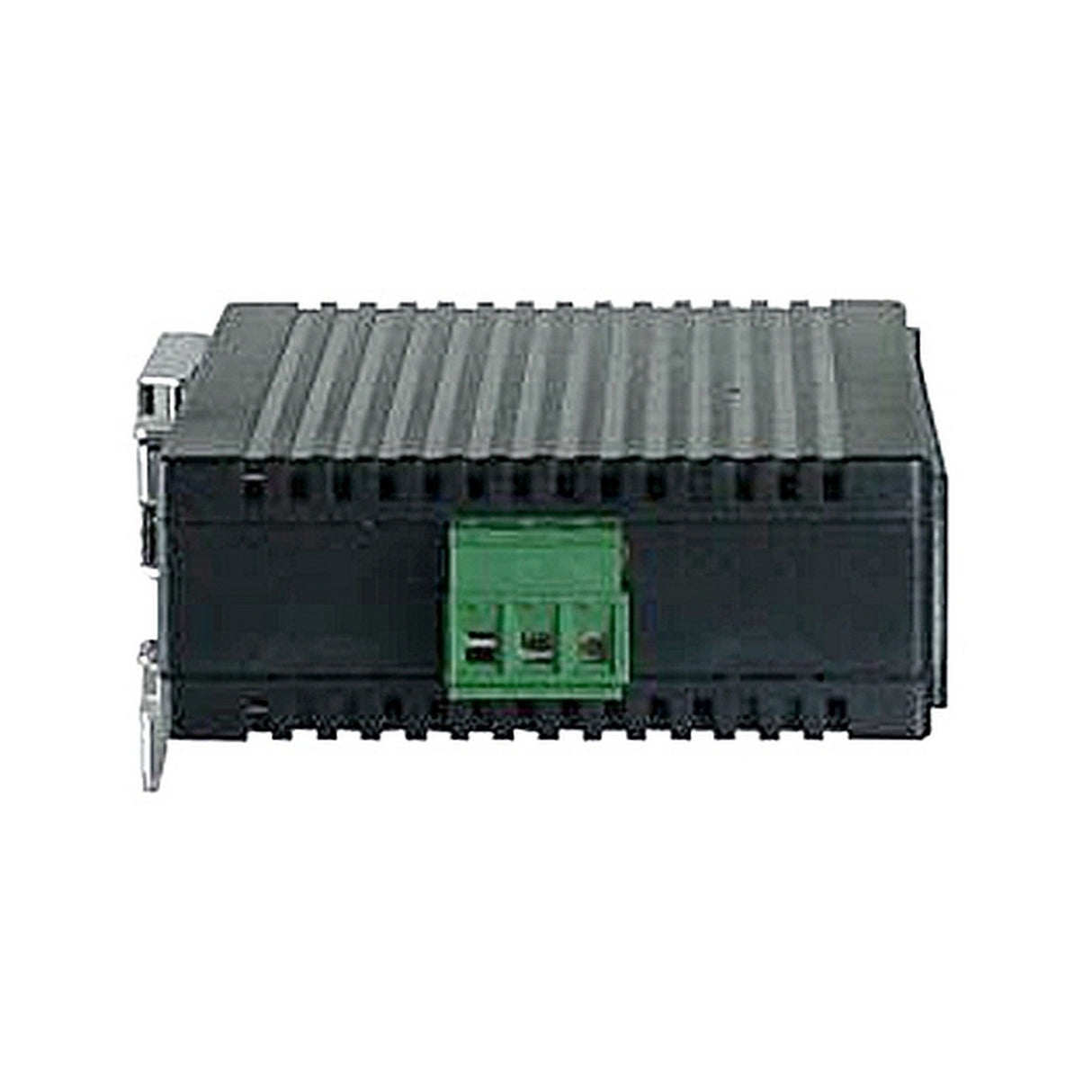

12-48VDC (Terminal Block)
Power Consumption
1.82W Max. 0.14A@12VDC, 0.07A@24VDC, 0.038A@48VDC
Protection
Reverse Polarity Protection
Casing Material
Plastic Case
IP Rating
IP30
Dimensions
26 x 70 x 110mm (W x D x H) (1.02" x 2.76" x 4.33")
Weight
0.2Kg (0.44lbs.)
Installation Type

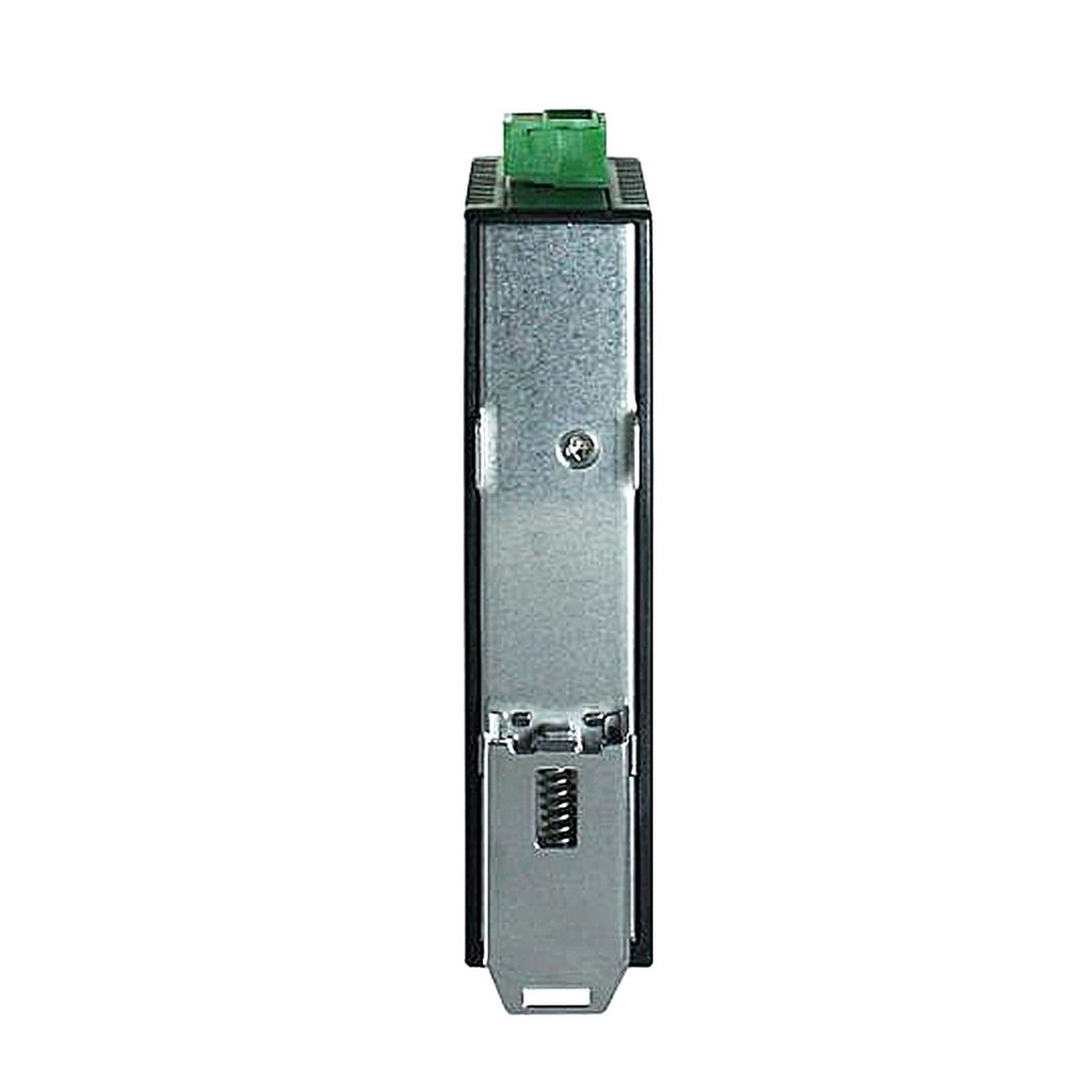

DIN-Rail (Top hat type 35mm)
Ethernet
10/100BASE-TX: 5 or 4 ports
100BASE-FX: 0 or 1 port
LED Indicators
Per Unit: Power (Green)
Per Port: Link/Activity (Green), Speed (Yellow)
Operating Temp.
-10 to 60Ā°C (14 to 140Ā°F)
Storage Temp.
-40 to 85Ā°C (-40 to 185Ā°F)
Ambient Relative Humidity
5% to 95% (non-condensing)
ISO
Manufactured in ISO-9001 facility
EMI
FCC Part 15B Class A
VCCI Class A
EN 61000-6-4
EN 61000-3-2
EN 61000-3-3
EMS
EN 61000-6-2
- EN 61000-4-2 (ESD)
- EN 61000-4-3 (Radiated RFI)
- EN 61000-4-4 (Burst)
- EN 61000-4-5 (Surge)
* Signal ports: Ā±4kV line-to-ground
- EN 61000-4-6 (Induced RFI)
- EN 61000-4-8 (Magnetic field)
Safety
UL 62368
Environmental Test Compliance
IEC 60068-2-6 Fc (Vibration)
IEC 60068-2-27 Ea (Shock)
FED STD 101C Method 5007.1 (Free fall w/package)
