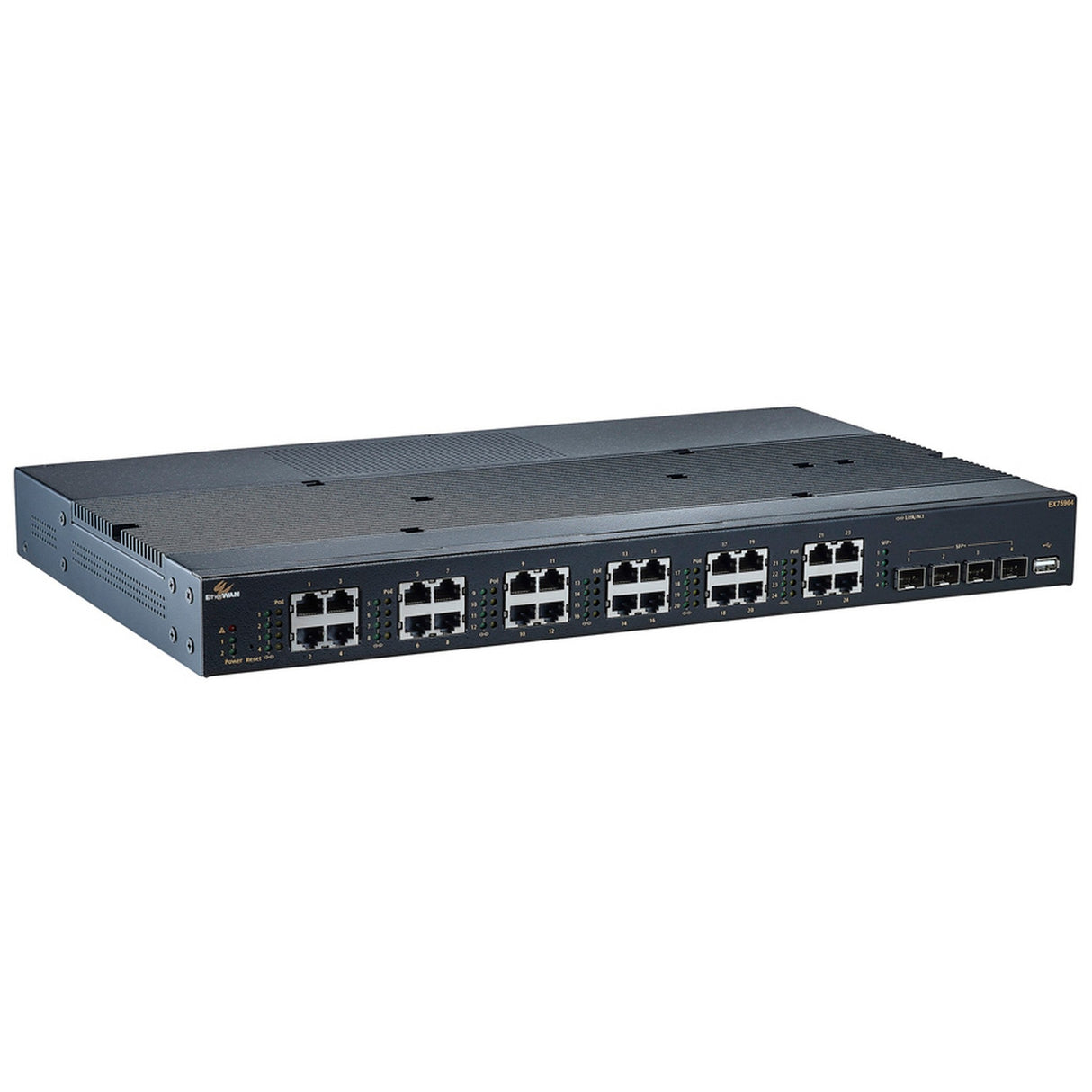

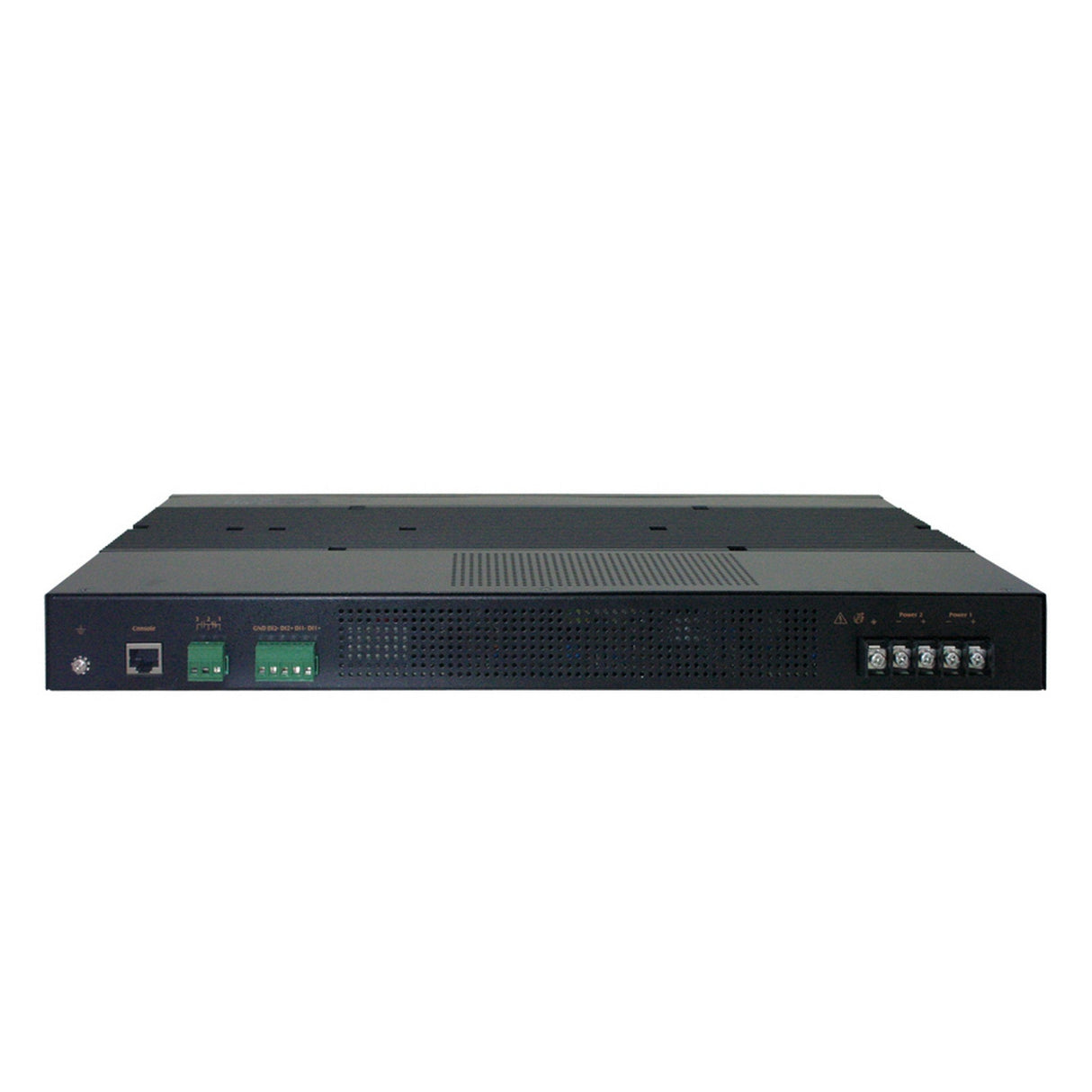

EtherWAN EX75964-0VTU 24-Port Gigabit PoE plus 4 Dual-Rate 10-Gigabit SFP Ports

EtherWAN's EX75900 series is a hardened managed PoE Ethernet switch platform. Equipped with 24 gigabit PoE ports along with 720W total PoE power budget, IEEE 802.3.bt protocol support and 4 10-gigabit SFP+ ports, the EX75900 series provides flexibility, speed, and reliability for networks in urban infrastructure, transportation, security, and other areas where connectivity is crucial.

Key Features

• 24 10/100/1000BASE-T(X) ports for High bandwidth connections
• Up to 4 1G/10G SFP+ uplink ports for fiber connections
• Full capacity switching running at full duplex
• Hardened-Grade for Non-Ventilated & Harsh Environments
• Wide operating temperature range -40 to 75°C (-40 to 167°F)
• Fanless operation
• High impact, thermal shock, and electrical noise resistance
• Lite Layer 3 Functionality
• Static routing, RIP v1/v2, and OSPF
• Redundancy with VRRP
• Reduces amount of broadcast traffic
• PoE Features
• IEEE 802.3bt with 60W; 720W Power budget
• PoE watchdog monitors status of connected PoE devices
• Management/Security Features
• Port control
• 802.1x port-based network access control and remote authentication through RADIUS and TACACS+
• Configure and monitor with eVue™ and eLite™
• Complimentary Technical Support
• Free Firmware Upgrades and notifications
• Limited Lifetime Warranty

Technical Specifications

Ethernet
24 x 10/100/1000BASE-T(X)
4 x 1G/10G SFP+ or 4 x 1G SFP
Console
1 x RJ45
Config Backup
1 x USB (Type A Connector)
Digital Input
2 x Digital Input
Wet Contact: 0-3V for State 0; 13-30V for State 1; Max Input Current: 8mA
Dry Contact: Logic Level 1–Close to GND; Logic Level 0-Open
Alarm Contact
1 x Relay output, current capacity 0.5A/48VDC
LED Indicators
Per Unit: Power 1, Power 2, Alarm
Per Port: Link/Activity (Green)
Per PoE Port: PoE Status (Orange)
Standards
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX/100BASE-FX
IEEE 802.3ab 1000BASE-T
IEEE 802.3ae 10Gigabit Ethernet
IEEE 802.3ad link aggregation control
IEEE 802.3z 1000BASE-SX/1000BASE-LX
IEEE 802.3x full duplex and flow control
IEEE 802.1D STP
IEEE 802.1p QoS
IEEE 802.1Q Tag VLANs
IEEE 802.1s MSTP
IEEE 802.1w RSTP
IEEE 802.1x PNAC
IEEE 802.1ab LLDP
IEEE 802.3af/at/bt Power over Ethernet
IEEE 1588v2 PTP
Forward/Filtering Rate
14,880pps for 10Mbps
148,810pps for 100Mbps
1,488,100pps for 1000Mbps
14,881,000pps for 10Gbps
Processing Type
Store-and-forward
Auto-negotiation
Half-duplex back-pressure and full-duplex flow control
Auto MDI/MDIX
System Memory
2Gb DDR3 SDRAM
Flash Storage
1Gb
Input
46-57VDC Redundant (Terminal block)**
** 46-57VDC for IEEE 802.3af type 1, <=15.4W PD devices.
52-57VDC for IEEE 802.3at/bt type 2/3, 30W, 60W PD devices.
54-57VDC for IEEE 802.3bt, type 4, 90W PD devices
Power Consumption
25.12W@52VDC, 26.65W@57VDC (without PoE)
PoE Modes
802.3af/at Mode A: Pins 1/2(-), 3/6(+)
802.3bt (60W): Mode A & B, Pins 1/2(-), 3/6(+), 4/5(+), 7/8(-)
PoE Power Output
Port: Up to 60W/port
Power Budget: 720W
Protection
Reverse Polarity Protection
Casing Material
Metal
IP Rating
IP30
Dimensions
442 x 270 x 44.2mm (W x D x H)
17.4" x 10.6" x 1.74"
Weight
5.1Kg (11.2lbs)
Installation Type
Rack mounting
Operating Temp.
-40 to 75°C (-40 to 167°F)
Storage Temp.
-45 to 85°C (-49 to 185°F)
Relative Humidity
5% to 95% (non-condensing)
MTBF
1,444,959 hours
ISO
Manufactured in ISO-9001 facility
EMI
FCC Part 15B Class A
VCCI Class A
EN 61000-6-4
EMS
EN 61000-6-2
EN 61000-4-2 (ESD)
EN 61000-4-3 (Radiated RFI)
EN 61000-4-4 (Burst)
EN 61000-4-5 (Surge)
PoE Ports: line to earth 6kV Surge
EN 61000-4-6 (Induced RFI)
EN 61000-4-8 (Magnetic field)
Safety
UL 62368
Vibration
IEC 60068-2-6
Shock
IEC 60068-2-27
Free Fall
FED STD 101C Method 5007.1
Industrial
EN 50121-4
Warranty
Limited Lifetime
What's Included
Ethernet Switch
1 Console Cable
Mounting brackets, screws
Quick Install Guide
