KanexPro EXT-HDBT70M UltraSlim 4K/60 HDMI Extender over HDBaseT

KanexPro EXT-HDBT70M UltraSlim 4K/60 HDMI Extender over HDBaseT

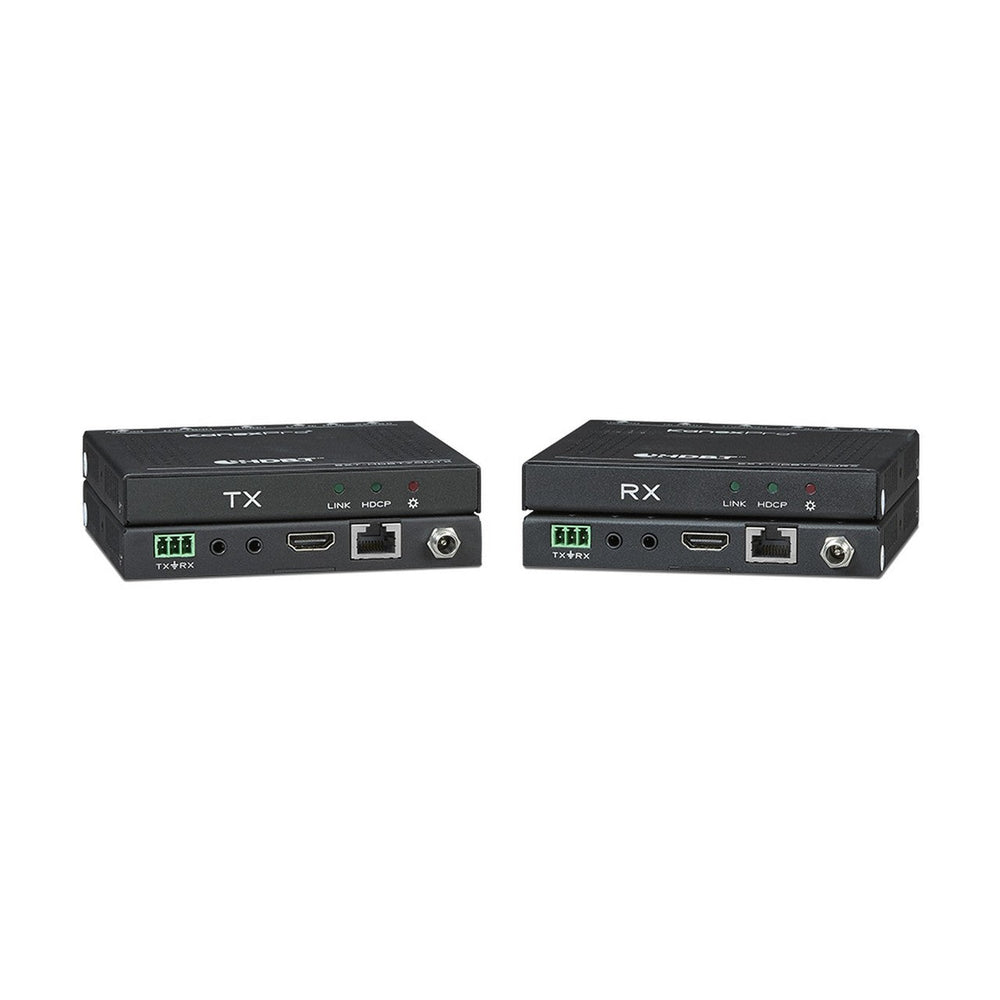

The KanexPro EXT-HDBT70M is an UltraSlim, HDCP 2.2 compliant extender set consisting of a transmitter and receiver. It uses HDBaseT technology to transmit uncompressed, high-resolution 1080p/ 4K signals from transmitter to the receiver via a CAT5e/CAT6a cable at a distance of up to 70/40m. It'supports 4K/60Hz with 4:2:0. Moreover, the extender set supports CEC, bi- directional RS232 & IR control, and bi-directional PoH (power over HDBaseT) function.

Key Features

• UltraSlim point-to-point HDMI extender over HDBaseT
• Extend full HD 1080p up to 70m
• Extend 4K/60 up to 40m
• Supports Ultra HD 4K@24/30/60Hz resolutions &
• PC resolutions from 1080p/60@48bit
• 4K/60Hz w/ 4:2:0
• Bi-directional PoH (power over HDBaseT)
• HDCP 2.2 and EDID compliant
• Bandwidth 10.2 Gbps
• Bi-directional RS-232 & IR control
• Supports CEC/IR/RS-232 pass-thru
• IR input/output - embedded over CATx extension
• Dolby TrueHD & DTS Master Audio ready
• Supports uncompressed audio - LPCM
• Includes separate mounting ears
• One locking power supply included

Technical Specifications

Transmitter
Input Signal
(1) HDMI, (1) IR; (1) RS232
Input Connector
(1) HDMI female; (1) 3.5mm mini jack;
(1) 3p captive screw connector
Output
(1) RJ-45, (1) IR, (1) RS232
Output Connector
(1) RJ-45; (1) 3.5mm mini jack;
(1) 3-pin captive screw connector
Audio
(1) Digital audio,transmit through HDMI audio
Receiver
Input Signal
(1) IR; (1) RJ-45; (1) RS232
Input Connector
(1) 3.5mm mini jack; (1) RJ-45; (1) 3p captive screw connector
Output
(1) HDMI
(1) IR
(1) RS232
Dimensions (W*H*D)
115mmx16.2mm x109mm
Net Weight
Transmitter
193g (0.42 lbs)
Receiver
196g (0.43 lbs)
