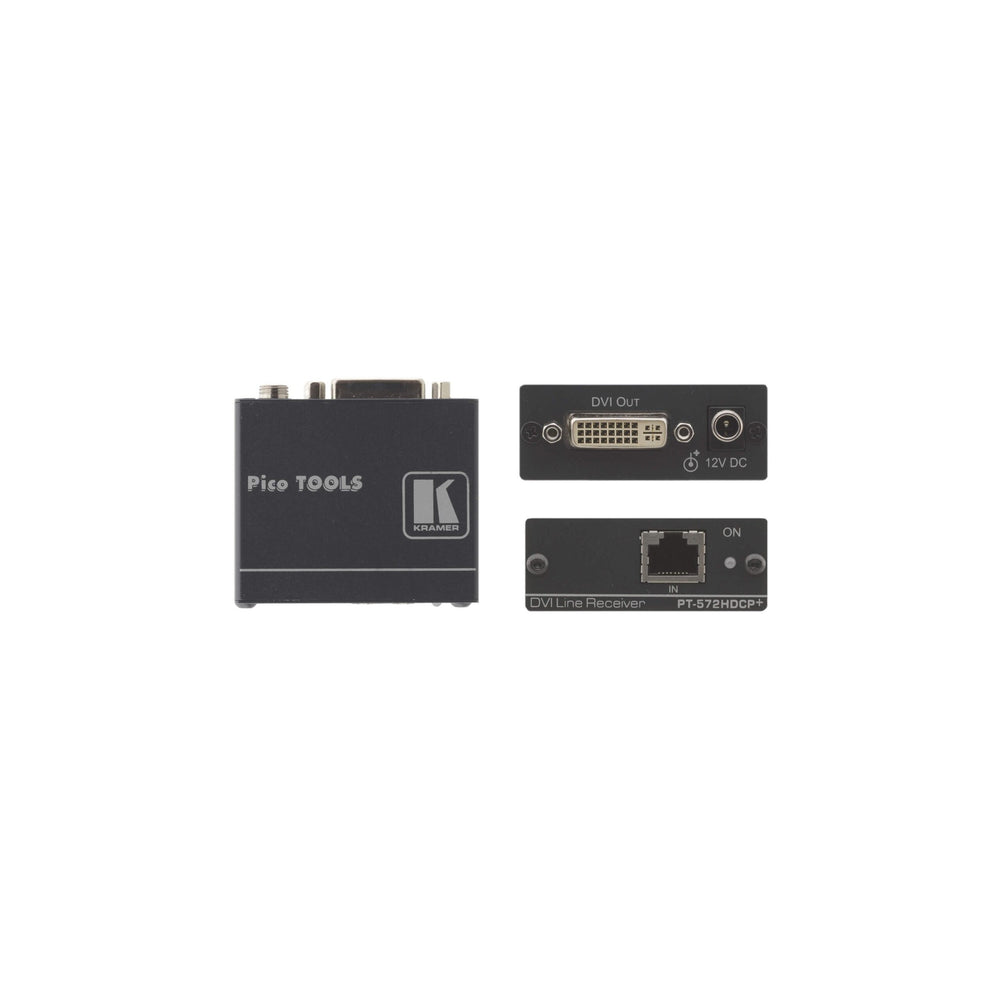

Kramer PT-572HDCP+ DVI Over Twisted Pair Receiver

Kramer PT-572HDCP+ DVI Over Twisted Pair Receiver

The PT-572HDCP+ is a DGKat twisted-pair receiver for DVI signals. The PT-571HDCP converts the DVI to twisted pair signal and the PT-572HDCP+ converts the twisted pair signal back to a DVI signal. The PT-572HDCP+-MD is certified for medical applications.

Key Features

• Max. Data Rate - 4.95Gbps (1.65Gbps per graphic channel)
• Certified for Medical Applications - According to IEC 60601-1-2 (Electromagnetic Compatibility), (PT-572HDCP+MD)
• HDTV Compatible
• HDCP Compliant
• DGKat Signal Integration - Kramer’s unique technology for converting TMDS as well as control and communication to signals that run over twisted pair cables
• System Range - Up to 90m (295ft) at 1080i @60hz or up to 70m (230ft) at 1080p @ 60hz when using Kramer DGKat cables
• Note: Transmission range depends on the signal resolution, graphics card and display used. If using third-party shielded CAT cables, both ends of the shield must be soldered to the connectors for the products to function properly
• EDID PassThru - Passes EDID signals between the source and display
• Power Connect System - A single connection to the transmitter or the receiver powers the system when the devices are within 270ft (90m) of each other
• Ultra-Compact PicoTOOLS - 4 units can be rack mounted side-by-side in a 1U rack space with the recommended rack adapter

Technical Specifications

INPUTS
1 DGKat twisted pair on an RJ-45 connector
OUTPUTS
1 DVI, 1.2Vpp on a DVI Molex 24-pin female connector, DDC signal 5Vpp (TTL)
BANDWIDTH
4.95Gbps (1.65Gbps per graphic channel)
POWER CONSUMPTION
12V DC, 250mA
INCLUDED ACCESSORIES
Power supply, mounting bracket
PRODUCT DIMENSION
6.22cm x 5.18cm x 2.44cm (2.45" x 2.04" x 0.96" ) W, D, H
6.20cm x 5.20cm x 2.40cm (2.44" x 2.05" x 0.94" ) W, D, H
SHIPPING WEIGHT
0.3kg (0.7lbs) approx
0.4kg (0.8lbs) approx
PRODUCT WEIGHT
0.1kg (0.2lbs) approx
SHIPPING DIMENSION
15.70cm x 12.00cm x 8.70cm (6.18" x 4.72" x 3.43" ) W, D, H
