Condition: New
Description

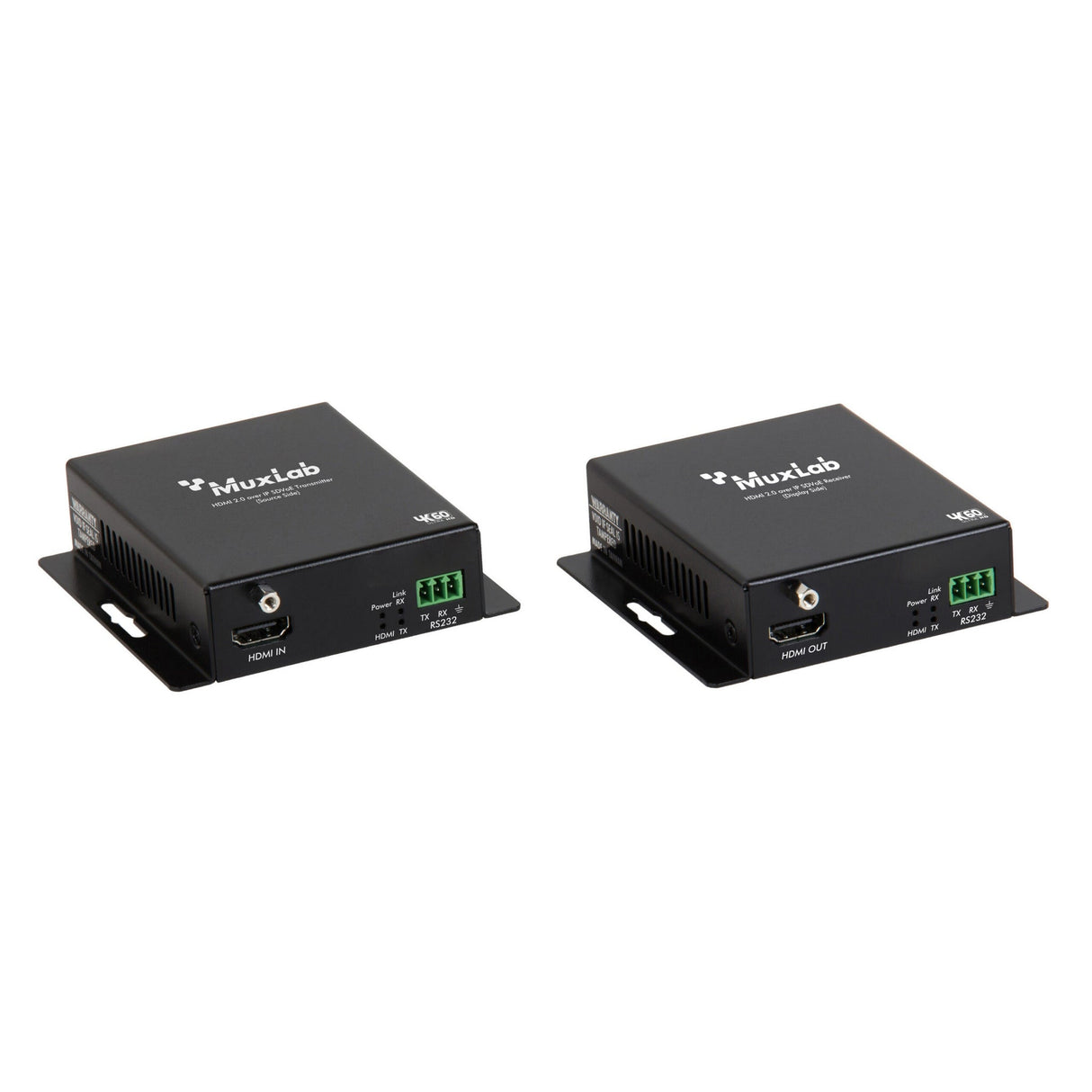

MuxLab 500709 HDMI 2.0 Over IP SDVoE Transmitter/Receiver for AV Distribution
The MuxLab HDMI 2.0 over IP SDVoE Transmitter and Receiver enables the distribution of HDMI video and audio content to an unlimited number of displays over a 10Gb Ethernet switch. It supports long distance transmission over multi mode fiber while maintaining Ultra HD video quality. This solution is designed for demanding professional AV environments.
Supporting Ultra HD 4K2K at 60Hz with 4:4:4 chroma sampling, this SDVoE solution delivers visually lossless performance with zero latency. It extends video and audio up to 300m over OM3 fiber or 400m over OM4 fiber. RS232 pass through and video wall support enable advanced system integration.
Designed for reliability and scalability, the MuxLab HDMI 2.0 over IP SDVoE solution is ideal for control rooms, broadcast environments, medical imaging, and conferencing applications. It integrates with compatible network controllers for centralized configuration and management. This makes it well suited for large scale AV over IP deployments.
Key Features
- 4K60 Video Support: Supports HDMI resolutions up to 4K at 60Hz with 4:4:4 chroma sampling.
- SDVoE Technology: Enables visually lossless video transmission with zero latency.
- Long Distance Fiber Extension: Extends video up to 300m over OM3 fiber and 400m over OM4 fiber.
- RS232 Control: Supports full duplex RS232 control up to 115200 bps.
- Video Wall Support: Designed to support video wall configurations.
Technical Specifications
HDMI ComplianceHDMI 2.0a
HDCP
HDCP 2.2 and 1.4
Video Bandwidth
Single Link 594MHz 18Gbps
Video Support
480i 480p 720p 1080i 1080p60 4K30 4K60 4:4:4
Audio Support
Surround sound up to 7.1ch or stereo digital audio
RS232 support
3 Pin Terminal Block Connector
HDMI Connection
1 x HDMI input on Transmitter 1 x HDMI output on Receiver
Ethernet Connection
10G SFP Fiber or Copper SFP modules
Housing
Black Metal enclosure
Working Power Supply
12VDC 2A
Weight
223g
Working Temperature
0 to 40C
Dimensions
89 x 90 x 25mm
Warranty
2 years
What's in the Box
(1) 500709-TX HDMI 2.0 over IP SDVoE Transmitter or Receiver (Dependant on selected variant)
