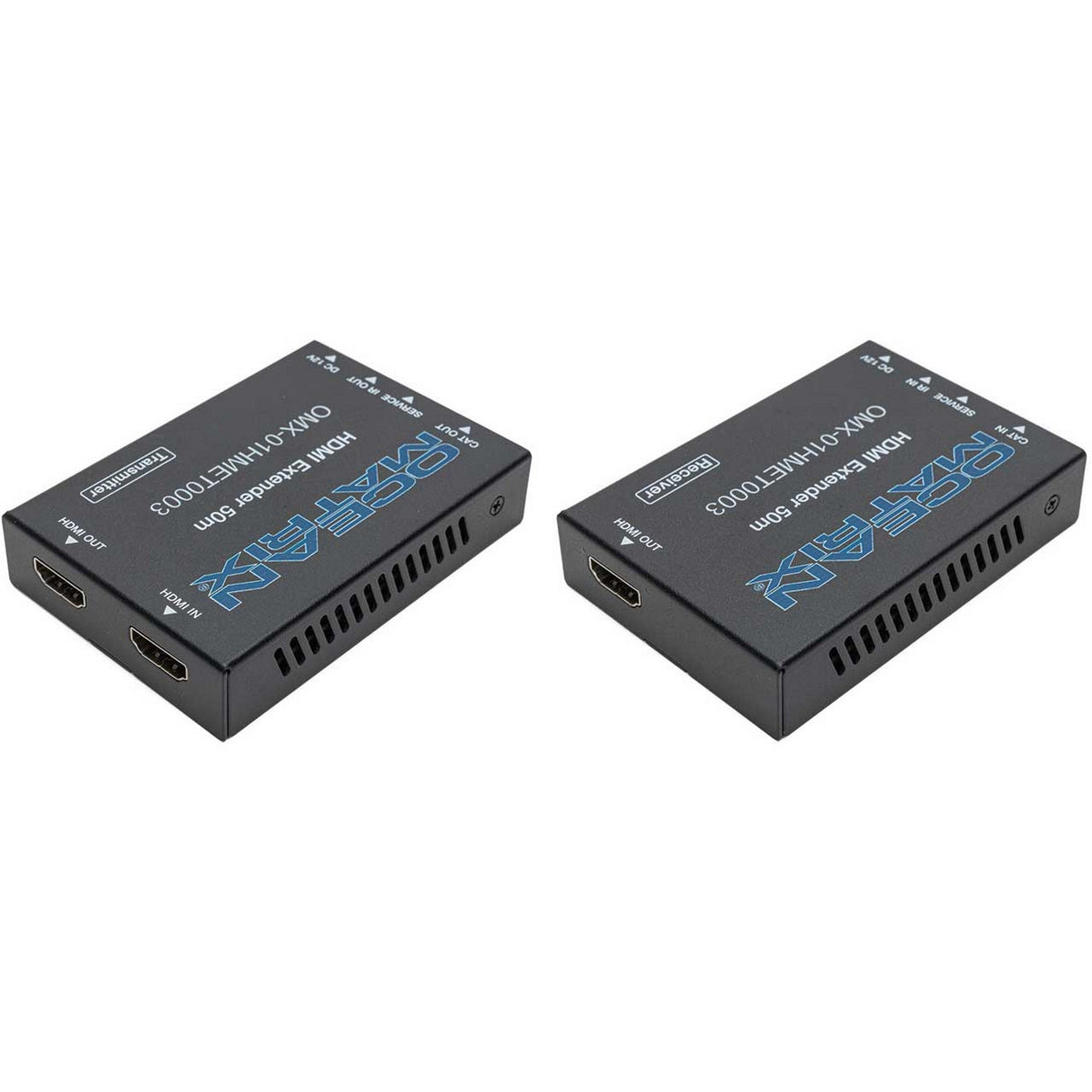

Ocean Matrix OMX-01HMET0003 4K HDMI 2.0 Extender Set

Ocean Matrix OMX-01HMET0003 4K HDMI 2.0 Extender Set

The Ocean Matrix OMX-01HMET0003 4K HDMI 2.0 Extender Set carries HDMI video and audio over a single category cable while supporting signals up to 4K60 4:4:4. It reaches up to 197 feet over Cat6/6a/7 at 4K60 and provides HDMI loop output, EDID support, IR control, and bidirectional power over cable.

For AV integrators routing an HDMI source to a remote display, the system extends 4K60 HDMI over Cat6/6a/7 up to 197 feet or Cat5e up to 164 feet. At 4K30 or 1080p, Cat6/6a/7 runs can reach 230 feet. The transmitter's HDMI loop output also supports a local monitor while the remote display receives the extended signal.

The extender supports HDMI 2.0, HDCP 2.2/1.4, DVI 1.0, 18 Gbps video bandwidth, HDR, multichannel LPCM, Dolby, and DTS audio formats. Bidirectional PoC, or power over cable, lets the included power adapter connect at either the transmitter or receiver while powering the linked pair. CE and RoHS certification further suit professional AV integration.

Key Features

• 4K60 4:4:4 Extension: Carries HDMI signals up to 4K60 4:4:4 for detailed UHD video delivery.
• Long-Distance Category Cable Transmission: Extends 4K60 up to 197 feet over Cat6/6a/7 or 164 feet over Cat5e.
• Extended 4K30 and 1080p Reach: Supports runs up to 230 feet over Cat6/6a/7 at 4K30 or 1080p.
• HDMI Loop Output: Provides a transmitter-side HDMI output for connecting a local monitoring display.
• Bidirectional PoC: Powers the transmitter and receiver pair from a power adapter connected at either end of the link.
• One-Way IR Pass-Through: Allows compatible source equipment to be controlled from the receiver side of the installation.
• Receiver EDID Support: Uses display EDID information from the receiver location to support source-to-display compatibility.
• 18 Gbps HDMI 2.0 Support: Handles HDR video plus a broad selection of multichannel Dolby, DTS, and LPCM audio formats.

Technical Specifications

• Part Number: OMX-01HMET0003
• Product Type: HDMI 2.0 extender transmitter and receiver set
• Compliance: HDMI 2.0, HDCP 2.2/1.4, DVI 1.0
• Video Bandwidth: 18 Gbps
• Maximum Video Resolution: Up to 4K60 4:4:4
• 4K60 Transmission Distance: Up to 197 feet over Cat6/6a/7; up to 164 feet over Cat5e
• 4K30/1080p Transmission Distance: Up to 230 feet over Cat6/6a/7; up to 164 feet over Cat5e
• HDR: Supported
• Color Space: RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2/4:2:0, YUV 4:4:4
• Color Depth: 8/10/12-bit at 1080p60, 4K30, and 4K60 YCbCr 4:2:2/4:2:0; 8-bit at 4K60 4:4:4
• HDMI Audio Formats: LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus, DTS-ES, DTS HD Master, DTS HD-HRA, DTS:X
• HDMI Loop Output: Transmitter-side local monitor output
• EDID: Supports EDID from the receiver display
• Power over Cable: Bidirectional PoC
• IR: One-way IR pass-through
• IR Remote Range: Up to 16 feet at a 45-degree vertical angle

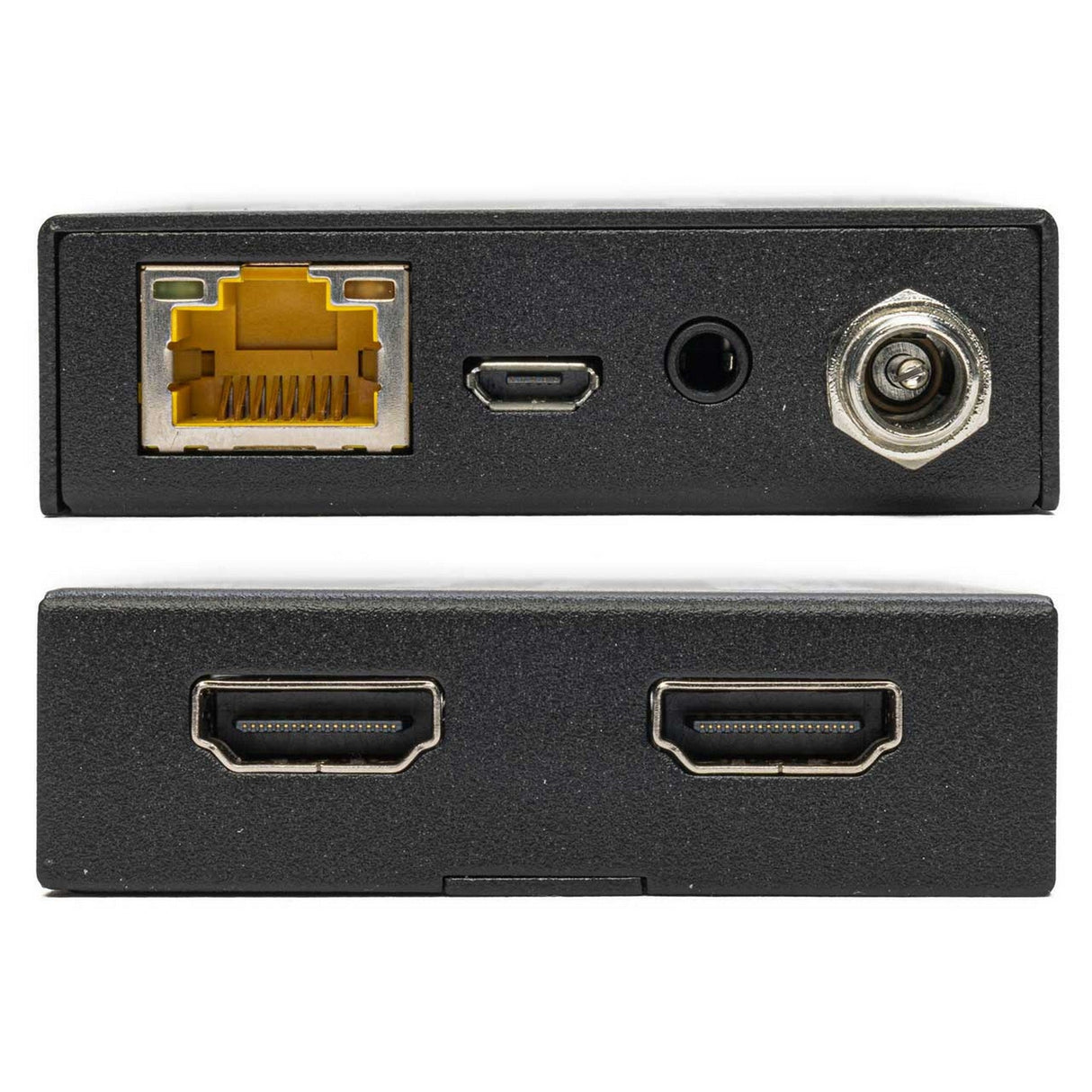

• Transmitter Connections: HDMI input, HDMI monitor output, CAT output, IR output, 12VDC power input

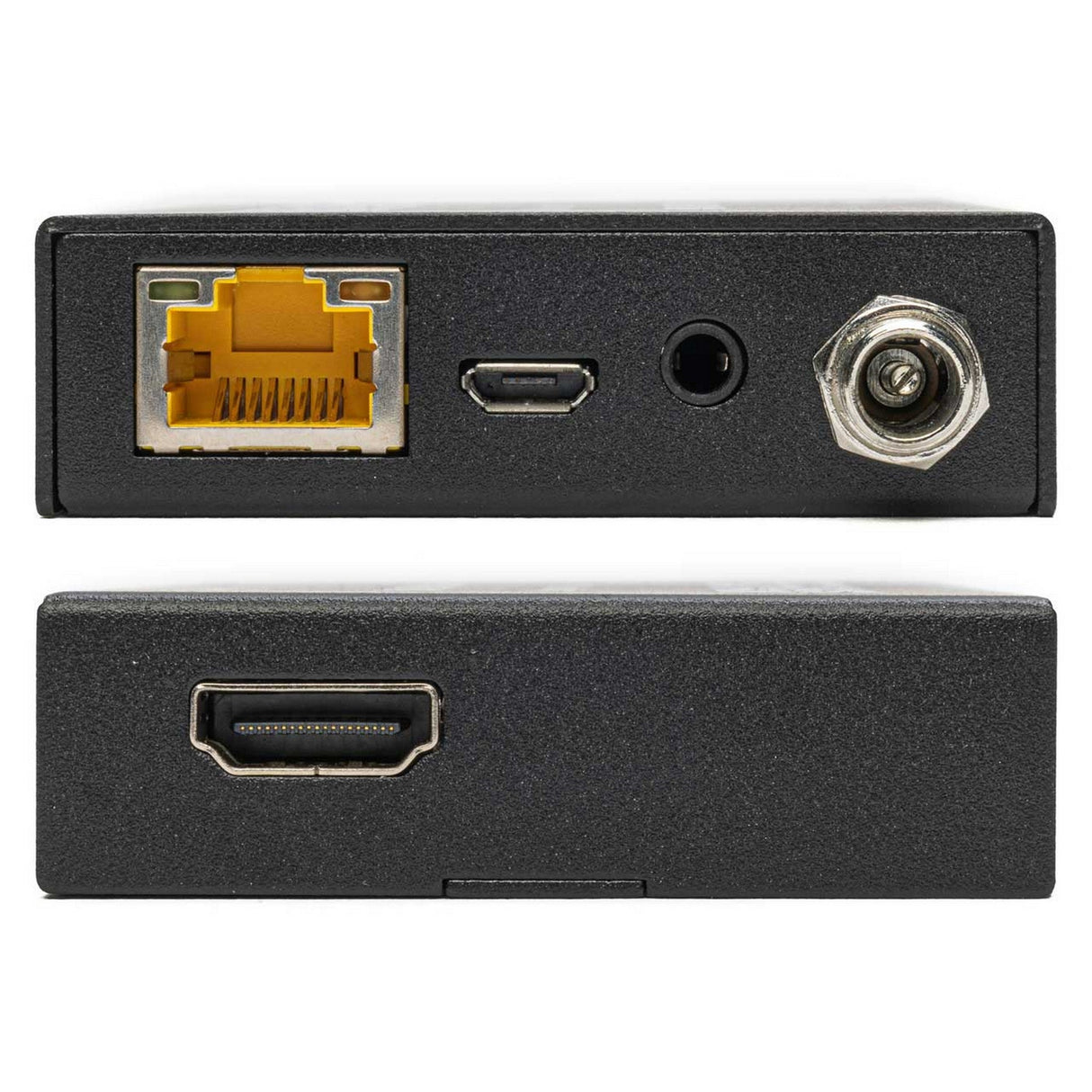

• Receiver Connections: CAT input, HDMI output, IR input, 12VDC power input
• Power Supply: 12V/1A locking power adapter
• Power Adapter Placement: Connect to either transmitter or receiver, not both
• Power Consumption: 3.84 W
• Installation Temperature Range: 32 to 140 degrees Fahrenheit
• Enclosure: Rugged black metal
• Dimensions: 3.5 x 2.4 x 0.7 inches (L x W x H) per unit
• Transmitter Weight: 0.4 lb
• Receiver Weight: 0.3 lb
• Certifications: CE, RoHS
• Warranty: 1 year

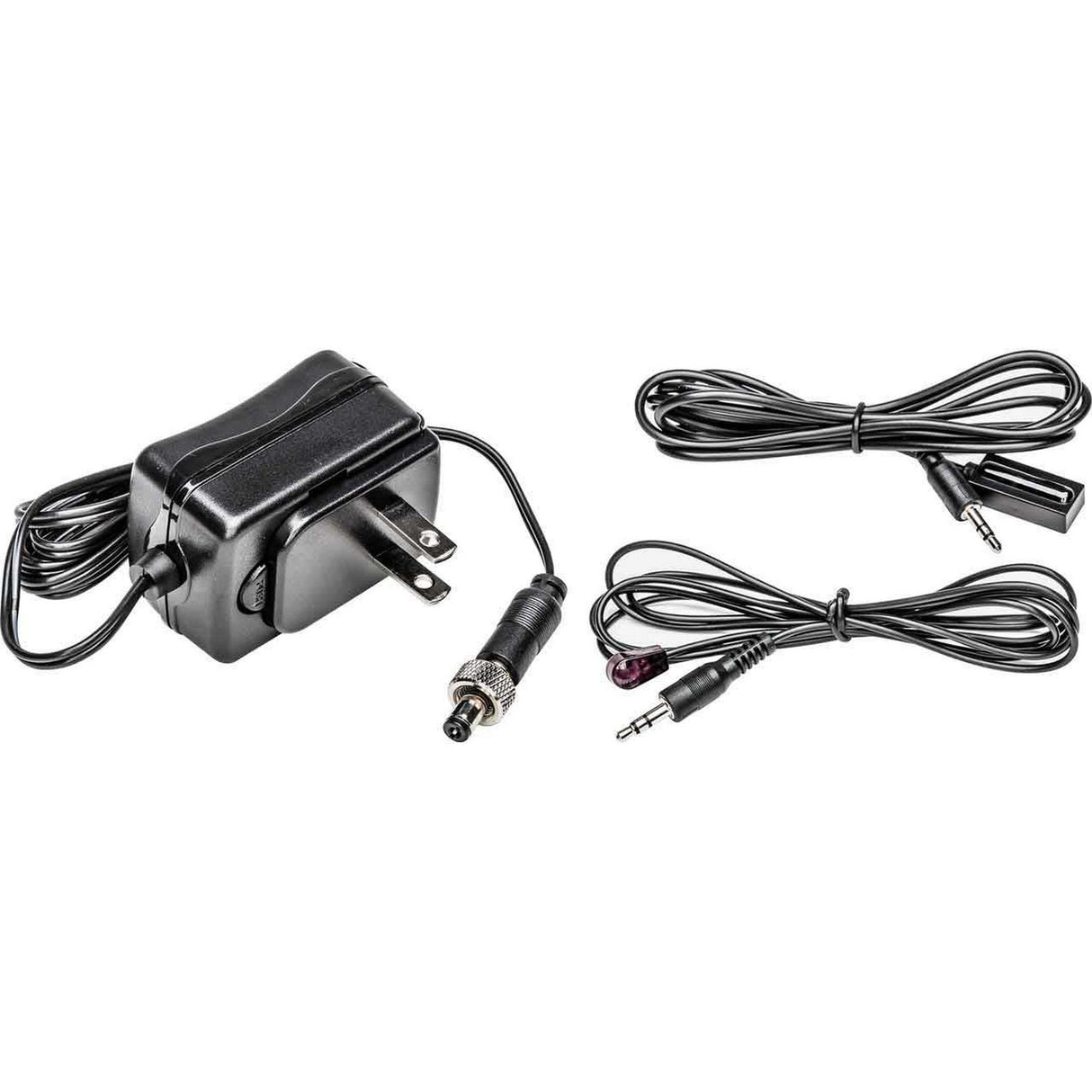

What's In the Box

• 12V/1A locking power adapter
• IR blaster cable
• IR receiver cable
