Ocean Matrix OMX-01HMHM0003 1080p60 HDMI Extender Set

Ocean Matrix OMX-01HMHM0003 HDMI Extender Set

The Ocean Matrix OMX-01HMHM0003 HDMI Extender Set sends Full HD 1080p60 YUV 4:4:4 video and HDMI audio up to 196 feet over a single Cat5e or Cat6 cable. Built-in EDID management and Power over Cable support simplify long-distance source-to-display connections in professional AV systems.

Designed for digital signage, classrooms, trade shows, retail installations, offices, and houses of worship, this 1080p HDMI over Cat5e/6 extender provides a practical alternative to long conventional HDMI cable runs. It supports 3D video and lets integrators extend an HDMI source to a remotely located display using commonly installed category cabling.

EDID, or Extended Display Identification Data, management helps the source and display establish compatible video settings. PoC, or Power over Cable, can carry operating power through the category cable, reducing power connections at one end of the link. The rugged metal transmitter and receiver support HDMI, DVI 1.0, VESA video compatibility, and multiple HDMI audio formats.

Key Features

• Full HD 1080p60: Supports video resolutions up to 1080p at 60 Hz with YUV 4:4:4 color sampling.
• 196-Foot HDMI Extension: Carries HDMI/DVI video and audio up to 196 feet over one Cat5e or Cat6 cable.
• Built-In EDID Management: Helps maintain compatible communication between the connected video source and display.
• Power over Cable: PoC support reduces the need for separate power connections at both ends of the extender link.
• 3D Video Support: Handles supported 3D video signals along with standard 720p, 1080i, and 1080p formats.
• Professional AV Applications: Fits digital signage, classrooms, meeting spaces, retail displays, trade shows, and houses of worship.
• Metal Enclosures: Rugged transmitter and receiver housings suit fixed AV installations and repeated professional use.

Technical Specifications

• Part Number: OMX-01HMHM0003
• Product Type: HDMI over Cat5e/6 transmitter and receiver extender set
• Maximum Resolution: Full HD 1080p at 60 Hz YUV 4:4:4
• Supported Video Formats: 720p, 1080i, 1080p, 3D video
• Video Compatibility: HDMI, DVI 1.0, VESA
• Transmission Distance: Up to 196 feet over a single Cat5e or Cat6 cable
• EDID: Built-in EDID management
• PoC: Power over Cable supported
• PoC Distance, Transmitter Powering Receiver: Up to 196 feet
• PoC Distance, Receiver Powering Transmitter: Up to 98 feet
• Input Video Signal: 0.5-1.0 V p-p
• Input DDC Signal: 5 V p-p TTL
• Video Output: HDMI
• Audio Formats: LPCM 2.0 at 48 kHz, DTS-HD Master Audio, Dolby TrueHD

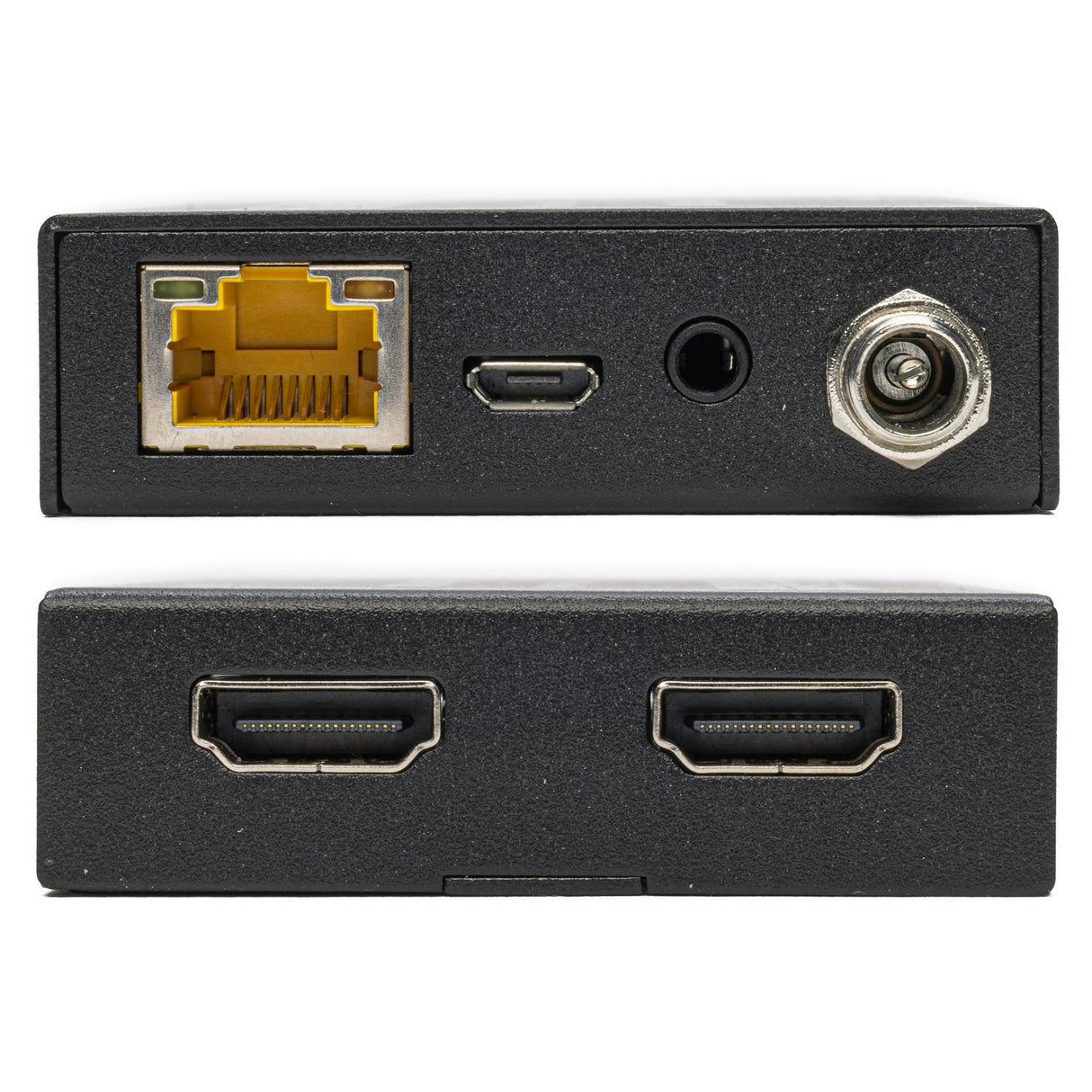

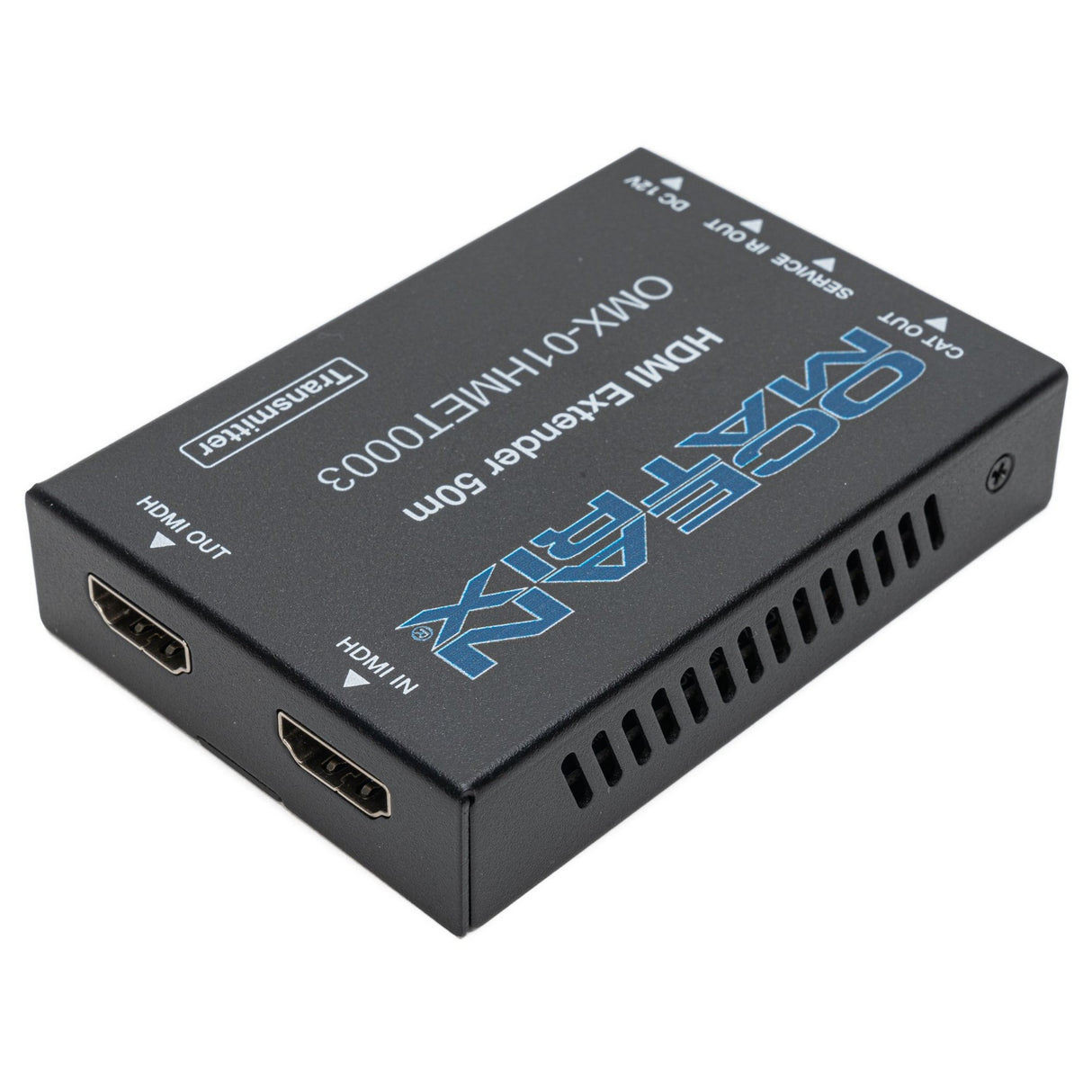

• Transmitter Connections: HDMI input, RJ45 port, DC power input

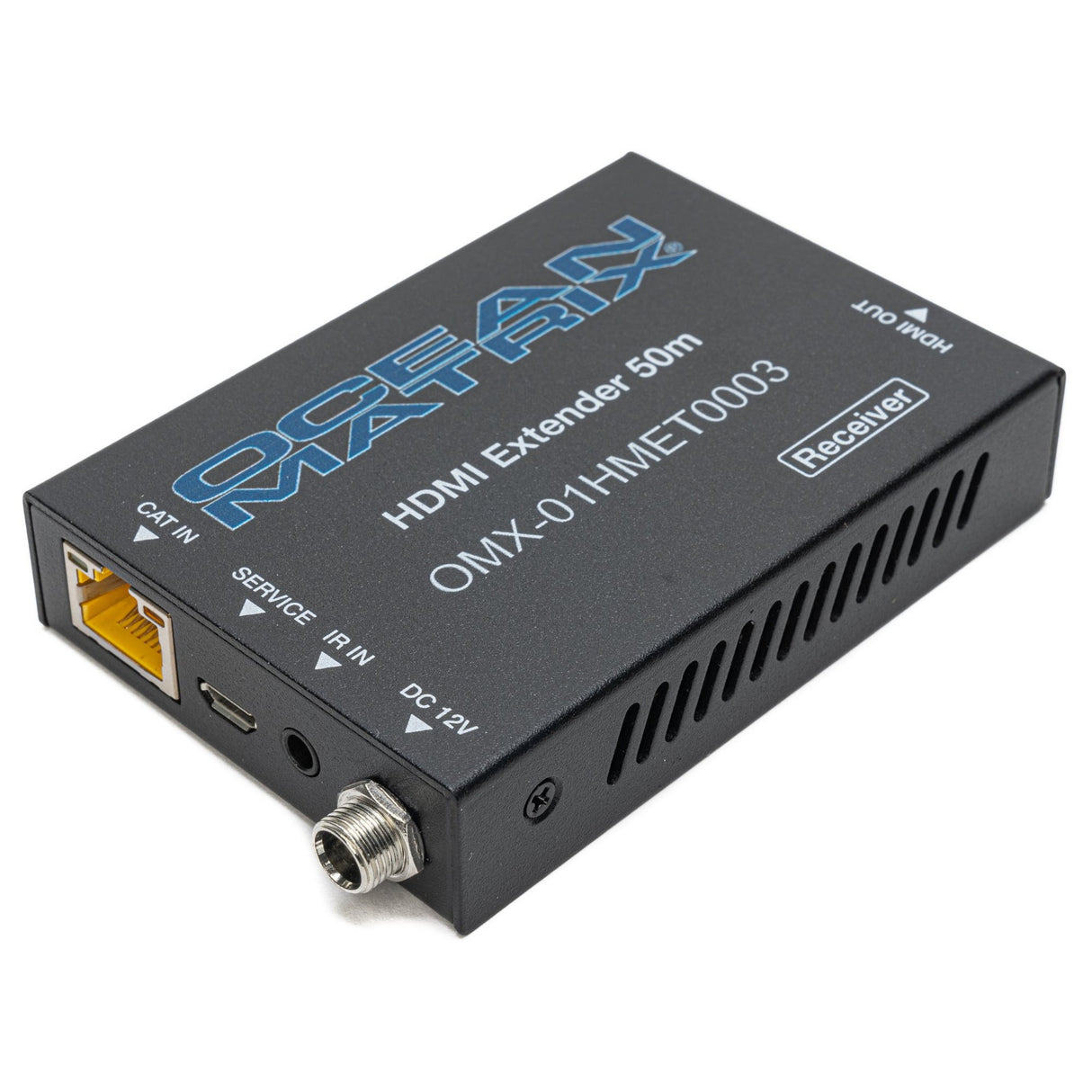

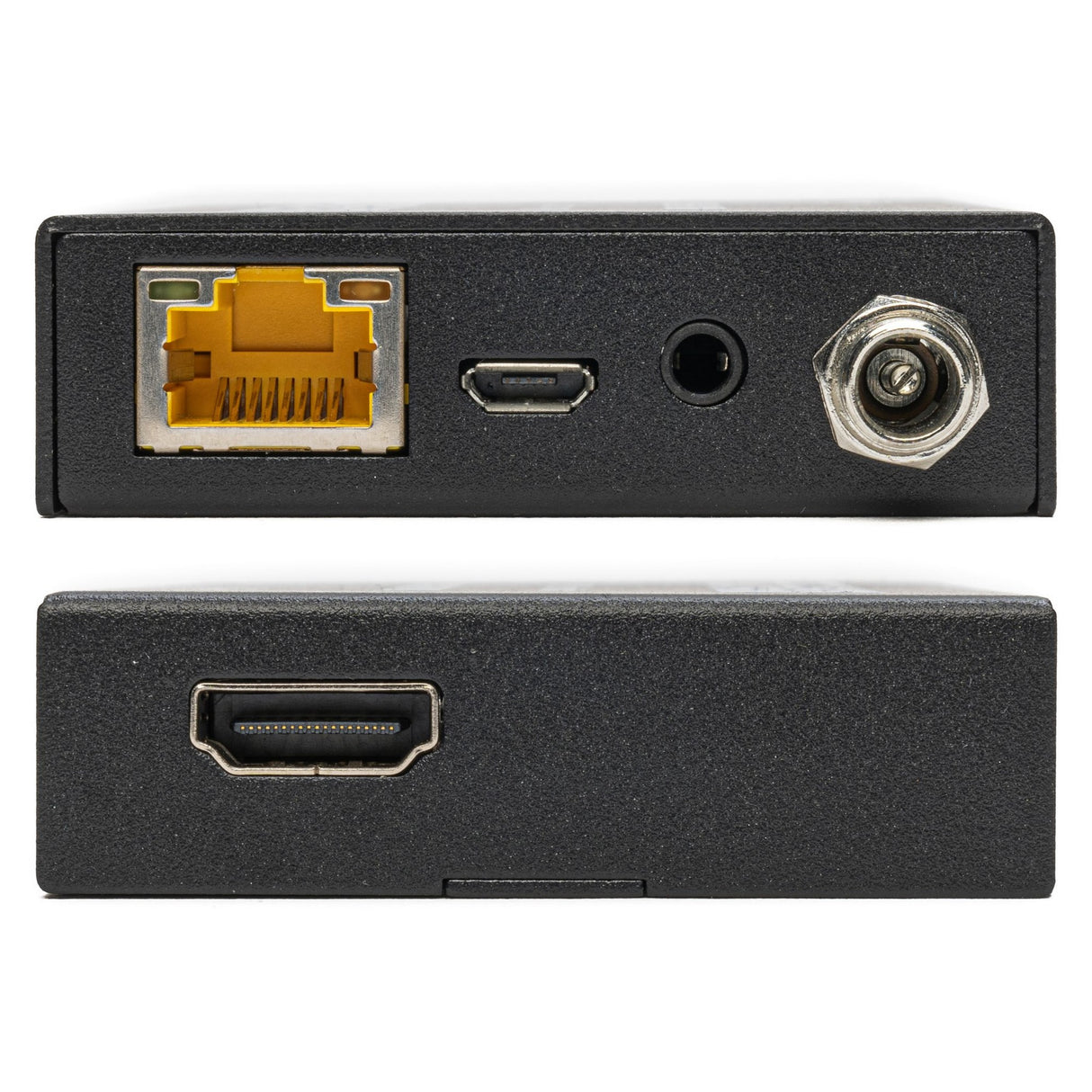

• Receiver Connections: HDMI output, RJ45 port
• Status Indicators: Power and HDMI indicators on transmitter and receiver
• Power Supply: DC 5V/1A
• Power Consumption: 2 W maximum
• Enclosure: Metal
• Dimensions: 3.1 x 2.6 x 0.6 inches (L x W x H) per unit
• Net Weight: 0.5 lb for transmitter and receiver
• Installation Temperature Range: 41 to 140 degrees Fahrenheit
• Warranty: 1 year

What's In the Box

• OMX-01HMHM0003 transmitter
• OMX-01HMHM0003 receiver
• DC 5V/1A power supply
