Ferrofish 16x16 AD/DA Converter with 4x ADAT I/O

16x16 AD/DA Converter with 4x ADAT I/O, Word Clock & Remote Control

This 1U rack-mount 16x16 analog-to-digital and digital-to-analog converter is built for studios and live-rack systems that need dependable multi-channel conversion with flexible digital expansion. With 16 balanced 1/4-inch TRS analog inputs and 16 balanced 1/4-inch TRS analog outputs, it’s a streamlined solution for integrating analog outboard gear, mixers, monitor controllers, and patchbays into an ADAT-based workflow.

Four ADAT inputs and four ADAT outputs support SMUX at higher sample rates, making it easy to scale channel count based on your session needs—up to 32 channels at 48 kHz, 16 channels at 96 kHz, and 8 channels at 192 kHz. Front-panel level displays and multi-colored LED metering provide clear, high-resolution monitoring, while per-channel routing and modern remote control options help you configure complex setups quickly and confidently.

Key Features

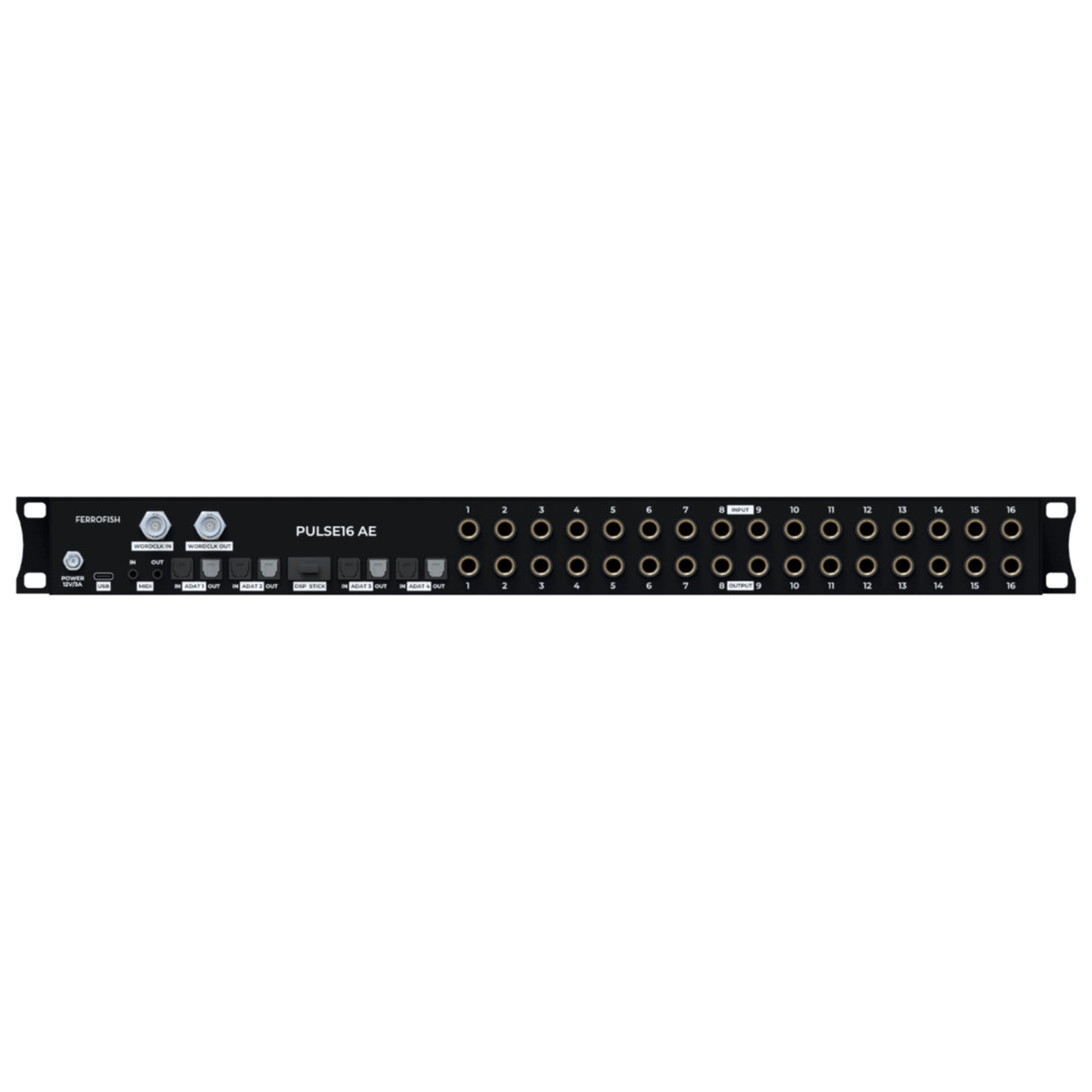

• 16 Balanced TRS Inputs & 16 Balanced TRS Outputs: 1/4-inch (6.3 mm) analog I/O for clean integration with professional line-level equipment.
• 4x ADAT In / 4x ADAT Out with SMUX: Supports 32 channels at 48 kHz, 16 channels at 96 kHz, and 8 channels at 192 kHz for flexible digital expansion.
• Word Clock I/O & Flexible Sync: BNC Word Clock input/output with internal high-stability clock or external sync via ADAT or Word Clock.
• Per-Channel Routing: Designed for detailed signal flow configuration across channels.

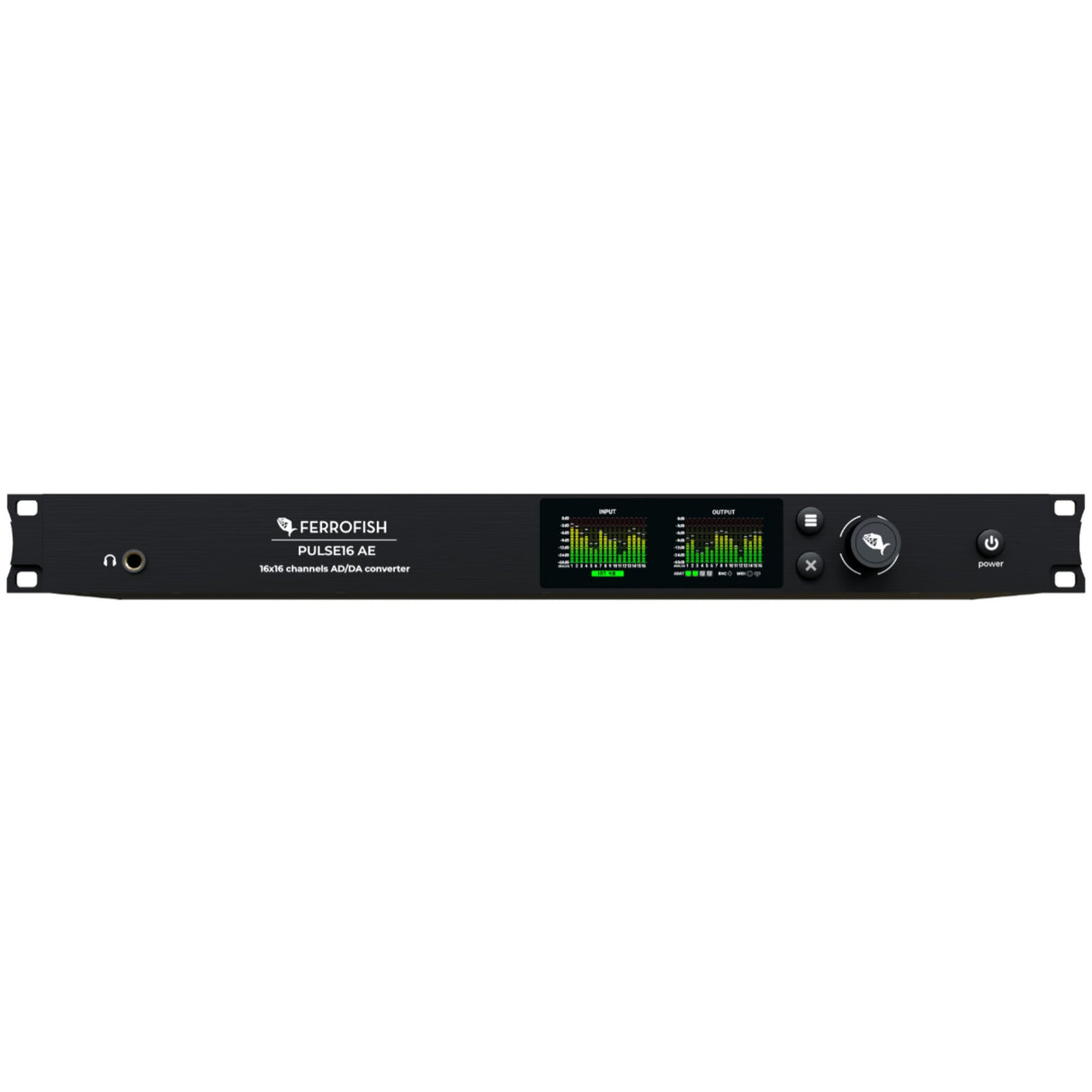

• High-Resolution Front-Panel Monitoring: Input/output level displays and multi-colored LED meters for fast visual feedback.
• Front-Panel Navigation: Control knob and buttons for quick setup and configuration.
• USB-C & TRS-MIDI Type A Remote Control: Supports remote control via Ferrofish RemoteFish software, MIDI CC control, and firmware updates.
• Dedicated Headphone Monitoring Path: 1/4-inch (6.3 mm) headphone output with adjustable amplification stages and 1 dB digital volume steps.
• Expandable DSP Option: Expandable processing via optional DSP stick.

Technical Specifications

• Analog Inputs: 16 x balanced TRS (1/4-inch / 6.3 mm)
• Analog Outputs: 16 x balanced TRS (1/4-inch / 6.3 mm)
• Headphone Output: 1 x TRS (1/4-inch / 6.3 mm)
• ADAT I/O: 4 x ADAT inputs, 4 x ADAT outputs
• ADAT Channel Support (SMUX): 32 ch @ 48 kHz, 16 ch @ 96 kHz, 8 ch @ 192 kHz
• Word Clock: Input and output (BNC)
• Clocking: Internal high-stability clock or external sync via ADAT / Word Clock
• Internal Word Clock Oscillator: 125 MHz high-precision; ±1.5 ppm initial accuracy; ±2.5 ppm temperature drift; ±1 ppm aging
• PLL: Digitally controlled PLL with active jitter reduction
• DAC: ESS ES9017, 32-bit / 192 kHz, DNR 120 dB, THD+N –110 dB, output impedance 110 Ω
• ADC: ESS ES9840Q, 32-bit / 192 kHz, DNR 116 dB, THD+N –108 dB, input impedance 6 kΩ
• Headphone Monitoring DAC: Dedicated monitoring path via separate DAC ES9023
• Headphone Amplification: Adjustable in four stages
• Headphone Volume Control: Digital, 1 dB resolution
• Supported Headphone Impedance: 15–600 Ω
• Connectivity for Control/Updates: USB-C and TRS-MIDI Type A; MIDI CC remote control; MIDI port for firmware updates and future features
• Power Supply: 12 V DC / 3 A; 12 VA nominal, <1 VA standby; center-positive locking 2.54 mm barrel jack; power supply included
• Fuse: Internal polyfuse (self-resetting)
• Operating Conditions: +5 °C to +45 °C; humidity <75% non-condensing
• Form Factor: 19-inch rack-mount, 1U
• Dimensions: Approx. 19.7 x 1.7 x 7.5 in (50 x 4.4 x 19 cm)
• Weight: 4.4 lb (2.0 kg)
