fiberplex DGL-422 LightViper Bi-directional RS-422 Dongle

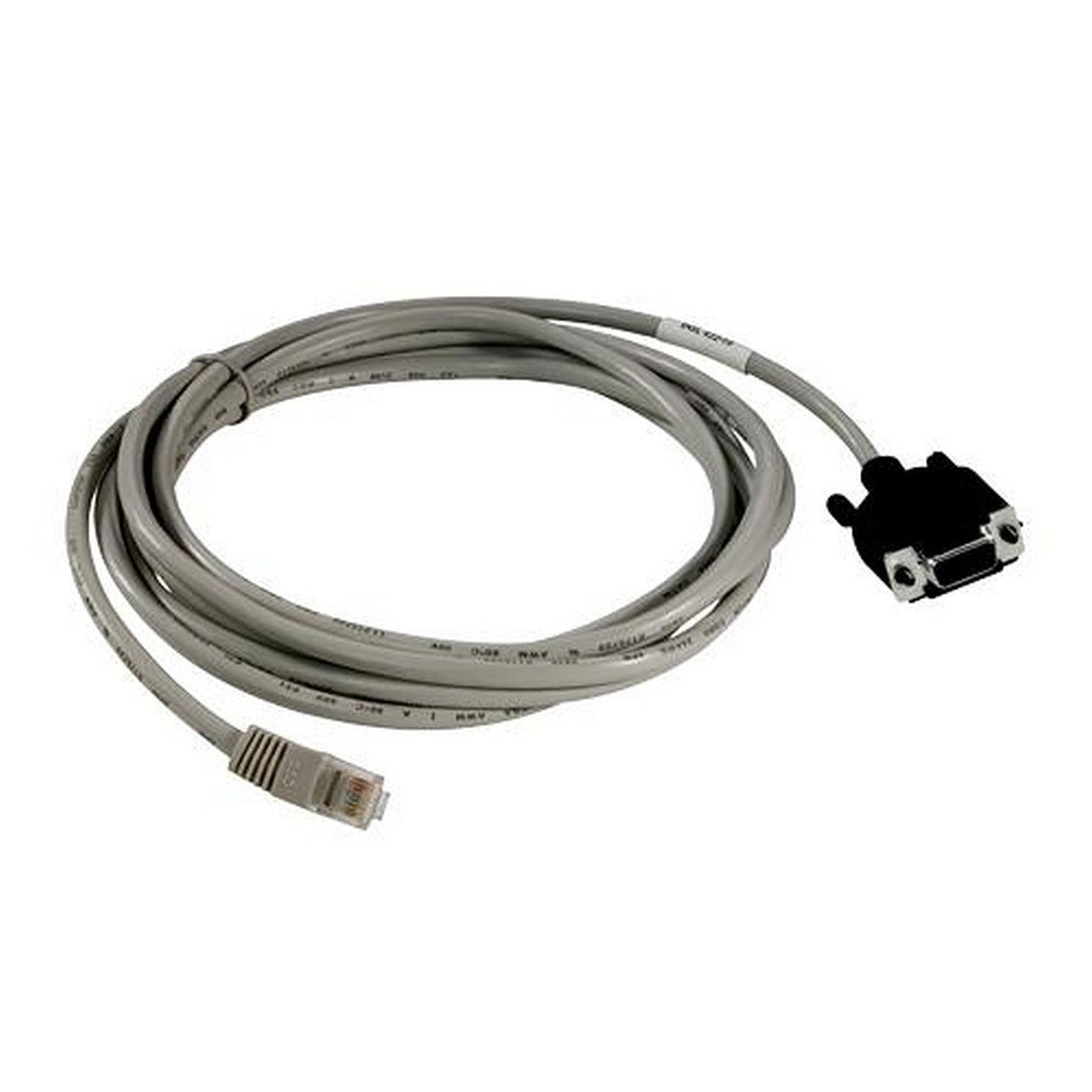

The DGL-422 control cable is designed for applications where you are feeding RS-422 control data out of the 9 pin control data output of a Yamaha digital console into the “Control” circuits RJ45 jack of the VIM-1832 (i.e. sending control data from mix position back down to the stage). This dongle has active electronics inside the 9 pin connector. Two of these cables are required for remote control of on stage mic preamps. This control data travels with the audio data on the same fiber pair.
Key Features
- Allows control of Yamaha AD8HR mic pres from a Yamaha Console
- Converts RS-422 Data
- Data transported on existing fiber along with input (return) audio payload
- Powered by connection to Series 32 device
Technical Specifications
Power Requirement from Control Host
Voltage Range (VDC): 5
Supply Current (mA): 60
RX Data Rate (KHz)
Min: DC
TYP: 38.4
MAX: 200
TX Data Rate (KHz)
MIN: DC
TYP: 38.4
MAX: 1000
User Connections: D9 (RS422)
Host Connections: RJ-45 (x3)
Environmental
Storage Temperature (°C): -40 - 85
Operating Temperature (°C): 0 -50
